Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Hunter 52-inch Contemporary Fresh White Indoor Ceiling Fan. Please read all instructions carefully before beginning installation to ensure safe and proper operation. This ceiling fan is designed to provide efficient air circulation and integrated lighting for indoor spaces such as bedrooms and living rooms.
Informació de seguretat
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these important safety precautions.
- Desconnecteu sempre l'alimentació a l'interruptor principal abans de la instal·lació o el manteniment.
- Ensure all electrical connections comply with local codes and ordinances, as well as the National Electrical Code. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- L'estructura de muntatge ha de ser capaç de suportar el pes del ventilador (aproximadament 17.7 lliures).
- No doblegueu els suports de les fulles durant la instal·lació o la neteja.
- Ensure that the fan blades are installed at a minimum of 7 feet (2.1 meters) from the floor.
- No feu funcionar el ventilador amb les aspes danyades o amb altres components danyats.
- Aquest ventilador està classificat només per a ús en interiors.
Contingut del paquet
Verify that all components listed below are included in your package before beginning installation. If any parts are missing or damaged, contact customer support.
- Carcassa del motor del ventilador de sostre
- 5 Fresh White / Light Oak Reversible Medium Density Fiberboard (MDF) Blades
- Integrated Light Kit with White Lens Glass
- Two 6.5-Watt Energy-Efficient, Dimmable LED Bulbs (E26 base, A15 shape)
- Cadenes de tracció per a la velocitat del ventilador i el control de la llum
- 3-inch Downrod for Standard Profile Muntatge
- Components de muntatge i cablejat
Configuració i instal·lació
Professional installation is recommended for this product. Ensure power is disconnected at the circuit breaker before proceeding. Refer to the included wiring diagrams for specific electrical connections.
1. Muntatge del ventilador
- Fixeu el suport de muntatge a la caixa de connexions del sostre. Assegureu-vos que la caixa de connexions estigui ben fixada a l'estructura de l'edifici i que pugui suportar el pes del ventilador.
- Attach the downrod to the fan motor housing.
- Aixequeu amb cura el conjunt del ventilador i pengeu-lo del suport de muntatge.
2. Connexions elèctriques
- Connect the fan's electrical wires to the household wiring according to the provided wiring diagram. Ensure all connections are secure and insulated with wire nuts.
- Tuck the wires neatly into the junction box and secure the canopy to the mounting bracket.
3. Fixació de les fulles i del kit de llums
- Attach the fan blades to the blade holders, ensuring they are firmly secured. The blades are reversible, offering Fresh White or Light Oak finish options.
- Install the integrated light kit to the bottom of the fan motor housing.
- Screw in the two provided 6.5-Watt LED bulbs into the light kit sockets.
- Attach the white lens glass to the light kit.
Figura 1: Complet view of the Hunter 52-inch Contemporary Fresh White Indoor Ceiling Fan, showcasing its five blades, integrated LED light kit, and pull chains.

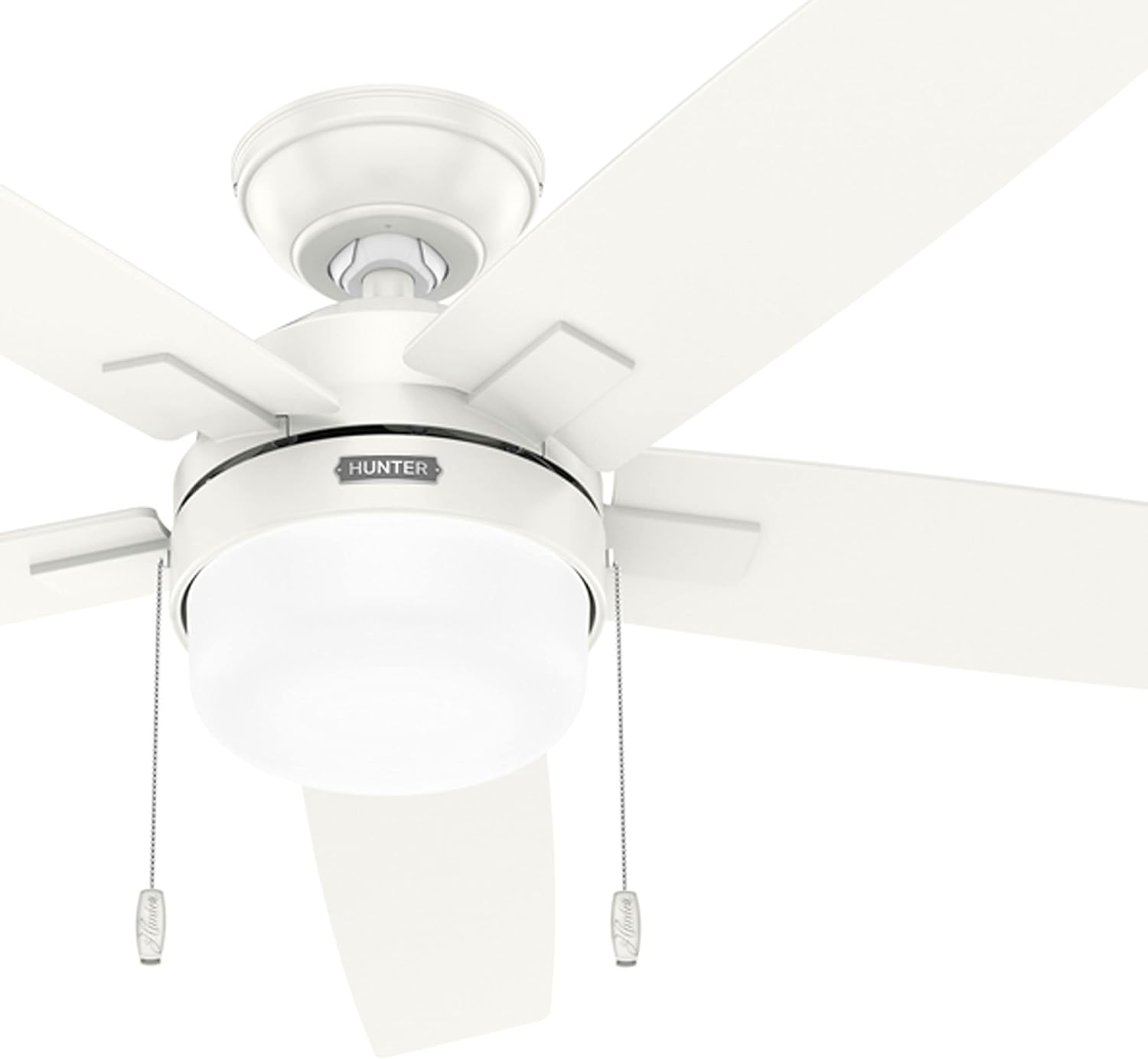

Figura 2: Primer pla view of the fan's central housing, showing the Hunter logo, the integrated LED light kit with white lens, and the two pull chains.
Figura 3: Detallada view of the fan's integrated light kit and the two pull chains, one for fan speed and one for light control.
Figure 4: Close-up of one of the five fan blades, showcasing its fresh white finish and attachment point to the motor housing.
Figure 5: Close-up demonstrating the reversible nature of the fan blades, with the light oak finish visible on one side.
Instruccions de funcionament
Control de velocitat del ventilador
The fan speed is controlled by one of the pull chains. Each pull will cycle through the available speeds:
- Pull 1: High Speed
- Pull 2: Medium Speed
- Pull 3: Low Speed
- Pull 4: Off
Control de la llum
The integrated LED light kit is controlled by the other pull chain. Each pull will cycle the light on or off. The included LED bulbs are dimmable, but dimming functionality typically requires a compatible wall dimmer switch (not included) if not controlled via the pull chain.
Reversible Motor (Summer/Winter Operation)
Your Hunter ceiling fan features a WhisperWind reversible motor for optimal performance year-round. A slide switch on the fan's motor housing controls the direction of blade rotation.
- Mode d'estiu: Set the switch to allow blades to rotate counter-clockwise, creating a downward airflow that produces a cooling effect.
- Mode d'hivern: Set the switch to allow blades to rotate clockwise, creating an upward airflow that helps circulate warm air trapped near the ceiling.
Always turn off the fan and ensure the blades have stopped completely before changing the direction of rotation.
Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim del teu ventilador de sostre.
- Neteja: Per netejar el ventilador, netegeu-lo amb un drap suau iamp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or electrical components.
- Cura de la fulla: Periodically check blade screws for tightness. Loose blades can cause wobbling and noise.
- Bombetes: Replace LED bulbs only with E26 base, A15 shape, 6.5-Watt dimmable LED bulbs or equivalents. Ensure power is off before replacing bulbs.
- Revisió anual: Annually, check all connections and mounting hardware to ensure they remain secure.
Resolució de problemes
If you experience issues with your fan, consult the following table for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No power to the fan; Loose wire connections; Motor switch in off position. | Check circuit breaker and wall switch; Verify all wire connections are secure; Ensure pull chain is not in the 'off' position. |
| El ventilador trontolla | Cargols de la fulla solts; Fulles desequilibrades; Suport de muntatge solt. | Tighten all blade screws; Check for bent blade holders; Ensure mounting bracket is securely fastened. |
| La llum no funciona | Loose wire connection in light kit; Faulty bulb; Light pull chain in 'off' position. | Check light kit wiring; Replace bulb; Pull light chain to turn on. |
| Funcionament sorollós | Loose screws; Fan not properly secured; Blade rubbing. | Check and tighten all screws; Ensure canopy is not touching the ceiling; Verify blades are not hitting any obstructions. |
Especificacions
Detailed technical specifications for the Hunter 52-inch Contemporary Fresh White Indoor Ceiling Fan.
| Característica | Detall |
|---|---|
| Marca | Caçador |
| Nom del model | CC5C24C87 |
| Color | Blanc Fresc |
| Disseny de ventilador elèctric | Ventilador del sostre |
| Font d'alimentació | AC |
| Estil | Contemporània |
| Dimensions del producte | 52 "P x 52" W x 13" H |
| Tipus d'habitació | Dormitori, sala d'estar |
| Característiques especials | AC Motor, Dimmable, Frosted Glass, Reversible Blades, Reversible Motor, Variable Speed |
| Usos recomanats | Circulació d'aire |
| Llum Wattage | 6.5 watts (per bulb, 2 bulbs included) |
| Tipus d'acabat | Mirall Satinat |
| Nombre de fulles | 5 |
| Capacitat de cabal d'aire | 2471 peus cúbics per minut |
| Longitud de la fulla | 21 polzades |
| Voltage | 120 Volts |
| Tipus de canvi | Estirar la cadena |
| Pes de l'article | 17.7 lliures |
| Components inclosos | Fan Blades, Light Kit, Pull Chains |
| Ús interior/exterior | Interior |
| Especificació Met | ETL |
| Mètode de control | Estirar la cadena |
| Nombre de nivells de potència | 3 |
| Tipus de motor | Sense raspalls |
| Fabricant | Hunter Fan Company |
| Tipus d'instal·lació | Instal·lació professional recomanada |
| UPC | 840214738920 |
| Tipus de muntatge | Muntatge Downrod |
Figure 6: Energy Guide label providing estimated yearly energy cost and airflow information for the ceiling fan.
Informació de la garantia
This Hunter ceiling fan is covered by a manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Hunter Fan Company weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
Atenció al client
For technical assistance, troubleshooting not covered in this manual, or to inquire about replacement parts, please contact Hunter Fan Company customer support. Contact information can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
