Mount-It! MI-3880B_G10 Anti-Theft Tablet Floor Stand Kiosk Instruction Manual

1. Introducció

This manual provides detailed instructions for the assembly, operation, and maintenance of your Mount-It! MI-3880B_G10 Anti-Theft Tablet Floor Stand Kiosk. This product is designed to securely display tablets in public environments such as trade shows, retail stores, hotels, and libraries, offering protection against tamprobatori i robatori.

Please read these instructions thoroughly before installation and use to ensure proper functionality and safety.

2. Informació de seguretat

• Assegureu-vos que tots els components siguin presents i no estiguin danyats abans del muntatge.
• Do not exceed the maximum weight capacity of 2.2 lbs (1 kg) for the tablet enclosure.
• Munteu el suport sobre una superfície plana i estable.
• Mantingueu les peces petites allunyades dels nens per evitar perills d'asfixia.
• Use only the provided tools and hardware for assembly.

3. Contingut del paquet

Verifiqueu que totes les peces estiguin incloses al paquet:

• Tablet Enclosure (1)
• Pal de suport (1)
• Placa base (1)
• Lockable Cabinet Door (1)
• Keys for Enclosure and Cabinet (2 sets)
• Tablet Adapters/Spacers (Multiple, for various iPad models)
• Assembly Hardware Kit (Screws, washers, Allen wrench)
• Manual d'instruccions (Aquest document)

Figura 1: Acabatview of the tablet floor stand kiosk components, showing the tablet enclosure, support pole, and base plate.

4. Instruccions de muntatge

Follow these steps to assemble your tablet floor stand kiosk:

4.1 Attach the Support Pole to the Base Plate

1. Place the base plate on a flat, stable surface.
2. Align the bottom of the support pole with the mounting holes on the base plate.
3. Secure the support pole to the base plate using the provided screws and Allen wrench. Ensure all screws are tightened firmly.

4.2 Attach the Tablet Enclosure to the Support Pole

1. Position the tablet enclosure on top of the support pole, aligning the mounting holes.
2. Secure the enclosure to the pole using the appropriate screws from the hardware kit. Tighten securely.

Figura 2: Fully assembled tablet floor stand kiosk, ready for tablet installation.

4.3 Install the Lockable Lower Cabinet Door

1. Locate the opening on the support pole for the lower cabinet.
2. Attach the lockable cabinet door using the provided hinges and screws. Ensure the lock mechanism functions correctly with the provided key.

Figura 3: The lockable lower cabinet, providing secure storage for power strips or other accessories. Power cord and power source are not included.

5. Funcionament

5.1 Installing Your Tablet

The universal enclosure is compatible with various iPad models, including iPad Pro (10.5", 11"), iPad Air (10.5", 10.9"), iPad 10 (10.9"), iPad 9 (10.2"), iPad 8 (10.2"), and iPad 7 (10.2").

1. Unlock the tablet enclosure using the provided key and open it.
2. Select the appropriate adapters/spacers for your specific iPad model. These adapters ensure a snug and secure fit.
3. Adjust the position of the internal sliders within the enclosure to fit your iPad model.
4. Carefully place your iPad into the enclosure, ensuring it sits flush and is centered.
5. Close the enclosure and lock it with the key.

Figura 4: Various adapters included to accommodate different iPad models, ensuring proper fit and access to features like home button or camera cutouts.

Figura 5: Internal sliders can be adjusted to securely hold various tablet sizes within the enclosure.

5.2 Adjusting the Tablet Enclosure

The enclosure offers flexibility for optimal viewing:

• Ajust d'inclinació: The iPad enclosure can be tilted up to 75° to achieve different viewing angles. Loosen the tilt mechanism, adjust to the desired angle, and re-tighten.
• Rotació: The screen can be rotated 90° between portrait and landscape modes. Simply rotate the enclosure to your preferred orientation.

Figura 6: Demonstrates the 0° to 75° tilt range and 90° rotation capability of the tablet enclosure.

5.3 Anti-Theft Security Lock

The tablet enclosure features a lockable design to protect your device from theft and unauthorized access. Always ensure the enclosure is locked when the stand is in use in public areas.

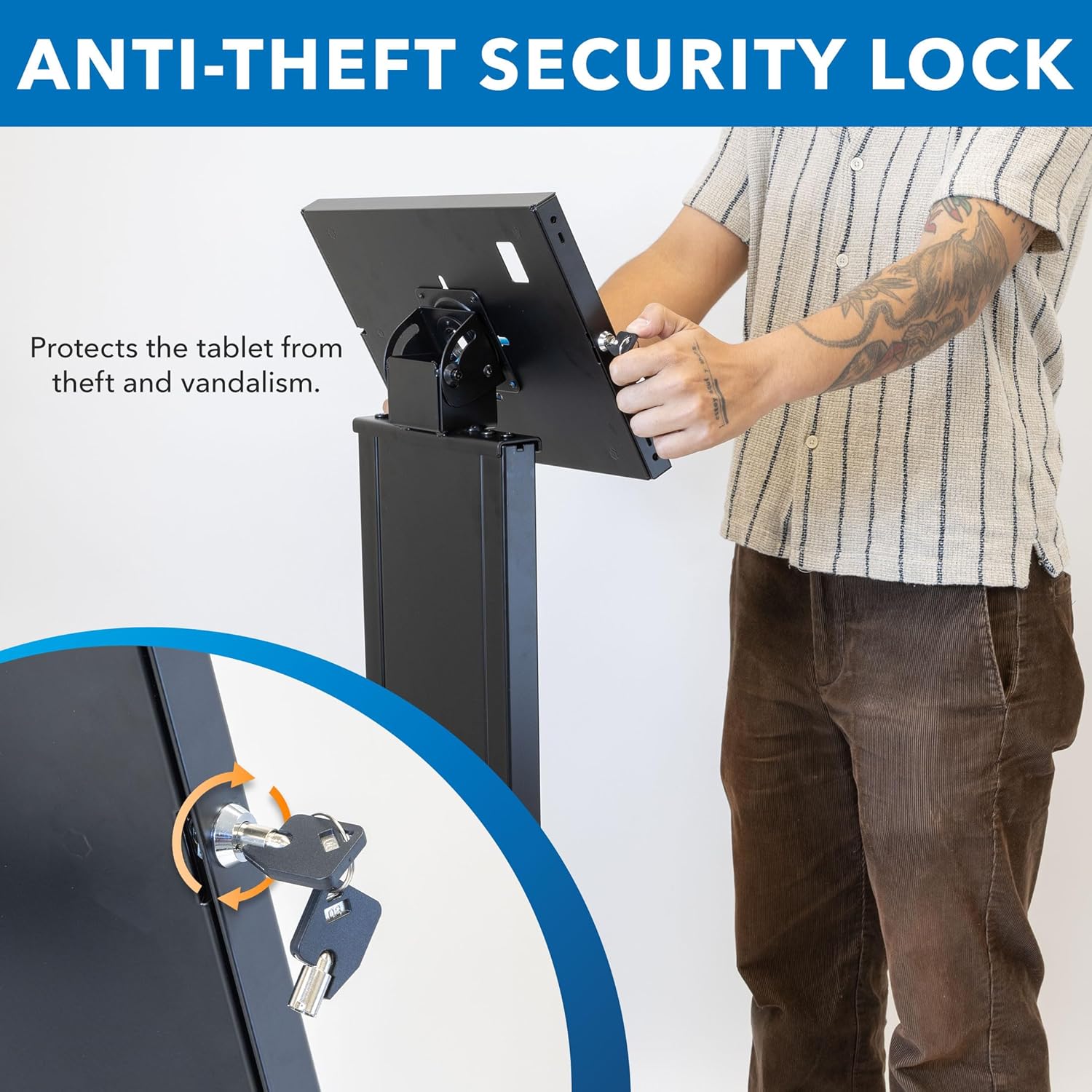

Figura 7: Close-up of the anti-theft security lock on the tablet enclosure, showing the key insertion point.

5.4 Gestió de cables

The stand includes internal cable routing to keep power and data cables organized and out of sight. Route your tablet's charging cable through the designated channels in the support pole and into the lockable lower cabinet for a clean and secure setup.

Figura 8: Illustration of internal cable routing, demonstrating how to conceal cables within the stand's pole for a tidy appearance and added security.

6. Manteniment

• Neteja: Netegeu el suport amb un drap suauamp drap. Eviteu productes de neteja abrasius o dissolvents que puguin danyar l'acabat.
• Inspecció: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que estiguin ben ajustats i segurs. Torneu a apretar-los si cal.
• Cura del pany: Keep the lock mechanisms clean and free of debris. Lubricate sparingly with graphite powder if the lock becomes stiff.

7. Solució De Problemes

8. Especificacions

• Número de model: MI-3880B_G10
• Marca: Mount-It!
• Material: Acer d'alta resistència
• Color: Negre
• Dispositius compatibles: Tablets (iPad Pro 10.5", 11"; iPad Air 10.5", 10.9"; iPad 10 10.9"; iPad 9 10.2"; iPad 8 10.2"; iPad 7 10.2")
• Capacitat de pes: 2.2 lliures (1 kg)
• Alçada de l'estand: Aproximadament 42.3 polzades (107.4 cm)
• Dimensions base: 34 cm x 30 cm
• Enclosure Tilt: Fins a 75°
• Enclosure Rotation: 90° (Retrat/Paisatge)
• Pes de l'article: 32.9 lliures (14.9 kg)
• Dimensions del paquet: 41.5 x 12.75 x 5.25 polzades (105.4 x 32.4 x 13.3 cm)

Figura 9: Detailed dimensions of the tablet floor stand kiosk, including height, base, and enclosure measurements.

9. Garantia i Suport

This Mount-It! tablet kiosk comes with a Garantia de per vida. For any questions, technical assistance, or warranty claims, please contact our knowledgeable and responsive US-based customer support team during standard business hours.

For further assistance, please visit the official Mount-It! weblloc web o consulteu la documentació de compra per obtenir les dades de contacte.
