1. Informació de seguretat
This OMTech 60W CO2 Laser Engraver is a Class 2 laser product with 0.827 mW output power. Always follow safety guidelines to prevent injury or damage. Read this manual completely before operation.
- Protecció ocular: Never look directly into the laser beam. Always use appropriate laser safety glasses.
- Ventilació: Ensure adequate ventilation to remove smoke and fumes generated during operation. The built-in air assist helps, but an external exhaust system is crucial.
- Seguretat contra incendis: Do not leave the machine unattended during operation. Keep a fire extinguisher nearby. Engraving certain materials can cause flames.
- Compatibilitat de materials: Only engrave or cut materials compatible with CO2 lasers. Avoid materials that produce toxic fumes or are highly flammable.
- Parada d'emergència: Familiaritzeu-vos amb la ubicació i la funció del botó d'aturada d'emergència.
- Supervisió: The widened viewing window is made from flame retardant material for safe observation of the engraving process.
2. Producte acabatview
The OMTech 60W CO2 Laser Engraver is designed for precision engraving and cutting on various non-metallic materials. It features a 20x28 inch (500x700 mm) work area, autofocus, and a 4-way pass-through for larger items.
Figura 2.1: Frontal view of the OMTech 60W CO2 Laser Engraver.
Característiques principals:
- Potència làser: 60W CO2 laser tube.
- Àrea de treball: 20x28 inches (500x700 mm).
- Enfocament automàtic: Automatic focal distance adjustment.
- Autolift Workbed: Adjustable workbed height.
- 4-Way Pass-Through: Accommodates larger and longer materials.
- Air Assist: Integrated air assist for smoke and dust removal.
- Dual Workbeds: Includes honeycomb and aluminum blade beds.
- Compatibilitat del programari: Compatible with RDWorks, LightBurn, CorelDRAW, and AutoCAD.
3. Configuració
3.1 Desembalatge i col·locació
Carefully unbox the laser engraver. Ensure the machine is placed on a stable, level surface in a well-ventilated area, away from flammable materials.
3.2 Connexions
- Potència: Connecteu el cable d'alimentació a una presa de terra.
- USB/Ethernet: Connect the machine to your computer using the provided USB or Ethernet cable.
- Bomba d'aigua: Connect the water pump and ensure the laser tube is properly cooled.
- Air Assist: The machine has built-in air assist. Ensure the air compressor (if external) is connected and functioning.
- Sistema d'escapament: Connect the exhaust pipe to an external ventilation system to safely remove fumes.
Figure 3.1: Proper connection of the exhaust system is essential for safety and performance.
4. Instruccions de funcionament
4.1 Instal·lació i configuració del programari
Install the recommended laser software (e.g., LightBurn, RDWorks) from the provided USB flash drive or official website. Follow the software's instructions for machine connection and initial setup.
Figure 4.1: Digital control panel and compatible software interfaces.
4.2 Material Loading and Focusing
- Material de càrrega: Place your material flat on the workbed. For acrylic mirror, load with the non-reflective side facing up for engraving.
- Enfocament automàtic: Use the autofocus function to automatically set the correct focal distance. This eliminates manual adjustments and ensures precise results.
Figure 4.2: The autofocus feature automatically adjusts the laser head to the optimal focal distance.
4.3 Procés de gravat i tall
Prepare your design in the software. Set appropriate power and speed settings for your material. Initiate the engraving or cutting process. Monitor the operation through the flame-retardant viewfinestra d’engegada.
Video 4.1: Demonstration of laser engraving and cutting on acrylic mirror. This video illustrates material preparation, software settings, and post-processing for acrylic mirror projects.
Video 4.2: Guide on how to laser engrave a photo using a CO2 laser engraver. This video covers image preparation and specific settings for achieving detailed photo engravings.
5. Manteniment
- Neteja: Regularly clean the work area, lenses, and mirrors to ensure optimal performance and longevity.
- Laser Tube Care: The high-performance DC tube delivers 60W of power for up to 1000 hours of usage and doubles its lifespan when consistently used at lower settings. Ensure proper water cooling is maintained.
- Broquet d'assistència d'aire: Keep the air assist nozzle clear of debris to maintain efficient smoke and dust removal.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El làser no dispara | Power supply issue, laser tube fault, software error | Check power connections, inspect laser tube, restart software/machine |
| Mala qualitat de gravat | Incorrect focus, wrong power/speed settings, dirty optics | Perform autofocus, adjust settings, clean lenses and mirrors |
| La màquina no es connecta a l'ordinador | USB/Ethernet cable issue, driver problem, software configuration | Check cable, reinstall drivers, verify software settings |
| Excés de fum/fums | Ineffective exhaust, clogged air assist | Ensure exhaust system is powerful and clear, clean air assist nozzle |
7. Especificacions
- Dimensions del producte: 47.2 x 34.3 x 36.6 polzades
- Pes de l'article: 249 lliures

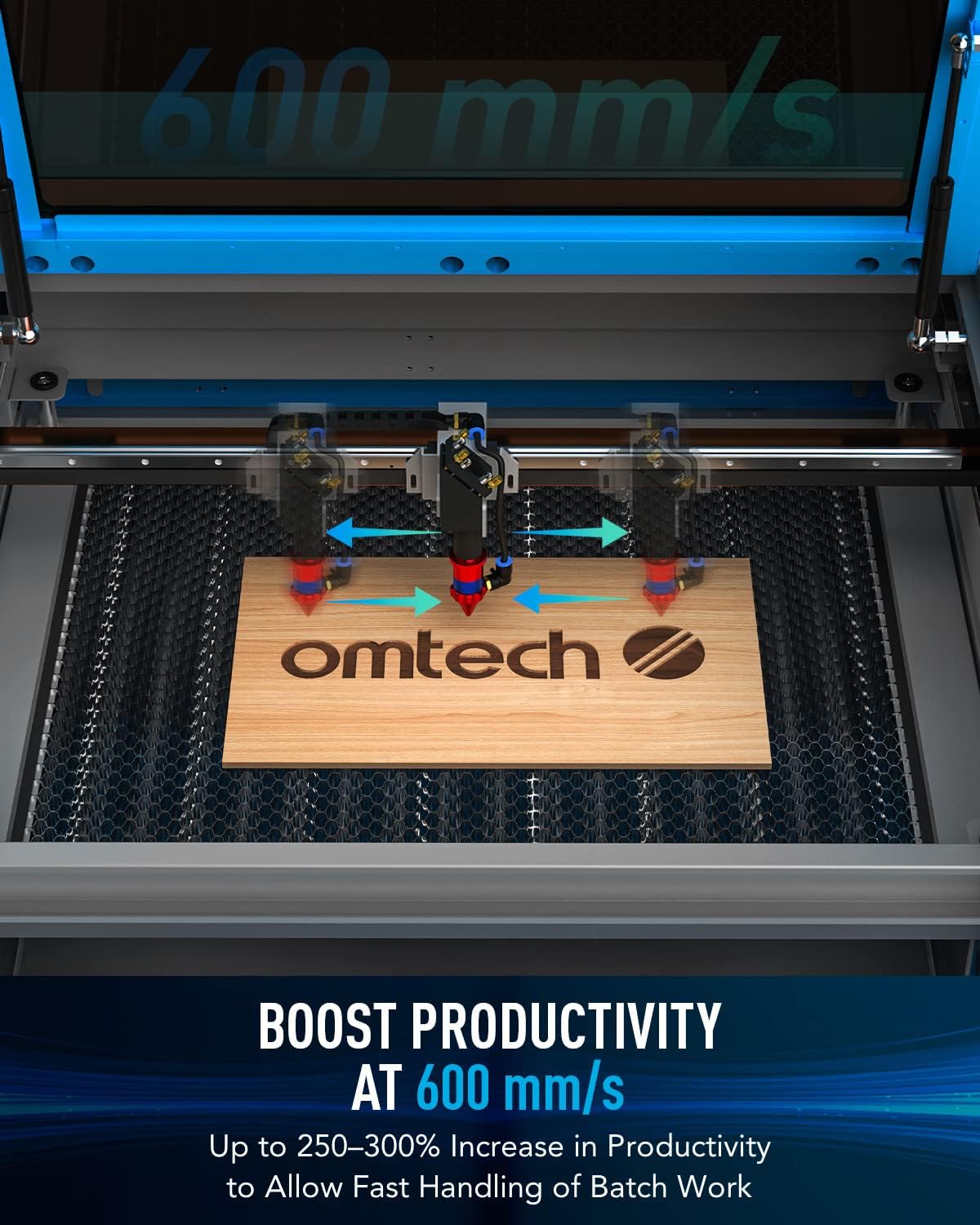

- Velocitat màxima de gravat: 600 mm/s
- Front/Back Pass Size: 32.8 x 3.7 polzades
- Side/Side Pass Size: 20.4 x 0.7 polzades
- Transmissió de dades: USB Cable, Ethernet Cable, USB Flash Drive, Offline
8. Què hi ha a la caixa
- 1x 60W CO2 Laser Engraver
- 1 x manual d'usuari
- 1x cable d'alimentació
- 1 unitat flash USB
- 1x cable USB
- 1x cable Ethernet
- 1x cinta de doble cara
- 1x Joc de claus
- 1x Tube of Silicone Insulation
- 1x Ceramic Resistor
- 1x Exhaust Pipe
- 1x Pipe Clamp
- 1x Bomba d'aigua
- 1x Water Pipe
- 1x Wire Set
- 6x claus
9. Garantia i Suport
This OMTech 60W CO2 Laser Engraver comes with a two-year support warranty. For technical assistance, please contact our U.S.-based technical support team. 24/7 online customer service is also available.
