1. Introducció

The Laserliner MultiWet-Finder Plus is a versatile diagnostic tool designed for non-destructive measurement of material moisture and ambient conditions. It provides quick and reliable readings for various building materials, along with air temperature, relative humidity, and dew point temperature. This manual provides essential information for the safe and efficient operation of your device.

Figura 1: The Laserliner MultiWet-Finder Plus device. This image shows the front view of the device, highlighting its large digital display, control buttons, and the spherical sensor at the top.

2. Instruccions de seguretat

Please read these safety instructions carefully before using the device. Failure to follow these instructions may result in electric shock, fire, or injury.

• Keep the device away from moisture and direct sunlight.
• Do not open the device. Repairs should only be performed by authorized personnel.
• Use only specified batteries. Ensure correct polarity during installation.
• Eviteu impactes forts o que el dispositiu caigui.
• Do not use the device in explosive atmospheres or near flammable materials.
• Desfeu-vos de les piles i del dispositiu d'acord amb la normativa local.

3. Producte acabatview

3.1 Components del dispositiu

The MultiWet-Finder Plus features a robust design with intuitive controls and a clear display.

• Spherical Sensor: For non-destructive material moisture measurement.
• Pantalla LCD: Shows measurement values, modes, and indicators.
• Botó MODE: To switch between measurement modes (Index, CM%, MASS%).
• Botó REF: To set a reference value.
• MAX/SET Button: A view maximum/minimum values or confirm settings.
• FIND Button: To activate the measurement.
• Temperature/Humidity Sensors: Located on the side for ambient condition measurements.

Figura 2: lateral view of the device showing the integrated sensors for air temperature and relative humidity. The image also indicates the measurement ranges for these sensors: air temperature from -10°C to 60°C, relative humidity from 20% to 90% RH, and dew point temperature from -20°C to 60°C.

3.2 Indicadors de visualització

The LCD display provides comprehensive information:

• Temperatura (°C): Ambient air temperature.
• Relative Humidity (% RH): Ambient air humidity.
• Dew Point Temperature (°C): Calculated dew point.
• Moisture Index: A relative value indicating moisture content.
• CM% / MASS%: Specific moisture content for selected materials.
• DRY/WET Bar Graph: Visual indication of moisture level (green for dry, red for wet).

Figura 3: The device's display showing readings in "INDEX MODE". This view includes air temperature, relative humidity, dew point, and a large numerical index value, along with the DRY/WET bar graph.

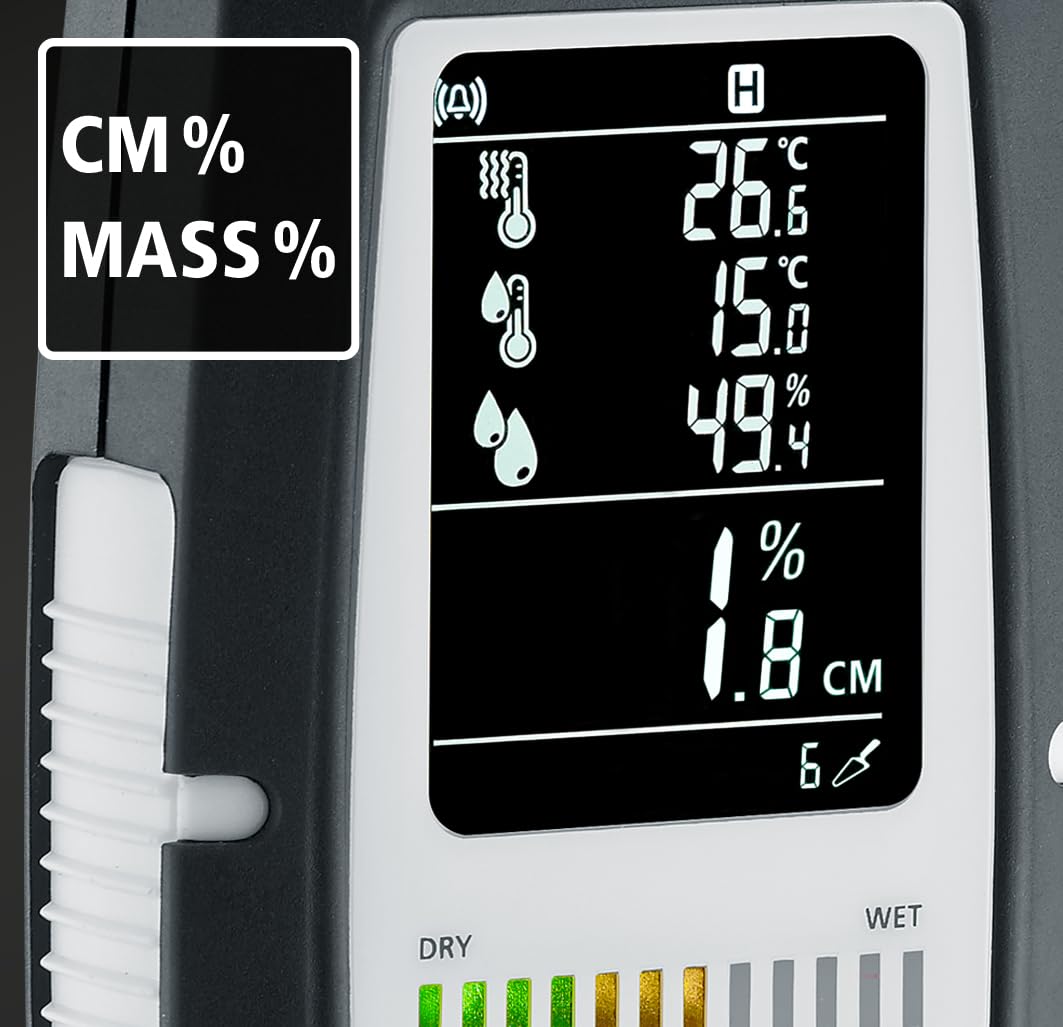

Figura 4: The device's display showing readings in "CM%" or "MASS%" mode. This view provides specific moisture content percentages, alongside the ambient condition readings.

4. Configuració

4.1 Instal·lació de la bateria

The MultiWet-Finder Plus requires standard AAA batteries for operation.

1. Localitzeu la tapa del compartiment de la bateria a la part posterior del dispositiu.
2. Open the cover by sliding or unscrewing it (refer to the diagram if available).
3. Insert the required number of AAA batteries, ensuring correct polarity (+/-).
4. Tanqueu bé la tapa del compartiment de la bateria.

Figura 5: The MultiWet-Finder Plus shown alongside its packaging, which indicates the use of AAA batteries. This image implies the battery type required for the device.

5. Instruccions de funcionament

5.1 Engegada/apagada

Manteniu premut el botó MODE button to power the device on or off.

5.2 Selecció del mode de mesura

Premeu breument MODE per anar ciclant pels modes de mesura disponibles:

• Mode ÍNDEX: Provides a relative moisture index, useful for quick comparisons and identifying moisture patterns.
• CM% / MASS% Mode: Displays specific moisture content as a percentage for selected material types. Refer to the device's internal material tables for accurate readings.

5.3 Taking a Material Moisture Measurement

1. Seleccioneu el mode de mesura desitjat mitjançant el botó MODE botó.
2. Place the spherical sensor directly onto the surface of the material to be measured. Ensure full contact.
3. Premeu el botó TROBAR botó per iniciar la mesura.
4. Read the moisture value on the display. The device measures moisture up to a depth of approximately 40 mm.

Figura 6: Illustration demonstrating the non-destructive measurement capability of the MultiWet-Finder Plus. The image shows the spherical sensor penetrating a material surface, indicating a measurement depth of up to 40 mm.

Figura 7: Close-up of the device's display, highlighting the DRY/WET bar graph and the control buttons. The bar graph visually represents the moisture level, transitioning from green (dry) to red (wet).

5.4 Ambient Condition Measurement

The device continuously measures air temperature, relative humidity, and calculates the dew point temperature. These values are displayed on the upper part of the LCD screen.

5.5 Reference Function (REF)

El REF button allows you to set a reference value. This is useful for comparing current measurements against a known dry or acceptable moisture level in a specific material.

1. Take a measurement on a known dry area of the material.
2. Manteniu premut el botó REF button to set this value as the reference.
3. Subsequent measurements will show the deviation from this reference.

5.6 Max/Min Function (MAX SET)

Premeu el botó MAX/SET botó per view the maximum or minimum measured values during a session. This helps in identifying the highest or lowest moisture points.

5.7 Digital Connection (App)

The MultiWet-Finder Plus supports digital connection to a smartphone application for data logging and analysis. Refer to the app's instructions for pairing and usage.

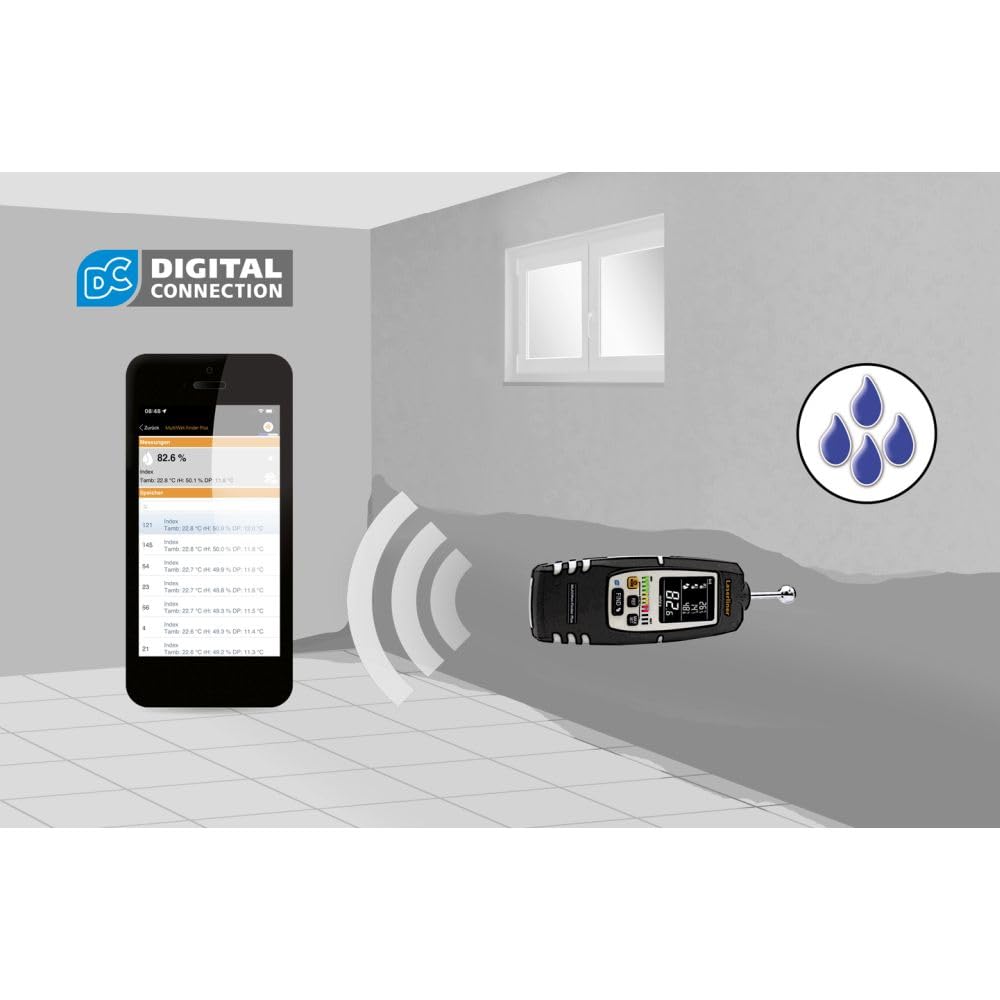

Figura 8: The MultiWet-Finder Plus wirelessly connected to a smartphone displaying the "DIGITAL CONNECTION" feature. This image illustrates the device's capability to transmit data to a mobile application for further analysis and recording.

Figura 9: The MultiWet-Finder Plus being used in a bathroom setting, indicating its application in detecting moisture in damp environments. The image shows the device pointed towards a wall, with a water droplet icon suggesting moisture detection.

6. Manteniment

• Neteja: Netegeu el dispositiu amb un suau, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Emmagatzematge: Store the device in a dry, cool place, away from direct sunlight. Remove batteries if storing for extended periods to prevent leakage.
• Calibració: The device is factory calibrated. If you suspect inaccuracies, contact Laserliner support for recalibration services.
