WALI TV Wall Mount User Manual

1. Introducció

Thank you for choosing the WALI TV Wall Mount. This manual provides important safety information, installation instructions, and operational guidelines for your new TV wall mount. Please read this manual thoroughly before installation and keep it for future reference. Proper installation is crucial for the safety and performance of this product.

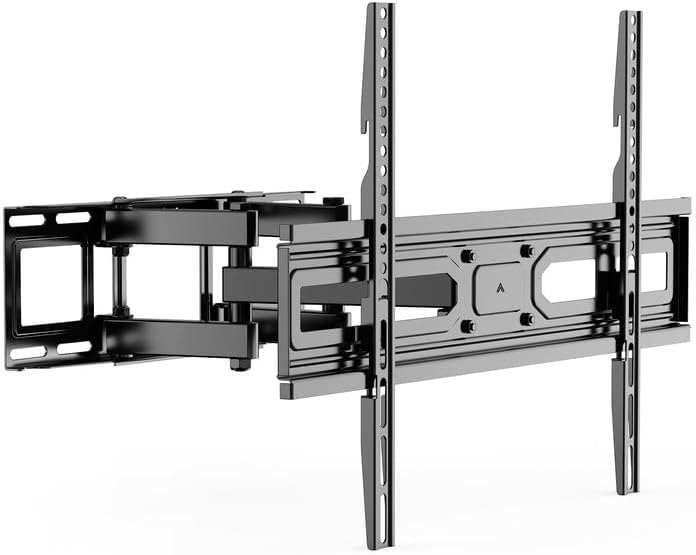

Imatge 1.1: Frontal view of the WALI Full Motion Articulating TV Wall Mount.

2. Informació de seguretat

ADVERTIMENT: Failure to read and follow all instructions can result in personal injury or damage to the product and property. WALI is not responsible for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use.

• Assegureu-vos que la superfície de muntatge pugui suportar amb seguretat el pes combinat del suport i del televisor.
• No supereu la capacitat màxima de pes de 88 lliures (40 kg).
• This product is designed for installation on vertical wood studs, brick, or concrete walls. NO el munteu sol sobre plaques de guix.
• Use appropriate safety gear and tools during installation.
• Always have two people for lifting and positioning the TV.
• Check all connections and fasteners regularly to ensure they remain secure.

3. Contingut del paquet

Verify that all components are present and undamaged. If any parts are missing or defective, please contact WALI customer support.

• WALI TV Wall Mount Bracket (Black) x 1
• Kit de ferreteria de muntatge (diversos cargols, volanderes, separadors)
• Manual d'usuari x 1

4. Característiques del producte

• Full Motion Design: Allows for maximum viewflexibilitat.
• Articulating Arms: Dual arms provide stability and smooth movement.
• High-Grade Steel Construction: Ensures durability and secure support.
• Estalvi d'espai: Pro baixfile design retracts close to the wall.

Image 4.1: Illustration of the mount's six articulating arms and 88 lbs (40 kg) weight capacity.

5. Compatibilitat

This full motion TV wall mount is compatible with most flat and curved TVs ranging from 32 to 80 inches.

• Interval de mides del televisor: 32" - 80"
• Capacitat de pes: Fins a 88 lliures (40 kg)
• Patrons de muntatge VESA: Compatible with mounting holes from 100x100mm to 600x400mm.

Image 5.1: Diagram showing compatibility with flat and curved TVs from 37" to 80" and various VESA sizes.

Image 5.2: Illustration of vertical and horizontal mounting holes on a TV for VESA compatibility.

6. Instruccions d'instal·lació

Before beginning, ensure you have all necessary tools and understand all instructions. It is recommended to have two people for installation.

6.1. Choose Your Wall Type

The 17.32" x 5.31" wall plate can be mounted on vertical wood studs, brick, or concrete walls. NO el munteu sol sobre plaques de guix.

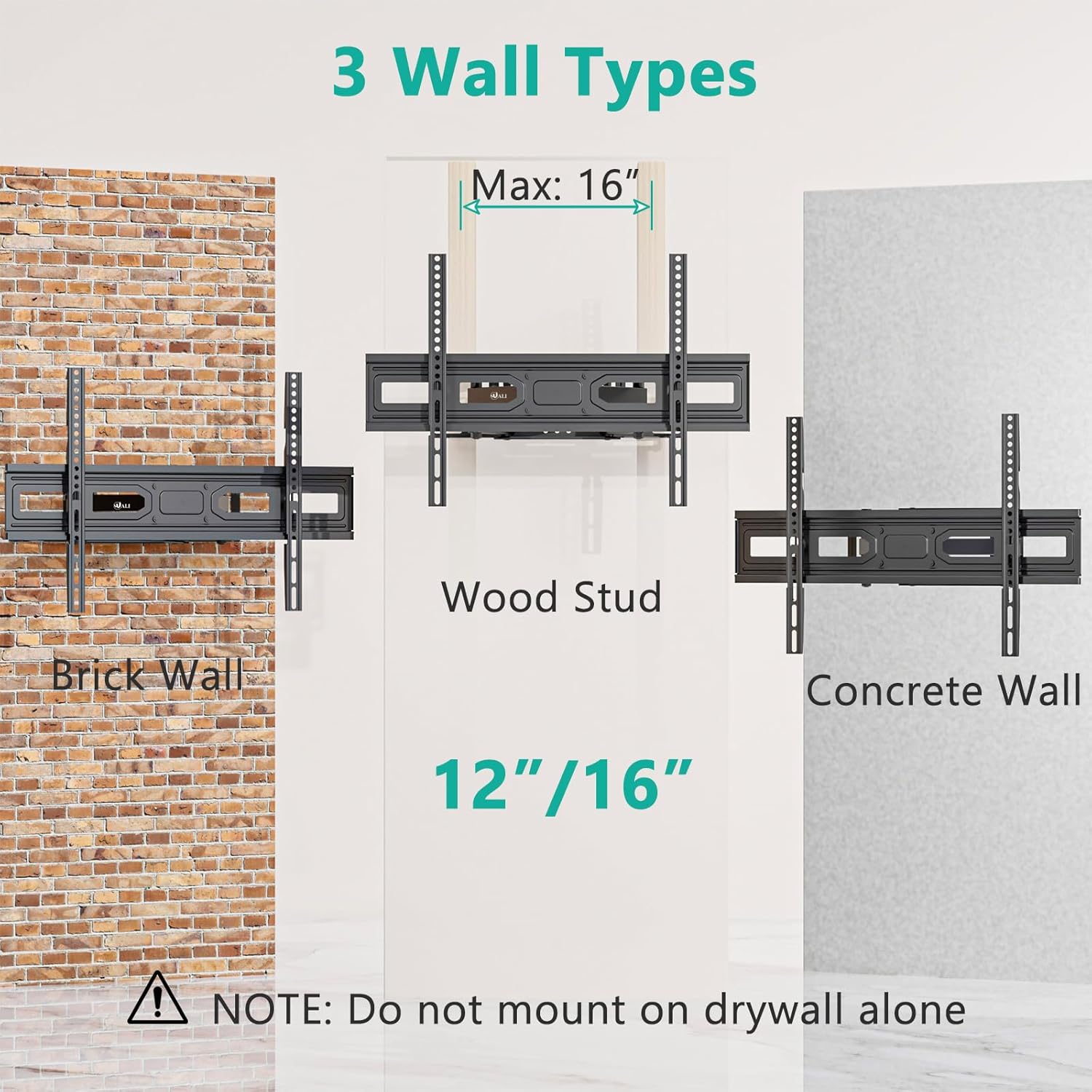

Image 6.1: Visual guide for mounting on Brick Wall, Wood Stud (max 16" spacing), and Concrete Wall.

6.2. Easy & Fast Installation Steps

1. Fixeu la placa de paret: Secure the wall plate to your chosen wall type using the appropriate hardware from the kit. Ensure it is level and firmly attached.
2. Fixeu els suports de TV: Fasten the TV brackets to the back of your TV using the correct screws, washers, and spacers for your TV's VESA pattern.
3. Penjar la televisió: Carefully lift the TV and hook the TV brackets onto the wall plate. Secure the TV to the wall plate using the locking mechanisms.

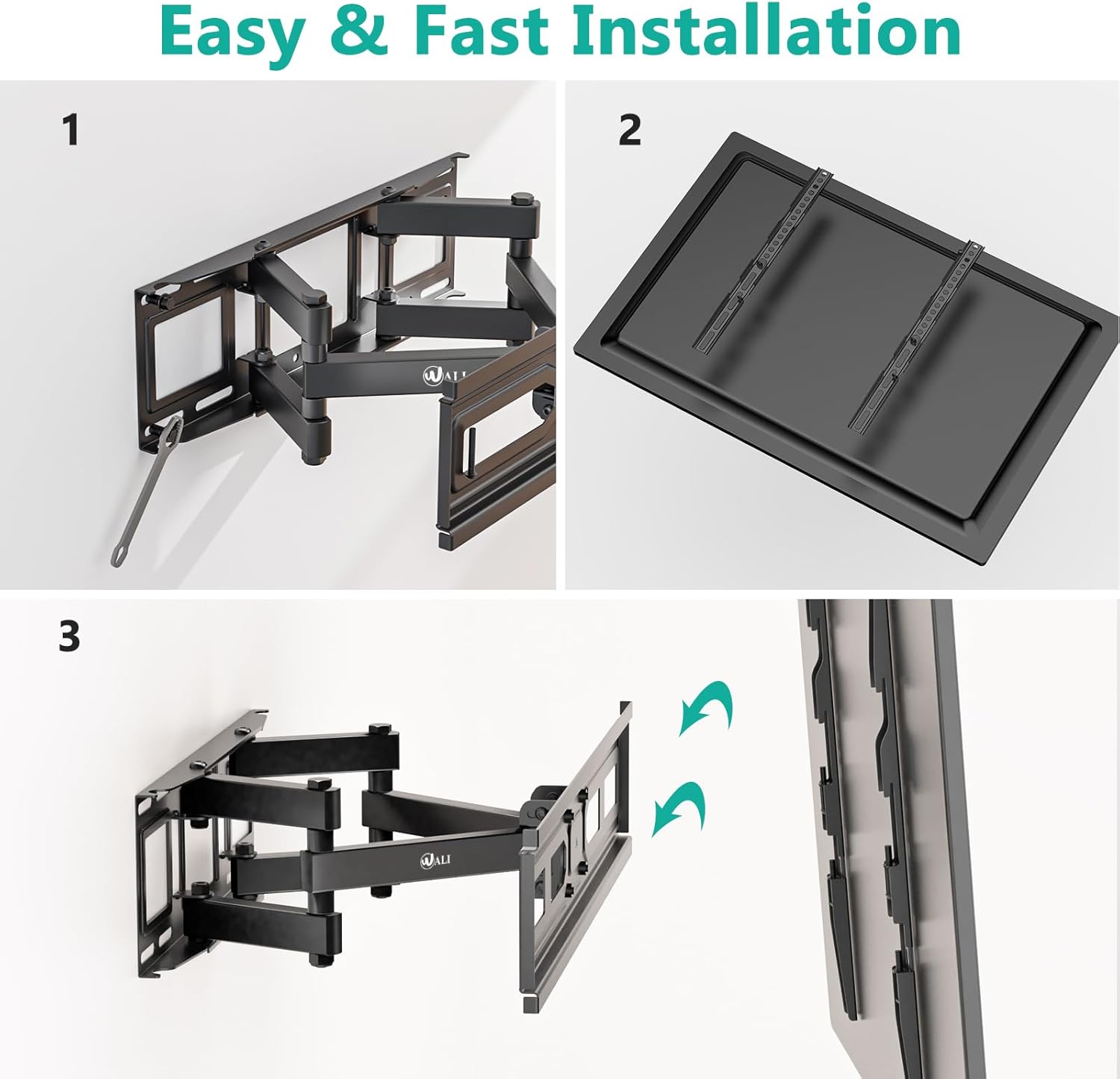

Image 6.2: Step-by-step visual guide for attaching the mount to the wall and the TV.

7. Funcionament i ajust

The WALI TV Wall Mount offers full motion capabilities to optimize your viewexperiència.

• Ajust d'inclinació: Adjust the TV angle from +3° to -15° to reduce glare and find the perfect viewalçada.
• Ajust de gir: Swivel the TV +60° to -60° left or right to view from different seating positions.
• Ajust de nivellació: Fine-tune the TV's level by +3° to -3° after installation.
• Extensió/Retracció: Extend the TV from the wall up to 14 inches or retract it to a minimum of 2.6 inches to save space.

Image 7.1: Demonstrates the swivel (+60°/-60°) and rotation (+3°/-3°) capabilities for a comfortable viewangle de ing.

Imatge 7.2: acabatview of all adjustment ranges: Tilt (+3°/-15°), Extension (2.5"-14"), Level (+3°/-3°), and Swivel (+60°/-60°).

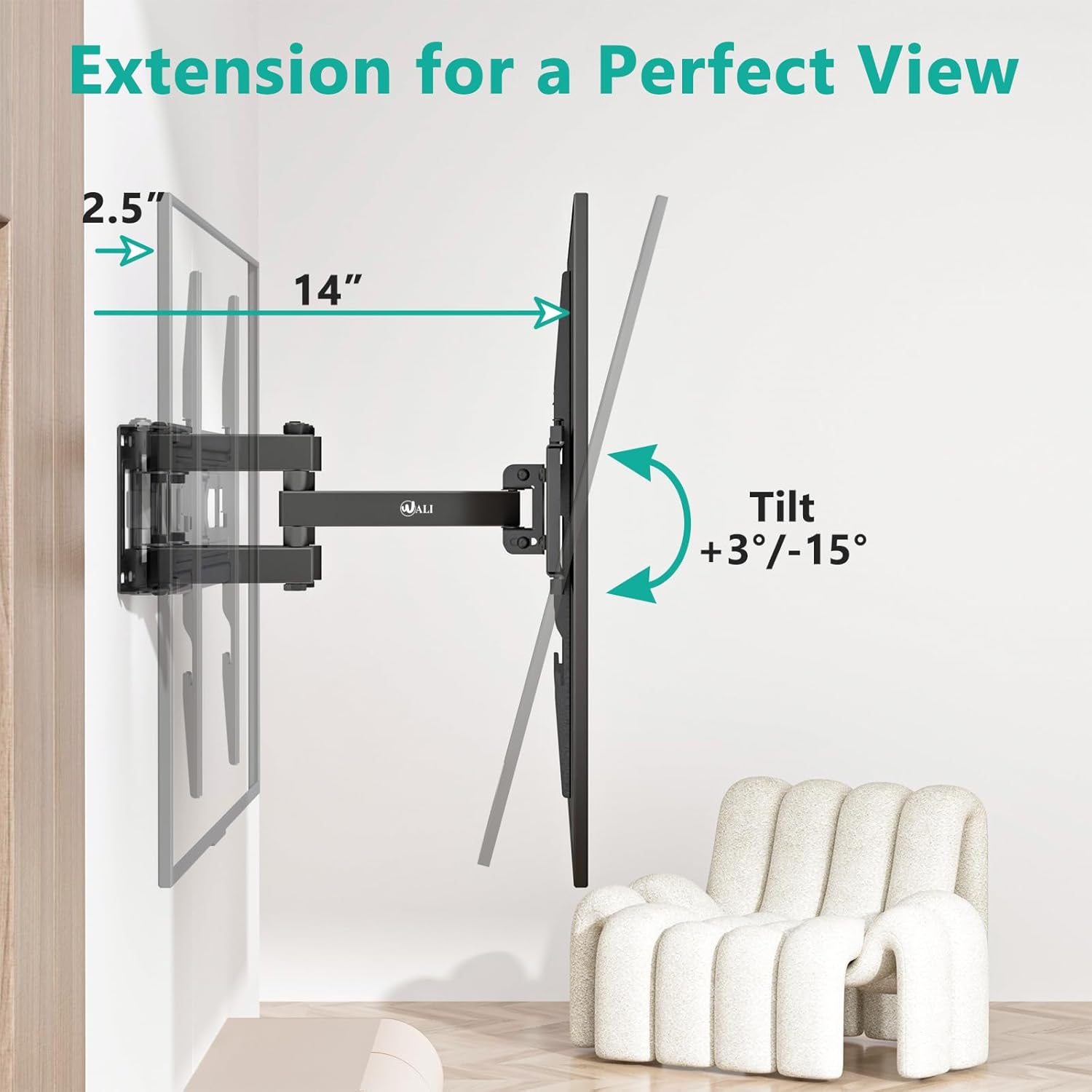

Image 7.3: Illustrates the mount's extension up to 14 inches and tilt adjustment for optimal viewing.

8. Manteniment

Un manteniment regular ajuda a garantir la longevitat i el funcionament segur del suport de paret per a televisors.

• Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats i segurs.
• Netegeu el suport amb un drap suau i sec. Eviteu netejadors o dissolvents abrasius.
• Si els braços articulats es tornen rígids, es pot aplicar una petita quantitat de lubricant a base de silicona als punts de pivot.

9. Solució De Problemes

If you encounter issues with your WALI TV Wall Mount, refer to the following common problems and solutions.

• El televisor no està anivellat: Use the leveling adjustment feature (+3°/-3°) to correct the tilt. Ensure the wall plate was installed level.
• La muntura se sent fluixa: Re-check all mounting bolts on the wall and TV brackets. Ensure they are tightened securely. Do not overtighten.
• Difficulty moving the TV: The articulating arms may require some force, especially when new. Ensure no cables are snagged. If still stiff, apply a small amount of silicone lubricant to the joints.
• TV appears to be sagging: Verify that the TV weight does not exceed the 88 lbs (40 kg) capacity. Ensure the wall structure is adequate and all fasteners are secure.

If problems persist, contact WALI customer support for assistance.

10. Especificacions

11. Atenció al client

WALI is committed to providing high-quality products and excellent customer service. If you have any questions, concerns, or require assistance with your TV wall mount, please do not hesitate to contact our experienced and friendly US-based customer support team.

Our customer support is available 7 days a week to assist you.
