Ampeg VB-115 Bass Cabinet User Manual
Model: VB-115
Introducció
El Ampeg Venture Series VB-115 Bass Cabinet is designed to deliver modern style and features for contemporary bassists, continuing Ampeg's tradition of innovation. This lightweight and rugged cabinet features a custom-voiced Lavoce neodymium woofer and a variable high-frequency driver, making it ideal for gigging musicians. This manual provides essential information for the proper setup, operation, and maintenance of your VB-115 bass cabinet.
Informació important de seguretat
- Read these instructions thoroughly before operating the product.
- Conserveu aquestes instruccions per a referència futura.
- Tingueu en compte totes les advertències del producte i de les instruccions d'ús.
- Seguiu totes les instruccions.
- No utilitzeu aquest aparell prop de l'aigua.
- Netegeu només amb un drap sec.
- No bloquegeu cap obertura de ventilació. Instal·leu-ho d'acord amb les instruccions del fabricant.
- No instal·leu a prop de cap font de calor com ara radiadors, registres de calor, estufes o altres aparells (inclosos amplificadors) que produeixen calor.
- Utilitzeu només accessoris/accessoris especificats pel fabricant.
- Demaneu tot el servei a personal de servei qualificat. Cal fer servei quan l'aparell s'hagi fet malbé d'alguna manera.
Guia de configuració
Desembalatge
- Carefully remove the VB-115 cabinet from its packaging.
- Inspect the cabinet for any signs of damage that may have occurred during shipping. If damage is found, contact your dealer immediately.
- Retain the original packaging materials for future transport or storage.
Col·locació
- Place the cabinet on a stable, level surface.
- Ensure adequate ventilation around the cabinet to prevent overheating. Do not place it against a wall or in an enclosed space without proper airflow.
- Avoid placing the cabinet in direct sunlight or near heat sources.
Connexions
The VB-115 cabinet is designed to be connected to a bass amplifier head. Always ensure your ampL'amplificador s'apaga abans de fer cap connexió.
- Use a high-quality speaker cable (not an instrument cable) to connect the speaker output of your bass amplifier head to one of the input jacks on the rear of the VB-115 cabinet.
- The VB-115 has an impedance of 8 Ohms. Ensure your amplifier's output impedance matches or is compatible with this rating.
- If connecting multiple cabinets, ensure the total impedance is compatible with your ampmés viu.
Figura 1: Frontal view de la Ampeg VB-115 Bass Cabinet, showcasing its black carbon fiber-style Tolex covering and the Ampeg logo.

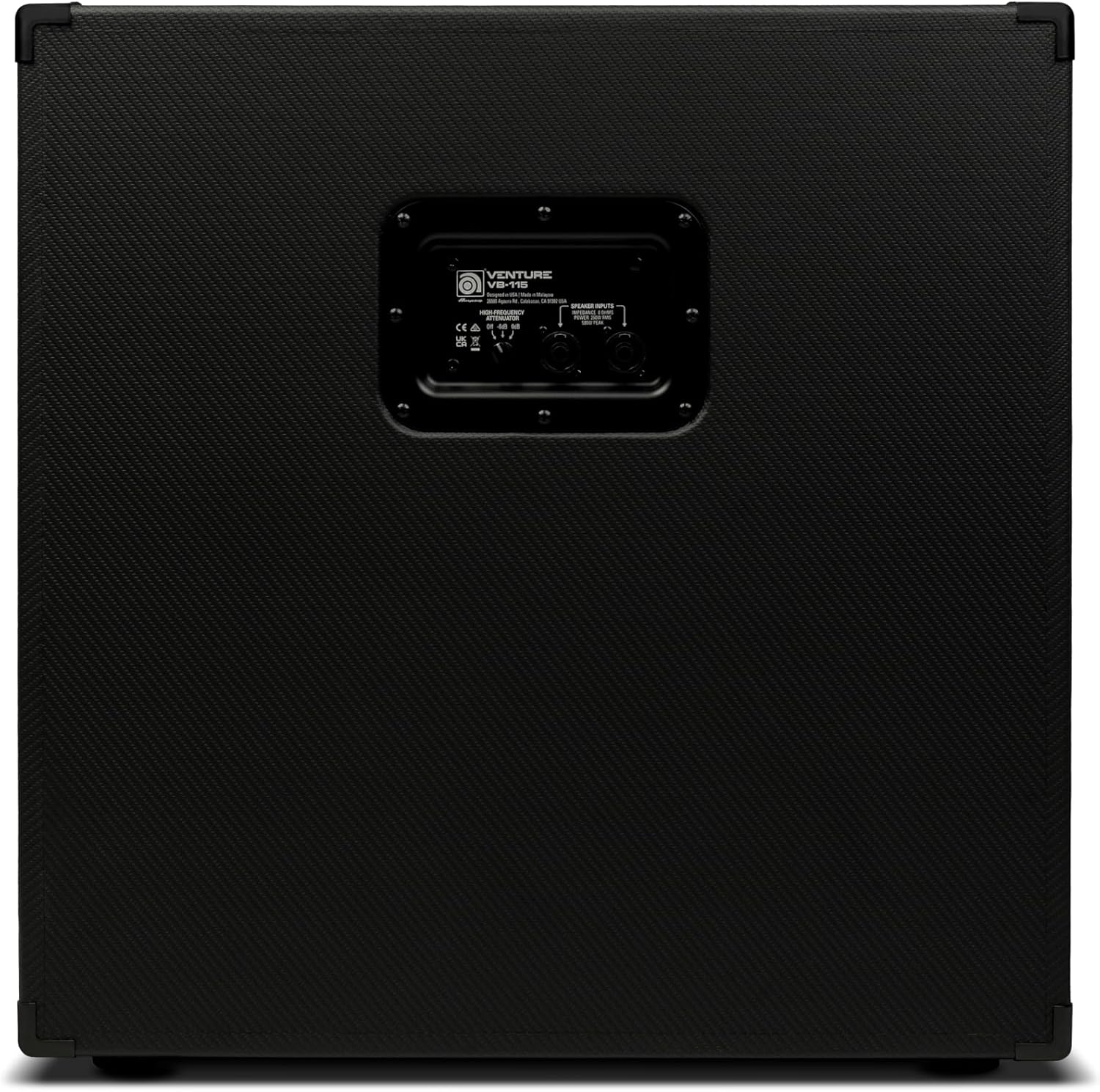

Figura 2: posterior view de la Ampeg VB-115 Bass Cabinet, highlighting the speaker input jacks and the variable high-frequency attenuator.
Funcionament
Funcionament bàsic
- Once the cabinet is properly connected to your amplifier, turn on your ampmés viu.
- Comença amb el ampel control de volum del lifer al nivell més baix.
- Gradually increase the volume to your desired listening level.
- Adjust the variable high-frequency attenuator on the rear of the cabinet to fine-tune the treble response to your preference. Turning it clockwise increases the high-frequency output, while counter-clockwise decreases it.
Funcions acabadesview
- Ultra-lightweight yet rugged construction: Designed for portability and durability.
- Carbon fiber-style Tolex covering and modern Ampeg logo: Provides a sleek and protective finish.
- Custom Lavoce neodymium woofers and high-frequency driver: Delivers clear and powerful bass tones.
- Variable high-frequency attenuator: Allows for precise control over the cabinet's treble response.
Cura i Manteniment
- Neteja: Use a soft, dry cloth to clean the exterior of the cabinet. Do not use abrasive cleaners, solvents, or waxes.
- Emmagatzematge: When not in use for extended periods, store the cabinet in a cool, dry place, away from extreme temperatures and humidity.
- Transport: Always use proper lifting techniques when moving the cabinet. Consider using an optional padded cover for added protection during transport.
- Inspecció: Periodically check all connections and hardware for tightness and wear.
Resolució de problemes
Si trobeu algun problema amb el vostre Ampeg VB-115 Bass Cabinet, please refer to the following table for common problems and their solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| No sound from cabinet | Incorrect or loose speaker cable connection. Amplifier not powered on or faulty. | Ensure speaker cable is securely connected at both ends. Verify amplifier is on and functioning correctly. |
| So distorsionat | Amplifier gain too high. Damaged speaker. | Reduir amplifier gain or volume. If distortion persists, contact qualified service personnel. |
| Weak or inconsistent sound | Faulty speaker cable. Incorrect impedance match. | Try a different speaker cable. Verify amplifier output impedance matches cabinet's 8 Ohms. |
Especificacions tècniques
| Característica | Especificació |
|---|---|
| Model | VB-115 |
| Configuració dels altaveus | 1 x 15-inch Lavoce Neodymium Woofer |
| Controlador d'alta freqüència | Variable Attenuator |
| Gestió de potència RMS | 250 watts |
| Programa de gestió de potència | 500 watts |
| Impedància nominal | 8 ohms |
| Pes de l'article | 45 lliures |
| Dimensions del producte | 22.4 x 27.64 x 27.32 polzades |
| Color | Negre |
Garantia i Suport
El Ampeg VB-115 Bass Cabinet is covered by a manufacturer's warranty. Please refer to the official Ampeg website or the warranty card included with your product for detailed terms and conditions regarding warranty coverage and registration.
For technical support, service, or any questions not covered in this manual, please visit the official Ampeg support website or contact their customer service department. Contact information can typically be found on the Ampeg weblloc web o a l'embalatge del producte.
