Truper HILA-1600C Compact Electric Pressure Washer

Introducció

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Truper HILA-1600C Compact Electric Pressure Washer. Please read all instructions carefully before use and retain this manual for future reference.

Producte acabatview i Components

Familiarize yourself with the components of your pressure washer to ensure proper assembly and operation.

Figura 1: Frontal view of the Truper HILA-1600C Compact Electric Pressure Washer.

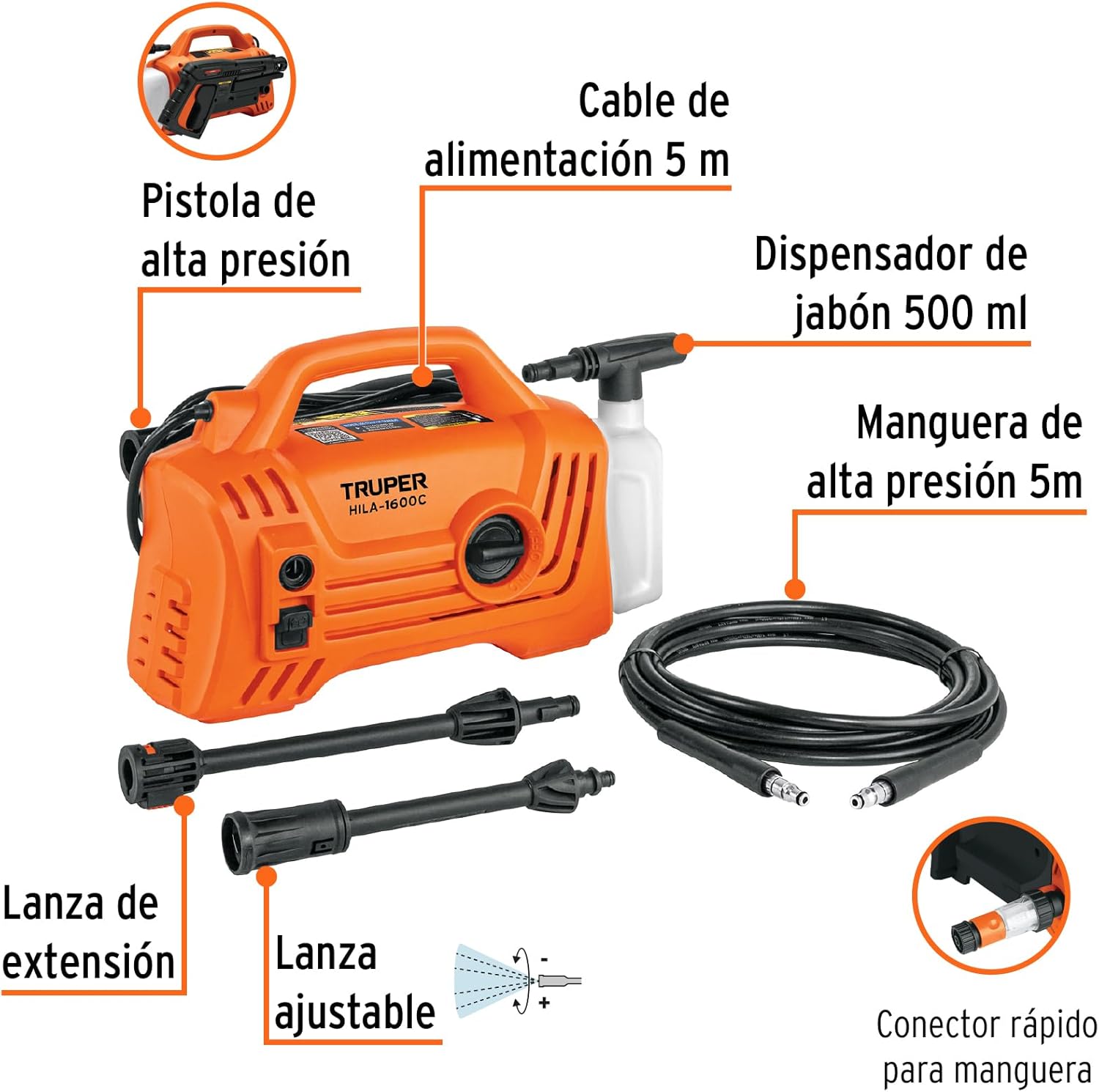

Figure 2: Diagram showing the main components of the Truper HILA-1600C pressure washer, including the high-pressure gun, 5m power cable, 500ml soap dispenser, 5m high-pressure hose, extension lance, adjustable lance, and quick connector for the hose.

Components inclosos:

• Pistola d'alta pressió
• Cable d'alimentació de 5 m
• 500ml Soap dispenser
• 5m High-pressure hose
• Llança d'extensió
• Llança ajustable
• Quick connector for hose
• Filtre d'aigua
• Netejador de broquets

Configuració

Follow these steps for initial setup before operating your pressure washer.

1. Desempaquetar la unitat: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha algun dany.
2. Connectar el subministrament d'aigua: Attach a garden hose (not included) to the water inlet on the pressure washer. Ensure the connection is secure to prevent leaks.
3. Instal·lar el filtre d'aigua: Insert the water filter into the water inlet connection. This prevents debris from entering the pump.
4. Connecteu la mànega d'alta pressió: Connect one end of the 5m high-pressure hose to the high-pressure outlet on the unit and the other end to the high-pressure gun. Tighten all connections firmly.
5. Assemble Lance: Attach the extension lance to the high-pressure gun, then attach the adjustable lance to the extension lance. Ensure they click securely into place.
6. Fill Soap Dispenser (Optional): If using detergent, fill the 500ml soap dispenser with appropriate pressure washer detergent. Attach it to the high-pressure gun if desired.
7. Connectar l'alimentació: Plug the 5m power cable into a grounded 127V electrical outlet.

Figure 3: Visual guide for connecting the water supply, high-pressure hose, and assembling the gun with lances.

Instruccions de funcionament

Follow these guidelines for safe and effective operation of your pressure washer.

1. Prepareu-vos per al seu ús: Ensure all connections are secure. Turn on the water supply completely before turning on the pressure washer.
2. Purgar l'aire del sistema: Squeeze the trigger on the high-pressure gun to release air from the system until a steady stream of water emerges.
3. Inicia la unitat: Turn the ON/OFF switch to the 'ON' position. The motor will start, and the unit will build pressure.
4. Ajustar el patró de polvorització: Rotate the adjustable lance nozzle to select the desired spray pattern (from a concentrated jet to a wide fan spray) for your cleaning task.
5. Aplicar detergent (opcional): If using the soap dispenser, ensure it is attached. The pressure washer will automatically draw detergent when operating at low pressure or with the detergent nozzle.
6. Comença la neteja: Hold the gun firmly with both hands and maintain a safe distance from the surface being cleaned. Always start with a wider spray pattern and move closer as needed to avoid damaging the surface.
7. Apagar: When finished, turn the ON/OFF switch to the 'OFF' position. Turn off the water supply. Squeeze the trigger to release any remaining pressure in the system. Disconnect the power cable and water hose.

Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la teva rentadora a pressió.

• Filtre d'aigua neta: Regularly check and clean the water filter to prevent blockages. Rinse it under running water to remove debris.
• Neteja de broquets: If the nozzle becomes clogged, use the provided nozzle cleaner tool to clear any obstructions.
• Hose and Gun Inspection: Periodically inspect the high-pressure hose and gun for any signs of wear, cracks, or damage. Replace damaged parts immediately.
• Emmagatzematge: Before storing, ensure all water is drained from the unit, hose, and gun to prevent freezing damage. Store the pressure washer in a dry, frost-free area.
• Gestió de cables: Wrap the power cable neatly around the designated storage area on the unit.

Resolució de problemes

Consulteu aquesta secció per obtenir solucions a problemes comuns.

Especificacions

Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or visit the official TRUPER weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
