OLEVS Men's Stainless Steel Chronograph Watch Instruction Manual

Introducció

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your OLEVS Men's Stainless Steel Chronograph Watch, Model QBZ-S-G2889G. Please read these instructions carefully to ensure proper use and longevity of your timepiece.

Configuració

1. Ajust de la corretja del rellotge

To ensure a comfortable fit, you may need to adjust the length of the stainless steel bracelet. This typically involves removing links. A link adjustment tool is often provided with the watch.

Steps for Link Adjustment:

1. Identify the pins on the side of the watch band that can be removed. These are usually indicated by small arrows on the underside of the links.
2. Place the watch band into the link adjustment tool, aligning the tool's pin with the watch band pin you wish to remove.
3. Slowly turn the screw on the tool to push the pin out of the link.
4. Elimineu el nombre desitjat d'enllaços.
5. Reassemble the band by inserting the pin back into the links and gently tapping it into place.

2. Configuració de l'hora i la data

The watch features a crown (stem) with multiple positions for setting the time and date.

Descripció de la imatge: A diagram illustrating the watch's crown (stem) and its three positions: Position 1 (pushed in), Position 2 (pulled out one click for date adjustment), and Position 3 (pulled out two clicks for time adjustment). It also shows the pushers for chronograph functions.

Per establir l'hora:

1. Estireu la corona fins a la posició 3 (la posició més externa).
2. Turn the crown clockwise or counter-clockwise to adjust the hour and minute hands to the correct time.
3. Empenyeu la corona de nou a la posició 1 (la posició més interna) per engegar el rellotge.

Per establir la data:

1. Pull the crown out to Position 2 (the middle position).
2. Gireu la corona en sentit horari o antihorari per ajustar la data.
3. Push the crown back into Position 1 (the innermost position).

NOTE: Avoid changing the date setting when the current time is between 9:00 PM and 3:00 AM, as this can damage the movement.

Funcionament del cronògraf

Your OLEVS watch is equipped with a chronograph function for measuring elapsed time. The chronograph features 1/10 second, second, and minute subdials.

Descripció de la imatge: A close-up diagram of the watch face highlighting the chronograph subdials for 1/10 seconds, seconds, and minutes. It also points out the 'Start/Stop' and 'Reset' pushers on the side of the watch case.

Chronograph Measurement:

1. Press the top pusher (A) to start the chronograph timing.
2. Press the top pusher (A) again to stop the chronograph timing.
3. Press the bottom pusher (B) to reset the chronograph hands to zero.

Manteniment i cura

Proper care will help maintain the appearance and functionality of your OLEVS watch.

• Resistència a l'aigua: This watch is water-resistant up to 30 meters (98 feet). It is suitable for daily use, splashes, and brief immersion in water. It is no suitable for swimming, diving, or showering with hot water. Ensure the crown is fully pushed in before any contact with water.

Descripció de la imatge: The OLEVS watch partially submerged in water, with text indicating "30M Waterproof," demonstrating its water resistance feature.
• Resistència a les ratllades: The watch features a mineral crystal lens, which offers good resistance against scratches from everyday wear.


Descripció de la imatge: A close-up image of the watch's crystal, emphasizing its scratch-resistant properties.

• Mans lluminoses: The watch hands are luminous, allowing for readability in low-light conditions after exposure to light.


Descripció de la imatge: The watch dial illuminated in a dark setting, showcasing the luminous hands and hour markers for visibility in low light.

• Neteja: Wipe the watch regularly with a soft, dry cloth to remove dust and smudges. For the stainless steel band, a slightly damp es pot utilitzar un drap i, a continuació, assecar-lo.
• Eviteu productes químics: No exposeu el rellotge a productes químics agressius, dissolvents o detergents, ja que poden danyar la caixa, la corretja o els segells.
• Extrems de temperatura: Eviteu exposar el rellotge a temperatures extremes (calor o fred) o canvis sobtats de temperatura, ja que poden afectar-ne la precisió i la resistència a l'aigua.

Resolució de problemes

Especificacions

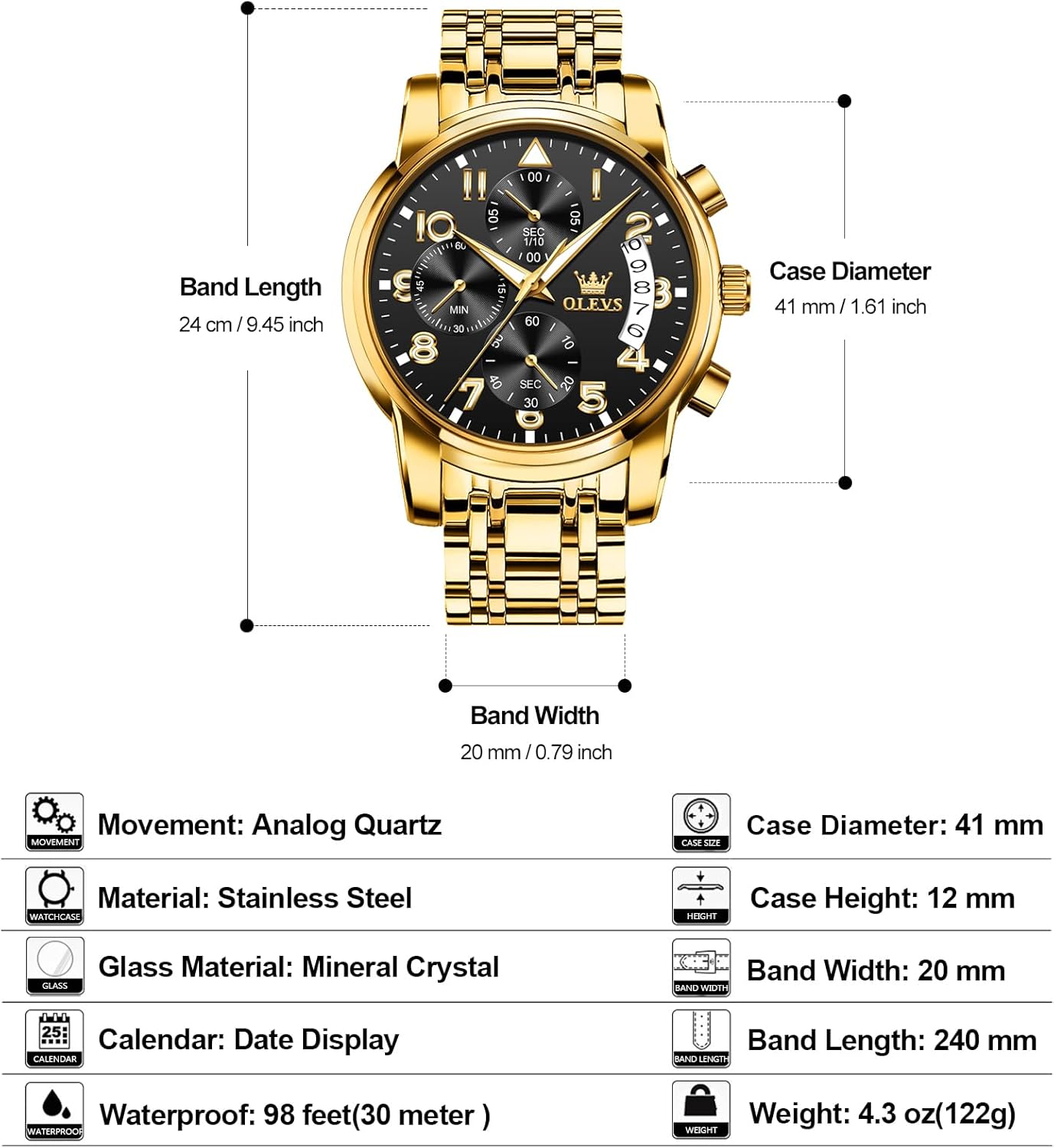

Descripció de la imatge: A detailed diagram of the OLEVS watch with measurements for case diameter, case height, band width, and band length, alongside a list of key specifications.

• Número de model: QBZ-S-G2889G
• Moviment: Quars analògic
• Material de la caixa: Acer inoxidable
• Material de la banda: Acer inoxidable
• Cristall: Mineral
• Diàmetre de la caixa: 41 mm
• Gruix de la caixa: 11 mm
• Amplada de banda: 20 mm
• Longitud de la banda: 240 mm
• Resistència a l'aigua: 30 metres (98 peus)
• Visualització: Analògic
• Funcions: Chronograph, Date Display, Luminous Hands
• Tipus de tancament: Foldover Clasp
• Pes: Aproximadament 5.9 unces

Informació de la garantia

This OLEVS watch is covered by a seller warranty. For specific details regarding the warranty period and coverage, please refer to the documentation provided at the time of purchase or contact the seller directly.

Suport i Contacte

Should you require assistance or have questions regarding your OLEVS watch, please use the following methods to contact support:

• Abans de la compra: On the product page, click on the seller's name (next to "Sold by") and select "Ask a Question."
• Després de la compra: If you have already purchased the product, you can reach out by clicking "Get help" or "Get product support" on your order details page.
