YUHANUS Door Access Control System Instruction Manual

1. Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of your YUHANUS Door Access Control System. Please read this manual thoroughly before installation and use to ensure proper functionality and safety.

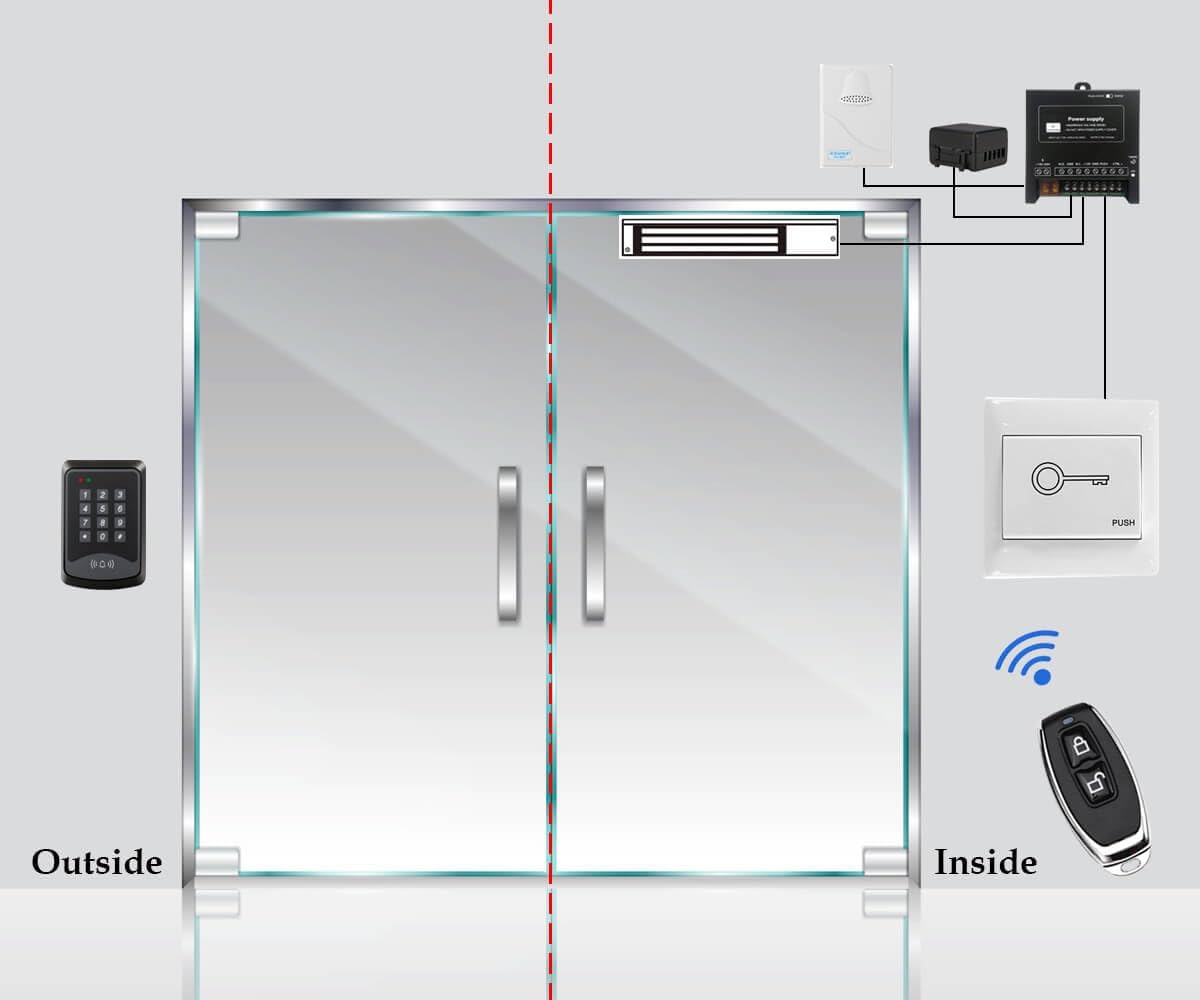

The YUHANUS Door Access Control System is designed to provide secure and convenient access management for various premises. It features multiple access options including password input, RFID card swiping, and remote control. The system incorporates a robust 600lb electromagnetic lock for enhanced security and includes a doorbell chime for visitor management.

2. Contingut del paquet

Si us plau, verifiqueu que tots els components que s'enumeren a continuació estiguin inclosos al vostre paquet:

• Access Control Keypad (CU-K03)
• 600lb Electric Magnetic Lock
• Power Supply Unit (DC12V/4A)
• Exit Button (Push to Exit Switch)
• Doorbell Chime Unit (CU-B01)
• Remote Control Receiver Module
• Two Remote Control Transmitters
• RFID Key Fobs (Blue, 5 included)
• Mounting Hardware (Screws, anchors, L-bracket/Z-bracket if applicable)
• Manual d'usuari (Aquest document)

Figura 2.1: Mésview of all included components for the access control system.

3. Especificacions

4. Precaucions de seguretat

• Always disconnect power before performing any installation, wiring, or maintenance.
• Installation should be performed by qualified personnel if you are not familiar with electrical wiring.
• Assegureu-vos que totes les connexions del cablejat estiguin ben fixades i degudament aïllades per evitar curtcircuits.
• Do not open the power supply unit cover as it contains hazardous voltage.
• Keep the system components away from water and excessive humidity.
• Use only the provided power supply unit or a compatible replacement with the correct voltage i qualificacions actuals.

5. Instal·lació i configuració

5.1. Identificació de components

Familiaritzeu-vos amb els components principals:

Figure 5.1.1: Access Control Keypad (CU-K03). This unit allows entry via passcode or RFID card.

Figure 5.1.2: 600lb Electric Magnetic Lock. This is the primary locking mechanism.

Figure 5.1.3: Power Supply Unit. Provides DC 12V power to the system components.

Figure 5.1.4: Exit Button. Allows for easy exit from the secured area.

Figure 5.1.5: Doorbell Chime Unit. Alerts occupants to visitors at the door.

Figure 5.1.6: Remote Control Receiver Module and Transmitters. Enables remote unlocking of the door.

5.2. Esquema de cablejat

Follow the wiring diagram carefully for proper connection of all components. Ensure all connections are secure and insulated.

Figure 5.2.1: Comprehensive wiring diagram for the YUHANUS Access Control System, showing connections between the keypad, magnetic lock, power supply, exit button, doorbell, and remote control module.

Key Wiring Points:

• Connect the AC 110V-240V input to the Power Supply Unit.
• The Power Supply Unit provides +12V and GND to the Access Control Keypad and the Magnetic Lock.
• The Magnetic Lock connects to the Power Supply Unit's NO (Normally Open) and GND terminals.
• The Exit Switch Button connects to the PUSH and GND terminals on the Power Supply Unit.
• The Doorbell Chime connects to the BELL terminals on the Access Control Keypad.
• The Remote Control Receiver Module connects to the Power Supply Unit's +12V, GND, NC, and COM terminals.

5.3. Magnetic Lock Installation

The 600lb magnetic lock is designed for surface mounting. Ensure the mounting surface is strong enough to support the lock's holding force.

Figure 5.3.1: Dimensions of the 600lb magnetic lock and armature plate.

1. Mounting the Magnetic Lock Body: Secure the main magnetic lock body to the door frame using appropriate screws. Ensure it is level and aligned with where the armature plate will be mounted on the door.
2. Mounting the Armature Plate: Attach the armature plate to the door. It should align perfectly with the magnetic lock body when the door is closed. Use the provided screws and ensure the plate can pivot slightly to ensure full contact with the electromagnet.
3. Adjusting for Alignment: Ensure the magnetic lock and armature plate make full contact when the door is closed. Minor adjustments may be needed for optimal performance.

Figure 5.3.2: Diagram illustrating the installation of the magnetic lock on a door frame and the armature plate on the door.

5.4. System Operation Overview

The system allows access through multiple methods:

Figure 5.4.1: Accessing the door by entering a valid passcode on the keypad.

Figure 5.4.2: Accessing the door by swiping a registered RFID key fob or card.

Figure 5.4.3: Accessing the door remotely using the provided remote control transmitters.

6. Instruccions de funcionament

6.1. Initial Programming (Master Code Setup)

Before first use, you must set up a master code. This code is used to enter programming mode.

1. Engegueu el sistema.
2. Enter the default master code (refer to the keypad's specific manual, typically 123456 or 999999).
3. Premeu # to confirm. The keypad will indicate entry into programming mode (e.g., LED changes color, beeps).
4. To change the master code: Press 0, then enter your new 4-6 digit master code, then press #. Re-enter the new master code and press # per confirmar.

6.2. Adding User Passcodes

1. Enter programming mode using the master code.
2. Premeu 1 (or the designated key for adding users).
3. Enter a 4-6 digit user passcode, then press #.
4. Repeat for additional user passcodes.
5. Exit programming mode (usually by pressing * or waiting for timeout).

6.3. Adding RFID Cards/Key Fobs

1. Enter programming mode using the master code.
2. Premeu 2 (or the designated key for adding cards).
3. Present the RFID card/key fob to the keypad's reader. The keypad will beep to confirm registration.
4. Repeat for additional RFID cards/key fobs.
5. Sortir del mode de programació.

6.4. Deleting Users (Passcodes/Cards)

Refer to your keypad's specific manual for detailed deletion procedures. Typically:

• Entra al mode de programació.
• Press the designated key for deleting users (e.g., 3).
• Enter the specific user passcode or present the RFID card to be deleted.
• Alternatively, some keypads allow deleting all users at once (use with caution).
• Sortir del mode de programació.

6.5. Ús del comandament a distància

The remote control transmitters are pre-programmed to the receiver module. Press the lock/unlock button on the remote to momentarily release the magnetic lock.

Nota: The remote control operates on 433MHz. Be aware of potential interference from other devices operating on the same frequency, such as some wireless doorbells, which might inadvertently trigger the lock.

6.6. Using the Exit Button

Simply press the exit button located inside the secured area to momentarily release the magnetic lock and open the door.

6.7. Using the Doorbell Chime

Visitors can press the doorbell button on the access keypad. The indoor chime unit will sound, alerting occupants.

7. Manteniment

• Neteja: Wipe the keypad and other components with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Magnetic Lock Alignment: Periodically check the alignment of the magnetic lock and armature plate. Ensure there is no gap when the door is closed, as this can reduce holding force.
• Inspecció del cablejat: Annually inspect all wiring connections for signs of wear, corrosion, or loose terminals. Tighten any loose connections.
• Font d'alimentació: Ensure the power supply unit is in a well-ventilated area and free from obstructions.

8. Solució De Problemes

9. Garantia i Suport

YUHANUS products are designed for reliability and performance. For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official YUHANUS weblloc.

Please have your model number (K03-P9-280-RT) and purchase date ready when contacting support.
