Ajazz AK832 Pro Low-Profile Manual d'usuari del teclat mecànic

1. Introducció i finalview

The Ajazz AK832 Pro is a compact 75% layout mechanical keyboard designed for versatility and performance. It features a gasket-mounted structure for a flexible typing feel, low-profile Outemu switches for faster actuation, and a vibrant 1.6M RGB backlight with 20 effects. The integrated LED screen provides real-time information such as battery status, date, and connection mode. With triple connectivity options, including Type-C wired, Bluetooth 5.1, and 2.4GHz wireless, it offers seamless switching between multiple devices and operating systems (Mac/Windows).

Les característiques clau inclouen:

• 75% Compact Layout (81 keys)
• Triple Connectivity Modes: Type-C Wired, Bluetooth 5.1, 2.4GHz Wireless
• Gasket-Mounted Design
• Low-Profile Outemu Switches (Red/Brown/Blue options)
• Integrated LED Screen for status display
• 1.6M RGB Backlighting with 20 effects and per-key customization
• Durable PBT Low-Profile Taps de claus
• Bateria integrada de 2500 mAh
• Compatible with Mac and Windows operating systems

2. Configuració

2.1 Contingut del paquet

Before setup, ensure all items are present:

• Ajazz AK832 Pro Mechanical Keyboard
• Cable USB-Type C
• Receptor USB de 2.4 GHz
• Extractor de tecles
• Manual d'usuari (aquest document)

2.2 Connexió del teclat

The AK832 Pro offers three connection methods:

1. Mode amb cable (USB tipus C):
   • Localitza el port USB-C del teclat (normalment a la vora superior).
   • Connect one end of the provided USB Type-C cable to the keyboard and the other end to an available USB port on your computer.
   • Ensure the mode switch on the side/back of the keyboard is set to 'USB' or 'Wired' mode.
   • El teclat serà reconegut automàticament per l'ordinador.
2. Mode sense fil de 2.4 GHz:
   • Take out the 2.4GHz USB receiver from the keyboard's storage slot (if applicable) or from the packaging.
   • Connecteu el receptor USB a un port USB disponible de l'ordinador.
   • Poseu el selector de mode del teclat al mode "2.4G".
   • The keyboard should connect automatically. If not, press Fn + 4 (for 2.4G pairing) to initiate pairing.
3. Mode Bluetooth 5.1:
   • Set the mode switch on the keyboard to 'BT' (Bluetooth) mode.
   • To enter pairing mode, press and hold Fn + 1, Fn + 2, or Fn + 3 for 3-5 seconds until the corresponding indicator light flashes rapidly. This allows you to pair up to three Bluetooth devices.
   • A l'ordinador o dispositiu, obriu la configuració de Bluetooth i cerqueu dispositius nous.
   • Select 'Ajazz AK832 Pro' (or similar name) from the list of available devices to pair.
   • Un cop emparellat, l'indicador lluminós deixarà de parpellejar i romandrà fix.

2.3 Canvi de sistema operatiu

The keyboard has a dedicated switch to toggle between Windows and Mac operating system layouts. Locate the 'WIN/MAC' switch on the side/back of the keyboard and set it to your desired operating system for optimal key functionality.

3. Instruccions de funcionament

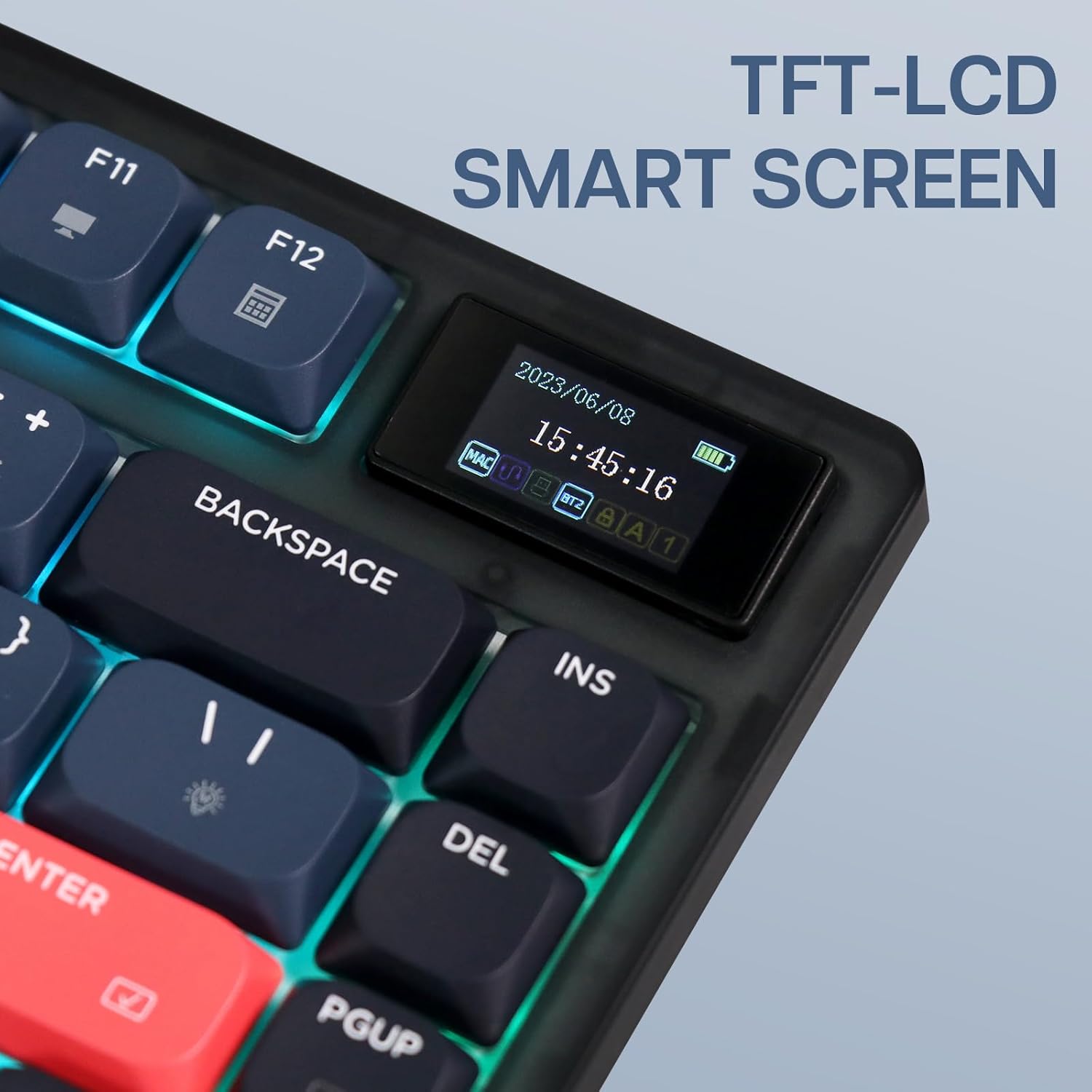

3.1 LED Screen Functions

The integrated LED screen on the top right of the keyboard displays various real-time information:

• Data i hora
• Battery Level (full charge green, 20-80% yellow, below 20% red)
• Current Connection Mode (Wired, 2.4G, BT1/BT2/BT3)
• Operating System Mode (Mac/Win)
• Caps Lock, Num Lock, Win Lock status

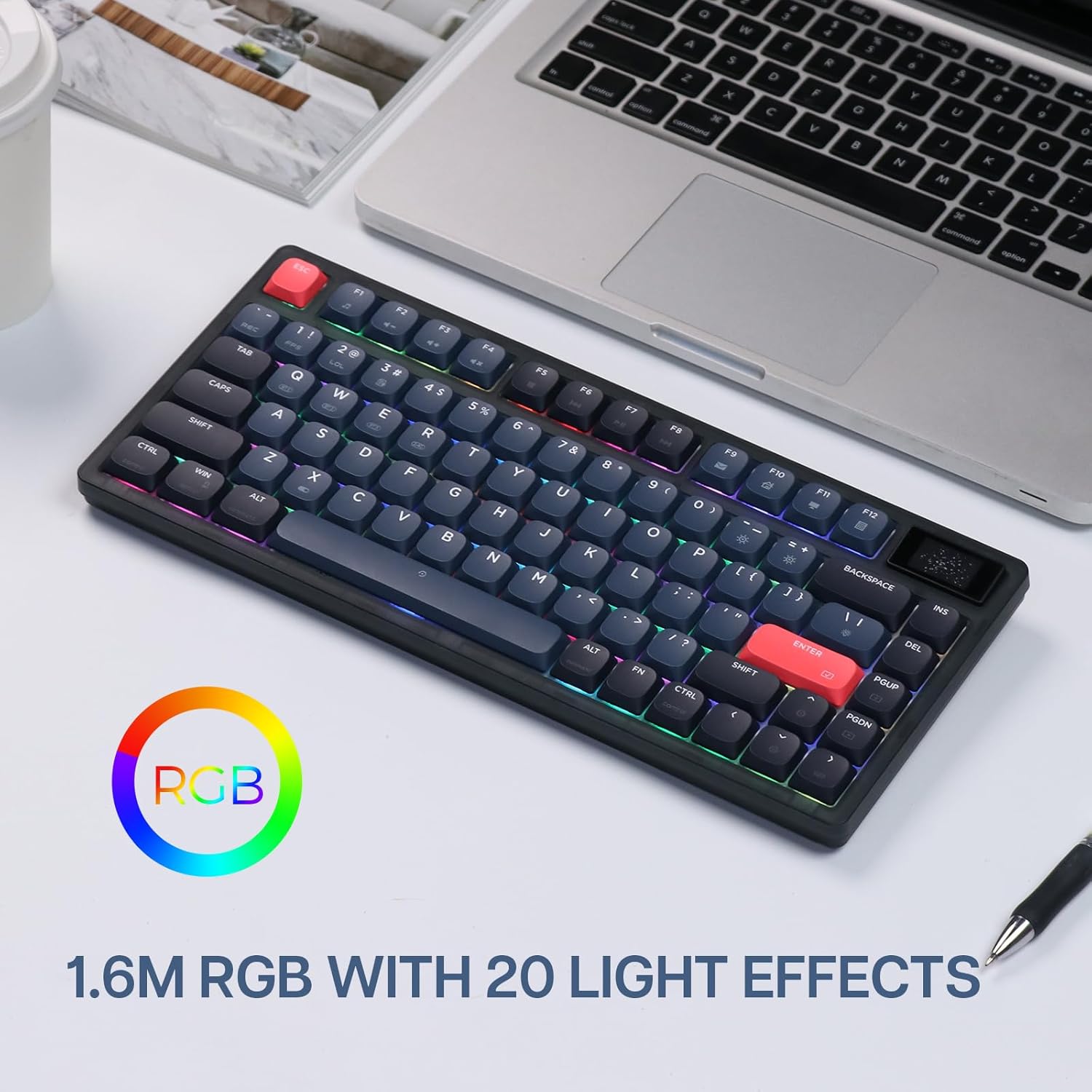

3.2 Il·luminació de fons RGB

The keyboard features 1.6 million colors RGB backlighting with 20 pre-set lighting effects. You can cycle through these effects and adjust brightness and speed using function key combinations. Per-key RGB customization is also available via the Ajazz driver software.

• Fn + \|: Cycle through lighting effects.
• Fn + ↑ / ↓: Ajusta la brillantor.
• Fn + ← / →: Adjust lighting speed/direction.

3.3 Tecles multimèdia i de funció

The F-row keys (F1-F12) have secondary multimedia and system functions accessible by pressing them in combination with the Fn key. Refer to the keycap legends for specific functions (e.g., volume control, media playback, calculator, email).

3.4 Personalització del programari

For advanced customization, including key remapping, macro creation, and per-key RGB lighting effects, download the official Ajazz driver software from the manufacturer's website. The software allows for comprehensive control over the keyboard's functions.

4. Manteniment

Un manteniment adequat garanteix la longevitat i el rendiment del teclat.

• Neteja: Regularly clean the keycaps and keyboard surface with a soft, lint-free cloth. For deeper cleaning, use a can of compressed air to remove dust and debris from between the keycaps. If necessary, use a slightly damp cloth with a mild cleaning solution, ensuring no liquid enters the keyboard.
• Eliminació de la tapa de les tecles: Use the provided keycap puller to safely remove keycaps for cleaning or replacement. Gently pull straight up to avoid damaging the switch stem.
• Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu el teclat en un lloc sec i fresc, allunyat de la llum solar directa i de temperatures extremes.
• Eviteu líquids: Do not expose the keyboard to liquids. In case of a spill, immediately disconnect the keyboard, power it off, and allow it to dry completely before reconnecting.

5. Solució De Problemes

If you encounter issues with your Ajazz AK832 Pro keyboard, refer to the following common solutions:

6. Especificacions

7. Garantia i Suport

For warranty information and technical support, please refer to the warranty card included with your product or visit the official KiiBoom/Ajazz weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

If you require further assistance, please contact the retailer or manufacturer's customer service department.
