1. Introducció
The M5Stack Atom Echo is a compact and portable smart speaker development kit designed for voice interaction and AI capabilities. It integrates a microphone and speaker, enabling functions such as voice control and audio playback. This device is ideal for rapid prototyping in various applications including IIoT, home automation, smart retail, and STEM education.
Les característiques clau inclouen:
- Compacte i portàtil: Measuring only 24 x 24 x 17 mm, it is highly convenient for on-the-go use.
- Voice Interaction and AI Capabilities: Built-in microphone and speaker support voice control, story-telling, and integration with cloud platforms like AWS and Baidu.
- Wireless Music Playback: Utilizes ESP32's BT capabilities for seamless audio streaming from mobile devices.
- Connectivitat versàtil: Supports 2.4G Wi-Fi IEEE 802.11b/g/n for reliable wireless connection.
- RGB LED Status Display: An embedded SK6812 RGB LED provides visual indication of the device's operational status.
Figure 1: M5Stack Atom Echo Smart Speaker Dev Kit, a compact and portable device.
2. Components i dimensions del producte
The Atom Echo features several key components and a compact design, as detailed below.

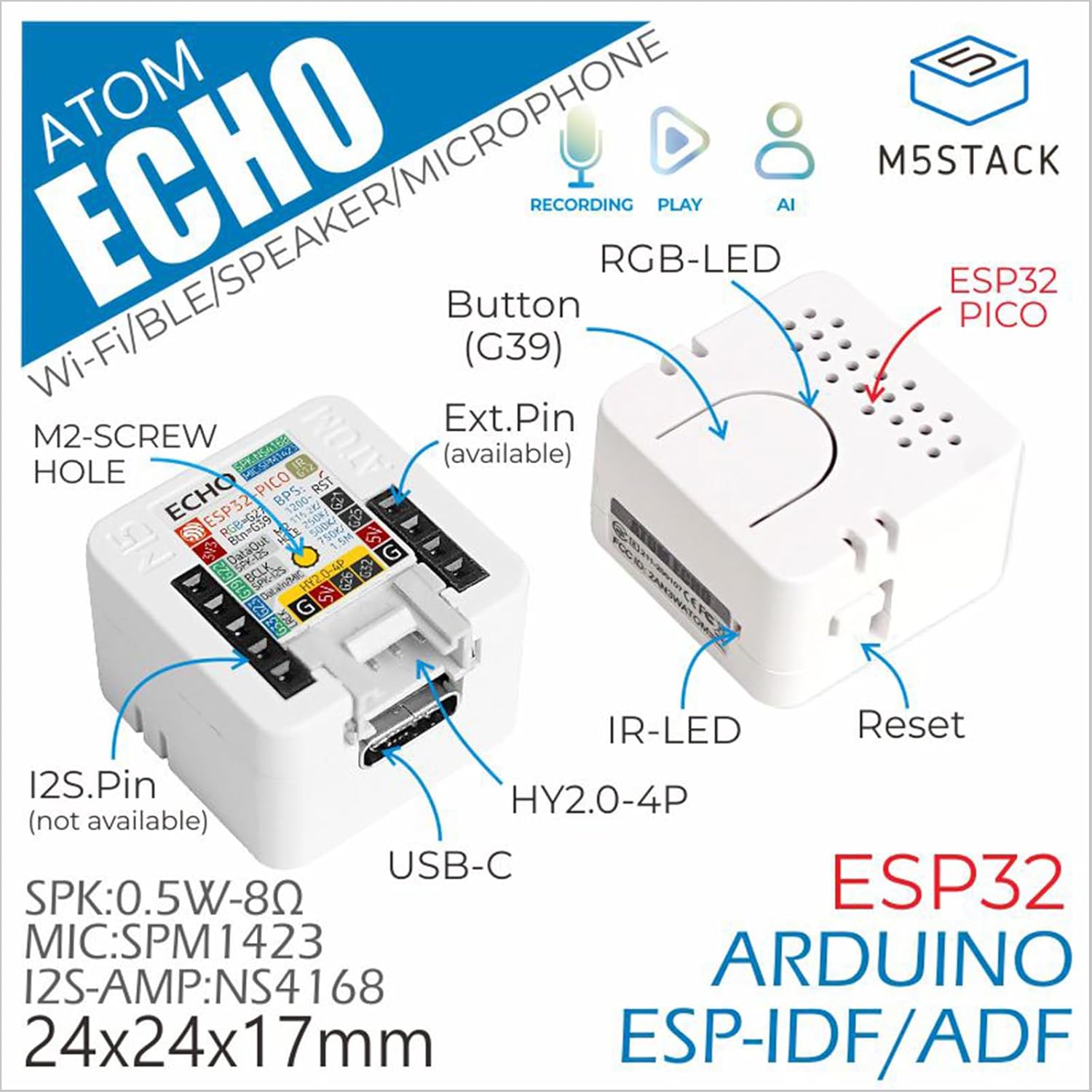

Figure 2: Detailed component diagram of the Atom Echo, highlighting the Button (G39), RGB-LED, ESP32 PICO, IR-LED, Reset button, USB-C port, Extension Pins, M2-screw hole, and I2S.Pin.
Figure 3: Dimensions of the Atom Echo, measuring 24mm (0.94in) in width and depth, and 17mm (0.67in) in height.
Figure 4: Size comparison of the Atom Echo next to a US Quarter, illustrating its compact form factor.
3. Configuració i connectivitat
The Atom Echo is designed for easy setup and versatile connectivity. It supports both Wi-Fi and Bluetooth for communication.
3.1 Encès
Connect the Atom Echo to a 5V DC power source using the USB-C port. The device will power on automatically.
3.2 Connectivitat sense fil
The device supports 2.4G Wi-Fi (IEEE 802.11b/g/n) and Bluetooth. Specific connection procedures will depend on the firmware loaded onto the device. Refer to the official M5Stack documentation for detailed programming and connection guides.
For detailed tutorials and quick start guides, please visit the official M5Stack weblloc:
Figure 5: Steps to access tutorials and quick start guides on the M5Stack website (m5stack.com).
4. Operating the Atom Echo
The Atom Echo is primarily operated through its programmable button and voice commands, depending on the loaded application.
4.1 Voice Interaction
The built-in microphone allows for voice input. Depending on the programmed functionality, you can use voice commands for control, ask questions, or interact with AI services.
Reproducció d'àudio 4.2
The integrated speaker enables audio output. This can be used for playing music wirelessly via Bluetooth, delivering voice responses, or playing system notifications.
4.3 RGB LED Indicator
The RGB LED (SK6812) provides visual feedback on the device's status, such as connection status, active listening mode, or error indications. The specific color patterns and their meanings are defined by the loaded firmware.
Figure 6: Key features of the Atom Echo, including support for STT services, RGB LED status display, compact and lightweight design, and a GROVE expansion interface.
Figura 7: Examples of Atom Echo applications, including use as a wireless speaker, for voice control, and in Internet of Things (IoT) projects.
5. Manteniment
The M5Stack Atom Echo requires minimal maintenance. Keep the device clean and free from dust and moisture.
- Neteja: Feu servir un drap suau i sec per netejar l'exterior del dispositiu. No utilitzeu netejadors líquids ni dissolvents.
- Emmagatzematge: Guardeu el dispositiu en un lloc fresc i sec quan no l'utilitzeu.
- Condicions ambientals: Eviteu exposar el dispositiu a temperatures extremes, llum solar directa o humitat elevada.
6. Solució De Problemes
If you encounter issues with your Atom Echo, consider the following common troubleshooting steps:
- El dispositiu no s'encén:
- Ensure the USB-C cable is securely connected to both the device and a working 5V power source.
- Proveu un cable USB-C o un adaptador d'alimentació diferent.
- Sense sortida d'àudio:
- Verify that the device is properly programmed to output audio.
- Check the volume settings within your application or connected device.
- Ensure the speaker is not physically obstructed.
- Microphone Not Responding:
- Confirm that the microphone functionality is enabled and correctly configured in your firmware.
- Ensure there are no physical obstructions covering the microphone.
- Test in a quiet environment, as excessive background noise can affect performance.
- Problemes de connectivitat (Wi-Fi/Bluetooth):
- Ensure the device is within range of your Wi-Fi router or Bluetooth device.
- Verify Wi-Fi credentials or Bluetooth pairing status in your firmware.
- Restart the Atom Echo and your router/Bluetooth device.
- Comportament inesperat:
- Perform a soft reset using the reset button if available, or by power cycling the device.
- Review your loaded firmware for any programming errors or conflicts.
- Consult the M5Stack official documentation and community forums for specific programming and debugging assistance.
7. Especificacions
Detailed technical specifications for the M5Stack Atom Echo:
Figura 8: Mésview of the Atom Echo's key specifications.
| Especificació | Valor |
|---|---|
| Entrada Voltage | 5 volts (CC) |
| Tipus de muntatge | Muntatge de paret |
| Material | Plàstic |
| Nom del model | Atom Echo |
| Tipus d'altaveu | Multimèdia |
| Característica especial | Programable |
| Usos recomanats | Smart Speaker Development Kit |
| Dispositius compatibles | Smartphone, tauleta |
| Recompte d'unitats | 1.0 recompte |
| Tipus de controlador | Botó |
| Configuració del canal de so envoltant | 2.0 |
| Color | Blanc |
| Components inclosos | 1x ATOM ECHO |
| Dimensions del producte | 0.94 "P x 0.94" W x 0.67" H |
| Interval d'edat (descripció) | Totes les Edats |
| És impermeable | Fals |
| Tipus de garantia | Limitat |
| Nombre d'articles | 1 |
| Mètode de control | veu |
| Tecnologia de comunicació sense fils | Bluetooth, WiFi |
| Mida de l'altaveu | 16 mil·límetres |
| Font d'alimentació | USB-C |
| Diàmetre del woofer | 40.2 mil·límetres |
| Nivell de resistència a l'aigua | No resistent a l'aigua |
| Tipus de paquet del client | FFP |
| Tipus de controlador d'àudio | Conductor dinàmic |
| Interval Bluetooth | 10 metres |
| Nombre de micròfons | 1 |
| Tecnologia de connectivitat del subwoofer | Sense fil |
| Protocol de connectivitat | Bluetooth, Wi-Fi, USB |
| Inclou reproductor de MP3? | No |
| Nombre de circuits | 1 |
| Nombre de nivells de potència | 1 |
| Recompte de processadors | 1 |
| Fabricant | M5Stack Technology Co., Ltd. |
| Pes de l'article | 1.13 unces |
| Número de model de l'article | C008-C |
| Data de primera disponibilitat | 12 de juny de 2023 |
| País d'origen | Xina |
| Marca | M5Stack |
| Potència de sortida màxima dels altaveus | 0.5 watts |
| Resposta de freqüència | 240 Hz |
| Tecnologia de connectivitat | Bluetooth, Wi-Fi, USB, IR |
| Mode de sortida d'àudio | Mono |
8. Què hi ha a la caixa
The M5Stack Atom Echo package includes the following items:
- 1x ATOM ECHO unit
Figure 9: Visual representation of the Atom Echo unit included in the package.
9. Garantia i Suport
The M5Stack Atom Echo comes with a limited warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official M5Stack weblloc.
For technical support, additional resources, and community forums, please visit the M5Stack official weblloc:
