Producte acabatview
The DieseRC Wireless LED Light Strip Dimmer Switch is designed to provide remote control and dimming capabilities for LED light strips and other DC 5V-30V devices. It features a relay receiver and two remote controls, offering convenient operation and adjustable brightness from 0% to 100% duty cycle.
Característiques principals:
- Control sense fil: Operate your LED lights remotely using the included 433MHz RF remote controls.
- Atenuació continuada: Adjust brightness from 0% to 100% for optimal lighting.
- Preset Brightness Levels: Quickly switch between 50% and 100% brightness with dedicated buttons.
- Vol. Amplitage Compatibilitat: Supports DC 5V to 30V input, suitable for various LED applications.
- Alta capacitat de càrrega: Equipped with a 10A relay, capable of handling up to 720 watts.
- De llarg abast: Effective control distance of approximately 50 meters in open areas.
- Durable Relay: Designed for over 400,000 operations.
- Programable: Easily program and reset the receiver to pair with multiple remotes (up to 20 stations).
Figure 1: The DieseRC Wireless LED Light Strip Dimmer Switch receiver and two remote controls.
Informació de seguretat
- Ensure the power supply is disconnected before installation or maintenance to prevent electric shock.
- Comproveu que l'entrada voltage (DC 5V-30V) and current do not exceed the receiver's maximum ratings (10A, 720W).
- Install the receiver in a dry, well-ventilated area, away from direct sunlight or extreme temperatures.
- Do not attempt to modify or repair the device. Refer to qualified personnel for service.
- Mantingueu el dispositiu fora de l'abast dels nens.
Configuració i instal·lació
The receiver is designed for easy integration between your power supply and the LED device. Follow these steps for proper setup:
- Preparació del cablejat: Identify the positive (+) and negative (-) terminals for both input (power supply) and output (LED strip/device) on the receiver.
- Connecteu l'entrada d'alimentació: Connect the positive (+) wire from your DC 5V-30V power supply to the "Input V+" terminal on the receiver. Connect the negative (-) wire from your power supply to the "Input V-" terminal.
- Connect LED Output: Connect the positive (+) wire from your LED light strip or device to the "Output V+" terminal on the receiver. Connect the negative (-) wire from your LED light strip or device to the "Output V-" terminal.
- Connexions segures: Assegureu-vos que totes les connexions dels cables estiguin segures i correctament aïllades.
- Encès: Once all connections are verified, connect your power supply to the main power source.
Video 1: This video demonstrates the wiring and programming process for the DieseRC Wireless LED Light Strip Dimmer Switch, showing how to connect the receiver to an LED strip and pair it with the remote controls.
Programació del comandament a distància:
The remote controls are typically pre-paired, but if re-pairing is needed or to add new remotes, follow these steps:
- Introduïu el mode de programació: Premeu el botó d'aprenentatge del receptor 2 vegades. The indicator LED on the receiver will turn off, indicating it's ready for pairing.
- Parella el comandament a distància: Within a few seconds, press any button on the remote control you wish to pair. The indicator on the receiver will flash several times and then light up, confirming successful pairing.
Figure 2: Instructions for programming the remote control with the receiver.
Reinicialització del receptor:
- Restablir: Premeu el botó d'aprenentatge del receptor 8 vegades. The indicator LED will flash, and all previously paired remotes will be cleared. After resetting, you will need to re-program any remotes you wish to use.
Instruccions de funcionament
The remote control provides intuitive operation for your connected LED lights:
Figure 3: Multifunction remote control button layout and functions.
- Botó d'encendre (⏻): Press to turn the connected LED lights ON or OFF.
- 50% Brightness Button (◑): Press to set the brightness to 50%.
- 100% Brightness Button (○): Press to set the brightness to 100%.
- Botó per augmentar la brillantor (☀+): Press to gradually increase the brightness.
- Brightness Down Button (☀-): Press to gradually decrease the brightness.
Figure 4: The stepless dimming feature allows fine control over light intensity.
Figure 5: Easy switching between 50% and 100% brightness levels.
Manteniment
- Neteja: Wipe the receiver and remote controls with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Substitució de la bateria: The remote control requires a 27A 12V battery. If the remote's range decreases or it becomes unresponsive, replace the battery. The battery can be replaced after disassembling the remote.
- Emmagatzematge: Guardeu el dispositiu en un lloc fresc i sec quan no el feu servir durant períodes prolongats.

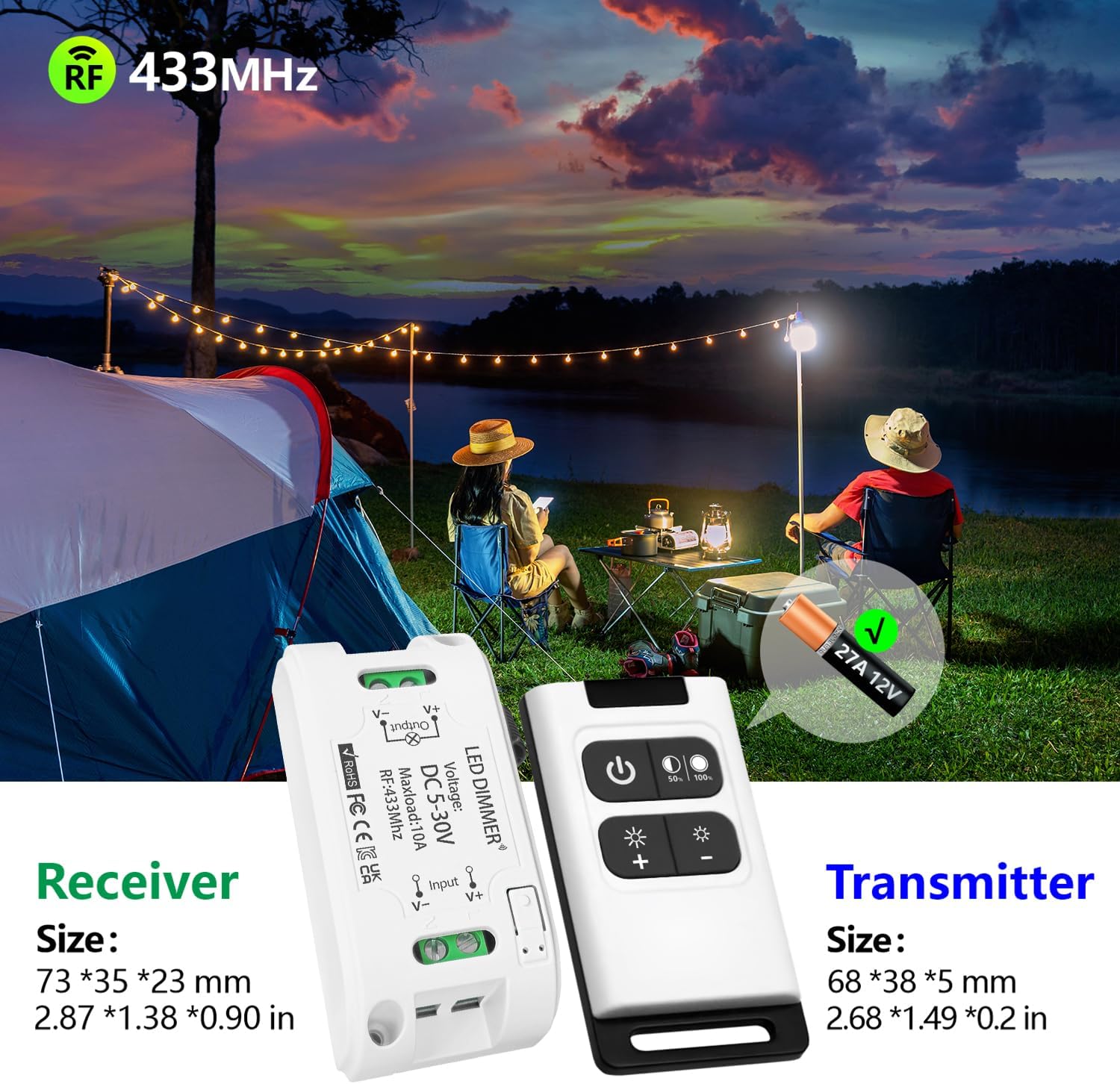

Figure 6: Receiver and Transmitter dimensions, noting the 27A 12V battery for the remote.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| LEDs do not turn on or respond to remote. |
|
|
| Remote control range is reduced. |
|
|
| Dimming is not smooth or responsive. |
|
|
Especificacions
- Model: Dimmer 01
- Marca: DieseRC
- Entrada Voltage: DC 5V-30V
- Corrent de càrrega màxima: 10A
- Max Load Wattage: 720 watts
- Freqüència de RF: 433 MHz
- Distància de control: Approx. 50 meters (open area)
- Bateria de control remot: 27A 12V (estimated 3-year lifespan)
- Dimensions del receptor: 73 x 35 x 23mm (2.87 x 1.38 x 0.91 polzades)
- Material: Plàstic
- Certificacions: CE
- Tipus d'interruptor: 1 vies
- Tipus de muntatge: Through Hole Mount
- Estil de canvi: Pulsador
Garantia i Suport
DieseRC is committed to providing high-quality products and excellent after-sales service. If you encounter any issues or have questions regarding your Wireless LED Light Strip Dimmer Switch, please do not hesitate to contact us.
Correu electrònic d'atenció al client: dieseelectronic@163.com
We strive to resolve any customer problems efficiently and effectively.
