Manual d'instruccions de l'escàner de paret KAIWEETS Stud Finder

1. Introducció i finalview

The KAIWEETS Stud Finder Wall Scanner (Model KES01M) is an advanced electronic stud detector designed to quickly and accurately locate wood, metal studs, joists, pipes, and live AC wires hidden behind walls, floors, and ceilings. Equipped with a high-sensitivity microprocessor chip and a self-calibration system, it provides reliable detection for various materials, making it an essential tool for home improvement projects, installations, and renovations. Its intuitive 3-color LCD display and audio alarm ensure clear and immediate feedback during scanning.

Figure 1: KAIWEETS Stud Finder Wall Scanner (Model KES01M) and included 9V battery.

2. Característiques clau

• 5-in-1 Multi-functional Detection: Locates wood studs (3/4" and 1-1/2" deep), metal (ferrous and non-ferrous up to 2.36" deep), and live unshielded AC wires (up to 2" deep).
• Alta precisió: Utilizes an intelligent microprocessor chip and advanced self-calibration for reliable and precise detection.
• Tri-Color Backlight LCD Display: Provides clear visual feedback with green (no target), orange (target edge), and red (stud center) indicators. Directional arrows and signal bars assist in pinpointing locations.
• Alarma d'àudio: A buzzer sounds an alarm when a target is detected, especially at the stud center.
• Avís sobre el cable de CA: Detects live unshielded AC wires in all modes to prevent accidental drilling.

Figure 2: Visual representation of the 5-in-1 detection capabilities.

Figure 3: The tri-color backlight display indicating no stud, stud edge, and stud center.

3. Configuració

3.1 Instal·lació de la bateria

1. Localitzeu la tapa del compartiment de la bateria a la part posterior del dispositiu.
2. Feu lliscar la coberta oberta.
3. Inseriu la pila de 9 V inclosa, assegurant-vos de la polaritat correcta (+/-).
4. Tanqueu bé la tapa del compartiment de la bateria.

Figure 4: Proper installation of the 9V battery.

3.2 Calibratge inicial

Before each use, or when moving to a new scanning area, the device must be calibrated for optimal accuracy. Calibration adapts the scanner to the specific wall material.

1. Place the stud finder flat against the wall where you intend to scan, ensuring there are no known studs, metal, or wires in that immediate area.
2. Press and hold the calibration button (red button on the side) until the display indicates calibration is complete (usually a beep and a stable green screen).
3. Keep your hand on the calibration button throughout the scanning process.

4. Instruccions de funcionament

The KAIWEETS Stud Finder offers five scanning modes to detect different hidden objects. Always ensure proper calibration before scanning.

4.1 Selecció d'un mode

Press the "MODE" button (red button with power icon) to cycle through the available scanning modes:

• 3/4" Stud Scan: For detecting wood and metal studs up to 0.75 inches (19mm) deep.
• 1-1/2" Stud Scan: For detecting wood and metal studs up to 1.5 inches (38mm) deep.
• Escaneig de metalls: For detecting ferrous and non-ferrous metals up to 2.36 inches (60mm) deep.
• Escaneig de CA: For detecting live unshielded AC wires up to 2 inches (51mm) deep.

Figura 5: Mésview of the LCD display and button functions.

4.2 Procediment d'escaneig

1. After selecting the desired mode and calibrating, slowly slide the tool horizontally across the surface.
2. Observe the LCD display and listen for the audio alarm.
3. The display will show directional arrows and signal bars indicating proximity to a target.
4. The backlight color will change:
   • Verd: No target detected.
   • Taronja: Target edge detected.
   • Vermell: Stud center detected (in stud mode), accompanied by an audio alarm.
5. Once the stud center is indicated (red backlight and continuous beep), mark the spot.
6. For best results, scan the area multiple times from different directions to confirm the target's location.

4.3 Specific Mode Usage Tips

4.3.1 Stud Mode (3/4" & 1-1/2")

These modes are designed to locate the center and edges of wood and metal studs. Always start with the 3/4" mode to minimize false readings. If no stud is found or a deeper scan is needed, switch to 1-1/2" mode.

Figure 6: Illustration of stud mode detection and depth capabilities.

4.3.2 Mode d'escaneig de metalls

Use this mode to detect metal objects such as pipes or rebar. It can detect metal up to 2.36 inches (60mm) deep. To differentiate between wood and metal, first use a stud mode to locate the object, then switch to metal mode. If the object is still detected, it is metal; otherwise, it is likely wood.

Figure 7: Illustration of metal mode detection.

4.3.3 AC Scan Mode

This mode detects live unshielded AC wires up to 2 inches (51mm) deep. The AC wire warning icon will flash on the display when live wires are detected, regardless of the active scanning mode. This feature is crucial for safety to avoid electrical hazards during drilling or cutting.

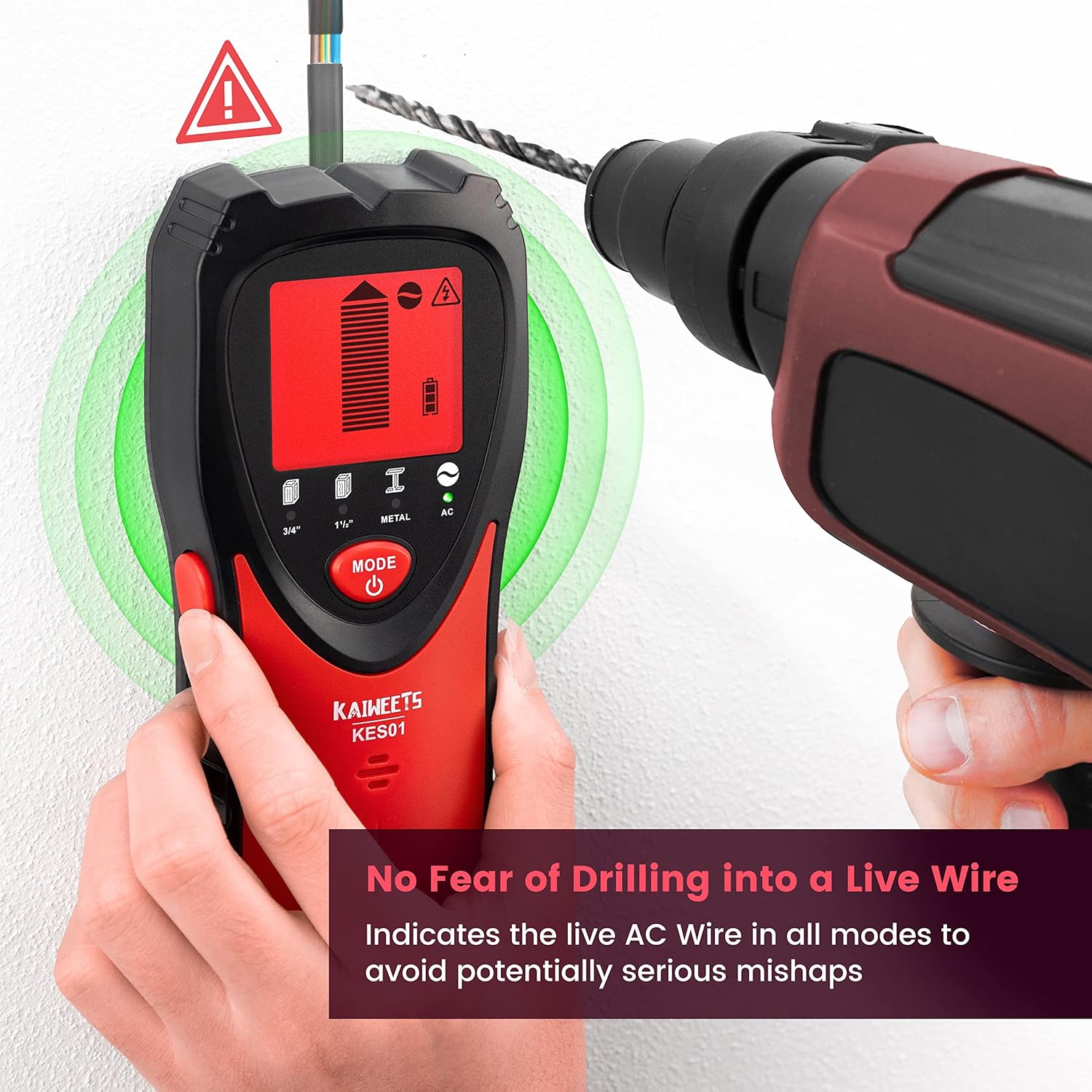

Figure 8: Safety feature demonstrating AC wire detection.

5. Manteniment

• Mantingueu el dispositiu net i sec. Netegeu-lo amb un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Store the stud finder in its dustproof bag (included) when not in use to protect it from dust and debris.
• Remove the battery if the device will not be used for an extended period to prevent battery leakage and corrosion.
• Avoid exposing the device to extreme temperatures or high humidity.

Figure 9: Included accessories for storage and maintenance.

6. Solució De Problemes

• Lectures inconsistents:
  • Ensure proper calibration on a blank wall area before scanning.
  • Slowly slide the device across the surface. Rapid movement can lead to inaccurate results.
  • Re-calibrate if moving to a different wall material or if readings become erratic.
  • Check battery level; a low battery can affect performance.
• Sense detecció:
  • Verify the correct mode is selected for the target material (wood, metal, AC).
  • Ensure the device is held flat against the wall and the calibration button is continuously pressed.
  • The target might be deeper than the selected mode's detection depth. Try the 1-1/2" stud mode or metal mode if applicable.
• False Positives (Detecting where no object exists):
  • This can occur due to moisture in the wall or nearby electrical interference. Try scanning a different area or on a drier day.
  • Ensure your hand is not touching the scanning surface or other parts of the wall during operation, as this can interfere with readings.

7. Especificacions

8. Garantia i Suport

KAIWEETS offers a 36-month (3-Year) warranty for this product, ensuring peace of mind for your purchase. Additionally, customers can enjoy lifetime support, which includes the option of receiving a replacement item if necessary. For any inquiries or assistance, please contact KAIWEETS customer service through their official channels.
