Manual d'usuari de la llum de bicicleta TOWILD CL1600 amb comandament a distància

1. Introducció

The TOWILD CL1600 is a high-performance rechargeable bike headlight designed for various cycling conditions, including night riding. It features a maximum brightness of 1600 lumens, a 5000mAh battery, IPX6 waterproof rating, and compatibility with Garmin/GoPro mounts. This manual provides instructions for the proper setup, operation, and maintenance of your CL1600 bike light.

2. Contingut del paquet

• TOWILD CL1600 Bike Light
• Comandament a distància sense fil
• Muntatge de manillar
• Cable de càrrega USB-C
• Manual d'usuari

3. Producte acabatview

Familiarize yourself with the components of your TOWILD CL1600 bike light and its remote control.

The TOWILD CL1600 bike light, its quick-release mount, and the wireless remote control unit.

Light Unit Features:

• Power Button/Mode Switch: Controls power and cycles through lighting modes.
• Indicador de bateria: Mostra el nivell actual de la bateria.
• Port USB-C: For charging the light and for power bank functionality.
• Interfície de muntatge: Compatible with standard handlebar mounts and Garmin/GoPro style mounts.

Característiques de control remot:

• Power On/Off & Brightness Switch: Controls the light's power and adjusts brightness levels.
• Interruptor de mode: Cycles through lighting and flash modes. Long press to switch between manual and intelligent modes.
• Botó de brillantor màxima: Instantly activates maximum brightness.

4. Configuració

4.1 Charging the Light

Before first use, fully charge the CL1600 bike light. The built-in 5000mAh battery provides extended usage.

1. Locate the USB-C charging port on the light unit.
2. Connect the provided USB-C cable to the light and to a USB power source (e.g., wall adapter, computer USB port).
3. The battery indicator will show charging status. A full charge typically takes several hours.

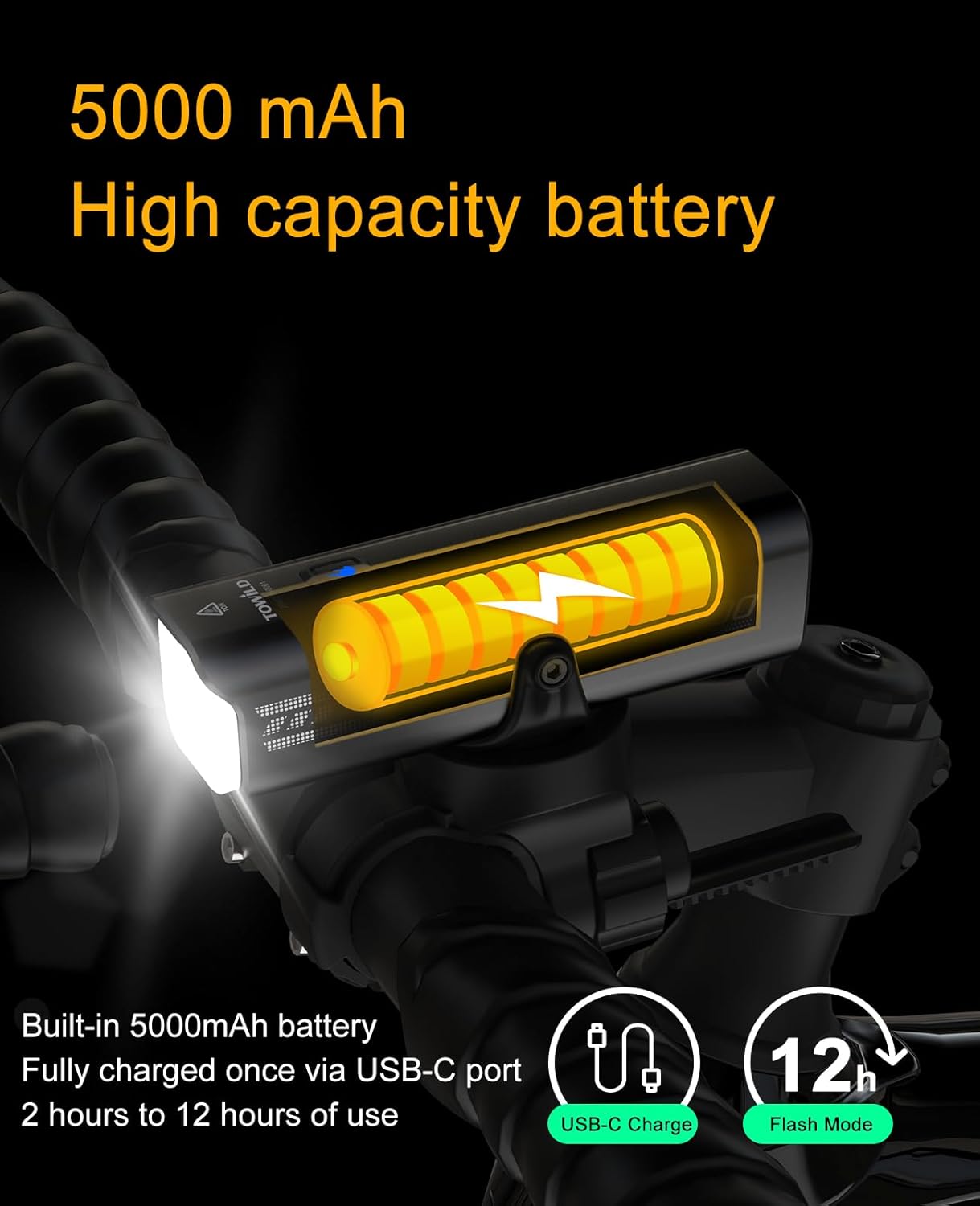

An illustration highlighting the 5000mAh high-capacity battery and USB-C charging port of the CL1600 bike light, indicating 2 to 12 hours of use.

4.2 Muntatge de la llum

The CL1600 offers versatile mounting options for your bicycle.

Dos examples of the CL1600 bike light mounted on handlebars, one with an out-front mount (not included) and another with a standard handlebar strap mount.

Diagram showing the CL1600 bike light's compatibility with Garmin and GoPro mounts, allowing for various mounting positions including under the handlebar or on a helmet.

1. Muntatge del manillar: Attach the provided handlebar mount securely to your bicycle's handlebar. Ensure the mount is tight and the light will not shift during riding. The light can be easily attached and detached from this mount for charging or security.
2. Garmin/GoPro Compatibility: The CL1600 is designed to be compatible with existing Garmin and GoPro style mounts, offering flexibility for positioning the light on your bike or helmet.

4.3 Emparellament del control remot

The remote control allows for convenient operation of the light while riding.

1. Ensure the bike light is powered on.
2. Press and hold the power button on the remote control until the light unit responds (e.g., flashes or changes mode). This indicates successful pairing.
3. Mount the remote control in an easily accessible position on your handlebar.

5. Instruccions de funcionament

5.1 Power On/Off and Mode Selection (Light Unit)

• Encès: Press the power button on the light unit.
• Apagar: Manteniu premut el botó d'engegada durant aproximadament 2 segons.
• Canvia el mode: Short press the power button to cycle through different brightness levels and flash modes.

5.2 Ús del comandament a distància sense fil

The remote control provides quick access to light functions without removing your hands from the handlebars.

The CL1600 bike light mounted on a handlebar, showing the wireless remote control with buttons for brightness, mode, and power.

• Power On/Off & Brightness: Use the designated button on the remote to turn the light on/off and cycle through brightness settings.
• Canvi de mode: Use the mode button to switch between different lighting and flash patterns.
• Manual/Intelligent Mode: Long press the mode button on the remote to toggle between manual mode and intelligent mode.
• Brillantor màxima: Press the 'Max brightness' button for an immediate burst of 1600 lumens, useful for alerting others or navigating challenging terrain.

5.3 Intelligent Mode (Vibration Sensor)

In intelligent mode, the light utilizes a vibration sensor to manage power efficiently.

An illustration showing the CL1600 bike light in two states: off when stationary and on when movement is detected, demonstrating the vibration sensor in smart mode.

• When in intelligent mode (indicated by a blue light on the indicator), the main light will turn off after approximately 120 seconds if no movement is detected.
• The light will automatically turn back on if movement is detected within one hour.
• After one hour of no movement, the light will not automatically reactivate; it must be manually turned on again.

5.4 Indicador de bateria

The battery indicator provides an estimate of the remaining power:

• Verd: Nivell alt de bateria.
• Blau: Nivell de bateria mitjà.
• Vermell: Low battery level, recharge soon.
• Vermell intermitent: Critically low battery, recharge immediately.

5.5 Funció de bateria externa

The CL1600 can also serve as a portable power bank to charge other devices.

The CL1600 bike light connected via USB-C to charge a smartphone, illustrating its power bank functionality.

Connect your smartphone or other USB-powered device to the light's USB-C port using an appropriate cable. The light will begin charging the connected device.

6. Manteniment

6.1 Neteja

Netegeu la unitat de llum amb un drap suauamp cloth. Avoid using abrasive cleaners or solvents that could damage the finish or lens.

6.2 Cura de la bateria

• Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència.
• Recharge the battery at least once every three months if not in regular use.
• Store the light in a cool, dry place.

6.3 Impermeabilització

The CL1600 has an IPX6 waterproof rating, meaning it is protected against high-pressure water jets from any direction. It is suitable for use in rain or snowy conditions but should not be submerged in water.

The CL1600 bike light shown with water splashing, emphasizing its IPX6 waterproof rating and anti-drop durability.

7. Solució De Problemes

• La llum no s'encén: Check battery level and recharge if necessary. Ensure the power button is pressed firmly.
• El comandament a distància no funciona: Ensure the remote is paired with the light. Check the remote's battery (if applicable) and replace if needed.
• Llum parpellejant o tènue: Recarrega la bateria. Si el problema persisteix, contacta amb el servei d'atenció al client.
• La llum no es carrega: Ensure the USB-C cable is properly connected to both the light and the power source. Try a different cable or power adapter.

8. Especificacions

9. Garantia i Suport

TOWILD products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your product or visit the official TOWILD weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
