Turing TP-MFD4A28 Smart Series 4MP IR Dome IP Camera User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of the Turing TP-MFD4A28 Smart Series 4MP IR Dome IP Camera. This camera features 4-megapixel resolution, TwilightVision technology for optimal low-light performance, Smart IR up to 30 meters (98 feet), and robust IP67 and IK10 ratings for outdoor and vandal-resistant use. It supports Power over Ethernet (PoE) and a 256GB MicroSD card for local storage.

Les característiques clau inclouen:

• Max. 4MP (2688x1520) resolution at 30/25fps
• Lent fixa de 2.8 mm
• TwilightVision for optimal image clarity in low light
• Smart IR up to 30m (98ft) night vision
• IP67 weather resistance and IK10 vandal resistance
• Àmbit dinàmic ampli (WDR)
• Suport Power over Ethernet (PoE).
• Support for 256GB MicroSD card
• People and Vehicle Search capabilities when used with Turing Smart Series NVR and Turing Vision Cloud

2. Informació de seguretat

Please read these safety instructions carefully before using the product to prevent damage or injury.

• Font d'alimentació: Use only the specified power adapter (12V DC) or a compliant Power over Ethernet (PoE) switch/injector. Incorrect voltagPotser farà malbé la càmera.
• Instal·lació: Ensure the camera is securely mounted to prevent it from falling. Professional installation is recommended for outdoor or high-altitude mounting.
• Medi ambient: Do not expose the camera to extreme temperatures, humidity, or corrosive environments beyond its IP67 rating. Avoid direct sunlight for prolonged periods.
• Neteja: Desconnecteu l'alimentació abans de netejar. Feu servir un drap suau i sec. No utilitzeu detergents ni dissolvents forts.
• Desmuntatge: No intenteu desmuntar ni modificar la càmera. Això anul·larà la garantia i pot causar danys.
• cables: Protect network and power cables from being walked on or pinched, especially at plugs and the point where they exit the camera.

3. Contingut del paquet

Verifiqueu que tots els articles siguin presents i en bon estat en desempaquetar-los:

• Turing TP-MFD4A28 IP Dome Camera
• Cargols de muntatge i tacs de paret
• Connector impermeable per a cable Ethernet
• Quick Start Guide / Instruction Manual (this document)
• Drill Template (may be included)

Note: A power adapter (12V DC) is not always included as the camera supports PoE. A PoE switch or injector is required for PoE power.

4. Producte acabatview

The Turing TP-MFD4A28 is a compact dome-style IP camera designed for discreet surveillance. Its robust housing provides protection against weather and vandalism.

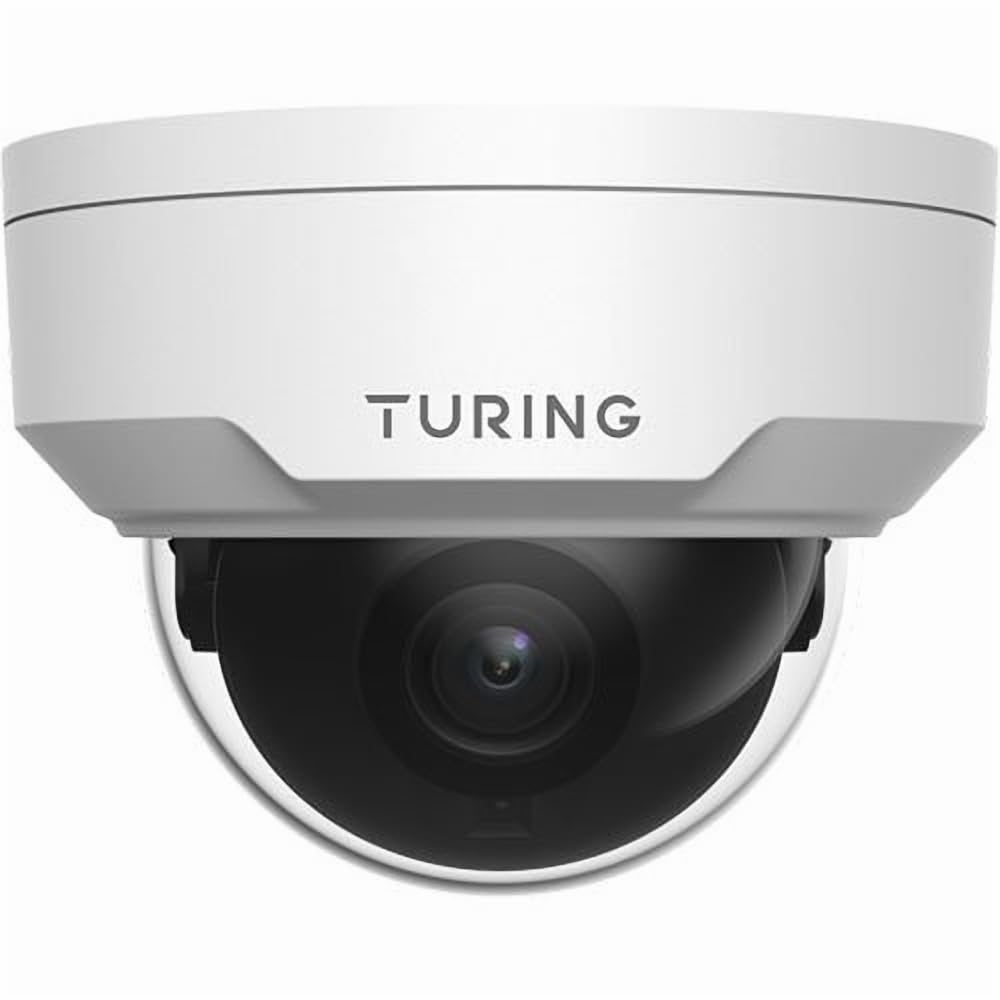

Figura 4.1: Davant view of the Turing TP-MFD4A28 4MP IR Dome IP Camera, showing its white dome design and lens.

Components clau:

• Dome Cover: Protective cover for the lens and IR LEDs.
• Lent: 2.8mm fixed lens for a wide field of view.
• LED IR: Infrared illuminators for night vision.
• Ranura per a targeta MicroSD: Located internally, accessible by removing the dome cover.
• Botó de restabliment: Located internally, used for factory reset.
• Port Ethernet (RJ45): Per a connexió de xarxa i Power over Ethernet (PoE).
• Entrada d'alimentació (12 V CC): Optional power input if PoE is not used.

5. Configuració

5.1 Physical Installation (Wall Mount)

1. Trieu una ubicació: Select a suitable wall-mount location that provides the desired viewing angle and is within range of your network cable.
2. Prepara la superfície: Use the provided drill template (if available) to mark the screw holes on the wall. Drill pilot holes.
3. Mount the Camera Base: Secure the camera's mounting base to the wall using the provided screws and wall plugs.
4. Cables de ruta: Pass the Ethernet cable through the cable entry point on the mounting base.

5.2 Connexió d'alimentació i xarxa

1. Connexió Ethernet: Connect an Ethernet cable from your PoE switch/injector or network router to the camera's RJ45 port. Use the waterproof connector for outdoor installations.
2. Potència (opcional): Si no feu servir PoE, connecteu un adaptador de corrent continu de 12 V (no inclòs) a l'entrada d'alimentació de la càmera.
3. Verifica l'alimentació: The camera's indicator light (if present) should illuminate, indicating power.

5.3 Instal·lació de la targeta MicroSD

The camera supports up to a 256GB MicroSD card for local storage.

1. Desconnecteu l'alimentació: Ensure the camera is powered off before installing or removing the MicroSD card.
2. Remove Dome Cover: Carefully twist or unclip the outer dome cover to access the internal components.
3. Inseriu la targeta MicroSD: Locate the MicroSD card slot and insert the card with the contacts facing down until it clicks into place.
4. Replace Dome Cover: Securely reattach the dome cover, ensuring a watertight seal for IP67 protection.
5. Format de la targeta: After powering on, format the MicroSD card via the camera's web interface or connected NVR for proper operation.

5.4 Configuració inicial

For initial setup and advanced configuration, access the camera via its web interface or connect it to a Turing Smart Series NVR or Turing Vision Cloud.

• Troba l'adreça IP: Use a network scanner tool or your NVR to discover the camera's IP address on your local network.
• Accés Web Interfície: Obre a web browser and enter the camera's IP address. Log in using the default credentials (refer to the Quick Start Guide for default username/password).
• Canvia la contrasenya predeterminada: Per seguretat, canvieu la contrasenya predeterminada immediatament després de la primera sessió.
• Configuració de la xarxa: Configure network settings (e.g., static IP, DNS) if required by your network environment.
• Configuració de l'hora: Set the correct date and time for accurate recording timestamps.

6. Funcionament

6.1 Viu View i Enregistrament

Access the live video feed through your NVR, Turing Vision Cloud, or the camera's web interface. You can initiate manual recordings or configure scheduled/motion-triggered recordings.

• Resolució: The camera supports up to 4MP (2688x1520) resolution. Adjust settings as needed for bandwidth and storage.
• Velocitat de fotogrames: Records at 30/25 frames per second for smooth video.

6.2 Night Vision (Smart IR)

The camera automatically switches to night vision mode in low-light conditions, utilizing its Smart IR LEDs to provide clear black-and-white video up to 30 meters (98 feet). TwilightVision technology enhances low-light performance before IR activation.

6.3 Wide Dynamic Range (WDR)

WDR technology helps balance areas of high contrast in the image, ensuring details are visible in both bright and dark regions simultaneously. This is particularly useful in scenes with strong backlighting.

6.4 Motion Detection and Analytics

Configure motion detection zones and sensitivity via the camera's web interface or NVR. When integrated with a Turing Smart Series NVR or Turing Vision Cloud, the camera supports advanced analytics like People and Vehicle Search.

• Tipus d'alerta: Motion Only alerts are supported.
• Configuració: Set up email notifications or NVR alarms for detected events.

7. Manteniment

7.1 Neteja de la càmera

Una neteja regular ajuda a mantenir una qualitat d'imatge òptima.

• Gently wipe the dome cover and lens with a soft, lint-free cloth.
• Per a la brutícia persistent, utilitzeu un drap lleugerament humit.ampesbandida amb aigua. Eviteu productes de neteja abrasius.
• Ensure no moisture enters the camera housing.

7.2 actualitzacions de microprogramari

Periodically check the Turing website or your NVR system for available firmware updates. Firmware updates can improve performance, add new features, and enhance security. Follow the provided instructions carefully when performing updates.

7.3 Gestió de targetes MicroSD

If using a MicroSD card for recording, it is recommended to format it periodically (e.g., monthly) to maintain performance and prevent data corruption. Back up any important recordings before formatting.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

Turing products are covered by a manufacturer's warranty. Please refer to the official Turing weblloc web o la documentació de compra per conèixer els termes i condicions específics de la garantia.

For technical support, troubleshooting assistance, or warranty claims, please contact Turing customer service through their official weblloc web o la informació de contacte proporcionada amb la compra.

Recursos en línia:

• Official Turing Weblloc: www.turing.com
• Support Portal: (Check Turing website for specific support links)
