Informació important de seguretat
Read all instructions carefully before installation. Save these instructions for future reference. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. Always disconnect power at the main circuit breaker before installation or maintenance. Ensure all electrical connections are secure and comply with local codes.
ADVERTIMENT: Risk of electric shock. Turn off power at the circuit breaker before installation.
PRECAUCIÓ: Risk of fire. Use only with specified wattage and type of bulb (integrated LED).
Què hi ha a la caixa
- Aiden Integrated LED Flush Mount Fixture
- Kit de maquinari de muntatge
- Control remot
- Manual d'instruccions

Image: Product packaging illustrating the included components.
Eines necessàries (no incloses)
- Tornavís Phillips
- Tornavís de cap pla
- Pelafils
- Cinta elèctrica
- Ulleres de seguretat
- Escala
Configuració i instal·lació
- Preparació per a la instal·lació: Turn off power at the main circuit breaker. Ensure the power is completely disconnected before proceeding.
- Instal·lació del suport de muntatge: Fixeu el suport de muntatge a la caixa de connexions amb els cargols proporcionats. Assegureu-vos que estigui ben fixat.
- Connexions elèctriques:
- Connecteu el cable negre del dispositiu al cable negre (actiu) de la caixa de connexions.
- Connecteu el cable blanc del dispositiu al cable blanc (neutre) de la caixa de connexions.
- Connect the ground wire from the fixture to the ground wire from the junction box.
- Assegureu totes les connexions amb femelles i cinta elèctrica.
- Adjunt d'accessoris: Carefully align the fixture with the mounting bracket and secure it using the provided screws. Ensure the fixture is flush with the ceiling.
- Restaura l'alimentació: Un cop finalitzada la instal·lació i totes les connexions siguin segures, restableu l'alimentació a l'interruptor principal.

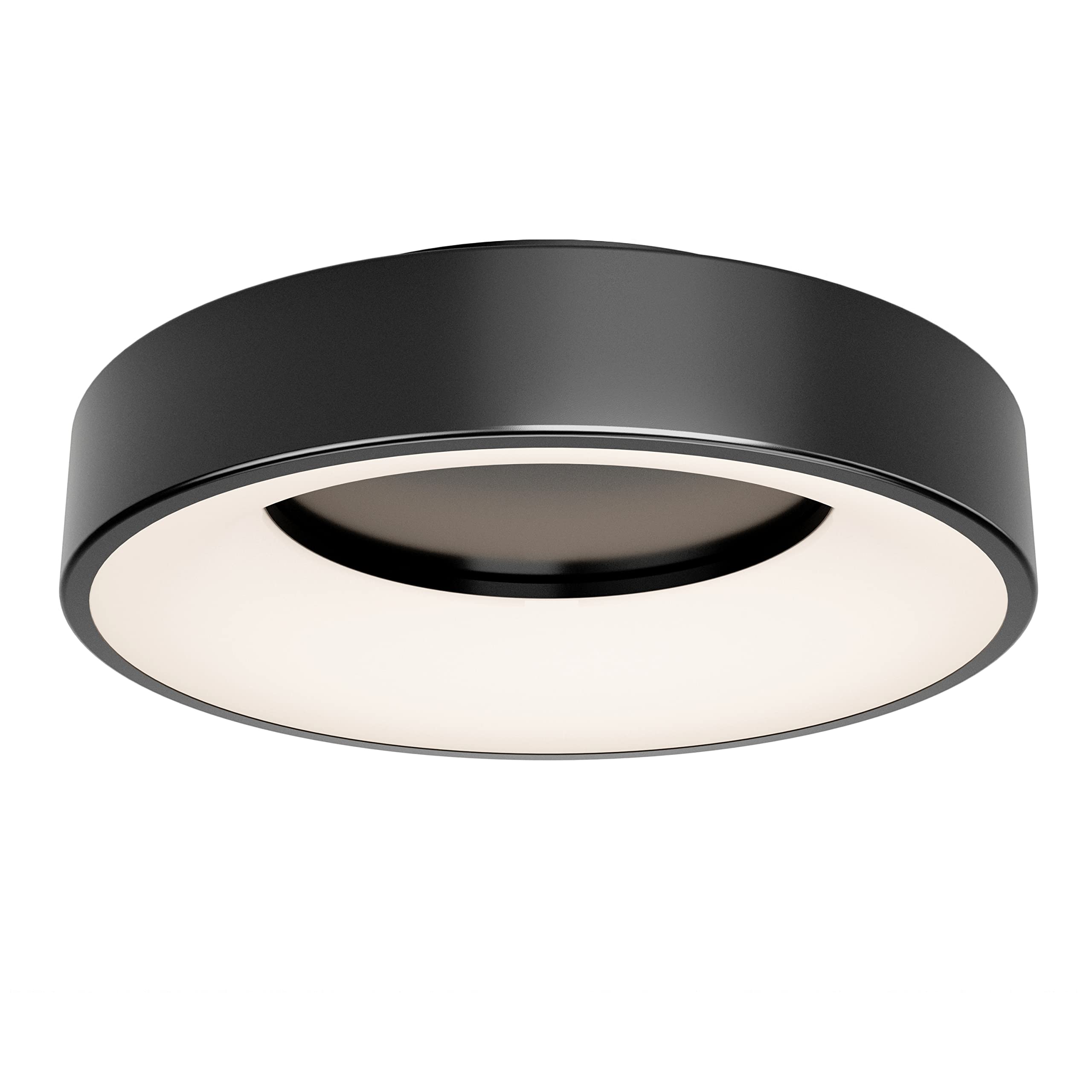

Image: The Aiden LED Flush Mount installed, demonstrating its appearance in a typical home setting.
Instruccions de funcionament
The Artika Aiden Integrated LED Flush Mount features adjustable color temperature (CCT) and dimming capabilities, controlled via the included remote.
Encès/Apagat
Premeu el botó ON/OFF button on the remote control to turn the light fixture on or off.
Ajust de la brillantor (atenuació)
Utilitza el DIM UP i BAIXA buttons on the remote to increase or decrease the light intensity. The fixture is dimmable from 10% to 100% brightness.
Canvi de temperatura de color (CCT)
The fixture offers 5 selectable color temperatures: 2700K (Warm White), 3000K, 3500K, 4000K, and 5000K (Cool White). Press the CCT button on the remote to cycle through these options until your desired color temperature is reached.

Image: Visual representation of the tunable white feature, showing the range from warm white (2700K) to cool white (5000K).
Manteniment
- Neteja: To clean the fixture, ensure the power is off. Wipe with a soft, dry or slightly damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Substitució de bombetes: This fixture uses integrated LED components. There are no user-serviceable bulbs to replace.
- Inspecció: Periodically check for any loose connections or damage to the fixture. If damage is found, discontinue use and consult a qualified electrician.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. |
|
|
| La llum parpelleja o s'atenua inesperadament. |
|
|
| El comandament a distància no funciona. |
|
|
Especificacions
| Número de model | FM-AIC-HD2BL |
| Marca | Artika |
| Dimensions del producte | 33 cm de llargada x 33 cm d'amplada x 8.56 cm d'alçada |
| Material | Acer d'aliatge, plàstic |
| Color | Negre |
| Tipus de font de llum | LED integrat |
| Wat totaltage | 17 watts |
| Brillantor | 950 lúmens (màx.) |
| Temperatura de color (CCT) | 2700K - 3000K - 3500K - 4000K - 5000K (Selectable) |
| Regulable | Sí (mitjançant comandament a distància) |
| Voltage | 120 Volts |
| Vida Mitjana | 50,000 hores |
| Ús interior/exterior | Interior |
| Mètode de control | Control remot |

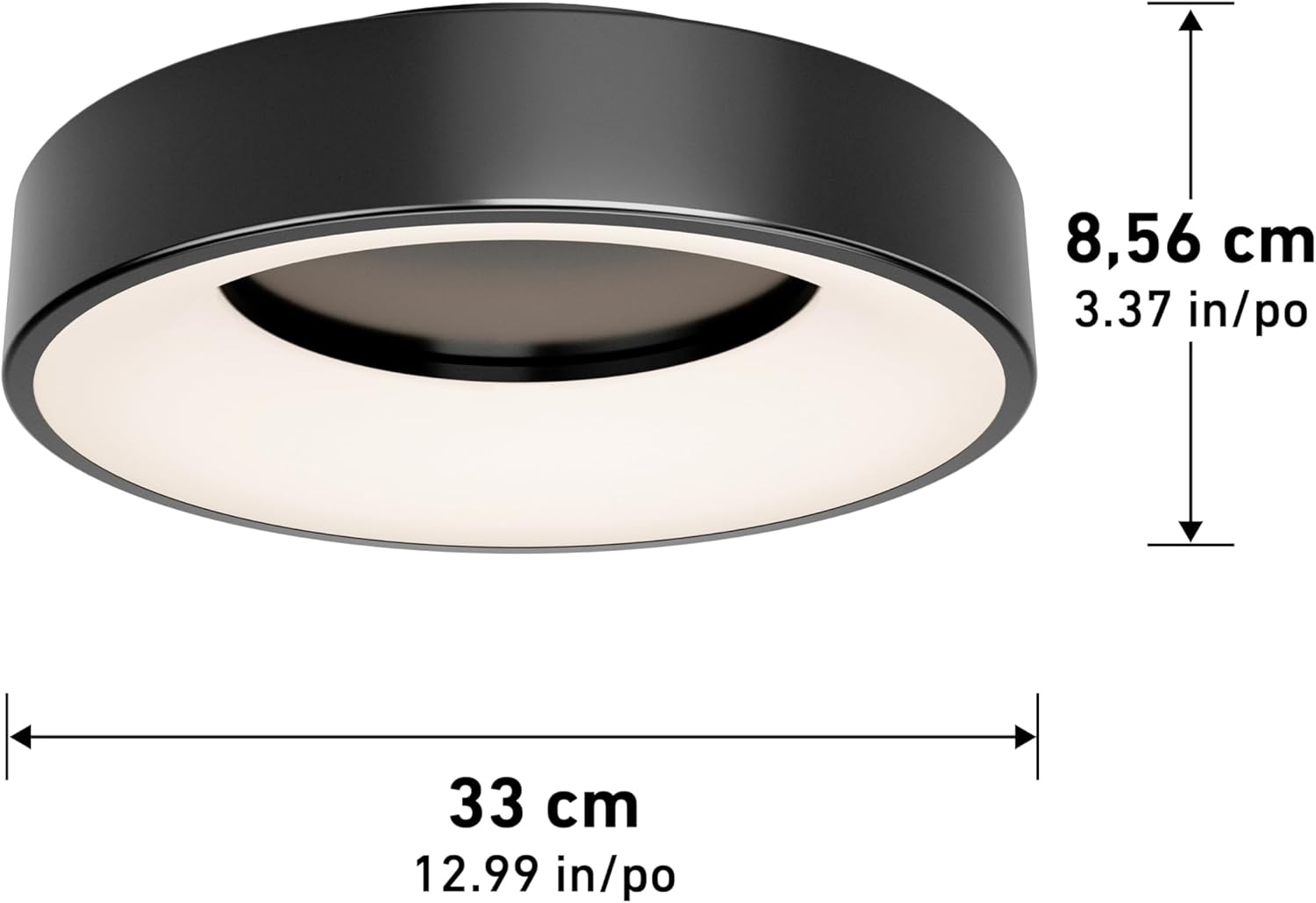

Image: Technical drawing illustrating the length, width, and height dimensions of the fixture.
Informació de la garantia
Artika products are manufactured with high-quality components and are designed to last. This product is covered by a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the official Artika weblloc o contacteu amb el servei d'atenció al client.
Atenció al client
If you encounter any issues or have questions regarding the installation or operation of your Artika Aiden Integrated LED Flush Mount, please contact Artika customer support. Visit the official Artika weblloc web per obtenir informació de contacte, preguntes freqüents i recursos addicionals.
Recursos en línia: www.artika.com
