Introducció
The Dolphin Nauty TC is an advanced robotic pool cleaner designed to provide autonomous and efficient cleaning of your swimming pool. It is capable of cleaning the pool floor, walls, and waterline, ensuring comprehensive coverage. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Dolphin Nauty TC cleaner.
Informació de seguretat
Seguiu sempre les següents pautes de seguretat per evitar lesions o danys a la unitat:
- Ensure the power supply is disconnected before performing any maintenance or handling the cleaner.
- Do not operate the cleaner if the power cable is damaged.
- Mantingueu els nens i les mascotes allunyats de la zona de la piscina mentre el netejador està en funcionament.
- Only use the original power supply unit provided with the cleaner.
- Do not use the cleaner if there are people in the pool.
Muntatge i muntatge
Follow these steps to prepare your Dolphin Nauty TC for its first use:
- Desempaquetar el netejador: Carefully remove the Dolphin Nauty TC robotic cleaner and all accessories from its packaging.
- Assemble the Caddy: The cleaner comes with a caddy for easy transport and storage. Assemble the caddy according to the diagrams provided in the separate caddy assembly guide.
- Connecteu la font d'alimentació: Place the power supply unit at least 3.5 meters (11.5 feet) from the edge of the pool. Connect the floating cable from the cleaner to the power supply unit, ensuring a secure connection.
- Place the Cleaner in the Pool: Gently lower the cleaner into the pool. Allow it to sink to the bottom, releasing any trapped air bubbles. Ensure the floating cable is untangled and has enough slack to allow the cleaner to move freely.

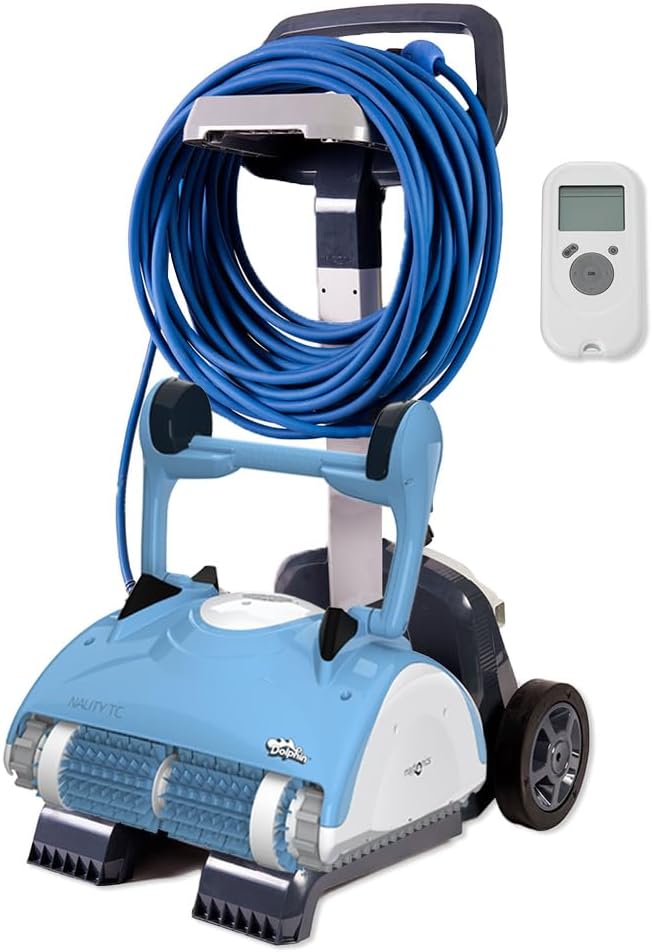

Image: The Dolphin Nauty TC robotic pool cleaner shown with its transport caddy and remote control, ready for setup.
Instruccions de funcionament
The Dolphin Nauty TC offers automated cleaning with programmable cycles and remote control capabilities.
Inici d'un cicle de neteja
- Ensure the cleaner is fully submerged and the power supply is connected and plugged into a power outlet.
- Press the ON/OFF button on the power supply unit. The cleaner will begin its default cleaning cycle.
- To select a specific cleaning cycle (1 hour or 3 hours), use the remote control. Refer to the remote control section for detailed instructions.
Ús del comandament a distància
The remote control allows you to program cleaning cycles and manually navigate the cleaner.
- Selecció de cicle: Use the designated buttons on the remote to switch between the 1-hour and 3-hour cleaning cycles.
- Navegació manual: Use the directional arrows to steer the cleaner to specific areas of the pool for spot cleaning.
- Inici retardat: Some models may offer a delay start function via the remote control. Consult your remote's specific instructions.

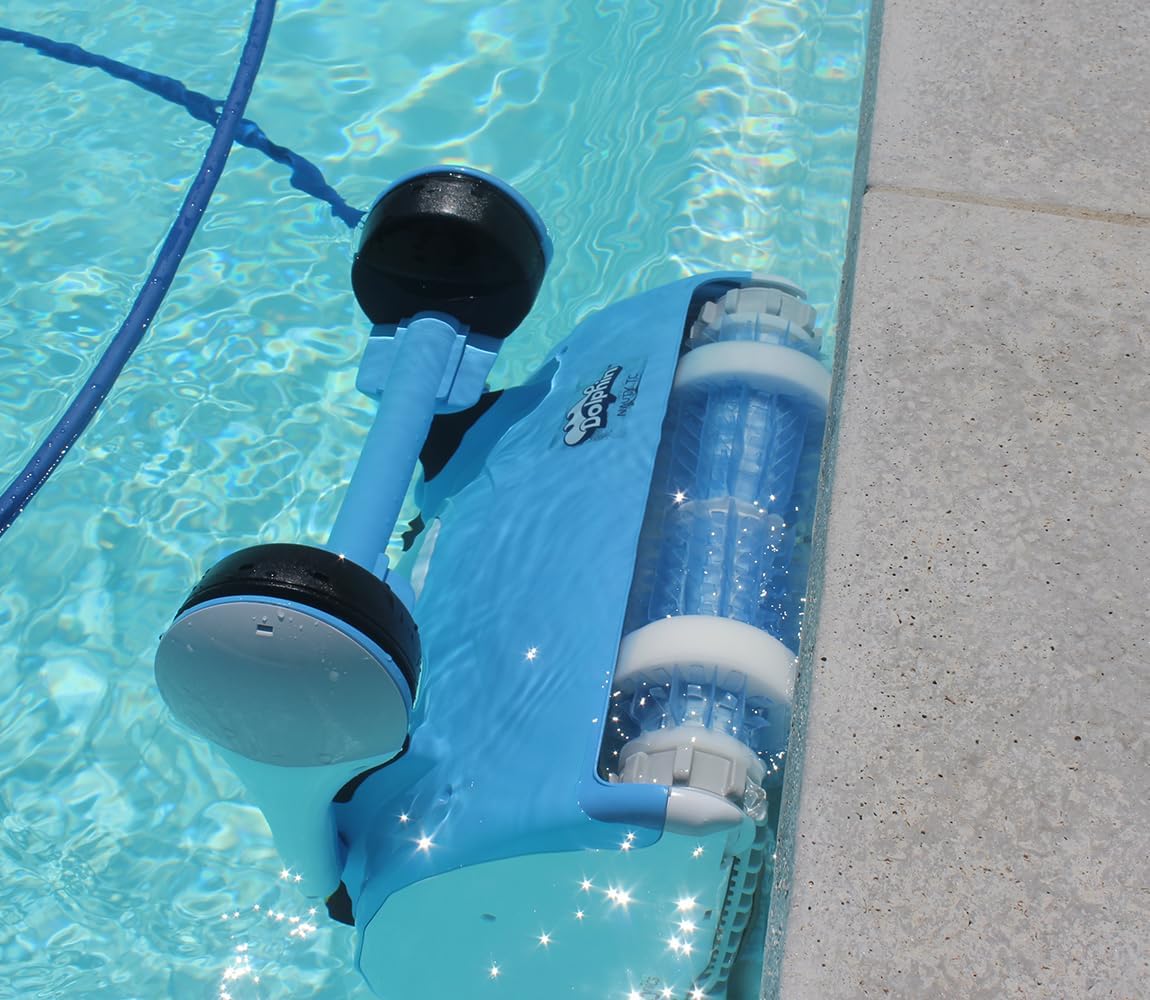

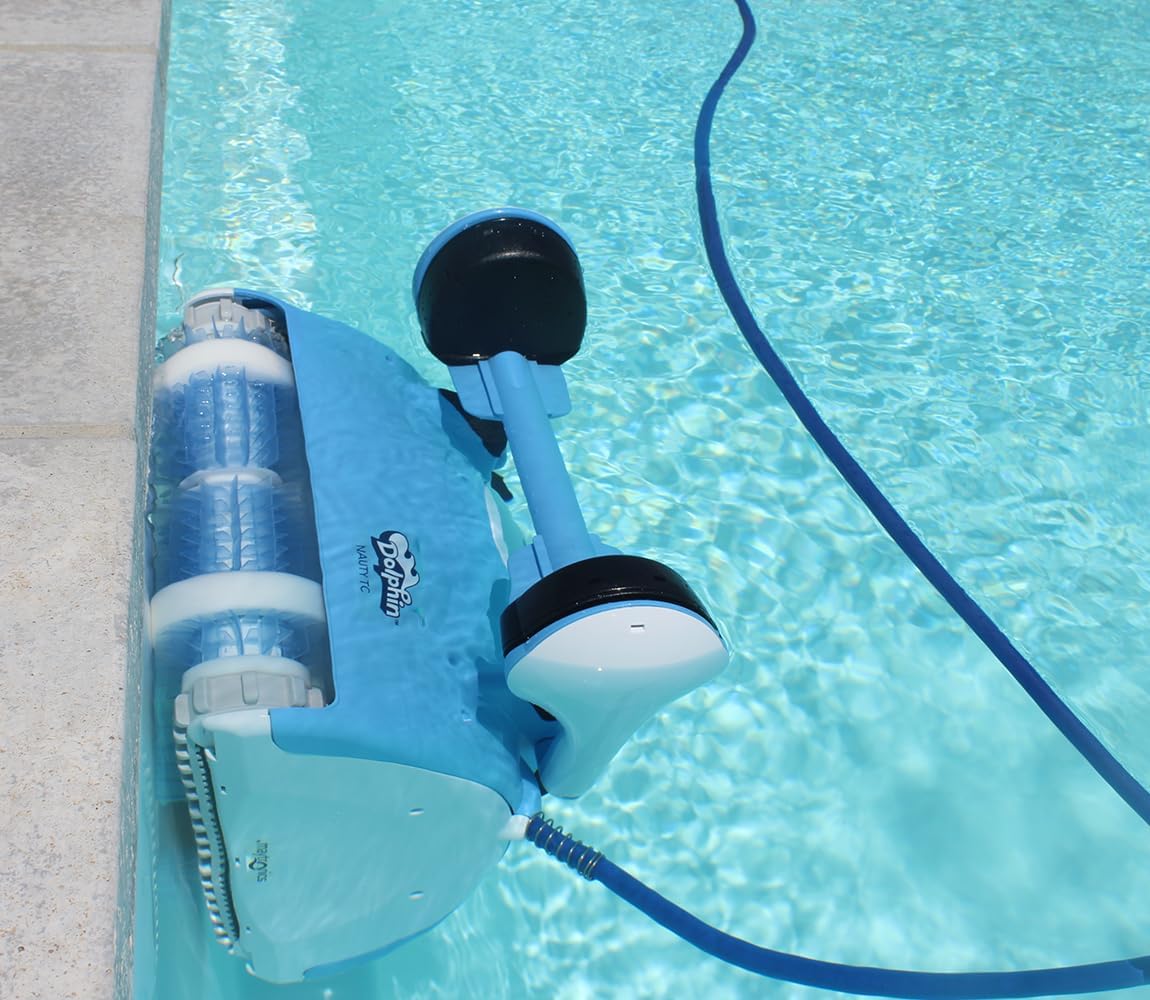

Image: The Dolphin Nauty TC actively cleaning the wall of a swimming pool, demonstrating its wall-climbing capability.
Imatge: Un primer pla view of the Dolphin Nauty TC's remote control unit alongside a filter basket, highlighting key operational components.

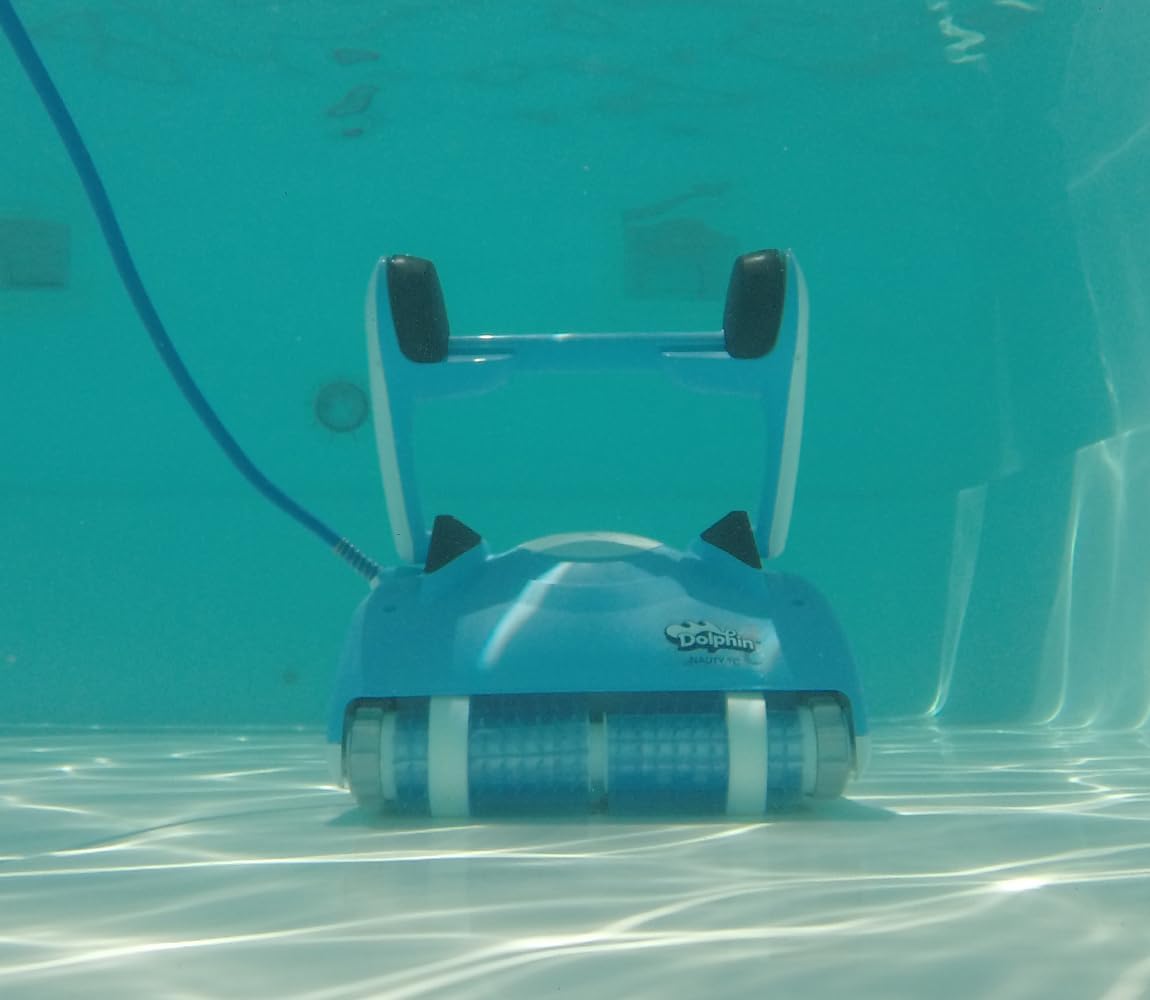

Image: The Dolphin Nauty TC robotic cleaner submerged and operating efficiently on the pool floor.
Manteniment
Regular maintenance ensures optimal performance and extends the lifespan of your Dolphin Nauty TC.
Neteja de les cistelles del filtre
After each cleaning cycle, or when the filter full indicator illuminates, the filter baskets must be cleaned.
- Remove the cleaner from the pool and disconnect the power supply.
- Open the filter compartment (refer to your cleaner's specific design for latch location).
- Traieu les cistelles del filtre.
- Esbandiu bé les cistelles del filtre amb una mànega de jardí fins que s'hagin eliminat totes les restes.
- Reinsert the clean filter baskets into the cleaner and close the compartment securely.
Image: The Dolphin Nauty TC robotic cleaner displayed with its removable filter baskets, ready for cleaning.
Neteja i emmagatzematge general
- Rinse the cleaner body with fresh water after each use to remove chlorine and debris.
- Store the cleaner in a shaded area on its caddy when not in use.
- Ensure the floating cable is neatly coiled to prevent tangling and damage.
Image: The Dolphin Nauty TC robotic cleaner conveniently stored on its caddy beside the swimming pool.
Resolució de problemes
If your Dolphin Nauty TC is not operating as expected, consult the following common issues and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Cleaner does not move or turn on. | No power, cable disconnected, power supply fault. | Check power outlet, ensure cable is securely connected to power supply and cleaner. |
| Mal rendiment de neteja. | Clogged filter baskets, worn brushes, improper water chemistry. | Clean filter baskets thoroughly. Inspect brushes for wear and replace if necessary. Check pool water chemistry. |
| El netejador no s'enfila a les parets. | Clogged filter, air in cleaner, slippery pool surface. | Clean filters. Shake cleaner gently underwater to release air. Brush pool walls to remove algae. |
| Floating cable tangles. | Improper cable management, cleaner operating too long. | Ensure sufficient cable slack. Coil cable properly after each use. Consider shorter cleaning cycles if tangling persists. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | DL99996056-NAU |
| Dimensions (L x A x A) | 60 x 50 x 50 cm |
| Font d'alimentació | Elèctric |
| Recommended Pool Length | Fins a 15 metres |
| Cobertura de neteja | Floor, Walls, Waterline |
| Cicles de neteja | 1 hora / 3 hores |
| Control | Control remot |
| Accessoris inclosos | Caddy, Remote Control |
Garantia i Suport
Your Dolphin Nauty TC robotic pool cleaner is covered by a 2 any de garantia des de la data de compra. Aquesta garantia cobreix defectes de fabricació i avaries en condicions d'ús normals.
For technical assistance, warranty claims, or to order replacement parts, please contact Dolphin customer support through their official website or your local authorized dealer. Please have your model number (DL99996056-NAU) and proof of purchase ready when contacting support.
Vídeos oficials de productes
No s'han trobat vídeos oficials de productes del venedor a les dades proporcionades per incrustar en aquest manual.
