Producte acabatview
The 1Mii B08Pro is a versatile Hi-Fi Bluetooth 5.3 Stereo Amplifier designed to deliver high-resolution audio to your home stereo system. Featuring LDAC and aptX HD/LL codecs, a high-fidelity DAC chip, and powerful 100W x 2 channel output, it provides an immersive listening experience. This manual will guide you through the setup, operation, and maintenance of your device.
Davant view of the 1Mii B08Pro Bluetooth Stereo Amplifier, showing the control knobs and input switch.
The compact size of the 1Mii B08Pro amplifier, easily held in one hand.
Informació de seguretat
Please read and follow all safety instructions carefully to prevent damage to the device or personal injury.
- No exposeu el dispositiu a l'aigua ni a una humitat excessiva.
- Eviteu col·locar el dispositiu a prop de fonts de calor o sota la llum solar directa.
- Assegureu-vos una ventilació adequada per evitar el sobreescalfament.
- Utilitzeu només l'adaptador d'alimentació subministrat.
- No intenteu desmuntar ni reparar el dispositiu vosaltres mateixos. Poseu-vos en contacte amb personal qualificat per al servei tècnic.
Contingut del paquet
Verifiqueu que tots els elements siguin presents al vostre paquet:
- 1Mii B08Pro Bluetooth Stereo Ampmés viu
- Power Adapter (Input: 100-240V~50/60Hz 2.5A, Output: 24V 4.2A 100W)
- Manual d'usuari
- RCA Audio Cable (Red/White)
- Cable d'àudio de 3.5 mm a RCA
Components del producte
Familiaritza't amb el amplifier's layout:
Detailed diagram showing the input and output ports of the 1Mii B08Pro amplifier, including RCA input, speaker outputs, and power input.
- Panell frontal:
- AUX/BT Switch: Toggles between auxiliary input and Bluetooth mode.
- Treble Knob: Adjusts high-frequency audio levels.
- Bass Knob: Adjusts low-frequency audio levels.
- Volume Knob: Controls the overall audio output volume.
- Panell posterior:
- RCA IN (L/R): For connecting audio sources via RCA cables.
- SPK OUT (L/R): Speaker output terminals for connecting passive speakers.
- DC 12-24V: Power input port.
- Antennas: For Bluetooth signal reception.
Instruccions de configuració
Follow these steps to set up your 1Mii B08Pro amplificador per a un rendiment òptim.
1. Power Source Connection
Connecteu l'adaptador d'alimentació a amplifier and a power outlet.
- Connect one end of the power adapter to a power source (e.g., wall outlet or power strip).
- Connect the other end of the power adapter to the DC 12-24V power input port on the rear of the B08Pro ampmés viu.
Video demonstrating the power source connection for the 1Mii B08Pro amplifier. The video shows plugging the power adapter into a power strip and then into the amplifier's DC input port.
2. Connexió d'altaveus
Connecteu els vostres altaveus passius al amplifier's speaker output terminals.
- Connect the black (negative) terminal of your left channel speaker to the black "L" terminal of the B08Pro with the black speaker wire.
- Connect the red (positive) terminal of your left channel speaker to the red "L" terminal of the B08Pro with the red speaker wire.
- Repeat the process for the right channel speaker, connecting its black (negative) terminal to the black "R" terminal and its red (positive) terminal to the red "R" terminal of the B08Pro.
posterior view of the 1Mii B08Pro amplifier showing RCA input and speaker wire connections for two passive speakers, highlighting its 100W x 2 output capability.
3. Audio Source Connection (AUX Mode)
Connect your audio source (e.g., computer, CD player, phone) to the ampllicador utilitzant els cables adequats.
- For RCA input: Connect the RCA white plug to the white RCA input jack on the B08Pro. Connect the RCA red plug to the red RCA input jack on the B08Pro.
- Connect the other end of the audio cable (e.g., 3.5mm jack or RCA) to the audio output port of your sound source device (e.g., laptop headphone jack, CD player RCA output).
- Push the silver switch on the front panel to the upper "AUX" position to select auxiliary input.

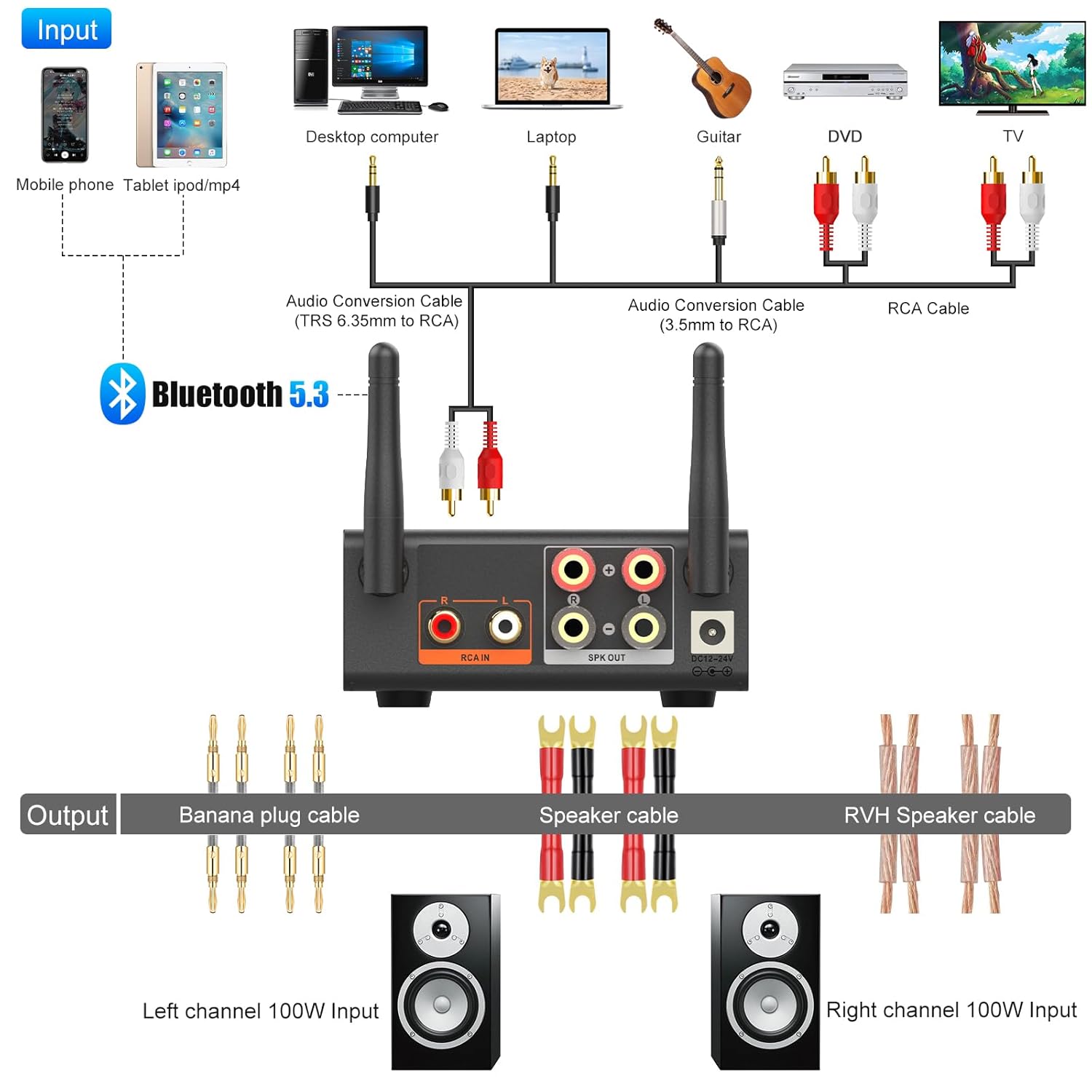

A comprehensive diagram illustrating various input sources (mobile phone, desktop computer, laptop, guitar, DVD, TV) connecting to the 1Mii B08Pro via Bluetooth or audio cables, and then outputting to speakers.
Instruccions de funcionament
1. Engegada/Apagada i Selecció de Mode
Un cop connectat, el amplifier will power on. Use the AUX/BT switch on the front panel to select your desired input mode:
- Mode AUX: For wired connections via RCA.
- Mode BT: For wireless Bluetooth connections.
2. Emparellament Bluetooth
Per connectar-se mitjançant Bluetooth:
- Canvia el amplifier to "BT" mode. The Bluetooth indicator light will blink, indicating it's in pairing mode.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for "1Mii B08Pro" in the list of available devices.
- Select "1Mii B08Pro" to pair. Once connected, the Bluetooth indicator light will become solid.
The 1Mii B08Pro amplifier connected wirelessly via Bluetooth 5.3, demonstrating its ultra-long range capability up to 60 meters in an open environment.
3. Audio Playback and Adjustment
After connecting your audio source, you can begin playback and adjust the sound.
- Start playing music or audio from your connected device.
- Utilitza el Volum knob on the front panel to control the overall loudness. Turn clockwise to increase volume, counter-clockwise to decrease.
- Utilitza el Aguts knob to adjust the high-frequency response of the audio.
- Utilitza el Baix knob to adjust the low-frequency response of the audio.
The front panel of the 1Mii B08Pro amplifier, highlighting the bass, treble, and volume adjustment knobs for personalized sound control.
A setup showing the 1Mii B08Pro amplifier connected to speakers and a turntable, illustrating its capability to provide a Hi-Fi listening experience with various audio sources.
Manteniment
To ensure the longevity and optimal performance of your 1Mii B08Pro amplificador, seguiu aquestes pautes de manteniment:
- Neteja: Utilitzeu un drap suau i sec per netejar l'exterior amplifier. Do not use liquid cleaners or aerosol sprays.
- Ventilació: Ensure the ventilation holes on the device are not blocked. Proper airflow prevents overheating.
- Emmagatzematge: Quan no s'utilitzi durant períodes prolongats, guardeu-lo ampGuardar en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Connexions: Periodically check all cable connections to ensure they are secure and free from dust or corrosion.
Resolució de problemes
If you encounter issues with your 1Mii B08Pro amplifier, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense sortida de so. |
|
|
| Bluetooth connection unstable or unable to pair. |
|
|
| So distorsionat. |
|
|
Especificacions
- Marca: 1 Mii
- Model: B08Pro
- Versió Bluetooth: 5.3
- Còdecs d'àudio: LDAC, aptX HD, aptX LL, aptX, AAC, SBC
- Potència de sortida: 100W x 2 Channel
- Xip DAC: ESS9018K2M
- Interval de treball: Up to 196ft (unobstructed outdoors), 50-65ft (indoors without obstacles)
- Entrada Voltage: 24 volts (CC)
- Tipus de muntatge: Autònom
- Dimensions: 7.01 x 4.69 x 3.86 polzades
- Pes: 1.83 lliures
- País d'origen: Xina
An illustration of the ESS9018K2M decoding chip, emphasizing its role in providing a high-fidelity audio experience for audiophiles.

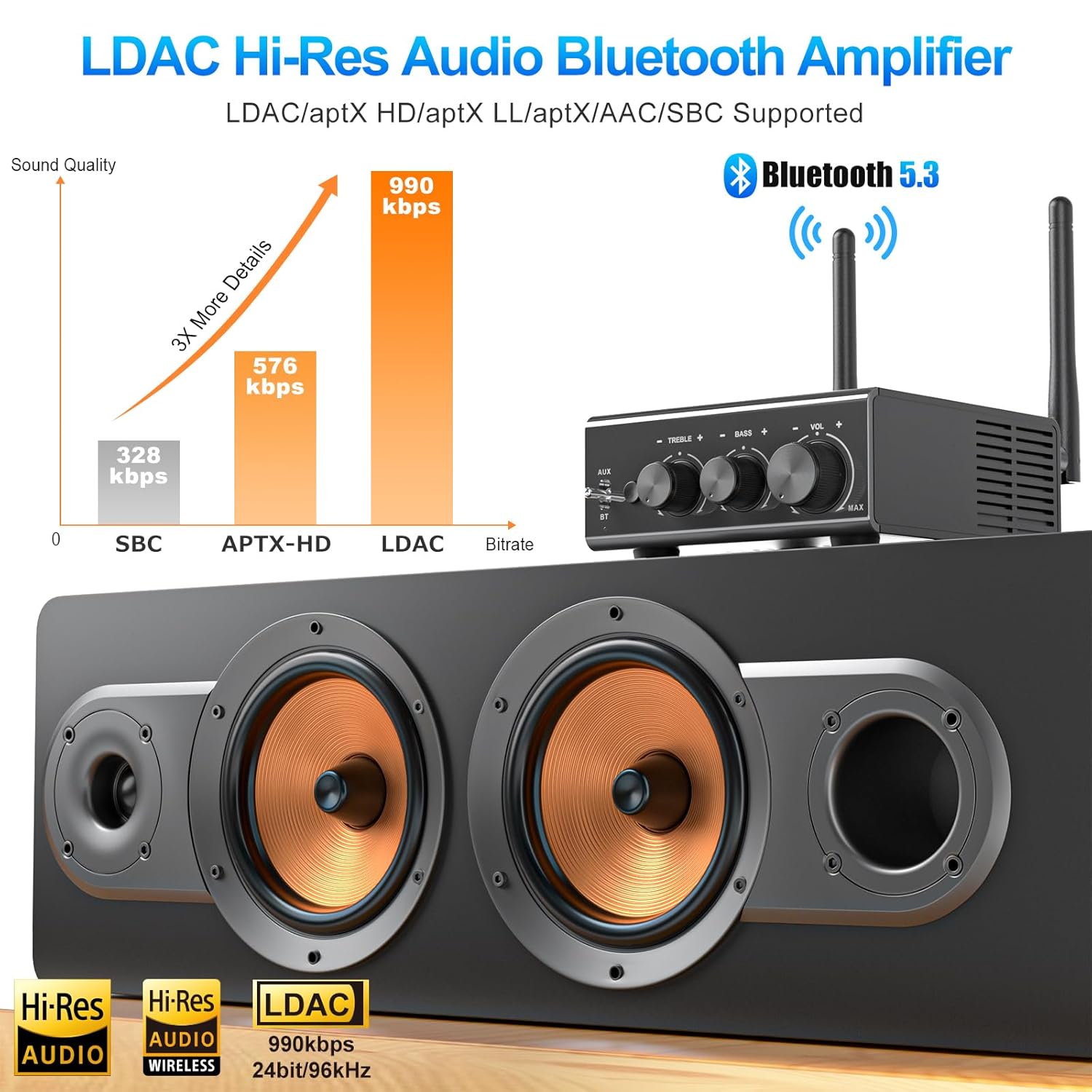

A graphic comparing audio bitrates (SBC, aptX-HD, LDAC), showing LDAC's superior 990kbps transmission for Hi-Res Audio, supported by Bluetooth 5.3.
Garantia i Suport
1Mii products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided on the product packaging or visit the official 1Mii weblloc. Conserveu el rebut de compra per a reclamacions de garantia.
For additional support, you may also refer to the official 1Mii store on Amazon: 1Mii Amazon Store.
