Separett Tiny Compost Toilet User Manual

1. Introducció

The Separett Tiny is a compact, waterless, urine-diverting compost toilet designed for use in tiny homes, RVs, boats, and off-grid living environments. It operates without water, offering an efficient and hygienic sanitation solution. A built-in ventilation fan ensures odor-free operation by efficiently removing odors and moisture. The design includes a direct urine drainage system, leading liquid waste to an external greywater system or holding tank, which reduces maintenance requirements.

Figura 1: Frontal view of the Separett Tiny compost toilet.

2. Contingut del paquet

Verifiqueu que tots els components que s'enumeren a continuació s'inclouen al paquet:

• Separett Tiny® compost toilet with urine tube (12V / 110-240 V)
• Manual d'usuari i instal·lació
• Universal adapter for power socket
• A sample of Bioblock
• A sample of Absorb
• A sample of Compostable waste bags
• 6.6 ft white urine hose Ø1.26” for urine drainage
• 90° bend for the Ø1.26” urine hose
• Straight connector for the Ø1.26” urine hose
• Indoor flashing for the Ø1.26” urine hose
• 2 x wall mount to attach the urine hose
• Straight connector pipe to convert EU Ø50mm to Ø1.5” schedule 40
• 90° bend for the Ø1.5” (schedule 40) ventilation pipe
• 1.47” long Ø1.5” (schedule 40) pipe for simple ventilation installation through the wall
• Insect net and rain cap for Ø1.5” (schedule 40) ventilation pipe
• Indoor flashing for the Ø1.5” (schedule 40) ventilation pipe
• Silicone strip to seal the bottom of the toilet
• Screws for mounting the toilet to the wall or to the floor
• Urine bowl grid / holder for Separett Bioblock
• Installation template (with markings for drilling holes and attaching the toilet)

3. Configuració i instal·lació

Proper installation is crucial for the optimal performance of your Separett Tiny toilet. Follow these steps carefully:

1. Col·locació: Position the toilet in your desired location, ensuring access for ventilation and urine drainage connections.
2. Marcatge i perforació: Use the provided installation template to mark the positions for the ventilation pipe (Ø1.5” / 50mm) and urine tube (Ø1.26” / 32mm) holes on the wall or floor. Drill these holes accurately.
3. Instal·lació de canonades: Insert the ventilation pipe and urine hose through the drilled holes. Ensure a secure fit. Use the provided straight connectors, bends, and indoor flashings as needed.
4. Segellat: Apply the silicone strip to the bottom of the toilet to create a seal against the floor or wall, preventing odors and moisture from escaping.
5. Muntatge: Secure the toilet to the wall or floor using the provided screws.
6. Internal Setup:
   • Place a compostable waste bag inside the solid waste container and secure it with the yellow ring.
   • Insert the solid waste container into the toilet base.
   • Place the urine bowl grid/holder for the Bioblock into the urine bowl.
7. Connexió d'alimentació: Connect the toilet's power adapter to a 12V or 110-240V power source. The ventilation fan will start operating automatically.

Figure 2: Separett Tiny installed in a typical bathroom setting.

Figura 3: Intern view of the toilet with the lid open, showing the solid waste container and urine diverter.

Video 1: Detailed installation guide for the Separett Tiny with urine tube.

4. Instruccions de funcionament

The Separett Tiny is designed for simple and hygienic use:

1. Posició asseguda: Always use the toilet in a seated position. This ensures proper separation of liquid and solid waste.
2. Waste Separation: The toilet automatically separates urine from solid waste. Urine is directed through the urine tube to an external system, while solid waste collects in the internal container.
3. Toilet Paper: Toilet paper should be deposited into the solid waste container.
4. Control d'olors: The continuously running ventilation fan draws air from the toilet, through the ventilation pipe, and out of the living space, effectively eliminating odors and drying solid waste.

Figure 4: Diagram illustrating the urine and solid waste separation within the toilet.

Video 2: Demonstration of how to use the Separett Tiny compost toilet.

5. Neteja i Manteniment

Regular cleaning and maintenance ensure the longevity and hygienic operation of your toilet.

5.1 Solid Waste Container Emptying

The solid waste container typically needs emptying once a week for two users. The compostable bags simplify disposal.

1. Lift the toilet seat and the inner lid.
2. Remove the solid waste container by lifting it out.
3. Seal the compostable bag and dispose of it according to local regulations for organic waste or composting.
4. Insert a new compostable bag and place the container back into the toilet.

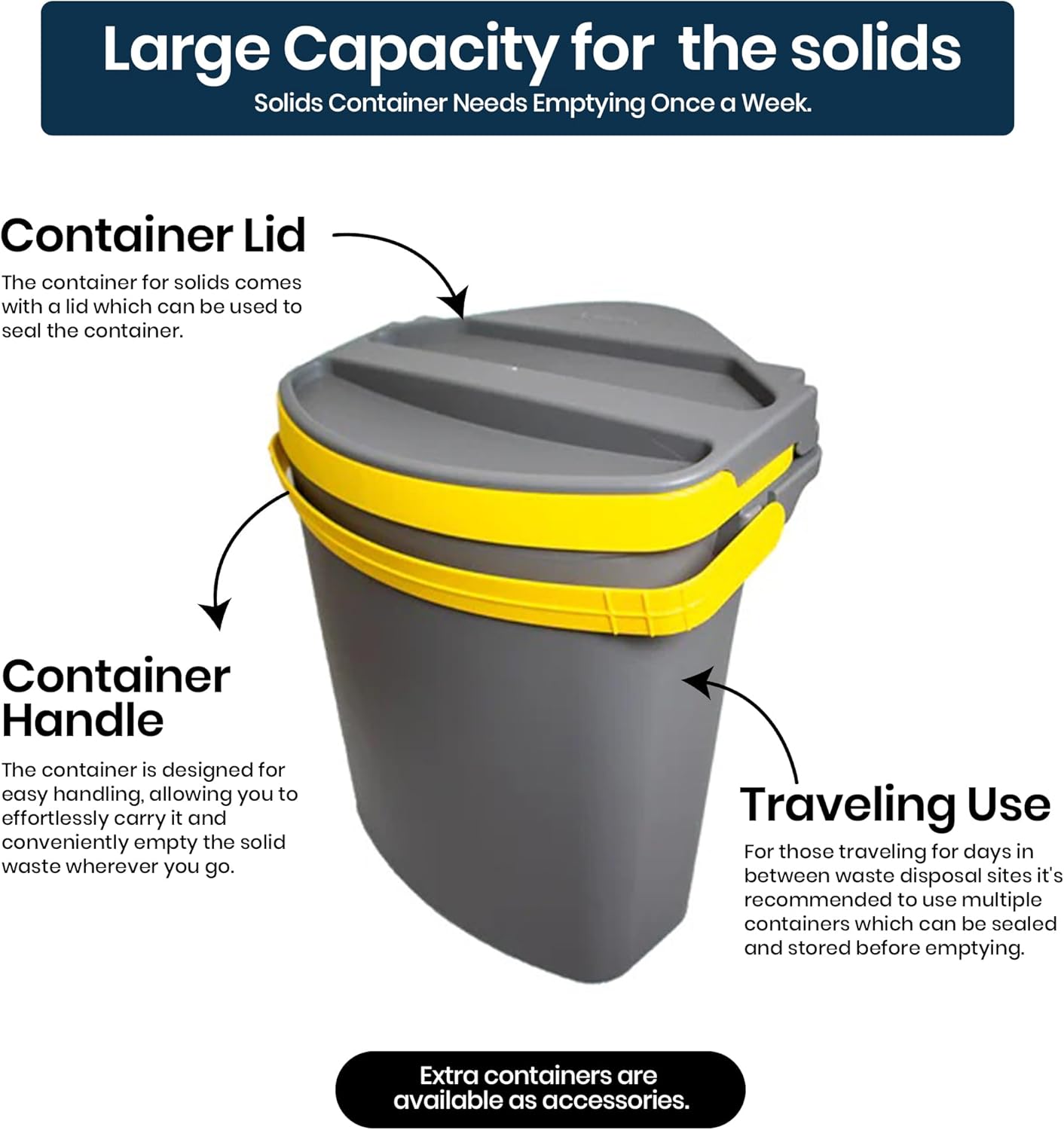

Figure 5: The solid waste container with its lid and handle for easy transport.

Figure 6: Composted material, illustrating the end product of solid waste processing.

5.2 Urine Bowl Cleaning

The urine bowl should be cleaned regularly to prevent buildup and maintain hygiene. Use a mild, non-abrasive cleaner and a soft cloth.

5.3 Ventilation Filter Maintenance

The ventilation filter should be cleaned periodically to ensure optimal airflow and odor removal. Remove the filter, rinse it under running water, and allow it to dry completely before reinserting.

Important Note on Waste Disposal:

Always consult your local environmental office or municipality for specific rules and regulations regarding waste management and disposal of composted materials in your area. Adhere to all local regulations.

6. Solució De Problemes

This section addresses common issues you might encounter with your Separett Tiny toilet.

6.1 Odor Issues

• Comproveu la ventilació: Ensure the ventilation fan is running continuously and that the ventilation pipe is clear of obstructions. The fan is critical for drying solid waste and removing odors.
• Proper Separation: Confirm that urine and solid waste are being properly separated. Improper use (e.g., not sitting) can lead to mixing and odors.
• Waste Bag Usage: Ensure the compostable waste bag is correctly installed and sealed when full.
• Urine Tube Connection: Verify that the urine tube is securely connected and properly draining to the external system. Any leaks or blockages can cause odors.
• Freqüència de neteja: Increase the frequency of cleaning the urine bowl and emptying the solid waste container if odors persist.

6.2 Toilet Seat/Lid Stability

• Cargols de muntatge: Check that the toilet is securely mounted to the wall or floor using all provided screws. Loose mounting can cause instability.
• Component Alignment: Ensure all internal components, including the solid waste container and the urine diverter mechanism, are correctly seated and aligned.

7. Especificacions

8. Garantia i Suport

Separett products are engineered for durability and reliability. For specific warranty information, please refer to the warranty card included with your product or visit the official Separett website. For technical support, spare parts, or accessories, please contact Separett customer service or your local distributor. Contact information can typically be found on the manufacturer's weblloc web o a la documentació del producte.

You can visit the official Separett store for more information: Separett Store
