WLtoys WL 12429 1/12 4WD High-Speed RC Car Instruction Manual

1. Informació important de seguretat

• Càrrega de la bateria: Always charge the battery in time before it is completely empty. A fully depleted battery may not charge.
• Procediment de càrrega: Disconnect the battery from the RC car while charging. Remove the battery and charge it separately.
• Emmagatzematge: When not using the RC car, disconnect the battery from the car's wiring. Fully charge the battery before storing to prevent damage.
• Entorn de funcionament: Due to the high speed of this RC car, it is recommended to operate it in open areas free from obstacles to prevent collisions.
• Edat recomanada: This product is recommended for users 14 years and up.

2. Què hi ha a la caixa

• WLtoys WL 12429 RC Car
• Comandament a distància de 2.4 GHz
• Bateria de ions de liti de 7.4 V 1500 mAh
• Carregador USB
• Manual d'usuari

3. Components mésview

The WLtoys WL 12429 is a 1/12 scale 4WD high-speed off-road RC car designed for rugged terrain and dynamic performance. Key components include:

• Sistema 4WD: Provides excellent traction and control on various surfaces.
• 540 Brushed Motor: A powerful motor enabling speeds up to 40km/h.
• Suspensió independent: Equipped with shock absorbers for stable driving over uneven ground.
• Differential Mechanism: Located on the drive axle shaft, it ensures the sum rotation speed of the two wheels remains equal, improving handling.
• Llums LED: Integrated LED lighting for enhanced visibility and fun during night operation.
• Pneumàtics de goma: Durable PVC rubber tires with deep treads for strong grip on off-road surfaces.
• High Chassis: Designed for high ground clearance, allowing the vehicle to navigate challenging terrains like sand, mud, and rocks.
• Rugged Car Shell: An anti-collision protection design helps reduce impact on internal components.

Detallada view of the differential, headlight, shock absorber, and spare tire, highlighting key structural elements of the RC car.

4. Configuració

4.1 Instal·lació de la bateria

1. Ensure the RC car and remote control are powered off.
2. Locate the battery compartment on the RC car (refer to diagram in manual if needed).
3. Carefully insert the 7.4V 1500mAh lithium battery into the compartment.
4. Connect the battery's power connector to the car's power port.
5. Assegureu la tapa del compartiment de la bateria.

4.2 Emparellament del control remot

1. Install 3 AA batteries (not included) into the remote control.
2. Engegueu el comandament a distància. L'indicador lluminós hauria de parpellejar.
3. Turn on the RC car. The indicator light on the car should also blink.
4. Wait a few seconds for the remote control and car to automatically pair. The indicator lights on both devices will become solid when successfully paired.
5. Si l'emparellament falla, apagueu els dos dispositius i repetiu el procés.

5. Instruccions de funcionament

5.1 Controls bàsics

• Endavant/Enrere: Feu servir el gallet del comandament a distància. Estireu per avançar i empenyeu per retrocedir.
• Esquerra/Dreta: Feu servir el volant del comandament a distància. Gireu a l'esquerra per dirigir-vos a l'esquerra, gireu a la dreta per dirigir-vos a la dreta.

5.2 Consells de conducció

• Always operate the RC car in open, clear areas to fully enjoy its high-speed capabilities and avoid collisions.
• Start with slower speeds to get accustomed to the controls before attempting maximum speed.
• The 4WD system and high chassis allow for excellent climbing performance on various terrains. Experiment with different angles and surfaces.

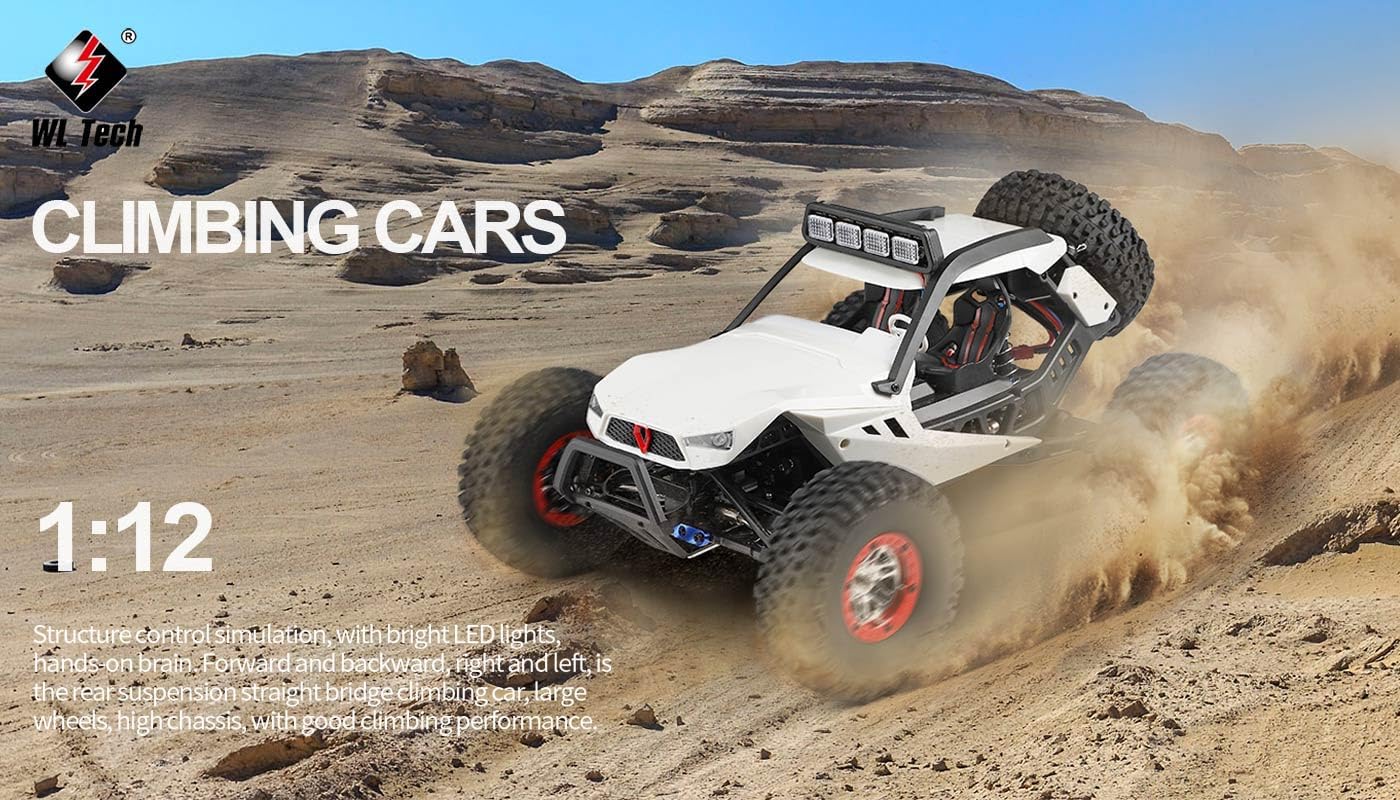

The WLtoys WL 12429 RC car demonstrating its climbing capabilities on a sandy hill.

6. Manteniment

6.1 Cura de la bateria

• Always ensure the battery is charged before it completely drains to prolong its lifespan.
• Store the battery fully charged when not in use.
• Eviteu la sobrecàrrega o la descàrrega profunda de la bateria.

6.2 Neteja

• After off-road use, gently clean the car's chassis and wheels to remove dirt, mud, or debris.
• Use a soft brush or cloth; avoid harsh chemicals or excessive water directly on electronic components.

7. Solució De Problemes

• El cotxe no respon: Check if both the car and remote control are powered on and successfully paired (solid indicator lights). Ensure batteries are charged.
• Rendiment/velocitat reduïts: Battery may be low. Recharge the battery fully.
• Sorolls inusuals: Inspect for any debris caught in the wheels, gears, or suspension.
• Car pulls to one side: Check the steering trim on the remote control and adjust as necessary.

8. Especificacions

• Número de model: RK-12429 2B
• Dimensions del producte: 10.24 x 8.07 x 15.16 polzades
• Pes de l'article: 2.2 lliures
• Bateria: Ió de liti de 7.4 V i 1500 mAh (inclosa)
• Motor: 540 Motor raspallat
• Velocitat màxima: Fins a 40 km/h
• Freqüència de control: 2.4 GHz
• Fabricant: WLTOYS China
• Edat recomanada: 14 anys i més

9. Garantia i Suport

For any product inquiries, technical support, or warranty claims, please contact the seller directly through your purchase platform. Please refer to your purchase documentation for specific warranty terms and conditions.
