Introducció
Thank you for choosing the Hoover H3W47TE 7kg 1400 Spin Washing Machine. This manual provides essential information for the correct installation, safe use, and maintenance of your appliance. Please read these instructions carefully before using the washing machine and keep them for future reference.
Informació de seguretat
Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones.
- Assegureu-vos que l'aparell estigui ben connectat a terra.
- No permeteu que els nens juguin amb l'aparell.
- No toqueu l'aparell amb les mans mullades.
- Desendolleu l'aparell abans de netejar-lo o fer-ne el manteniment.
- No utilitzeu cables d'extensió ni adaptadors múltiples.
- Mantenir els materials d'embalatge fora de l'abast dels nens.
- Only use detergents suitable for automatic washing machines.
Configuració
1. Desembalatge
Carefully remove all packaging materials from the washing machine. Check for any damage during transit. Retain packaging for future transport if needed.
2. Removing Transit Bolts
Before operating the machine, it is crucial to remove the transit bolts located at the rear of the appliance. These bolts secure the drum during transport and must be removed to prevent damage during operation.
- Locate the transit bolts on the back panel of the washing machine.
- Using a suitable wrench, loosen and remove all bolts.
- Introduïu els taps de plàstic proporcionats als forats.
- Store the transit bolts for future use, such as moving the appliance.

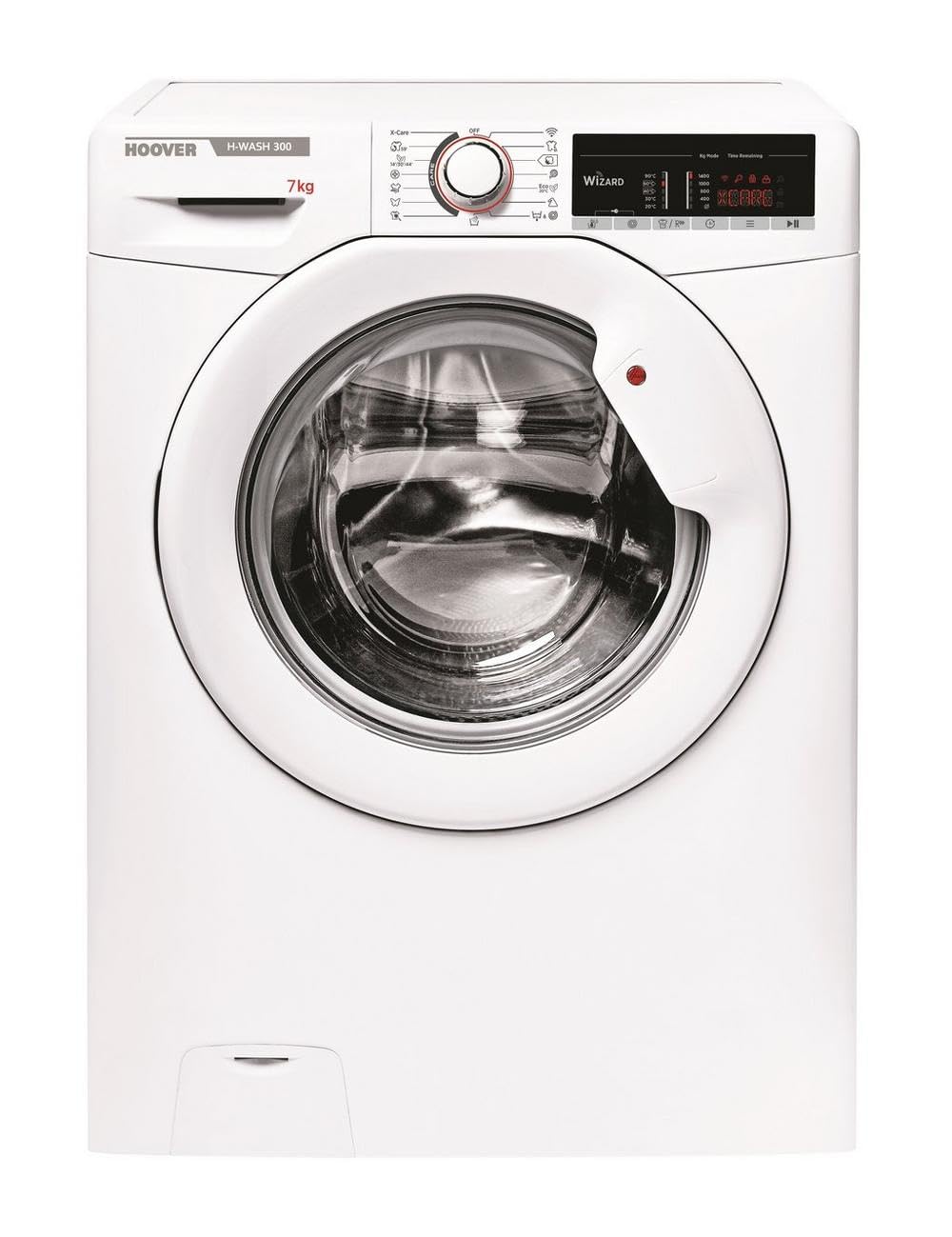

Figura 1: Frontal view of the Hoover H3W47TE Washing Machine. The rear panel contains transit bolts that must be removed before use.
3. Ubicació i anivellament
Place the washing machine on a firm, level floor. Adjust the adjustable feet to ensure the appliance is perfectly stable and level. An unlevel machine can cause excessive vibration and noise.
4. Connexió d'aigua
Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks. Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during draining.
5. Connexió elèctrica
Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage matches the appliance's requirements (220 Volts AC). Do not use adapter plugs or extension cords.
Instruccions de funcionament
1. Tauler de control acabatview
The control panel features a program selector dial, function buttons, and a digital display. The program selector allows you to choose the desired wash cycle. Function buttons enable additional options like temperature, spin speed, and delay start. The digital display shows program status and remaining time.
2. Càrrega de la bugaderia
Obriu la porta i carregueu la roba al tambor. No sobrecarregueu la màquina; assegureu-vos que hi hagi prou espai perquè la roba pugui girar lliurement. Tanqueu la porta fermament.
3. Afegint detergent
Estireu el calaix dispensador de detergent. Afegiu la quantitat adequada de detergent al compartiment de rentat principal i el suavitzant al compartiment corresponent. Consulteu l'envàs del detergent per obtenir recomanacions de dosificació.
4. Selecció d'un programa
Turn the program selector dial to choose the desired wash program (e.g., Cotton, Synthetics, Delicates, Eco). The display will show the default temperature and spin speed for the selected program.
5. Ajust d'opcions
Use the function buttons to adjust temperature, spin speed, or add other options like pre-wash or extra rinse, if available for the selected program.
6. Començar un cicle
Premeu el botó Inici/Pausa per iniciar el cicle de rentat. La porta es bloquejarà i la màquina començarà a omplir-se d'aigua.
7. Using NFC (Smart Touch)
The Hoover H3W47TE features NFC (Near Field Communication) for Smart Touch functionality. Download the Hoover Wizard app to your smartphone. Enable NFC on your phone and place it near the Smart Touch logo on the appliance to access additional programs, monitor cycles, and perform diagnostics.
8. Finalització d'un cicle
Once the cycle is complete, the machine will signal with an audible alert or display "End". The door will unlock after a short delay. Open the door and remove your laundry.
Manteniment
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine. Always unplug the appliance before performing any cleaning or maintenance.
1. Neteja del dispensador de detergent
Remove the detergent dispenser drawer by pressing the release lever. Rinse it under running water to remove any detergent residue. Clean the housing of the drawer with a brush. Reinsert the drawer.
2. Neteja del filtre
The filter should be cleaned periodically to prevent blockages. Locate the filter cover at the bottom front of the machine. Place a shallow container underneath to catch any residual water. Unscrew the filter, remove any lint or foreign objects, rinse it, and then screw it back in securely.
3. Cleaning the Drum and Door Seal
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically. Wipe the door seal with a damp cloth after each wash to prevent mold and mildew buildup.
4. Neteja de l'exterior
Netegeu les superfícies exteriors de la rentadora amb un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.
Resolució de problemes
Abans de contactar amb el servei d'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Power cord unplugged, door not closed, program not selected, Start/Pause button not pressed. | Check power connection, ensure door is firmly closed, select a program, press Start/Pause. |
| Sense farciment d'aigua | Aixeta d'aigua tancada, mànega d'entrada doblegada, subministrament d'aigua tallat. | Obriu l'aixeta de l'aigua, redreceu la mànega i comproveu el subministrament d'aigua de la llar. |
| L'aigua no drena | Drain hose kinked or blocked, filter blocked. | Straighten drain hose, clean the filter (refer to Maintenance section). |
| Vibració / soroll excessius | Cargols de transport no trets, màquina no anivellada, càrrega desigual. | Remove transit bolts, adjust feet to level machine, redistribute laundry inside drum. |
| Residus de detergent al dispensador | Low water pressure, dispenser blocked, too much detergent. | Check water pressure, clean dispenser, reduce detergent amount. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Hoover |
| Informació del model | H3W47TE |
| Capacitat | 7 quilos |
| Velocitat de centrifugat | 1400 RPM (implied from title) |
| Localització d'accés | Càrrega frontal |
| Dimensions del producte (W x D x H) | 58 x 55 x 85 cm |
| Pes de l'article | 61 quilos |
| Voltage | 220 volts (CA) |
| Eficiència (10 classes) | A a G |
| Entrada de la interfície humana | Marqueu |
| Característiques especials | NFC Connection (Smart Touch) |
Garantia i Suport
Information regarding specific warranty terms and customer support contact details is not available in the provided product data. Please refer to the warranty card included with your appliance or contact your retailer for details on warranty coverage and technical assistance.
