HCALORY 8KW All-in-One Diesel Air Heater (Model LuneG110) Instruction Manual

1. Introducció

Thank you for choosing the HCALORY 8KW All-in-One Diesel Air Heater, Model LuneG110. This portable parking heater is designed to provide rapid and efficient heating for various applications, including cars, trucks, boats, RVs, and campers. Featuring dual power input (110V AC & 12V DC), a 5L integrated fuel tank, Bluetooth APP control, and an altitude mode, this unit offers versatile and convenient warmth in cold environments.

This manual provides essential information for the safe and proper installation, operation, and maintenance of your diesel air heater. Please read it thoroughly before using the product and retain it for future reference.

Figure 1: HCALORY 8KW All-in-One Diesel Air Heater with included accessories.

2. Instruccions de seguretat importants (ADVERTIMENT)

• Do not use the heater in closed and/or unventilated places. Ensure adequate ventilation to prevent carbon monoxide buildup.
• Place the exhaust outlet outside to prevent any penetration of exhaust fumes into the heated space.
• Keep the heater away from fuel tanks, compression tanks, fire extinguishers, clothes, or other flammable objects. The heater must be turned off during refueling.
• It is recommended to use high-grade diesel fuel. Other types of fuel are strictly prohibited.
• The machine should be installed horizontally with the exhaust pipe positioned horizontally or downward.
• Ensure that the warm air outlet is in a place that is not easily accessible to prevent scalding of people or damage to objects.
• After starting the machine, allow 3-5 minutes for it to work normally and heat up. Please wait patiently.
• The machine will stop heating after overtemperature protection. Do not power off immediately. After the machine is naturally cooled and turned off, it can be restarted.
• After turning off the machine, do not immediately disconnect the power supply. It takes 3-5 minutes for the machine to completely stop working and cool down.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• 1 x HCALORY 8KW All-in-One Diesel Air Heater
• 1 x comandament a distància
• 1 x adaptador de corrent altern
• 1 x silenciador
• 1 x Exhaust pipe
• 1 x manual d'usuari
• 1 x DC battery power cable
• 1 set Screw accessory kit

4. Producte acabatview

The HCALORY 8KW Diesel Air Heater is designed for portability and ease of use. Its all-in-one toolbox design integrates the heater unit, fuel tank, and control panel into a single compact enclosure.

• Disseny integrat: The heater, fuel tank, and control components are housed within a sturdy, portable box.
• Tauler de control: An intuitive LCD panel is integrated into the unit for direct control and monitoring.
• Dipòsit de combustible: Features a built-in 5L diesel tank for extended operation. A fuel level indicator is visible on the side.
• Sortida d'aire: Located on the front, designed for efficient heat distribution.
• Port d'escapament: Located on the bottom for connecting the exhaust pipe and silencer.
• Entrada d'alimentació: Universal dual power input supports 12V/24V DC and 110V-240V AC.

Figure 2: Key design elements including the portable handle and control panel cover.

Figure 3: Safety features: Intelligent Temperature Control and Overheating Protection.

5. Instruccions de configuració

Follow these steps to set up your HCALORY Diesel Air Heater:

1. Posicionament: Place the heater on a stable, horizontal surface in a well-ventilated area. Ensure the warm air outlet is clear and not obstructed.
2. Connexió d'escapament: Locate the exhaust port on the bottom of the unit. Connect the provided exhaust pipe and secure it with the clasp and screwdriver.
3. Silencer Attachment: Attach the silencer to the end of the exhaust pipe and secure it firmly. Ensure the exhaust fumes are directed away from any enclosed spaces.
4. Fuel Filling: Open the tank cap on top of the unit. Carefully pour high-grade diesel fuel into the 5L tank. Do not overfill. Securely close the tank cap.
5. Connexió d'alimentació: Connect the appropriate power cable. For AC power, use the provided AC-DC adapter and plug it into a 110V-240V AC outlet. For DC power, use the DC battery power cable to connect to a 12V or 24V DC source.

Figure 4: Universal AC & DC power input options.

6. Instruccions de funcionament

Your HCALORY Diesel Air Heater offers multiple control methods for convenience:

6.1. Funcionament del tauler de control

The integrated LCD control panel allows direct management of the heater's functions. Refer to the user manual for detailed button functions and menu navigation.

6.2. Control per aplicació Bluetooth

Download the HCALORY APP on your smartphone to control the heater via Bluetooth. The app allows you to:

• Enceneu/apaga l'escalfador.
• Ajusteu els paràmetres de temperatura.
• Set timer functions for automatic startup and shutdown.
• Activate Altitude Mode.
• Monitor real-time temperature and status.

6.3. Control remot

Use the included remote control to power the unit on/off and adjust basic settings from a distance.

Figure 5: Multiple control options for your convenience.

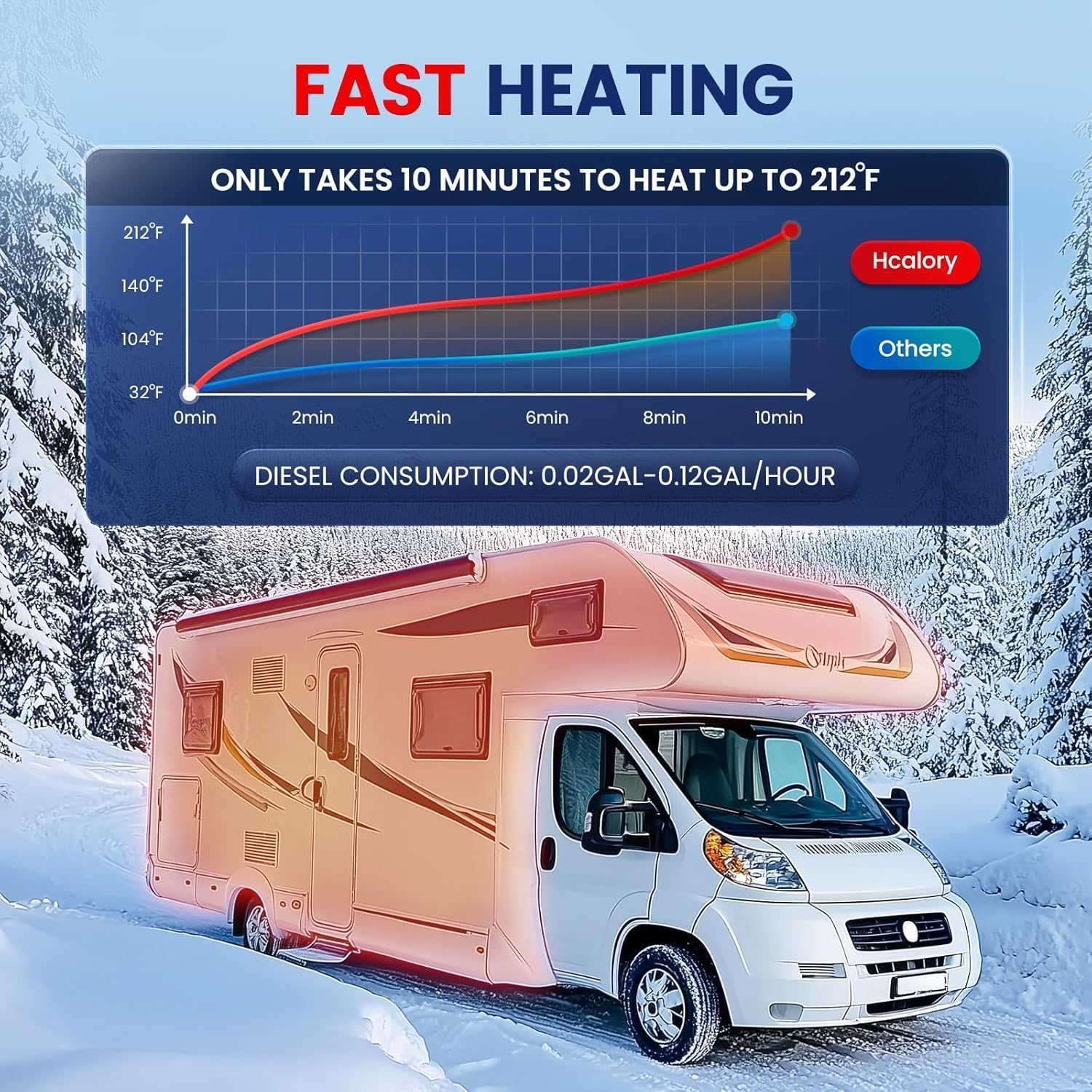

Figure 6: Fast heating performance and low fuel consumption.

7. Altitude Mode

The HCALORY Diesel Air Heater features an intelligent altitude mode. When operating at higher elevations, the air density decreases, which can affect combustion efficiency. Altitude mode automatically adjusts the air-to-fuel ratio to ensure optimal combustion and consistent heating performance, preventing issues like carbon buildup or incomplete burning.

Activate Altitude Mode via the Bluetooth APP when operating in mountainous regions or at high altitudes.

Figure 7: Automatic Altitude Compensation for reliable performance at high elevations.

8. Fuel Management

The integrated 5L fuel tank provides extended runtime with low diesel consumption rates, ranging from 0.02 to 0.12 gallons per hour. Monitor the fuel level using the visible indicator on the side of the unit. Always ensure the heater is turned off before refueling.

9. Manteniment

Regular maintenance ensures the longevity and efficient operation of your HCALORY Diesel Air Heater:

• Neteja: Periodically clean the exterior of the unit with a soft, dry cloth. Ensure the air intake and exhaust ports are free from dust, debris, or obstructions.
• Filtre de combustible: Check and clean or replace the fuel filter as recommended in the full user manual to prevent fuel system blockages.
• Emmagatzematge: When not in use for extended periods, drain any remaining fuel from the tank. Store the heater in a dry, cool place, protected from direct sunlight and extreme temperatures.
• Sistema d'escapament: Inspect the exhaust pipe and silencer for any damage or blockages before each use.

10. Solució De Problemes

If you encounter issues with your heater, refer to the following common troubleshooting tips:

• L'escalfador no s'engega: Check power connections, ensure sufficient fuel in the tank, and verify that the control panel or app shows no error codes.
• Baixa producció de calor: Ensure air intake and exhaust are clear. Check fuel quality and filter. Verify temperature settings.
• Excés de fum: This may indicate incomplete combustion. Check fuel quality, ensure proper ventilation, and verify altitude mode settings if applicable.
• Codis d'error: Consult the detailed user manual for specific error code meanings and recommended actions.

11. Especificacions

12. Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the contact details provided in the original product packaging or visit the official HCALORY weblloc web. Conserveu el rebut de compra com a comprovant de compra.
