Introducció
This manual provides essential information for the setup, operation, and maintenance of your Fender Newporter Special Acoustic Guitar. Designed for both new and experienced players, this instrument combines Fender's electric guitar playability with solid wood construction and advanced electronics. Please read this manual thoroughly to ensure optimal performance and longevity of your guitar.
The Newporter Special features an auditorium body shape with a cutaway, crafted with a solid okoume top, back, and sides. It includes a slim "C"-shaped nato neck, a 25.5" scale length, and a tilt-back 6-in-line headstock. The Fishman Flex Body preamp system integrates an undersaddle piezo and an internal body transducer for versatile ampso lificat.
Figura 1: Frontal view of the Fender Newporter Special Acoustic Guitar in Honey Burst. This image displays the full body, neck, and headstock, highlighting the auditorium body shape and cutaway.
Configuració
1. Inspecció Inicial
Upon unboxing, carefully inspect your guitar for any signs of damage that may have occurred during shipping. Check the neck, body, bridge, and headstock. Ensure all components are securely in place.
2. Sintonització
Your Newporter Special is equipped with vintage-style tuning machines for smooth and accurate tuning. Standard tuning for a 6-string acoustic guitar is E-A-D-G-B-e (from thickest to thinnest string). Use an electronic tuner for best accuracy. The tilt-back 6-in-line headstock design provides optimal string tension and tuning stability.

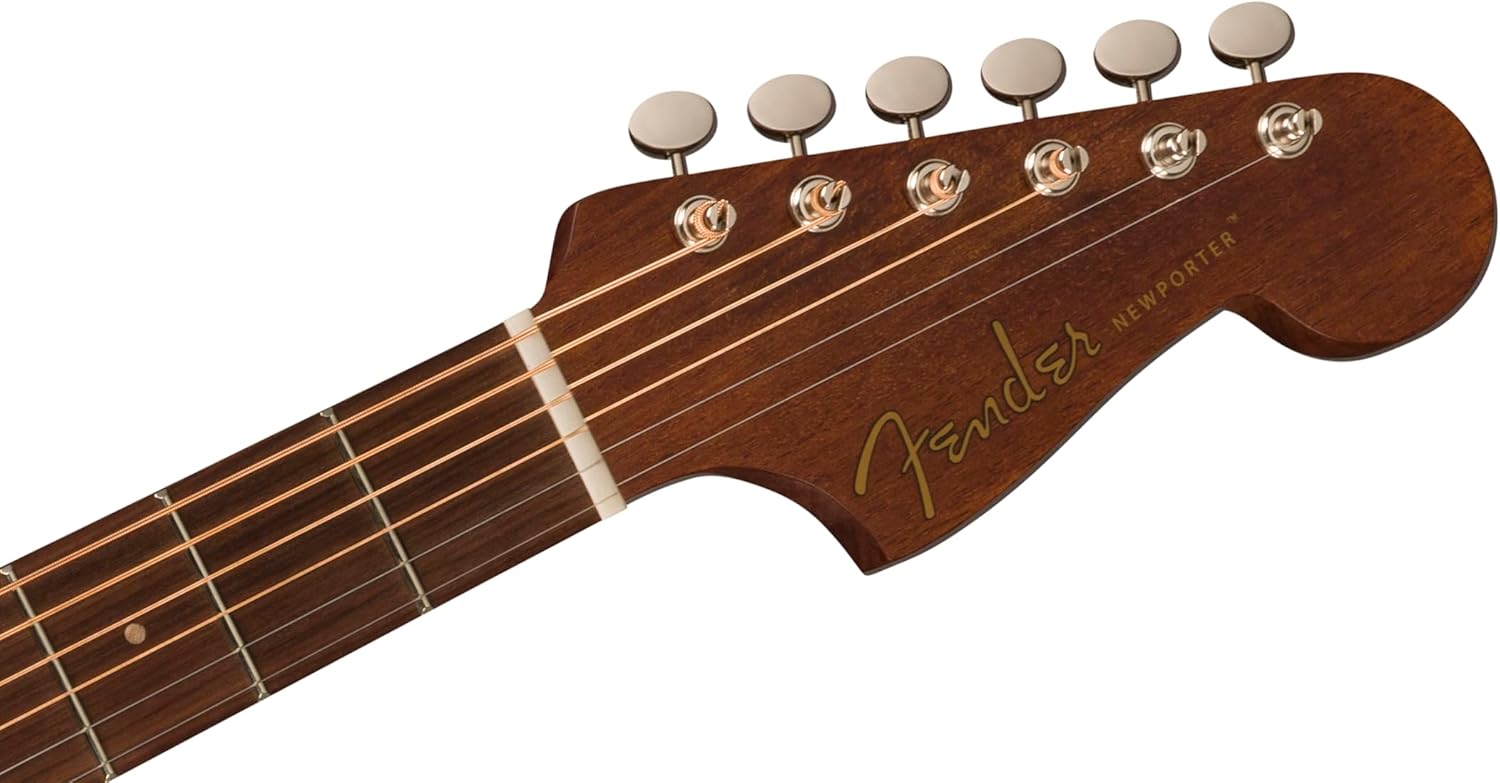

Figure 2: Close-up of the headstock, showing the Fender logo, Newporter model name, and the 6-in-line tuning machines.
3. Stringing
The guitar comes pre-strung with bronze strings. When replacing strings, ensure you use appropriate acoustic guitar strings. Proper stringing technique involves winding the string neatly around the tuning post, ensuring a few wraps for stability without excessive overlap.
4. Connexió a un Amplifier (Fishman Flex Body Preamp sistema)
The Fishman Flex Body preamp system allows you to amplify your guitar's sound. Locate the output jack, typically on the lower bout of the guitar. Connect a standard 1/4-inch instrument cable from the guitar to your amplifier or PA system. Ensure your ampAssegureu-vos que l'amplificador estigui apagat o a un volum baix abans de connectar o desconnectar el cable per evitar sorolls forts i sobtats.
Figura 3: lateral view of the guitar body, illustrating the location of the Fishman Flex Body preamp controls. These controls typically include volume, tone, and a blend knob for the piezo and body transducer.
En funcionament
1. Playing Your Guitar
The Newporter Special features a slim "C"-shaped neck profile and a 25.5" scale length, designed for comfortable playability. Experiment with different strumming and fingerpicking techniques to explore the guitar's balanced and resonant voice. The cutaway design provides easier access to higher frets.
2. Using the Fishman Flex Body Preamp Sistema
The Fishman Flex Body system allows you to blend the sound from the undersaddle piezo pickup and the internal body transducer. This provides a wide range of amplified tones, from direct string vibration to the natural resonance of the guitar's body. Adjust the controls (typically Volume, Tone, and Blend) to achieve your desired sound. The blend control allows you to mix the piezo's clarity with the transducer's warmth and percussive qualities.
Manteniment
1. Neteja
Regularly wipe down your guitar with a soft, lint-free cloth after each use to remove sweat, oils, and dust. For a deeper clean, use guitar-specific cleaning products. Avoid abrasive cleaners or household chemicals. Clean the fretboard with a suitable fretboard conditioner periodically to prevent drying and cracking.
2. Substitució de cordes
Strings should be replaced regularly, depending on playing frequency and personal preference. Worn or corroded strings can negatively impact tone and playability. When replacing strings, change them one at a time to maintain neck tension, or all at once if you are comfortable with adjusting neck relief if needed.
3. Storage and Humidity
Store your guitar in a stable environment, away from extreme temperature changes and direct sunlight. Acoustic guitars, especially those with solid wood construction like the Newporter Special (solid okoume top, back, and sides), are sensitive to humidity. Maintain a relative humidity level between 45-55% to prevent wood warping, cracking, or other damage. Use a guitar humidifier in dry climates or a dehumidifier in excessively humid conditions.
Figura 4: posterior view of the Fender Newporter Special, showcasing the solid okoume back and the neck joint. Proper storage protects these wood components.
Resolució de problemes
- Cordes brunzidores: Check for proper string height (action) at the nut and bridge. Ensure frets are level. Worn frets or an improperly set neck relief can cause buzzing. Consult a qualified guitar technician if adjustments are needed.
- Mala entonació: If notes played at the 12th fret are not in tune with the open string, the intonation may need adjustment. This typically involves adjusting the saddle, a task best performed by a professional.
- No hi ha so quan està connectat:
- Check the instrument cable connection at both the guitar and ampmés viu.
- Assegureu-vos el ampL'amplificador està encès i té el volum pujat.
- Verify that the guitar's preamp volume is not set to zero.
- Si el preamp uses a battery, check if it needs replacement.
- Desigual AmpSo clarificat: Adjust the blend control on the Fishman Flex Body preamp to find the optimal mix between the piezo and transducer. Ensure the undersaddle piezo is seated correctly.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | 0970843142 |
| Forma del cos | Newporter Auditorium with Cutaway |
| Material superior | Solid Okoume Wood |
| Material posterior | Solid Okoume Wood |
| Material lateral | Solid Okoume Wood |
| Material del coll | Mahogany (Nato) |
| Neck Profile | Slim "C" Shape |
| Longitud d'escala | 25.5 polzades (64.77 cm) |
| Material del diapasó | Pau Ferro Wood |
| Nombre de cadenes | 6 |
| Material de femella i sella | Os |
| Sistema de ponts | Modern Viking |
| Electrònica | Fishman® Flex Body preamp system (undersaddle piezo and internal body transducer) |
| Color | Honey Burst |
| Pes de l'article | 12.35 lliures (5.6 kg) |
| Dimensions del producte | 46.3 x 18.9 x 8.9 polzades (117.6 x 48 x 22.6 cm) |
Què hi ha a la caixa:
- Fender Newporter Special Acoustic Guitar
- Fishman® Flex Body preamp system (integrated)
Informació de la garantia
Fender provides a limited warranty for its products. For detailed information regarding the warranty period, coverage, and terms and conditions for your Fender Newporter Special Acoustic Guitar, please refer to the official Fender website or the warranty card included with your purchase. Retain your proof of purchase for warranty claims.
Suport
For further assistance, technical support, or to locate an authorized service center, please visit the official Fender support weblloc:
You may also find helpful resources, FAQs, and contact information on their weblloc.
