1. Introducció
Thank you for choosing the Yaheetech Under Desk Vertical File Cabinet. This versatile and stylish cabinet is designed to enhance your home or office organization with its thoughtful storage solutions, including two drawers (one lockable) and an open compartment. Its mobile design with lockable wheels offers flexibility and stability. Please read this manual carefully before assembly and use to ensure proper setup and safe operation.
2. Informació de seguretat
- No sobrecarregueu l'armari.
- Be cautious of pinch points when using the lockable wheels.
- Always follow the weight capacity guidelines to prevent injuries or damage.
- Ensure all screws and fasteners are securely tightened during assembly and periodically check for looseness.
- Mantingueu les peces petites i els materials d'embalatge lluny dels nens per evitar perills d'asfixia.
3. Contingut del paquet
Before beginning assembly, please ensure all parts listed below are present and undamaged. If any parts are missing or damaged, please contact Yaheetech customer support.
| Component | Descripció |
|---|---|
| Panells d'armaris | MDF and particle board panels for the main frame, drawers, and shelves. |
| Calaixos | Components for one small drawer and one large file calaix. |
| Kit de maquinari | Includes screws, dowels, cam locks, drawer slides, and other fasteners. |
| Rodes | Four smooth-rolling casters, two with built-in brakes. |
| Nanses | Two metal handles for the drawers. |
| Lock & Keys | Locking mechanism and two keys for the top drawer. |
| File Vares | Adjustable rods for hanging A4 or letter-size file folders in the bottom drawer. |
4. Instruccions de muntatge
Assembly of the Yaheetech File Cabinet requires patience and attention to detail. While detailed diagrams are provided in the physical instruction manual, the general steps involve:
- Desempaquetar i identificar: Carefully unpack all components and lay them out. Identify each panel and hardware piece using the provided labels and diagrams.
- Muntar calaixos: Construct the small and large drawers by connecting the side, front, and back panels. Install the drawer bottoms and handles. Ensure the locking mechanism is correctly installed on the top drawer.
- Instal·leu les guies del calaix: Attach the drawer slides to both the drawers and the main cabinet panels according to the instructions.
- Construir el marc principal: Assemble the main cabinet frame, including the top, bottom, side panels, and the open compartment shelf.
- Col·loca les rodes: Securely attach the four smooth-rolling wheels to the bottom of the cabinet. Remember to install the two lockable wheels at the front for easy access to the brakes.
- Inserir calaixos: Feu lliscar amb cura els calaixos muntats als seus compartiments respectius.
- Comprovacions finals: Ensure all connections are tight and the cabinet is stable. Test the drawer slides, lock, and wheel brakes for smooth operation.
Per a una visualització completaview of the assembled product and its features, please refer to the official product video below:
Official Product Video: Yaheetech Vertical File Cabinet with Lockable Drawer. This video demonstrates the key features and functionality of the file cabinet, including its storage compartments, lockable drawer, and mobile wheels.
5. Operating the Cabinet (Features)
- Taula espaiosa: The top surface of the cabinet (16" L × 16" W) can support up to 55 lbs, ideal for a small printer, decor, or other office essentials.

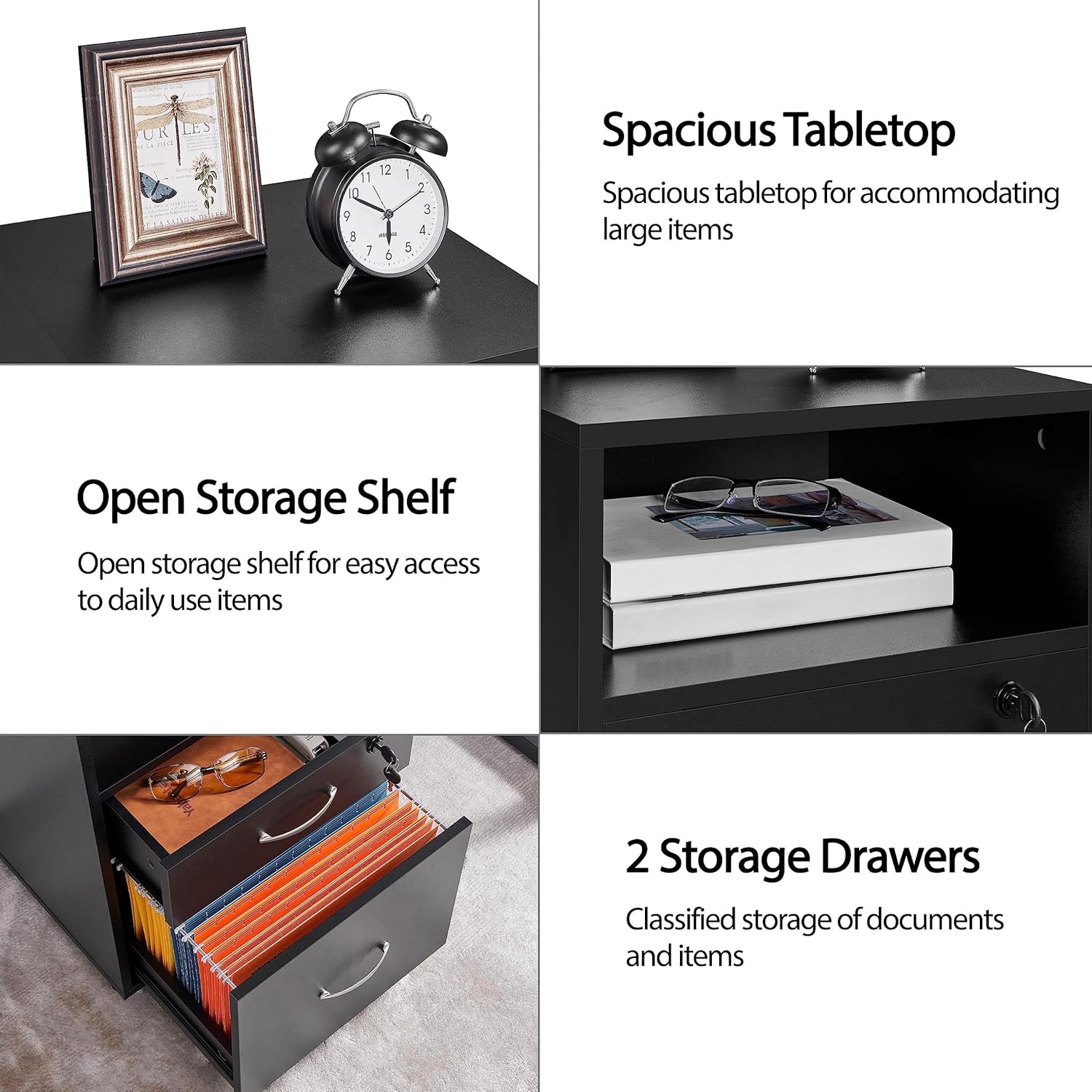

Image: Illustrates the spacious tabletop and open storage shelf.
- Prestatgeria d'emmagatzematge oberta: A convenient open compartment (15" W x 6" H) is located below the tabletop, perfect for frequently accessed items like books, notebooks, or small office supplies.
- Lockable Top Drawer: The upper drawer features a lock and comes with two keys, providing a secure space for valuables or confidential documents. This drawer has a weight capacity of 11 lbs.
Imatge: Detallada view of the lockable drawer and other hardware.
- Gran File Calaix: The bottom drawer is designed for letter-size or A4 suspension filing, allowing for 100% drawer extension for easy access. It can hold up to 22 lbs.
Image: Demonstrates the adjustable file rods for different folder sizes.
- Smooth & Lockable Wheels: Equipped with four 360-degree industrial casters, the cabinet offers quiet and flexible mobility. Two front wheels include built-in brakes to keep the cabinet securely in place.
Image: Shows the lockable wheels for stability.
6. Manteniment
- Neteja: Netegeu les superfícies de l'armari amb un drap suau iamp drap. Eviteu productes químics agressius o netejadors abrasius que puguin danyar l'acabat.
- Comprovació de maquinari: Periodically check all screws, bolts, and connections to ensure they remain tight. Re-tighten if necessary to maintain stability.
- Diapositives del calaix: Si els calaixos s'endureixen, apliqueu una petita quantitat de lubricant de silicona a les guies del calaix.
- Cura de les rodes: Keep wheels free of debris to ensure smooth movement.
7. Solució De Problemes
- Els calaixos no llisquen suaument: Check that the drawer slides are correctly installed and aligned. Ensure no debris is obstructing the slides. Lubricate if needed.
- El gabinet tremola: Verify that all assembly hardware is securely tightened. Ensure the cabinet is placed on a flat, level surface. Use the wheel locks if on an uneven surface.
- Lock not working: Ensure the key is fully inserted and turned correctly. Check for any obstructions preventing the lock mechanism from engaging.
8. Especificacions
| Atribut | Detall |
|---|---|
| Color | Negre |
| Materials | MDF, Particle Board |
| Dimensions generals | 16 "L × 16" W × 26 "H |
| Max Weight Capacity (Total) | 110 lliures |
| Max Weight Capacity (Top Board) | 55 lliures |
| Max Weight Capacity (Open Shelf) | 22 lliures |
| Max Weight Capacity (Top Drawer) | 11 lliures |
| Max Weight Capacity (Bottom Drawer) | 22 lliures |
| Pes net | 35 lliures |
| Característiques especials | Lockable, Wheeled |
Image: Detailed dimensions and weight capacities.
Imatge: Frontal view of the Yaheetech File Gabinet.
9. Garantia i Suport
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Yaheetech weblloc web. També podeu contactar directament amb el venedor a través de la plataforma on heu comprat el producte.
Per a més productes i informació, visiteu la Yaheetech Store.
