1. Introducció

Thank you for choosing the Paulmann 71076 Selection Bathroom Luena Wall Lamp. This manual provides important information regarding the installation, operation, and maintenance of your new wall lamp. Please read these instructions carefully before installation and keep them for future reference. This product is designed for indoor use, specifically in bathrooms and other damp areas, thanks to its IP44 splash water protection rating.

2. Instruccions de seguretat

• Seguretat elèctrica: Installation must be carried out by a qualified electrician in accordance with local wiring regulations. Ensure the main power supply is switched off before commencing any installation or maintenance work.
• Voltage: Aquesta lamp operates on 230V AC.
• Tipus de bombeta: Feu servir només bombetes E14 amb una potència màximatage of 20W. Do not exceed the specified wattage.
• Classificació IP44: This product is splash-proof (IP44) and suitable for use in bathroom zones 2 and 3. Do not install in zone 1 (inside the shower or bath).
• Manipulació: Manipuleu els components de vidre amb cura per evitar que es trenquin.
• Neteja: Desconnecteu l'alimentació abans de netejar. Feu servir un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.

Figure 2.1: IP Protection Zones in a Bathroom. The Paulmann 71076 lamp is suitable for IP44 zones.

3. Contingut del paquet

Si us plau, comproveu que tots els components siguin presents i no estiguin danyats abans de la instal·lació:

• Paulmann 71076 Selection Bathroom Luena Wall Lamp aparell
• Instruccions de muntatge
• Materials de muntatge (cargols, tacs de paret)

Nota: The light bulb (E14, max. 20W) is not included and must be purchased separately.

4. Configuració i instal·lació

Seguiu aquests passos per a una instal·lació correcta:

1. Prepareu el lloc d'instal·lació: Assegureu-vos que l'alimentació de la zona d'instal·lació estigui tallada a l'interruptor principal.
2. Marca els punts de perforació: Mantingueu premuda la lamp's mounting plate against the wall at the desired installation height and mark the drilling points.
3. Forats: Perforeu els forats als punts marcats i inseriu-hi els tacs de paret adequats.
4. Connecteu el cablejat: Connecteu la lamp's wires to the 230V wall outlet wiring. Ensure correct polarity (Live, Neutral, Earth). Secure connections properly.
5. Muntar l'aparell: Adjunteu la lamp's mounting plate to the wall using the provided screws.
6. Instal·leu la bombeta: Carefully screw an E14 bulb (max. 20W) into the lamp titular.
7. Fixeu la pantalla de vidre: The bayonet glass shade can be attached and removed without tools. Align the glass shade with the fixture and twist to secure it.
8. Restaura l'alimentació: Once installation is complete and all components are securely in place, restore power at the main circuit breaker.

Figure 4.1: Close-up of the lamp's chrome base and glass shade, showing mounting points.

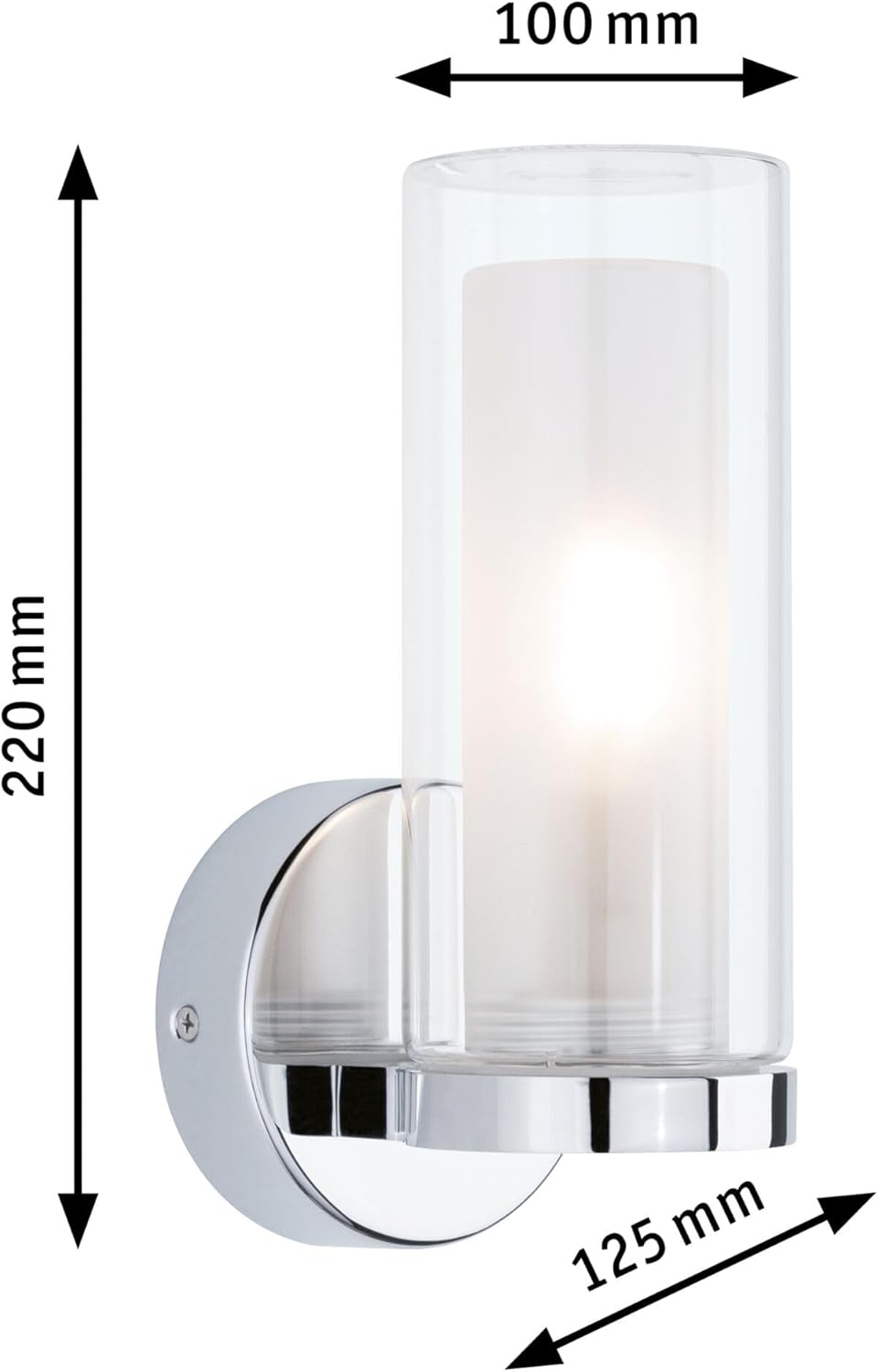

Figura 4.2: Dimensions del producte per a la planificació de la instal·lació.

5. Instruccions de funcionament

Once installed and powered, the Paulmann 71076 wall lamp operates via your standard wall switch. If a dimmable E14 bulb is used and connected to a compatible dimmer switch, the light intensity can be adjusted. The lamp provides decorative light effects, enhancing the ambiance of your bathroom.

Figure 5.1: The E14 bulb socket, ready for bulb insertion.

Figure 5.2: The Paulmann Luena Wall Lamp in an installed setting.

6. Manteniment

To ensure the longevity and appearance of your Paulmann wall lamp, seguiu aquestes pautes de manteniment:

• Neteja: Always switch off the power supply before cleaning. Use a soft, dry, or slightly damp cloth to wipe the chrome finish and glass shade. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the surfaces.
• Substitució de bombetes: Ensure the power is off and the bulb has cooled down before attempting to replace it. The bayonet glass shade can be easily removed without tools to access the E14 bulb.
• Inspecció: Comproveu periòdicament la lamp for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.

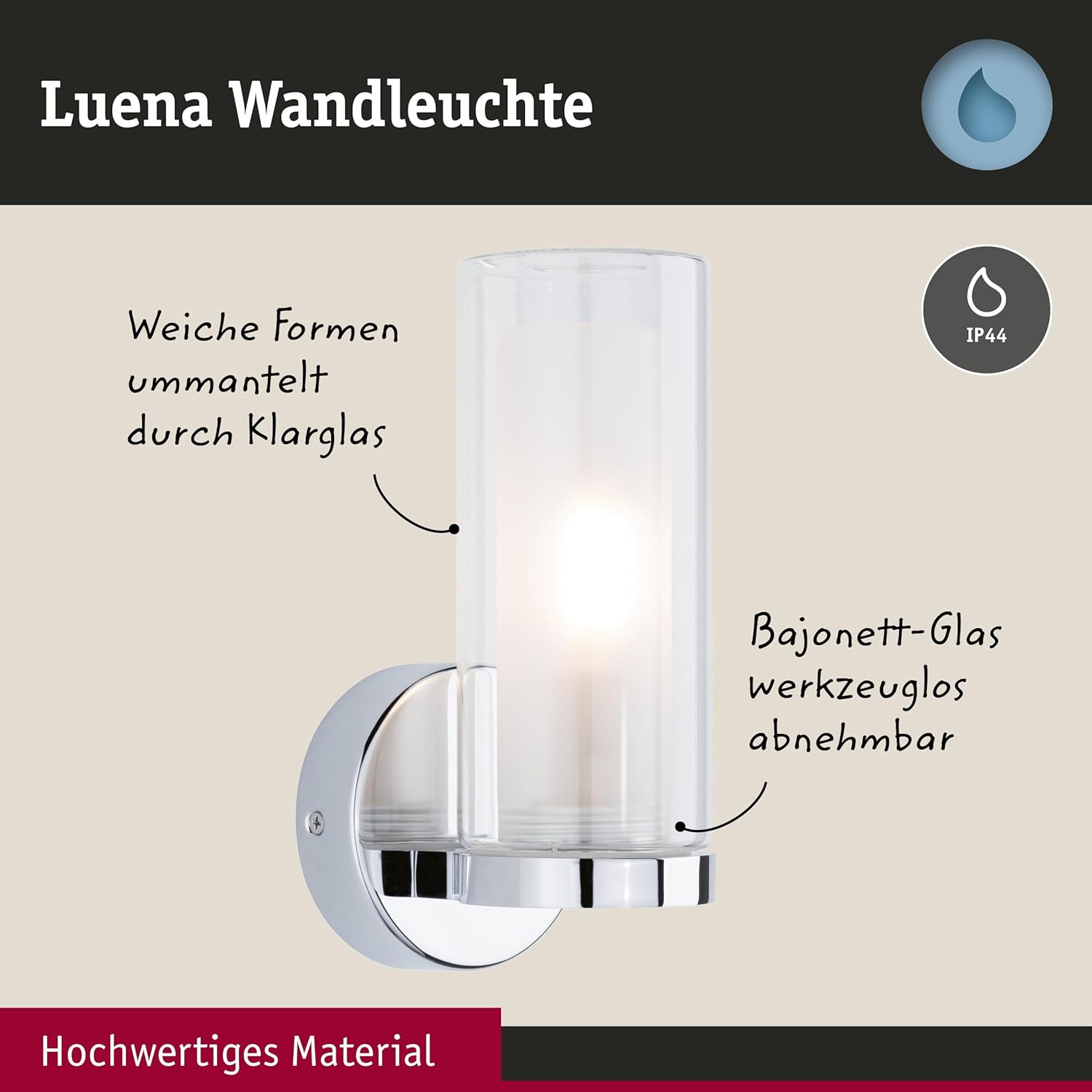

Figure 6.1: The bayonet glass shade can be removed without tools for easy bulb replacement and cleaning.

7. Solució De Problemes

If you encounter issues with your Paulmann 71076 wall lamp, tingueu en compte el següent:

• Lamp no s'encén:
  • Check if the power supply is switched on at the wall switch and the main circuit breaker.
  • Ensure the bulb is correctly screwed in and not faulty. Try replacing the bulb with a new one.
  • Verify that the wiring connections are secure. If unsure, consult a qualified electrician.
• Parpelleig de llum:
  • Assegureu-vos que la bombeta estigui completament apretada.
  • If using a dimmable bulb, ensure it is compatible with your dimmer switch.
  • Comproveu si hi ha connexions de cablejat soltes.
• Glass shade is loose:
  • Ensure the bayonet glass shade is properly aligned and twisted into its locked position.

If problems persist, contact Paulmann customer support or a qualified electrician.

8. Especificacions

9. Garantia i Suport

Paulmann products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Paulmann website. For technical support, spare parts, or any questions not covered in this manual, please contact Paulmann customer service directly.
