Introducció
This manual provides essential information for the installation, operation, and maintenance of your Okin Refined-R Model JLDQ.11.156.204D Recliner Motor. This motor is an original Okin JLDQ series product designed for power recliners, electric sofas, and lift chairs. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Informació de seguretat
- Always disconnect power before attempting any installation, maintenance, or troubleshooting.
- Assegureu-vos que totes les connexions estiguin segures i correctes abans de restablir l'alimentació.
- Aquest motor està dissenyat només per a ús interior.
- Do not operate the motor if any part is damaged or if it has been exposed to water.
- Mantingueu les mans i la roba ampla allunyades de les parts mòbils durant el funcionament.
- Refer to a qualified technician if you are unsure about any installation or repair procedures.
Producte acabatview i Característiques
The Okin JLDQ.11.156.204D motor is a robust linear actuator designed for various reclining furniture applications. It is compatible with several JLDQ series models, including JLDQ.11.156.204D02/D04/D05/D05-JY/D06/D09, and JLDQ.11.156.204F/N series. Minor differences in plug location do not affect functionality.
Figura 1: Mésview of the Okin JLDQ.11.156.204D Recliner Motor, showing its linear actuator design and attached cables.
Figure 2: Close-up of the motor's identification label, showing "MODEL:JLDQ-11" and "JLDQ.11.156.204D". The serial number Q23071221 00030 is also visible. For patent information, visit dewertokin.com/patents.
Figure 3: The two connectors included with the motor: a 2-pin plug for power supply and a 5-pin round plug for the recliner switch hand control.

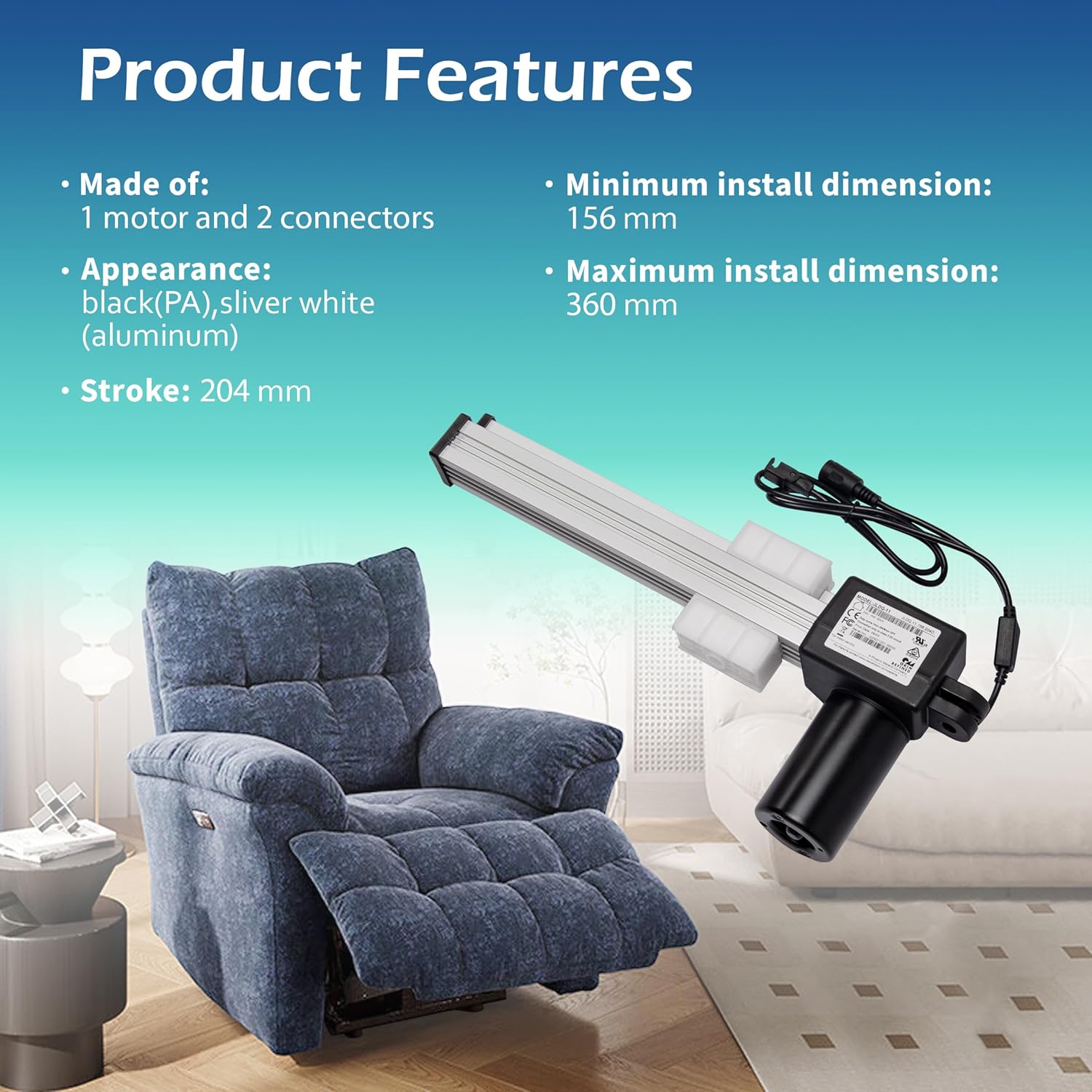

Figure 4: The Okin motor shown in context with a recliner, illustrating its application.
Característiques principals:
- Consta d'1 motor i 2 connectors.
- Aspecte: Negre (PA) i Blanc platejat (alumini).
- Stroke: 204 mm.
- Mida mínima d'instal·lació (retracció): 156 mm.
- Mida màxima d'instal·lació: 360 mm.
- Capacitat de càrrega: Força d'empenta: 1500 N, Força de tracció: 1500 N.
- Freqüència de funcionament: Encès 1 min / Apagat 8 min.
Configuració i instal·lació
Before installation, ensure the new motor matches the brand and model of your existing recliner motor. Different actuators may not be compatible with your furniture's frame due to strict demands on minimum installation dimensions, stroke, and plugs.
- Desconnecteu l'alimentació: Desendolleu el reclinable de la presa de corrent.
- Motor d'accés: Carefully turn the recliner over or tilt it to access the existing motor and wiring.
- Treure el motor antic: Disconnect the power supply and hand control cables from the old motor. Unbolt or unclip the old motor from the recliner frame. Note the orientation and mounting points.
- Instal·lar un motor nou: Position the new Okin motor in the same location as the old one. Secure it to the recliner frame using appropriate bolts or clips. Ensure it is firmly attached.
- Connectar els cables:
- Connecteu l'endoll quadrat de 2 pins amb la pinça a la font d'alimentació.
- Connect the 5-pin round plug to the switch hand control.
Figure 5: The Okin motor with its power and control cables properly connected, ready for installation.
- Verifica les connexions: Double-check all connections to ensure they are secure and correctly seated.
- Restaura l'alimentació: Once all connections are verified, plug the recliner back into the wall outlet.
Instruccions de funcionament
After successful installation, operate your recliner using its standard hand control. The Okin motor will respond to the commands from the hand control to extend or retract the recliner mechanism.
- Press and hold the appropriate button on your hand control to recline or return the chair to its upright position.
- Release the button to stop the movement at any desired position.
- Avoid continuous operation for more than 1 minute to prevent overheating. Allow 8 minutes of rest after 1 minute of operation.
Manteniment
The Okin recliner motor is designed for durability and requires minimal maintenance. Regular checks can help ensure its longevity.
- Neteja: Keep the motor and surrounding area free from dust and debris. Use a dry cloth to wipe down the exterior. Do not use liquid cleaners directly on the motor.
- Inspecció del cable: Inspeccioneu periòdicament tots els cables i connexions per detectar signes de desgast, esfilagarsament o danys. Assegureu-vos que els endolls estiguin ben col·locats.
- Lubricació: The motor is pre-lubricated and generally does not require additional lubrication. If you notice unusual friction in the recliner mechanism, consult your furniture's manual or a professional.
Resolució de problemes
If your recliner is not functioning correctly after motor replacement, follow these troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no funciona. | No power, loose connection, faulty hand control, or faulty power supply. |
|
| El motor funciona de manera intermitent. | Loose connection, overheating, or internal motor issue. |
|
| El motor fa sorolls estranys. | Obstruction, worn gears, or internal damage. |
|
If troubleshooting steps do not resolve the issue, please contact Okin customer support or a qualified technician.
Especificacions
| Atribut | Valor |
|---|---|
| Model | JLDQ.11.156.204D |
| Càrrega (força d'empenta/tracció) | 1500 N (approx. 337 lbs) |
| Ictus | 204 mm (aprox. 8.03 polzades) |
| Mida mínima d'instal·lació (retracció) | 156 mm (aprox. 6.14 polzades) |
| Mida màxima d'instal·lació | 360 mm (aprox. 14.17 polzades) |
| Freqüència d'operació | Encès 1 minut / Apagat 8 minut |
| Aparença | Negre (PA), Blanc platejat (alumini) |
| Pes de l'article | 5.59 lliures |
| Dimensions del paquet | 23.5 x 8.5 x 5.25 polzades |
Garantia i Suport
Per obtenir informació sobre la garantia i l'atenció al client, consulteu la pàgina oficial d'Okin. website or contact your point of purchase. Ensure you have your product model number (JLDQ.11.156.204D) and any purchase details available when seeking support.
