Introducció
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your new Dripex L Shaped Standing Desk. Designed for a healthy and productive work environment, this desk features a robust 4-leg dual-motor system for smooth height adjustments and exceptional stability. Please read this manual thoroughly before beginning assembly or operation to ensure safe and efficient use.
The Dripex L Shaped Standing Desk, a stylish and functional addition to any home office.
The spacious L-shaped design accommodates various setups, including gaming stations.

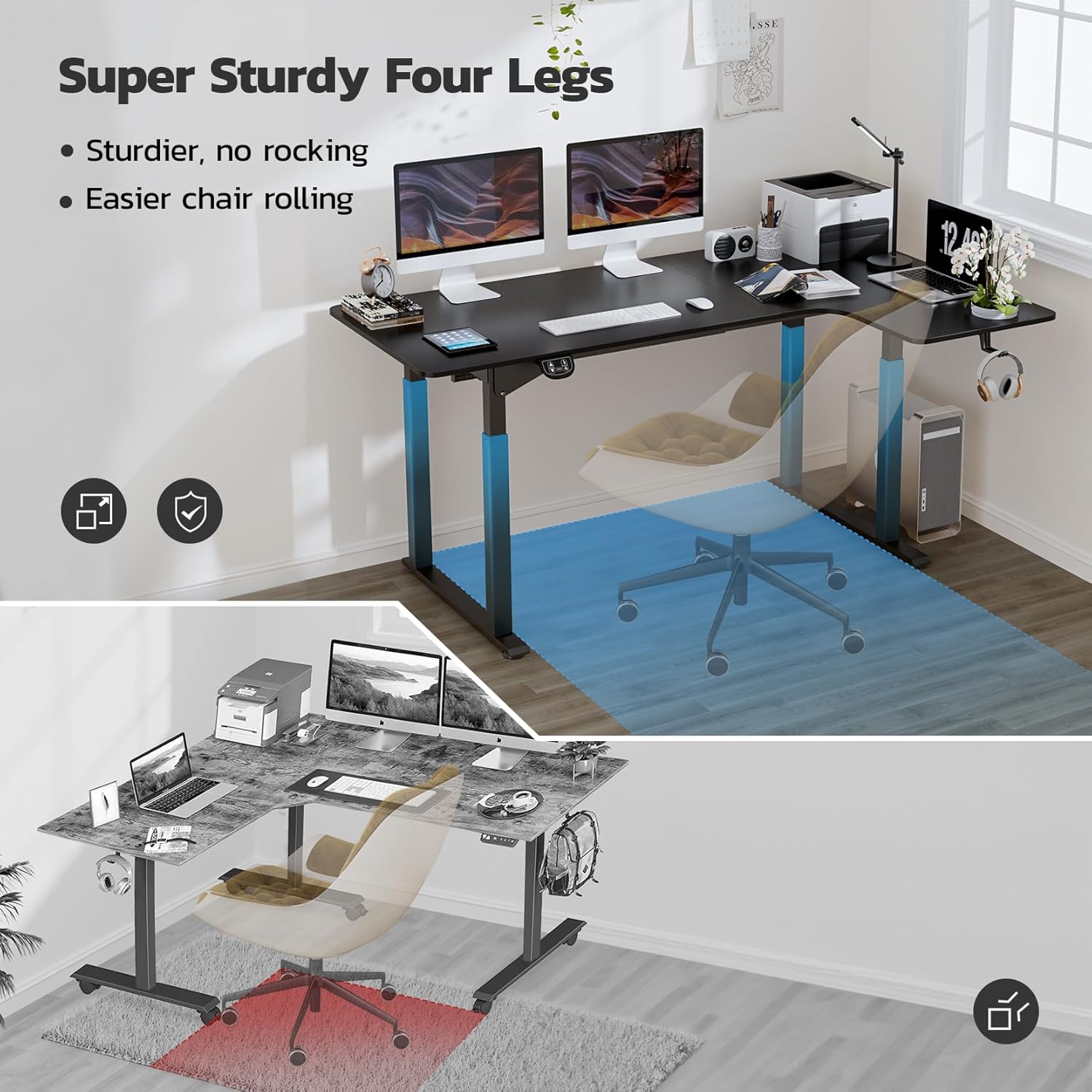

The innovative 4-leg design provides exceptional stability and ample legroom.
Muntatge i muntatge
Your Dripex L Shaped Standing Desk is designed for straightforward assembly, with many parts pre-assembled to simplify the process. For the 71-inch model, please note that components may arrive in two separate boxes. It is recommended to have two people for assembly to ensure ease and safety.
Guia de vídeo de muntatge
Official assembly guide for the Dripex L Shaped Standing Desk. This video provides a visual walkthrough of each step, from unboxing to final setup.
Instruccions de muntatge pas a pas
- Desempaquetar components: Carefully unpack all parts and lay them out on a clean, flat surface. Verify all components are present against the packing list.
- Assemble Crossbars: Attach the two main crossbars to the leg frames using the provided screws and Allen wrench. Ensure they are securely fastened.
- Install Motors and Control Box: Secure the dual motors and control box to the designated points on the desk frame. Connect all necessary cables as per the diagram.
- Attach Side Brackets: Fasten the side brackets to the leg frames, providing additional stability.
- Connect Tabletop Sections: If your desk comes in two tabletop sections, align them carefully and secure them together using the metal plates and screws.
- Muntar la taula al marc: Carefully place the assembled tabletop onto the desk frame. Align the pre-drilled holes and secure the tabletop to the frame using the provided screws.
- Instal·leu els peus de nivellació: Screw the adjustable leveling feet into the bottom of each leg. These can be adjusted to ensure the desk is stable on uneven surfaces.
- Gestió de cables: Use the included cable ties or clips to neatly organize and secure all power and control cables to prevent tangling and ensure safety.
- Engegada inicial: Plug the desk into a power outlet. The control panel should light up. Perform an initial reset if instructed in the control panel section.
Assegureu-vos que totes les peces estiguin presents abans de començar el muntatge.
Refer to the desk parameters for proper orientation during assembly.
Instruccions de funcionament
The Dripex L Shaped Standing Desk features an intuitive control panel for easy height adjustment and memory settings.
Tauler de control acabatview
The control panel allows for precise height adjustments and saving preferred positions.
- Fletxes amunt/avall: Press and hold to continuously raise or lower the desk. Release to stop at the desired height.
- Interval d'alçada: The desk can be adjusted from 28 inches (seated height) to 46 inches (standing height).
- Preajustos de memòria: The control panel features two preset memory buttons.
- To save a height: Adjust the desk to your desired height, then press and hold one of the memory buttons (e.g., "1" or "2") until the display flashes or beeps, indicating the height is saved.
- To recall a height: Simply press the corresponding memory button once, and the desk will automatically move to the saved position.
- Tecnologia anti-colisió: L'escriptori està equipat amb un sistema anticol·lisió. Si l'escriptori troba un obstacle durant l'ajust, s'aturarà automàticament i girarà lleugerament per evitar danys.
- Funció de restabliment: If the desk is not functioning correctly or needs to be recalibrated, press and hold the "RESET" button until the desk moves to its lowest position and then slightly up, indicating a successful reset.
- Funcionament silenciós: The dual motor system is designed for quiet and smooth operation.
- Integrated Headphone Hook: A convenient hook is integrated under the desk for storing headphones or other accessories.
Easily switch between sitting and standing positions with the adjustable height feature.
Enjoy a quiet working environment with the desk's low-noise motor.
Keep your headphones within reach with the built-in hook.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your Dripex L Shaped Standing Desk.
- Neteja: Netegeu la superfície i el marc de l'escriptori amb un drap suau iamp drap. Eviteu netejadors abrasius o productes químics agressius que puguin danyar l'acabat.
- Gestió de cables: Periodically check all cables to ensure they are securely connected and not pinched or tangled. Re-secure with cable ties if necessary.
- Límit de pes: Do not exceed the maximum recommended weight limit of 176 pounds (80 kg) to prevent damage or injury. Distribute weight evenly across the desk surface.
- Comprovació d'estabilitat: Occasionally check all screws and bolts to ensure they are tight. Retighten if any looseness is detected.
Resolució de problemes
If you encounter any issues with your Dripex L Shaped Standing Desk, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| L'escriptori no es mou ni respon als controls. | Power cable disconnected, control box issue, or system error. | Check all power connections. Perform a system reset by holding the "RESET" button until the desk cycles to its lowest point and back up. |
| L'escriptori es mou de manera irregular o fa sorolls estranys. | Loose connections, uneven weight distribution, or obstruction. | Ensure all screws are tightened. Redistribute weight evenly. Check for any obstructions under or around the desk. Perform a reset. |
| La funció anticol·lisió s'activa massa sovint. | Sensitivity setting or actual obstruction. | Ensure there are no actual obstructions. Refer to the control panel manual (if provided separately) for adjusting anti-collision sensitivity, if applicable. |
| L'escriptori s'atura a mig moviment. | Overload protection or prolonged operation. | Reduce the weight on the desk. Allow the motor to cool down for 20-30 minutes if it has been operated continuously for an extended period. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Dripex |
| Número de model | FEL-V2-18 |
| Dimensions del producte | 43 "P x 71" W x 46" H |
| Color | Negre |
| Estil | Higher End, Modern |
| Material base | Acer d'aliatge |
| Tipus de material superior | Acer d'aliatge |
| Tipus d'acabat | Polit |
| Característiques especials | 4-leg Stability, Adjustable Height, Electric, Ergonomic, Dual Motor |
| Interval d'ajust d'altura | 28 polzades a 46 polzades |
| Recomanació de pes màxim | 176 lliures (80 kg) |
| Muntatge requerit | Sí |
| Nombre recomanat de persones per a l'assemblea | 2 |
| Components inclosos | Portavasos |
Garantia i Suport
The Dripex L Shaped Standing Desk comes with a Garantia limitada. For specific terms and conditions of your warranty, please refer to the documentation included with your purchase or visit the official Dripex weblloc.
For technical support, replacement parts, or any inquiries regarding your product, please contact Dripex customer service through their official channels. Provide your model number (FEL-V2-18) and purchase details for faster assistance.
You can visit the official Dripex Store for more information: Dripex Store
