1. Introducció
This manual provides essential information for the safe and efficient operation of your Eureka Mignon Zero Single Dose Espresso Grinder. Designed for precision and consistency, this grinder incorporates advanced features to enhance your coffee preparation experience. Please read all instructions carefully before initial use.

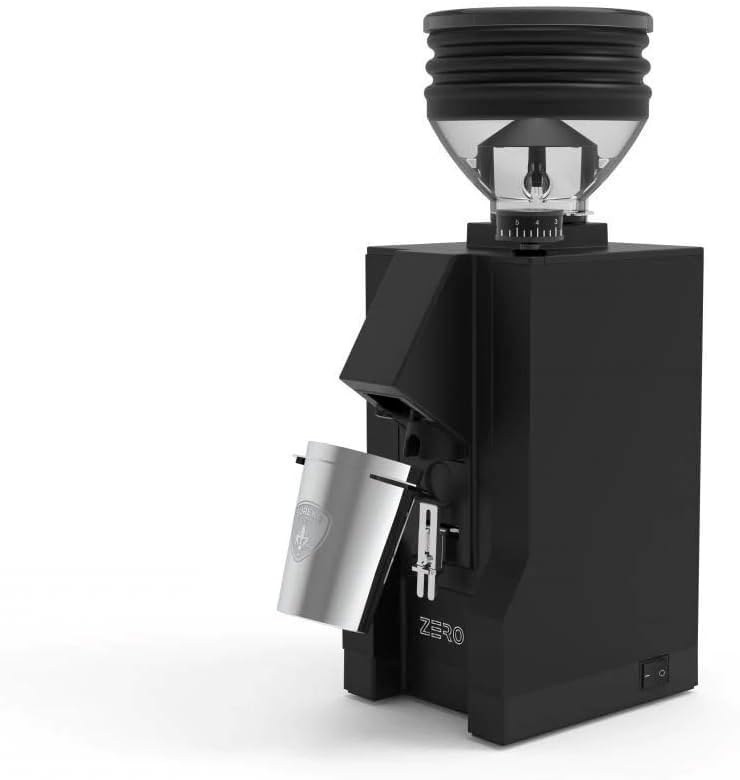

Figure 1: Eureka Mignon Zero Single Dose Espresso Grinder
Característiques principals:
- Stepless Adjustments: Eureka's micrometric adjustment system allows for precise grind size tuning.
- Comfort Knob: An extra-comfort knob facilitates tiny, precise adjustments.
- Tecnologia silenciosa: Engineered for quiet operation to minimize disturbance.
- Low Retention: The innovative Blow Up hopper design reduces ground coffee retention.
- 55mm Burrs: Equipped with 55mm flat burrs for consistent grinding.
- Handbuilt Quality: Each unit is handbuilt in Florence, Italy.
2. Configuració
2.1 Desembalatge i inspecció
Carefully remove all components from the packaging. Inspect the grinder for any signs of damage. Ensure all included accessories are present: Mignon Single Dose Blow Up Cleaning tool, Dosing Cup (45g), and Mignon Single Dose Hopper (45g).
2.2 Col·locació
Place the grinder on a stable, level, and dry surface. Ensure adequate ventilation around the unit.
Figura 2: Dimensions del producte (6.75 cm de llargada x 4.75 cm d'amplada x 13.75 cm d'alçada)
2.3 Connexió d'alimentació
Connect the power cord to the grinder and then to a suitable 120 Volt power outlet.
2.4 Hopper and Dosing Cup Installation
Place the single dose hopper onto the top of the grinder. Position the dosing cup beneath the grinding chute.
Figure 3: Hopper and Grind Adjustment Dial
3. Instruccions de funcionament
3.1 Afegir grans de cafè
Lift the lid of the single dose hopper and pour your desired quantity of whole coffee beans (up to 45g) into the hopper. Replace the lid securely.
3.2 Selecting Grind Size
The Eureka Mignon Zero features stepless micrometric adjustment. Rotate the grind adjustment knob to select your desired fineness. Finer settings (lower numbers) are suitable for espresso, while coarser settings (higher numbers) are for other brewing methods.
Figure 4: Stepless Grind Adjustment Knob
3.3 Procés de mòlta
Ensure the dosing cup is correctly positioned under the grinding chute or place your portafilter in the adjustable all-in-one fork. Activate the grinder using the ON/OFF side switch. The grinder will begin processing the beans. For optimal low retention, gently press the Blow Up hopper lid during grinding to clear any remaining grounds.
Figure 5: Grinding Directly into a Portafilter
4. Manteniment
4.1 Neteja regular
Regular cleaning is crucial for maintaining grinder performance and coffee quality. Use the provided Mignon Single Dose Blow Up Cleaning tool to clear residual grounds from the burr chamber and chute after each use. For deeper cleaning, the burrs can be accessed by following the instructions in the detailed manual (not provided here).
Figure 6: Internal Burr Mechanism
5. Solució De Problemes
5.1 Grind Consistency Issues
If you experience inconsistent grind size, ensure the grind adjustment knob is securely set and has not shifted. The stepless adjustment allows for very fine tuning; small adjustments can make a significant difference. If issues persist, check for blockages in the burr chamber or chute.
5.2 Low Retention Performance
To maximize the low retention feature, always use the Blow Up hopper by gently pressing the lid during the final moments of grinding to expel any remaining grounds.
5.3 Grinder Jamming
If the grinder jams, immediately turn off the power. Remove the hopper and carefully inspect the burr chamber for any foreign objects or large bean fragments. Clear any obstructions before attempting to restart the grinder. Avoid overfilling the hopper.
6. Especificacions
- Marca: Eureka
- Model: Mignon Zero
- Color: Negre
- Dimensions del producte: 6.75 cm de llargada x 4.75 cm d'amplada x 13.75 cm d'alçada
- Pes de l'article: 15 lliures
- Capacitat: 1.5 ounces (45g hopper)
- Voltage: 120 Volts
- Tipus de rebaba: Pis
- Burr Diameter: 55 mm
- Ajust: Micromètric continu
- Fabricant: Eureka
- País d'origen: Itàlia
7. Garantia i Suport
For warranty information and technical support, please refer to the official Eureka website or contact your retailer. This product is manufactured by Eureka in Italy, ensuring high-quality craftsmanship.
