Hoover HF1 Cordless Stick Vacuum Cleaner (HF103PX) - Instruction Manual

1. Producte acabatview

The Hoover HF1 Cordless Stick Vacuum Cleaner (model HF103PX) is designed for efficient and convenient cleaning across various surfaces. Its lightweight, flexible design, and powerful suction make it suitable for daily household tasks.

Figure 1: Hoover HF1 Cordless Stick Vacuum Cleaner with flexible hose.

2. Muntatge i muntatge

Abans del primer ús, assegureu-vos que hi hagi tots els components i que la bateria estigui completament carregada.

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge.
2. Attach the Main Body: Connect the main vacuum unit to the extension tube. Ensure it clicks securely into place.
3. Fixeu el broquet de terra: Connect the motorized floor nozzle to the other end of the extension tube.
4. Instal·la la bateria: Insert the removable battery into the designated slot on the main unit. Ensure it is fully charged before first use (approximately 6 hours).
5. Adjuntar accessoris: Depending on your cleaning needs, attach the desired accessory directly to the main unit or the extension tube.

Figure 2: Assembling the main body and floor nozzle of the Hoover HF1.

3. Instruccions de funcionament

The Hoover HF1 offers versatile cleaning options for your home.

3.1 Power On/Off and Continuous Mode

• Premeu el botó d'encesa per encendre o apagar l'aspiradora.
• Activar Mode continu by pressing the dedicated button. This allows for cleaning without continuously holding the power trigger.

Figure 3: Continuous mode button for comfortable cleaning sessions.

3.2 Flexible Hose and LED Light

• The flexible hose allows you to reach low areas and tight corners effortlessly.
• The integrated LED light on the floor nozzle illuminates dark areas, making hidden dust and debris visible.

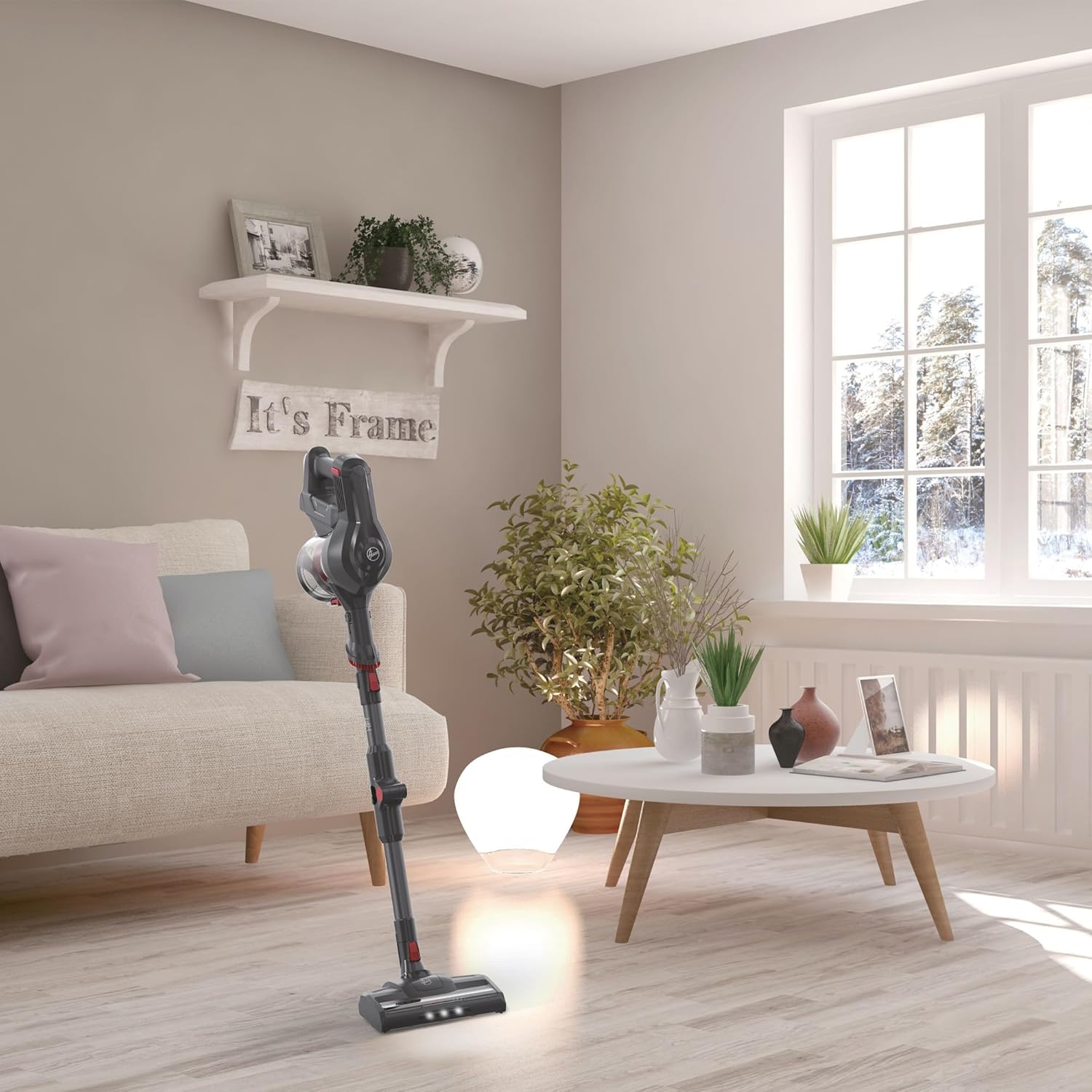

Figure 4: The LED light on the floor nozzle helps illuminate dark areas for thorough cleaning.

3.3 Ús d'accessoris

The HF1 comes with various accessories for specialized cleaning:

• Eina per esquerdes: Ideal per a racons, vores i forats estrets.
• 2-in-1 Dusting Brush/Upholstery Tool: Use the brush for delicate surfaces and the upholstery tool for furniture and fabrics.
• Mini Turbo Brush (PETS FLEXY model): Specifically designed to effectively remove pet hair from upholstery and carpets.

Figure 5: Using the 2-in-1 dusting brush for cleaning surfaces.

4. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de l'aspiradora.

4.1 Buidar el contenidor d'escombraries

• The bagless design allows for hygienic and easy emptying.
• Press the quick-release button to detach the dustbin.
• Empty contents into a waste bin.

Figure 6: Illustration of the easy dustbin emptying process.

4.2 Neteja del filtre

• Regularly check and clean the cartridge filter to maintain suction power.
• Remove the filter from the dustbin and tap it gently to dislodge dust.
• If necessary, rinse the filter under running water and allow it to air dry completely before reinserting.

4.3 Manteniment de la barra de raspalls

• Periodically inspect the brush bar in the floor nozzle for tangled hair or debris.
• Remove any obstructions to ensure smooth operation and effective cleaning.

5. Solució De Problemes

Si teniu algun problema, consulteu les solucions habituals següents:

• Sense energia: Ensure the battery is fully charged and correctly inserted. Check the power outlet if charging externally.
• Succió reduïda: Empty the dustbin, clean the filter, and check the brush bar for blockages. Ensure all connections are secure.
• La barra del raspall no gira: Check for tangled hair or debris in the brush bar. Ensure the floor nozzle is correctly attached.
• Durada de la bateria curta: Ensure the battery is fully charged. Battery performance may decrease over time; consider replacing if significantly degraded.

6. Especificacions

7. Garantia i Suport

This product comes with a limited manufacturer's warranty. For detailed warranty information, product registration, or technical support, please visit the official Hoover weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.

També podeu visitar el Botiga Hoover a Amazon per a més informació i productes relacionats.
