Manual d'usuari de la màquina de cafè automàtica Krups Sensation C50

1. Introducció

Welcome to the world of premium coffee with your new Krups Sensation C50 Automatic Coffee Machine. This manual provides comprehensive instructions for setting up, operating, and maintaining your machine to ensure optimal performance and longevity. Designed for ease of use and versatility, the Sensation C50 allows you to enjoy a wide range of coffee specialties, including filter coffee, with a simple touch.

Si us plau, llegiu atentament aquest manual abans del primer ús i conservi'l per a futures consultes.

2. Instruccions de seguretat importants

• Connecteu sempre l'aparell a una presa de corrent amb connexió a terra.
• No submergiu l'aparell, el cable d'alimentació o l'endoll en aigua o cap altre líquid.
• Mantenir l'aparell fora de l'abast dels nens.
• Desendolleu la màquina abans de netejar-la i quan no la feu servir durant períodes prolongats.
• No feu servir l'aparell si el cable d'alimentació o l'endoll està danyat.
• Feu servir només aigua freda i fresca al dipòsit d'aigua.
• Aneu amb compte amb les superfícies calentes i el vapor durant el funcionament.

3. Producte acabatview

Familiarize yourself with the components of your Krups Sensation C50 coffee machine.

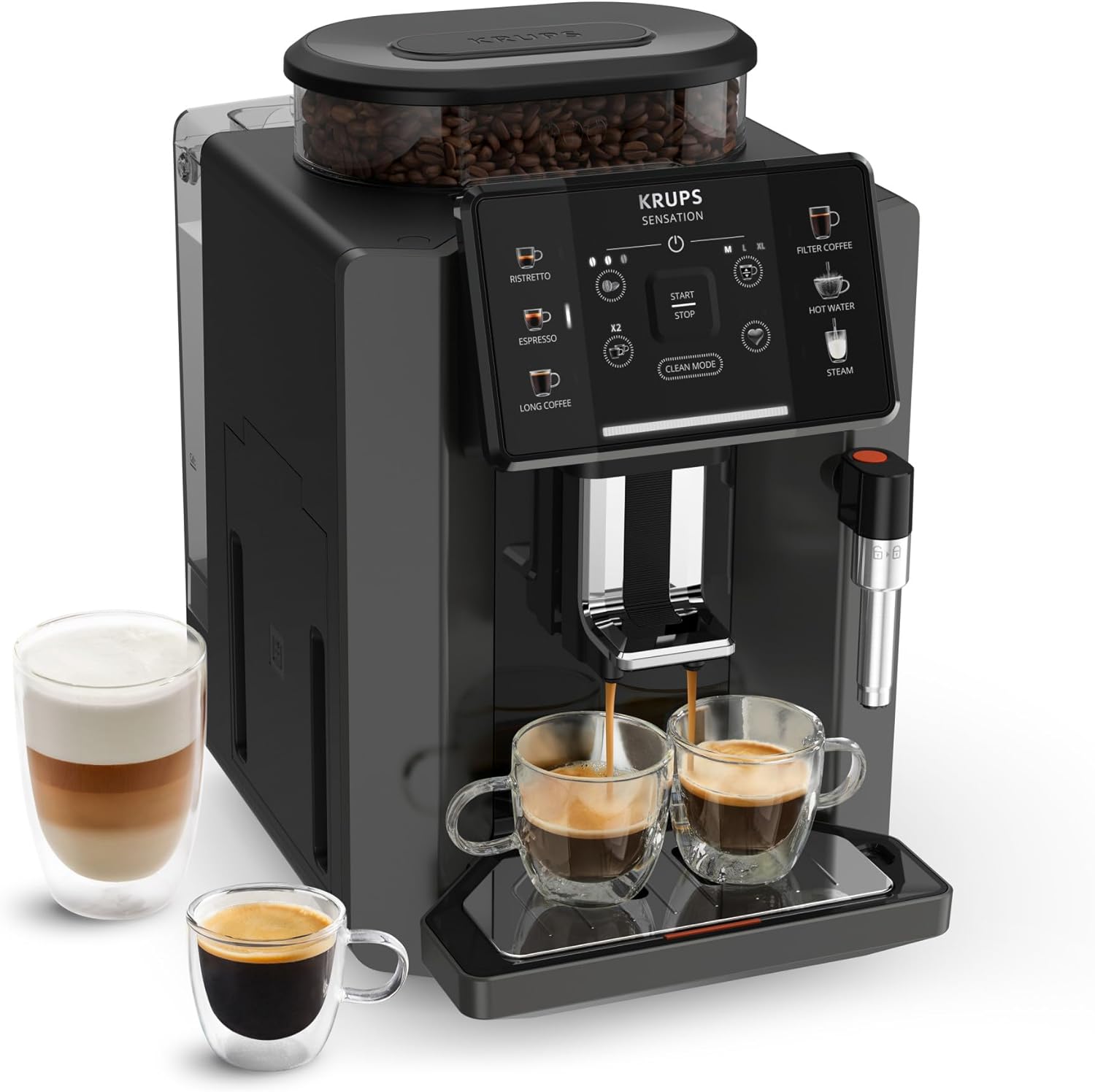

Figure 3.1: Krups Sensation C50 Automatic Coffee Machine with two cups of coffee and a glass of latte.

3.1 Components clau

• Tremuja de mongetes: Per a grans de cafè sencers. Capacitat: 260 g.
• Dipòsit d'aigua: Removable tank for water. Capacity: 1.7 Liters.
• Tauler de control tàctil: Intuitive interface for selecting drinks and settings.
• Botiga de cafè: Where brewed coffee dispenses.
• Broquet de vapor: Per fer escuma de llet i dispensar aigua calenta.
• Safata de degoteig: Recull l'excés de líquid.
• Contenidor de posos de cafè: Recull discos de cafè usats.

Figure 3.2: Dimensions of the Krups Sensation C50 coffee machine: 34.6 cm (depth) x 24 cm (width) x 36.4 cm (height). It also shows the 260g bean hopper and 1.7L water reservoir.

4. Configuració i primer ús

4.1 Desembalatge i col·locació

1. Traieu tots els materials d'embalatge i films protectors.
2. Place the machine on a stable, flat, and heat-resistant surface, away from water sources and heat.
3. Assegureu-vos que hi hagi una ventilació adequada al voltant de la màquina.

4.2 Filling the Water Tank and Bean Hopper

1. Traieu el dipòsit d'aigua de la part posterior de la màquina.
2. Ompliu el dipòsit amb aigua fresca i freda fins al nivell MÀX.
3. Torneu a col·locar el dipòsit d'aigua a la màquina de manera segura.
4. Open the bean hopper lid and fill with whole coffee beans. Close the lid.

4.3 Cicle d'esbandida inicial

1. Connecteu la màquina a una presa de corrent amb connexió a terra.
2. Premeu el botó d'encesa per encendre la màquina.
3. The machine will prompt you to perform an initial rinse cycle. Follow the on-screen instructions.
4. Place a container under the coffee outlet and steam nozzle to collect water.
5. The rinse cycle cleans the internal circuits and prepares the machine for use.

5. Instruccions de funcionament

The Krups Sensation C50 features an intuitive touch control panel for easy operation.

Figure 5.1: Close-up of the intuitive touch control panel, showing options for Ristretto, Espresso, Long Coffee, Filter Coffee, Hot Water, and Steam, along with intensity and volume customization.

5.1 Preparing Coffee Drinks

Your machine can prepare 5 pre-programmed coffee drinks and offers milk-based beverages via the steam nozzle.

Figure 5.2: Visual representation of the 5 pre-programmed coffee drinks: Ristretto, Espresso, Long Coffee, Filter Coffee, and Hot Water for tea.

1. Place one or two cups under the coffee outlet. The machine is designed to accommodate various cup sizes.

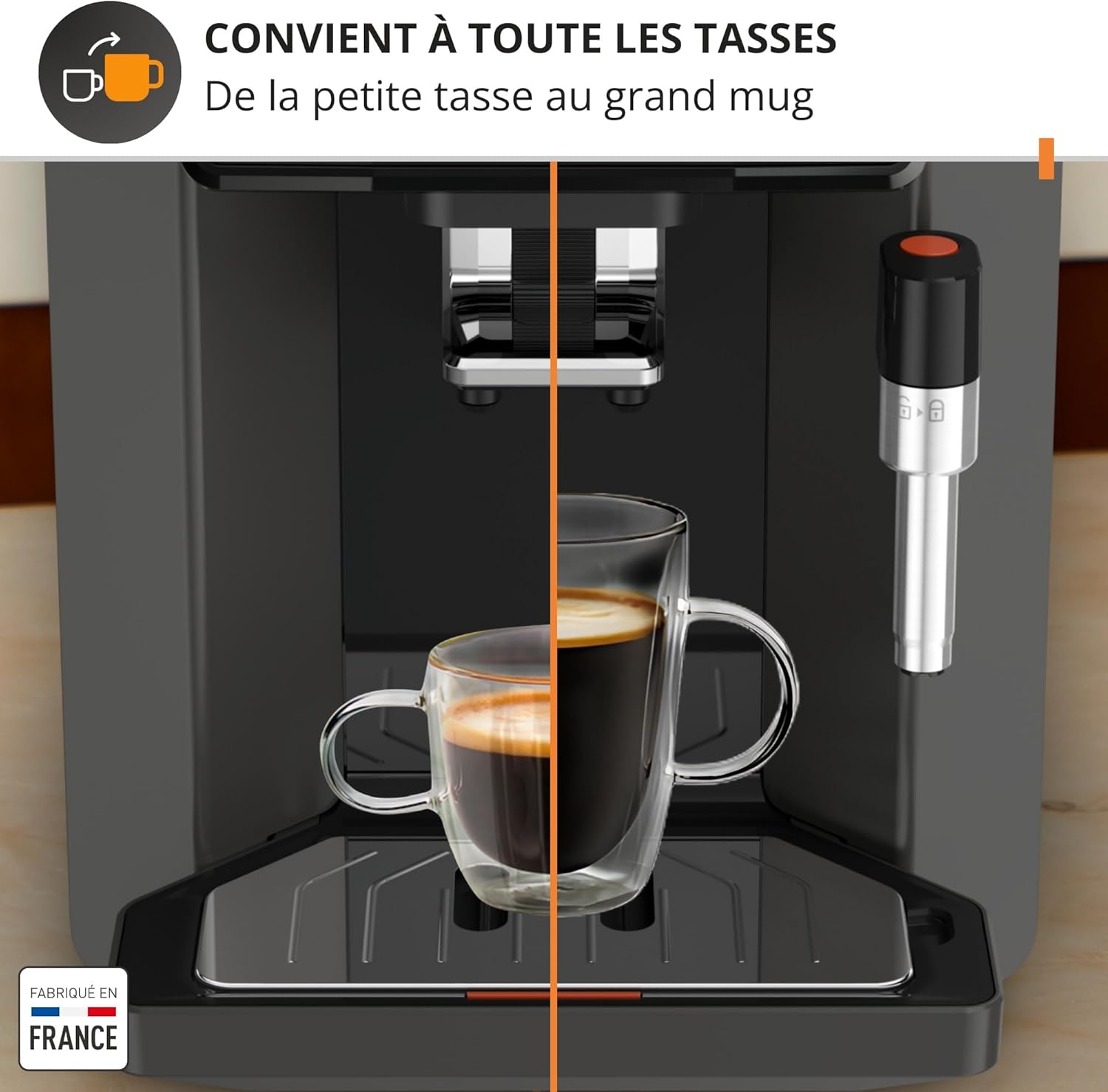

Figure 5.3: The adjustable coffee outlet allows the machine to fit various cup sizes, from small espresso cups to large mugs.
2. Select your desired drink from the touch panel (e.g., Espresso, Long Coffee, Filter Coffee).
3. You can adjust coffee intensity (strength) and volume using the on-screen controls before pressing START.
4. Premeu el botó COMENÇA botó per començar a preparar la cervesa.
5. For two cups, select the desired drink and then press the x2 button if available for that drink.

5.2 Preparing Milk-Based Drinks (Steam Nozzle)

The steam nozzle allows you to froth milk for cappuccinos and lattes, or dispense hot water for tea.

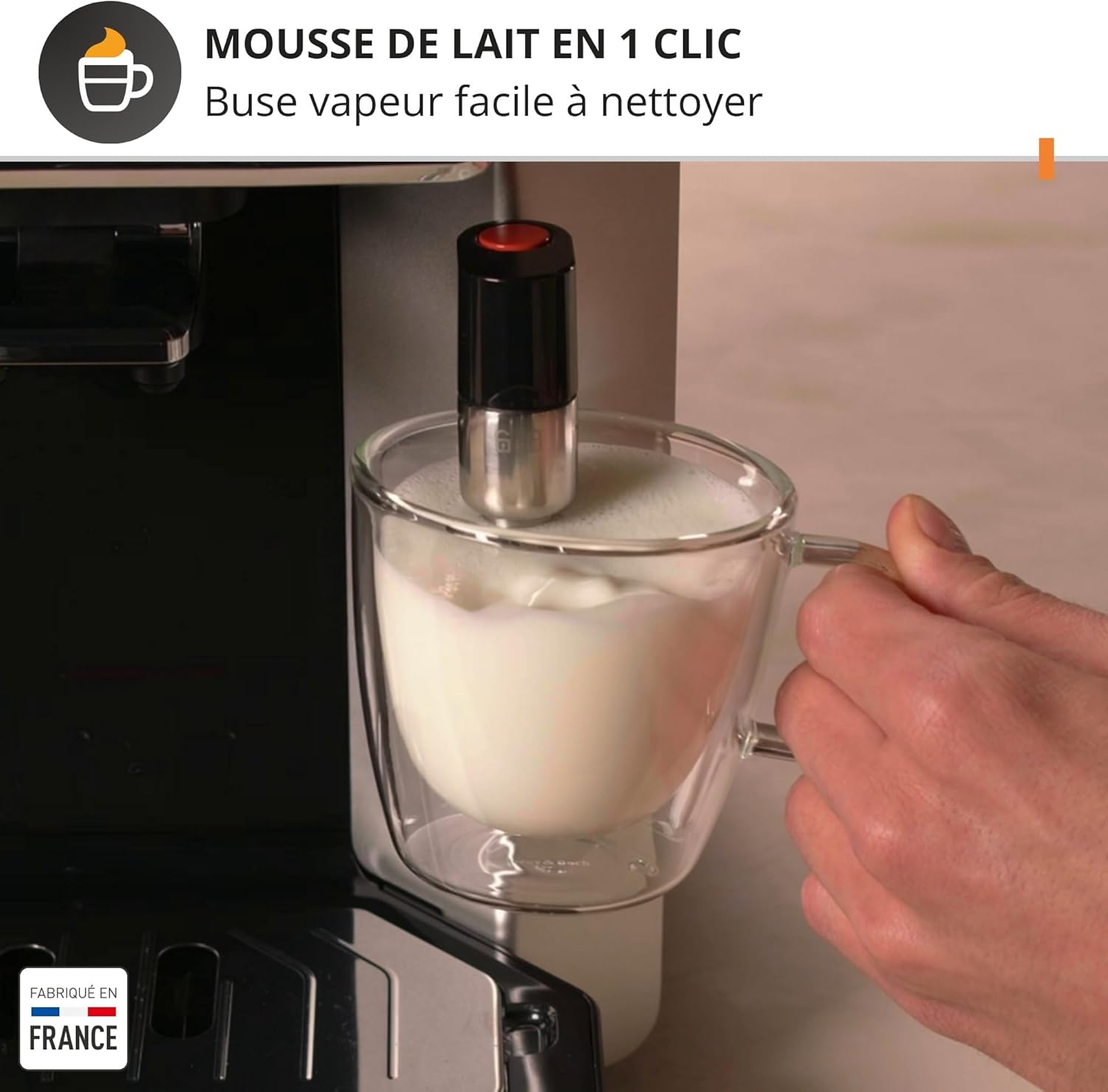

Figure 5.4: A hand holding a glass of milk being frothed by the steam nozzle, demonstrating easy milk foam creation.

1. Ompliu una gerra amb llet freda.
2. Position the steam nozzle into the milk.
3. Seleccioneu el VAPOR option on the touch panel.
4. Once frothing is complete, turn off the steam function.
5. Immediately clean the steam nozzle after each use (see Maintenance section).

5.3 Funció de memòria

The machine allows you to save two different coffee settings as favorites for quick access.

1. Adjust the intensity and volume for your desired coffee drink.
2. Press and hold one of the memory buttons (A or B) until the setting is saved.
3. To brew a saved favorite, simply press the corresponding memory button.

6. Manteniment i Neteja

Regular cleaning ensures the longevity and optimal performance of your Krups Sensation C50.

6.1 Cicle de neteja automàtica

The machine features a 100% automatic cleaning system, eliminating the need for manual disassembly of the brewing unit.

Figure 6.1: The touch panel showing the "CLEAN MODE" button and a cleaning tablet, illustrating the automatic cleaning process.

1. The machine will prompt you when a cleaning cycle is required.
2. Follow the on-screen instructions. This typically involves placing a cleaning tablet into the designated slot and starting the cycle.
3. Ensure a container is placed under the coffee outlet to collect rinse water.

6.2 Neteja diària

• Safata de degoteig i contenidor de cafè mòlt: Buidar i esbandir diàriament.
• Dipòsit d'aigua: Esbandir diàriament i tornar a omplir amb aigua fresca.
• Broquet de vapor: After each use, wipe the nozzle with a damp cloth and perform a short steam burst to clear any milk residue. The nozzle is easily removable for thorough cleaning.

6.3 Descalcificació

The machine will indicate when descaling is necessary. Use only Krups descaling solution or a recommended alternative.

1. Follow the detailed instructions provided on the machine's display when the descaling alert appears.
2. The process typically involves emptying the water tank, adding descaling solution and water, and running a cycle.
3. Rinse the machine thoroughly after descaling by running several cycles with fresh water.

7. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar amb la vostra màquina de cafè.

8. Especificacions

• Marca: KRUPS
• Número de model: EA910810
• Color: Negre
• Dimensions (L x A x A): 34.6 x 24 x 36.4 cm
• Pes: 7.5 kg
• Capacitat del dipòsit d'aigua: 1.7 litres
• Potència: 1450 watts
• Voltage: 220 volts (CA)
• Material: Plàstic, metall
• Característiques especials: Filter coffee function, Automatic cleaning function, Metal brewing unit, Milk frother, Touch control panel.
• País d'origen: França

9. Garantia i Suport

Krups products are designed for durability and precision. This machine is manufactured in France, reflecting high-quality standards.

For detailed warranty information, please refer to the warranty card included with your product or visit the official Krups website. Krups is committed to repairability, with a network of recognized repair workshops available for up to 15 years at a fair price.

If you encounter any issues not covered in the troubleshooting section, please contact Krups customer support for assistance. Contact details can typically be found on the Krups weblloc web o a la documentació del producte.
