1. Informació important de seguretat

Llegiu atentament totes les instruccions abans d'utilitzar l'aparell. Conserveu aquest manual per a futures consultes.

• Aquest aparell està dissenyat només per a ús domèstic.
• Ensure proper ventilation in the kitchen when using the gas oven or hob.
• No emmagatzemeu materials inflamables a prop de l'aparell.
• Superviseu sempre els nens quan l'aparell estigui en ús.
• Do not use abrasive cleaners or sharp objects for cleaning.
• In case of a gas leak, immediately shut off the gas supply, open windows, and do not operate any electrical switches or appliances. Contact a qualified technician.
• Assegureu-vos que l'aparell estigui correctament instal·lat i connectat a terra per un professional qualificat.

2. Producte acabatview

The ARROW RO-9060GSKS-CF is a freestanding gas oven with a 5-burner gas hob, designed for efficient cooking. It features a stainless steel surface, front panel, and drawer, along with a cooling fan and full safety devices for all burners.

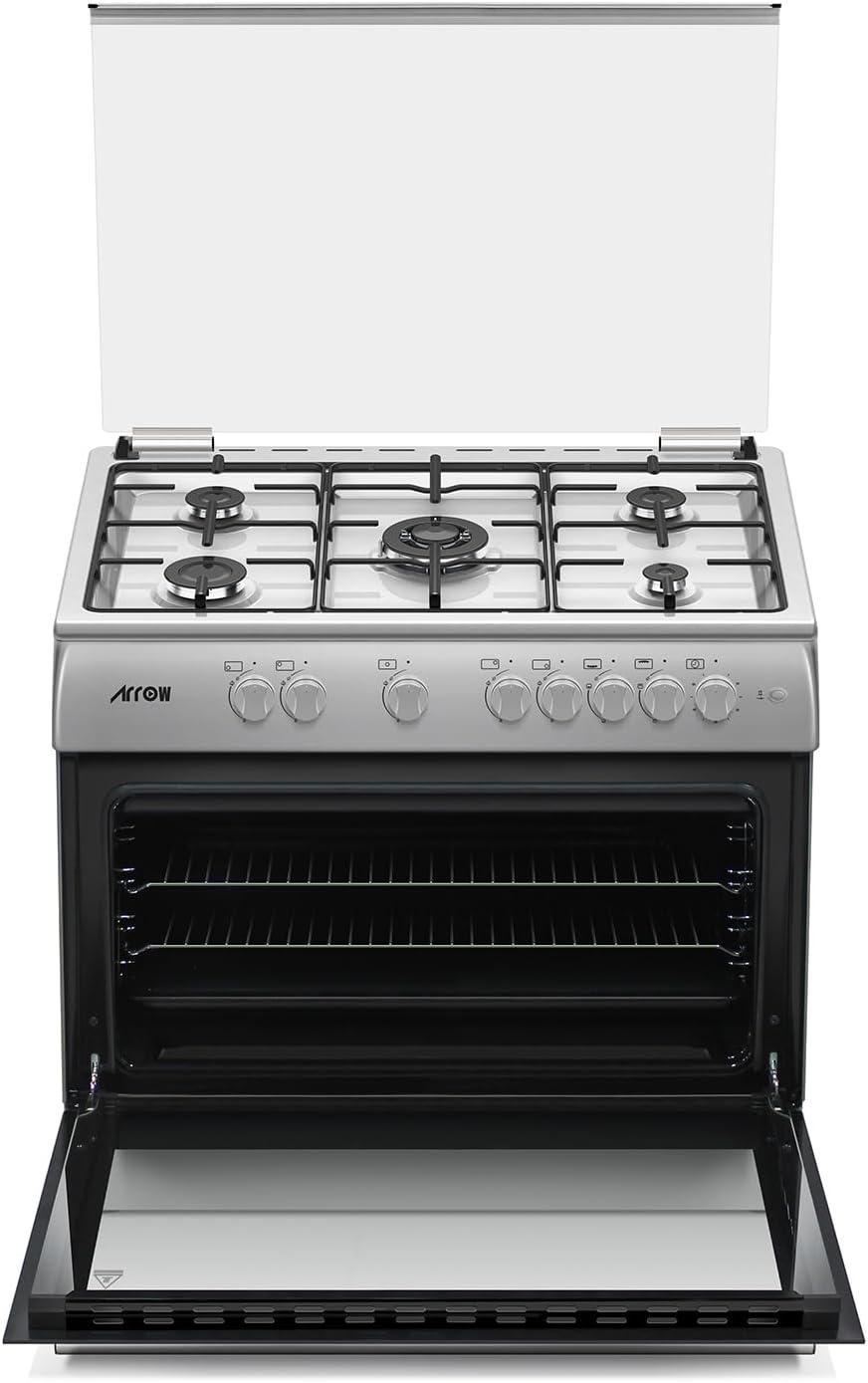

Davant view of the ARROW RO-9060GSKS-CF freestanding gas oven with the oven door open, showcasing the 5-burner cooktop and oven interior.

lateral view of the ARROW RO-9060GSKS-CF freestanding gas oven, showing its compact design.

3. Configuració i instal·lació

Proper installation is crucial for the safe and efficient operation of your gas oven. This appliance must be installed by a qualified technician in accordance with local regulations.

3.1 Desembalatge

• Traieu amb cura tots els materials d'embalatge.
• Inspect the appliance for any damage. Do not install if damaged.

3.2 Posicionament

• Col·loqueu el forn sobre una superfície estable i plana.
• Ensure adequate clearance from walls and cabinets as specified in the installation guide.
• The appliance is freestanding and measures 68cm (Depth) x 95cm (Width) x 89cm (Height).

3.3 Anivellació

Use the adjustable legs to ensure the oven is perfectly level. This prevents spills and ensures even cooking.

The oven is equipped with adjustable legs for proper leveling during installation.

3.4 Connexió de gas

• Connect the appliance to an LPG gas supply (G30-50 mBar) as specified.
• All gas connections must be performed by a certified gas technician.
• Check for gas leaks after connection using a soapy water solution.

3.5 Connexió elèctrica

• Connect the oven to a 220-240V, 50-60Hz electrical outlet.
• Ensure the electrical supply is properly grounded.
• The electrical plug is of a special type.

4. Instruccions de funcionament

Your ARROW gas oven is equipped with various features for versatile cooking.

The control panel features knobs for each burner and oven functions, along with a mechanical timer.

4.1 Funcionament de la placa de gas

• The hob features 5 gas burners: one small (73 g/h), two middle (124 g/h each), one big (240 g/h), and one wok burner (284 g/h).
• To ignite a burner, push and turn the corresponding control knob counter-clockwise to the maximum flame setting while simultaneously pressing the ignition button. Hold for a few seconds until the flame is stable.
• Adjust the flame size by turning the knob.
• All burners are equipped with a Full Safety Device (FFD) which automatically cuts off gas supply if the flame extinguishes.

4.2 Funcionament del forn

• The oven has top and bottom burners, controlled by two separate knobs.
• To ignite the oven burner, push and turn the oven control knob to the desired temperature while pressing the ignition button. Hold for a few seconds.
• The oven features a rotisserie (spit) for grilling poultry (6W motor).
• Un forn lamp (25W) illuminates the interior.
• The oven also includes a cooling fan (22W) and a warming drawer.
• A mechanical timer is available for setting cooking durations.
• The oven door has double glass and a removable inner glass for easy cleaning.

5. Manteniment i Neteja

Una neteja i un manteniment regulars garantiran la longevitat i el rendiment del vostre forn.

5.1 Neteja general

• Assegureu-vos sempre que l'aparell estigui fred i desconnectat de la xarxa elèctrica abans de netejar-lo.
• Netegeu les superfícies exteriors amb un drap suau i un detergent suau. Eviteu productes de neteja abrasius.
• Clean the stainless steel surfaces with a specialized stainless steel cleaner to maintain its finish.

5.2 Hob Cleaning

• Remove burner caps and pan supports. Wash them with warm soapy water.
• Clean the hob surface with a non-abrasive cleaner.
• Assegureu-vos que totes les peces estiguin seques abans de tornar a muntar.

5.3 Neteja de l'interior del forn

• The oven door features removable inner glass for thorough cleaning. Refer to the detailed instructions in the full manual for removal.
• Use oven-safe cleaners for the interior, following product instructions.
• Clean oven racks and trays with warm soapy water.

6. Solució De Problemes

Abans de contactar amb el servei tècnic, comproveu els següents problemes habituals:

7. Especificacions

Detailed technical specifications for the ARROW RO-9060GSKS-CF gas oven.

Product label showing detailed specifications and serial number 0022213400030001.

8. Garantia i Suport

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt and product serial number (e.g., 0022213400030001) for any service inquiries.
