Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Srliya Programmable Electric Heating Thermostat. Please read this manual thoroughly before installation and use to ensure proper function and safety. This thermostat is designed to control electric heating systems, offering precise temperature regulation and programmable scheduling for enhanced comfort and energy efficiency.
Producte acabatview
Característiques clau
- Horari programable: Supports a 7-day programmable schedule with 6 distinct time periods per day for optimized energy use.
- Control precís de la temperatura: Maintains room temperature within ±0.5℃ of the set point.
- Capacitat de sensor dual: Features options for internal and external temperature sensors.
- Memòria de dades: Retains settings and data even after power loss.
- Funció anticongelant: Automatically activates heating if the temperature drops below a set threshold to prevent freezing.
- Pantalla LCD gran: Clear, backlit LCD screen for easy readability in various lighting conditions.
- Construcció duradora: Made from flame-resistant PC + ABS material for safety and reliability.
- Control versàtil: Compatible with various electric heating systems, including electric ball valves, electric heating films, and carbon crystal heaters.
Components inclosos
- Srliya Thermostat Unit
- Cargols de muntatge (2)
- External Temperature Sensor Cable
- Manual d'usuari en anglès (aquest document)
Image: The Srliya thermostat unit shown alongside its external temperature sensor cable and two mounting screws, illustrating the complete package contents.
Especificacions
| Característica | Detall |
|---|---|
| Marca | Srliya |
| Número de model | Srliyaokay7vxmph |
| Color | Blanc |
| Voltage | 200-240 V CA, 50/60 Hz |
| Corrent de càrrega | 16A (for Electric Heating) |
| Precisió del control de temperatura | ± 0.5 ℃ |
| Configuració del rang de temperatura | 5℃-35℃ |
| Material | PC + ABS (Flame-resistant) |
| Tecnologia de connectivitat | Wi-Fi |
| Tipus de controlador | Pulsador |
| Característiques especials | Easy to Install, Adjustable |
| Usos del producte | Temperature Control for Electric Heating |
| Tipus de control de temperatura | Digital |
| Font d'alimentació | Cable elèctric |
Nota: While the product title may mention 'Zwave', the detailed specifications confirm that this thermostat utilizes Wi-Fi per a la connectivitat.
Configuració i instal·lació
Precaucions de seguretat
- Always disconnect power to the heating system at the main circuit breaker before beginning installation.
- Installation should only be performed by a qualified electrician or competent person.
- Assegureu-vos que tot el cablejat compleixi els codis i les regulacions elèctriques locals.
- Do not install the thermostat in direct sunlight, near heat sources, or in areas with poor air circulation.
Muntatge del termòstat
The thermostat is designed for standard wall-box mounting. Carefully separate the front panel from the back plate. Secure the back plate to the wall box using the provided mounting screws. Ensure the back plate is level before tightening.

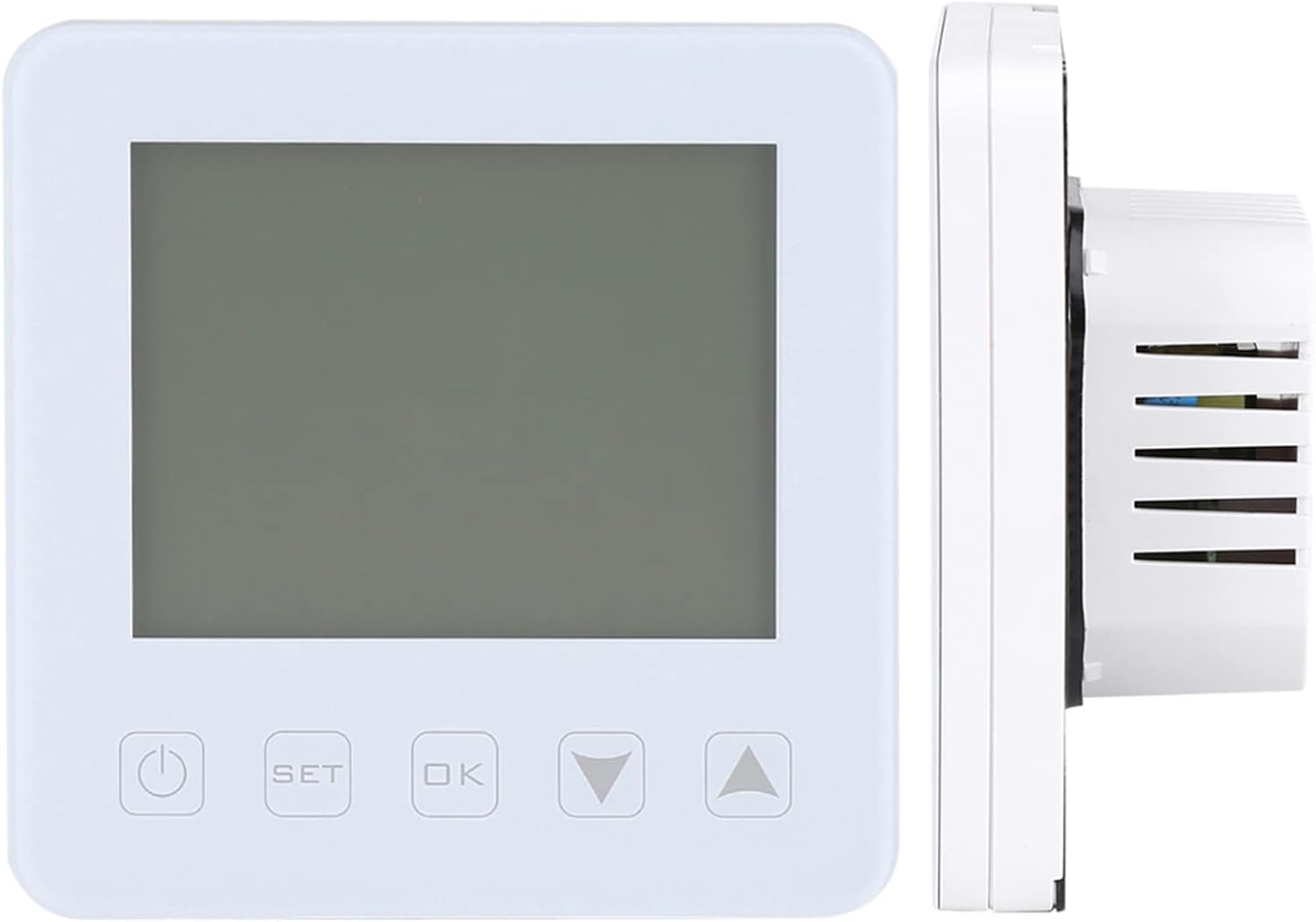

Imatge: Side profile of the Srliya thermostat, illustrating its compact depth suitable for flush wall installation.
Esquema de cablejat
Connect the electrical wires to the appropriate terminals on the thermostat's back plate. Refer to the diagrams below for typical wiring configurations. Ensure all connections are secure.
Imatge: Part posterior view of an older model Srliya thermostat, displaying wiring terminals for power (N, L) and load connections (1, 2, 3, 4), along with the NTC external sensor connection (5, 6). Rated AC230V 50/60Hz, Imax 16A.
Imatge: Part posterior view of a newer model Srliya thermostat, showing a slightly different layout for wiring terminals. Connections for power (N, L) and load (1, 2) are visible, along with the NTC external sensor connection (5, 6). Rated AC230V 50/60Hz, Imax 16A.
General Wiring Guide:
- Connect the Live (L) wire from your power supply to the 'L' terminal.
- Connect the Neutral (N) wire from your power supply to the 'N' terminal.
- Connect the heating load wires to terminals '1' and '2' (or '1', '2', '3', '4' depending on the model and load type).
- If using an external temperature sensor, connect its wires to terminals '5' and '6'.
After wiring, carefully reattach the front panel to the back plate.
Instruccions de funcionament
Encès/Apagat
Premeu el botó Poder button (⏻) located on the bottom left of the thermostat to turn the device on or off.
Comprensió de la pantalla
Image: The Srliya thermostat display showing a room temperature of 27.5℃, a set temperature of 24℃, current time 13:22, and indicating "AUTO" mode. A graphical representation of the 24-hour schedule is also visible.
La pantalla LCD proporciona informació en temps real:
- HABITACIÓ: Mostra la temperatura ambient actual de l'habitació.
- SET: Shows the desired target temperature.
- RELOJ: Indica l'hora actual.
- AUTO/MANUAL: Mostra el mode de funcionament actual.
- Schedule Bar: A graphical representation of the programmed heating periods throughout the day.
Configuració de l’hora i el dia
To set the current time and day, typically:
- Manteniu premut el botó SET button for a few seconds until the time display flashes.
- Utilitza el Up (▲) i Avall (▼) arrow buttons to adjust the hour, then press OK to confirm and move to minutes.
- Repeat for minutes and then for the day of the week.
- Premeu SET or wait for the display to stop flashing to save and exit.
Programming Schedule (6 Periods)
The thermostat allows you to set a personalized 7-day heating schedule with 6 distinct time periods each day. This feature helps in energy saving by heating only when needed.
- Premeu el botó SET button repeatedly until you enter the programming mode (often indicated by a flashing period number or day).
- Utilitza el Up (▲) i Avall (▼) arrow buttons to adjust the start time and desired temperature for each period.
- Premeu OK to confirm each setting and move to the next parameter (e.g., next period, next day).
- Continue until all 6 periods for all 7 days are set, or exit programming mode by pressing SET o esperant un temps d'espera.
Modes de funcionament
The thermostat typically offers the following operating modes:
- Mode automàtic: The thermostat follows the programmed schedule. This is the recommended mode for energy efficiency.
- Mode manual: The thermostat maintains a constant temperature set by the user, overriding the programmed schedule. To enter Manual Mode, press the SET button until "MANUAL" is displayed, then use the Up/Down arrows to set the desired temperature.
- Anul·lació temporal: While in Auto Mode, pressing the Up (▲) o Avall (▼) arrow buttons will temporarily adjust the temperature until the next scheduled period begins.
Image: A hand interacting with the Srliya thermostat, pressing the 'Up' arrow button to adjust settings on the illuminated LCD screen.
Temperature Calibration and Anti-freeze Function
- Calibració de temperatura: If you find the thermostat's temperature reading to be inaccurate compared to another thermometer, you can calibrate it. Refer to the full English manual for specific steps to access and adjust the calibration setting.
- Funció anticongelant: This feature is designed to protect your heating system and pipes from freezing. When activated, if the ambient temperature drops below a factory-set or user-defined threshold (e.g., 5℃), the thermostat will automatically turn on the heating until the temperature rises above the threshold.
Manteniment
- Neteja: Netegeu la pantalla del termòstat i la casing with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the display or casing.
- Ventilació: Ensure that the thermostat's ventilation slots are not obstructed by dust or debris, as this can affect temperature sensing accuracy.
- Sense peces reparables per l'usuari: The thermostat contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. For any malfunctions, contact qualified service personnel.
Resolució de problemes
Problemes comuns i solucions
| Problema | Causa possible | Solució |
|---|---|---|
| El termòstat no s'encén | No hi ha subministrament elèctric; cablejat incorrecte; interruptor automàtic saltat. | Check the main circuit breaker. Verify all wiring connections as per the installation instructions. Ensure the power button is pressed. |
| La calefacció no s'activa | Temperature setting too low; incorrect operating mode; wiring issue to heating load. | Increase the set temperature above the current room temperature. Switch to Auto or Manual mode. Check the load wiring connections. |
| Lectura de temperatura inexacta | Sensor obstruction; thermostat located near heat source/draft; need for calibration. | Ensure the internal/external sensor is clear and not obstructed. Relocate the thermostat if necessary. Use the temperature calibration function (refer to the full manual). |
| Connectivity issues (Wi-Fi) | Router issues; incorrect Wi-Fi settings; out of range. | Restart your Wi-Fi router. Reconfigure Wi-Fi settings on the thermostat (refer to the full manual for specific steps). Ensure the thermostat is within range of your Wi-Fi network. |
| Thermostat display is blank or dim | Power issue; backlight setting. | Check power supply. Some models have adjustable backlight settings; refer to the full manual to adjust. |
Garantia i Suport
Specific warranty information for your Srliya Programmable Electric Heating Thermostat is typically provided with your purchase documentation. Please refer to these documents for details regarding warranty duration and coverage.
For technical support, troubleshooting assistance beyond this manual, or to make a warranty claim, please contact your retailer or the manufacturer, Srliya, directly. It is recommended to retain your proof of purchase (receipt or invoice) as it may be required for warranty services.
