Introducció
This manual provides detailed instructions for the safe and efficient operation of your Monster Boombox 2MNSK1710B0L2 Bluetooth Speaker. Please read this manual thoroughly before using the product and retain it for future reference.
The Monster Boombox is a portable speaker designed for various environments, featuring V-Sound bi-directional drivers, an integrated powered subwoofer for enhanced bass, and IPX5 water resistance for outdoor use. It includes a USB charging port for mobile devices and inputs for auxiliary audio and microphones.
Què hi ha a la caixa
- Monster Boombox 2MNSK1710B0L2 Bluetooth Speaker
- Power Adapter / Charging Cable (Assumed to be included for charging)
- User Manual (Aquest document)
Producte acabatview
Familiarize yourself with the various components and controls of your Monster Boombox.
Figura 1: Davant view of the Monster Boombox, showing the speaker grille and Monster logo.

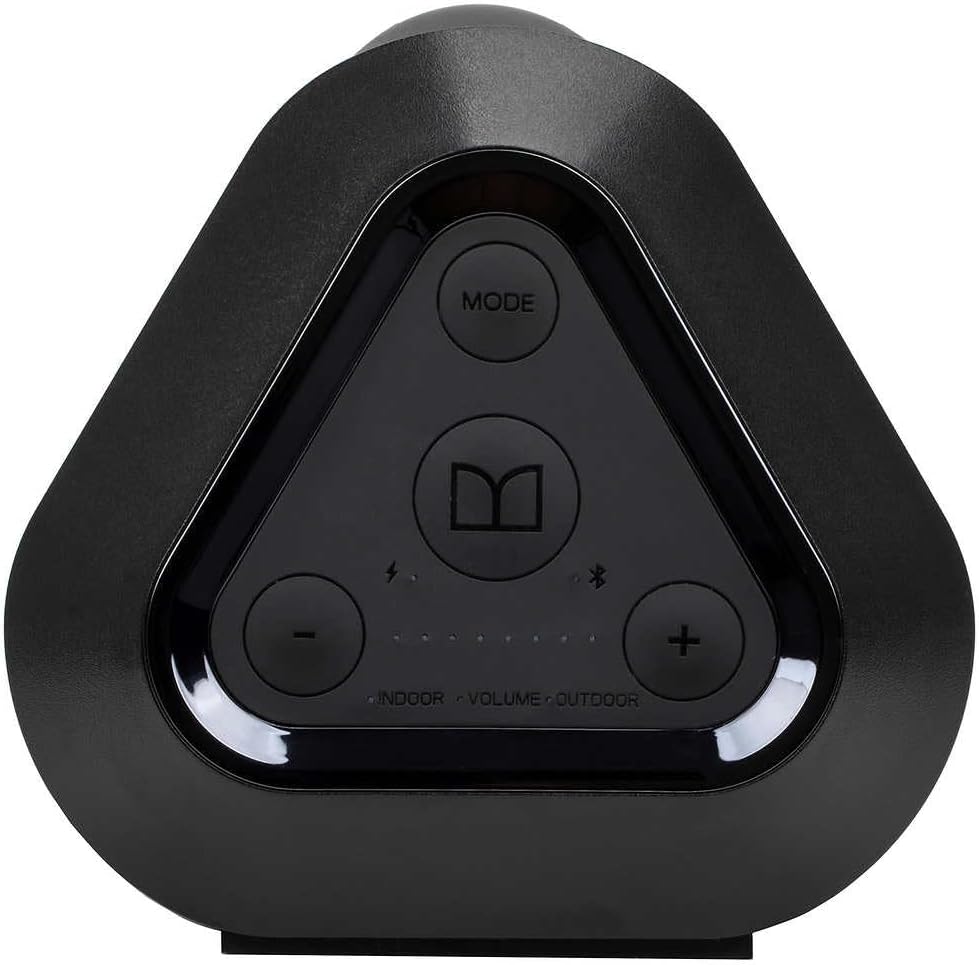

Figura 2: Top control panel with Mode button, Bluetooth pairing button, Volume Up/Down, and Indoor/Outdoor EQ buttons.
Figura 3: Rear input panel, protected by a cover, showing Reset button, Mic In, Aux In, USB Charge Out, and Power Input (18V=3.5A).
Configuració
1. Carregant l’altaveu
- Connect the provided power adapter to the 18V=3.5A Power Input port on the rear panel of the speaker (refer to Figure 3).
- Connecteu l'adaptador de corrent a una presa de corrent.
- The battery indicator lights on the control panel will illuminate to show charging status. A full charge takes approximately 12 hours.
- Disconnect the power adapter once fully charged or when operating on battery power.
2. Encès / apagat
- To power on, press and hold the Power button (Assumed to be integrated with the Mode button or a separate button not explicitly labeled in the provided images, but standard for such devices) until the indicator lights activate.
- To power off, press and hold the Power button again until the indicator lights turn off.
3. Emparellament Bluetooth
- Assegureu-vos que l'altaveu estigui encès.
- Press the Bluetooth pairing button (indicated by the Bluetooth symbol, refer to Figure 2) on the control panel. The Bluetooth indicator light will flash, indicating it is in pairing mode.
- Al dispositiu mòbil (telèfon intel·ligent, tauleta, ordinador portàtil), activeu el Bluetooth i cerqueu els dispositius disponibles.
- Select "Monster Boombox" from the list of devices.
- Once paired, the Bluetooth indicator light on the speaker will become solid, and you will hear an audible confirmation.
- The speaker supports NFC pairing. For NFC-enabled devices, simply tap your device to the NFC area on the speaker (location not specified in images, refer to product for exact location) to initiate pairing.
Instruccions de funcionament
1. Control de volum
- Premeu el botó + button (refer to Figure 2) to increase the volume.
- Premeu el botó - button (refer to Figure 2) to decrease the volume.
2. EQ Modes (Indoor/Outdoor)
- Press the "INDOOR" or "OUTDOOR" button (refer to Figure 2) to switch between equalization modes optimized for different listening environments.
3. Sortida de càrrega USB
- Connect your mobile device's charging cable to the USB Charge Out port on the rear panel (refer to Figure 3).
- The speaker's internal battery will provide power to charge your device.
4. Entrada auxiliar (AUX IN)
- Connect an audio source (e.g., MP3 player, CD player) to the AUX IN port on the rear panel (refer to Figure 3) using a 3.5mm audio cable.
- The speaker will automatically switch to AUX input mode, or you may need to press the Mode button (refer to Figure 2) to select AUX.
5. Microphone Input (MIC IN)
- Connect a microphone to the MIC IN port on the rear panel (refer to Figure 3) using a 3.5mm microphone cable.
- This feature allows the boombox to function as a portable PA system.
Manteniment
Neteja
- Assegureu-vos que l'altaveu estigui apagat i desconnectat de qualsevol font d'alimentació abans de netejar-lo.
- Feu servir un drap suau i sec per netejar les superfícies exteriors.
- Per a la brutícia tossuda, lleugerament dampRenta el drap amb aigua. Evita fer servir productes químics agressius, dissolvents o netejadors abrasius.
Resistència a l'aigua (IPX5)
- The Monster Boombox is IPX5 water resistant, meaning it can withstand splashes and light rain.
- No submergiu l'altaveu a l'aigua.
- Ensure the rear input panel cover is securely closed to maintain water resistance.
- If the speaker gets wet, wipe it dry before charging or opening the port cover.
Emmagatzematge
- Guardeu l'altaveu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Si l'emmagatzemeu durant un període prolongat, carregueu la bateria periòdicament per mantenir-ne la vida útil.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'altaveu no s'encén. | La bateria està esgotada. | Connect the speaker to a power source using the provided adapter and allow it to charge. |
| No hi ha connexió Bluetooth. | L'altaveu no està en mode d'emparellament; el Bluetooth del dispositiu està desactivat; l'altaveu ja està connectat a un altre dispositiu. | Ensure speaker is in pairing mode (flashing Bluetooth indicator). Turn on Bluetooth on your device. Disconnect from other devices if necessary. Try re-pairing. |
| Sense so. | Volume is too low; incorrect input mode selected; audio cable not fully connected. | Increase speaker and device volume. Ensure correct input mode (Bluetooth, AUX) is selected. Check all cable connections. |
| USB Charge Out not working. | Speaker battery is too low; cable issue; device not compatible. | Ensure speaker has sufficient battery charge. Try a different USB cable. Verify your device is compatible with USB charging. |
| Àudio distorsionat. | Volume too high; audio source issue; speaker placement. | Reduce volume on both speaker and audio source. Test with a different audio source. Adjust speaker placement. |
Si els problemes persisteixen, poseu-vos en contacte amb l'atenció al client.
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | Monster Boombox |
| Número de model | 2MNSK1710B0L2 |
| Marca | Monstre |
| Material | Plastic or Rubberized Material |
| Tipus d'altaveu | A l'aire lliure |
| Característica especial | Impermeable (IPX5) |
| Tecnologia de connectivitat | Bluetooth |
| Tecnologia de comunicació sense fils | Bluetooth |
| Interval Bluetooth | 10 metres |
| Potència de sortida màxima dels altaveus | 120 watts |
| Connectivitat del subwoofer | Sense fil |
| Mode de sortida d'àudio | Estèreo (2.0 canals) |
| Font d'alimentació | Funciona amb bateria |
| Tipus de bateria | 1 bateria de ions de liti (inclosa) |
| Temps de càrrega | Aproximadament 12 hores |
| Dimensions del producte | 10 "P x 12" W x 20" H |
| Pes de l'article | 16.37 lliures |
| Color | Negre |
| UPC | 812350269873 |

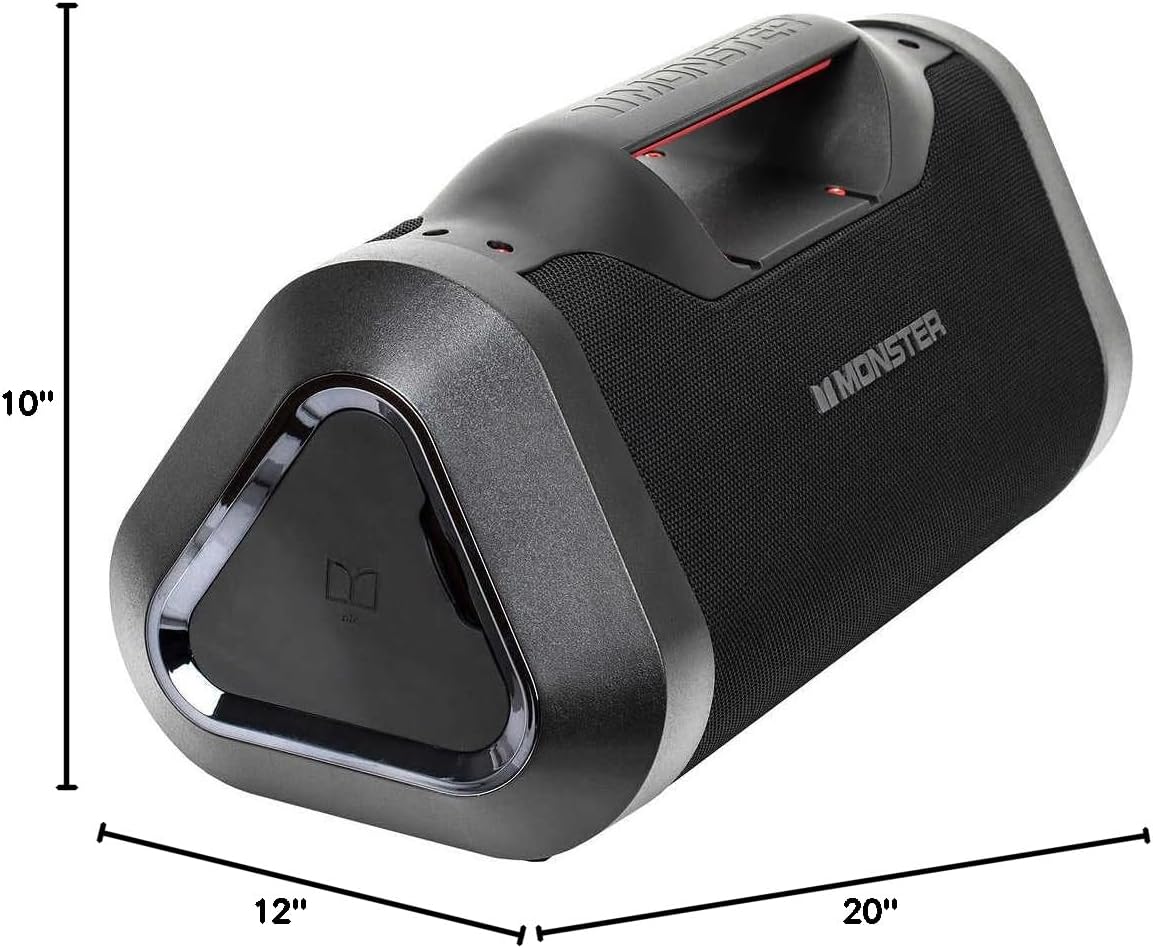

Figura 4: Product dimensions for the Monster Boombox.
Garantia i Suport
Informació de la garantia
The Monster Boombox 2MNSK1710B0L2 comes with a Limited Warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Retain your proof of purchase for warranty claims.
Atenció al client
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Monster customer support. Contact details can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
Manufacturer: Lifeworks Technology Group, LLC.
