The Klimaire U-PRO Series 12,000 BTU 115V Mini Split Inverter A/C Heat Pump System is designed to provide efficient heating and cooling for areas up to 550 sq. ft. This system includes an indoor fan coil, an outdoor condenser, a 16-foot installation kit, and a wall mounting bracket. It features smart control capabilities, advanced air purification, and a self-cleaning function for optimal indoor air quality.

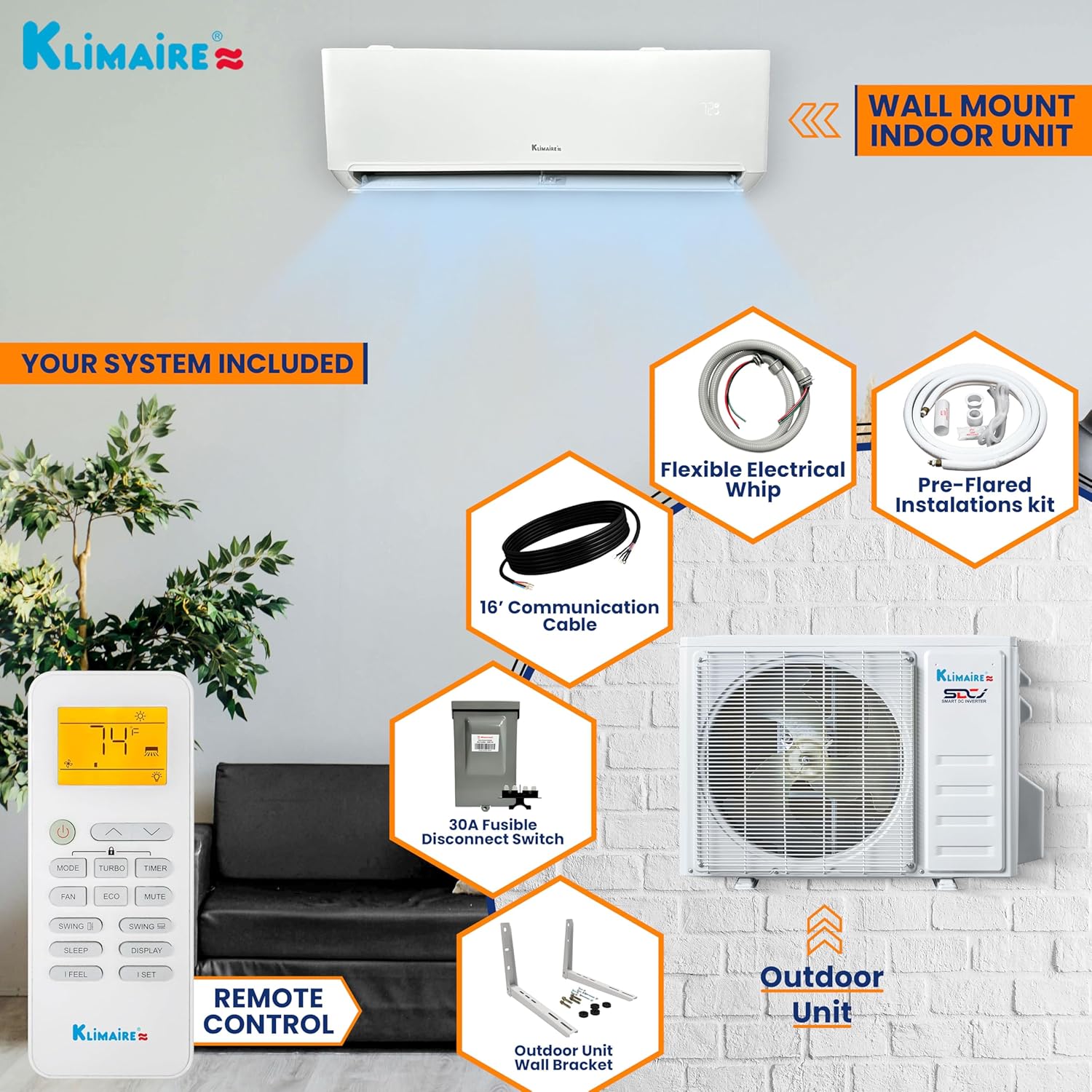

Figure 1: Complete Klimaire 12,000 BTU Mini Split System with all included components.
Configuració i instal·lació
Aquesta secció ofereix un finalview of the components included for setting up your Klimaire Mini Split system. Professional installation is recommended for optimal performance and safety.
Components inclosos
- Indoor Fan Coil Unit
- Unitat condensadora exterior
- 16-foot Installation Kit:
- Línies de coure aïllades a gas i líquid de 16 peus amb connexions acampanades de fàbrica
- Cable d'interconnexió de 4 cables de calibre 16 trenat i sense blindatge
- Massilla de farciment de paret
- Tap de paret decoratiu
- Cilindre de màniga de paret
- Cinta d'embolcall decorativa no adhesiva
- Mànega flexible de drenatge de condensats de 4 peus de llarg
- Suport de muntatge a paret per a la unitat exterior
- Control remot
Required Electrical Components (Included)
- Liquid-tight Flexible Electrical Whip with 3 - #10 AWG Wires
- Interruptor de desconnexió amb fusible de 30A
Figura 2: Mésview of system components and their placement.
Figura 3: Detallada view of the all-inclusive installation kit components.
Figure 4: Outdoor unit wall mounting bracket and hardware.
Instruccions de funcionament
The Klimaire U-PRO Series offers multiple operating modes and smart features for enhanced comfort and convenience.
Modes de funcionament
- Mode de refrigeració: Provides shower-style cooling with upward airflow that gently descends.
- Mode de calefacció: Delivers blanket-style airflow for even heat distribution.
- Mode de ventilador: Fa circular l'aire sense escalfar ni refredar.
- Dry (Dehumidification) Mode: Reduces humidity levels in the room.
- Mode automàtic: Automatically selects the appropriate mode based on room temperature.
- Gentle Breeze Mode: Provides a soft, non-harsh airflow for comfortable cooling.
- Mode turbo: Quickly reaches desired temperature.
- Mode ECO: Optimitza el consum d'energia.
- Mode de repòs: Ajusta la temperatura per a un son còmode i estalvi d'energia.
- Away Home (AH) Mode: Maintains a set temperature when you are away.
Funcions de control intel·ligent
The system is Wi-Fi compatible and can be controlled via the Smart Life App on your smartphone. It also integrates with voice assistants like Alexa and Google Assistant.
- Aplicació Smart Life: Remotely manage your system's functions, settings, and schedule from anywhere.
- Control de veu: Utilitzeu ordres de veu amb Alexa o Google Assistant per operar amb mans lliures.
- Funció Sento: The remote control senses the temperature around it and transmits the signal back to the indoor unit, allowing the unit to adjust the airflow and temperature for optimal comfort in your immediate vicinity.
- 24h Timer: Programa la unitat perquè s'encengui o s'apagui a hores específiques.
Figure 5: Wi-Fi connectivity and smart home integration.
Figure 6: Multi-function capabilities and internal features.
Manteniment
Regular maintenance ensures the longevity and efficient operation of your Klimaire Mini Split system. The unit is designed for easy cleaning.
Effortless Clean by Hands
The indoor unit features an intuitive cleaning design, allowing for easy disassembly and reassembly of key components for manual cleaning:
- Filtre: Easily removable for cleaning.
- Paletes: Can be accessed for cleaning.
- Placa: Removable for thorough cleaning.
- Solapa: Accessible for cleaning.
A built-in tilt support at the back of the indoor unit holds it in place, providing unobstructed access for cleaning and connecting copper lines.
Sistema d'autoneteja
The unit incorporates a 4-step self-cleaning process for the indoor coil, ensuring exceptional Indoor Air Quality (IAQ):
- Glaçat: The coil is frosted to trap dust and contaminants.
- Descongelació: The frost melts, washing away the trapped particles.
- Assecat a alta temperatura: The coil is dried to prevent mold and mildew growth.
- 133°F High-Temperature Sterilization: Sterilizes the coil at 133°F (56°C) for deep cleaning.
Healthy Filters
The system includes advanced filters designed to improve air quality by capturing pollutants and eliminating odors:
- High-Density Top Opened Filter
- Tea Polyphenols Filter
- Filtre fotocatalitzador
- Anion Filter
- Filtre de carbó actiu
- Vitamin C Filter
- Static Free Filter
Figure 7: Internal features related to air quality and self-cleaning.
Resolució de problemes
This section provides guidance for common issues you might encounter. For complex problems, contact a qualified technician.
Problemes comuns i solucions
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | Sense alimentació, interruptor automàtic saltat, piles del comandament a distància baixes. | Comproveu el subministrament d'alimentació, reinicieu l'interruptor automàtic i substituïu les piles del comandament a distància. |
| Refrigeració/calefacció insuficient | Filtres d'aire bruts, unitat exterior bloquejada, configuració de mode incorrecta, refrigerant baix. | Clean air filters, clear obstructions from outdoor unit, verify mode, check for refrigerant leaks (professional service required). |
| Soroll inusual | Peces soltes, obstrucció del ventilador, soroll del flux de refrigerant (normal). | Inspect for loose parts, remove obstructions. If noise persists or is unusual, contact service. |
| Fuita d'aigua de la unitat interior | Mànega de desguàs obstruïda, instal·lació incorrecta. | Clear drain hose. If issue persists, professional re-installation or inspection may be needed. |
Self-Troubleshooting Features
The Klimaire U-PRO system includes built-in self-troubleshooting capabilities to detect and alert users to certain issues. Additionally, it features Refrigerant Leak Detection to prevent damage and ensure efficient operation.
In case of an emergency, an Emergency Button is available on the unit for basic operation.
Especificacions
Detailed technical specifications for the Klimaire 12,000 BTU 115V Mini Split System.
| Característica | Detall |
|---|---|
| Marca | Klimaire |
| Número de model | KIWU12H1+KOIU12H-1+WAFP24+IKM1438 |
| Capacitat | 12,000 BTU (1 tones) |
| Voltage | 115 Volts |
| Eficiència SEER2 | 22 SEER2 |
| Dimensions del producte (unitat interior) | 36.32 "P x 12.05" W x 7.68" H |
| Nivell de soroll (interior) | 34 dB (Min) |
| Tipus d'instal·lació | Sistema dividit |
| Tipus de refrigerant | R410A |
| Suitable Area Coverage | Fins a 550 peus quadrats |
| Tipus de material | Aluminum, Copper, Plastic, Stainless Steel |
| Dispositius compatibles | Alexa, Google Home, Smartlife App |
| Característiques especials | Auto Restart, 4 Way Air Flow, Auto Clean, Sleep Mode, I Feel, Dry Mode, Self-Troubleshooting, High Ambient Cooling, Refrigerant Leak Detection, Emergency Button, Turbo Mode, ECO Mode, Away Home (AH), Auto Mode, 24h Timer, Smart Air Flow, Wi-Fi Compatible, Healthy Filters, 133°F High-Temperature Self-Cleaning System, Works with Google Assistant/Alexa, Long Distance Air Supply, Gentle Cool Wind, Low Ambient Heating |
Figure 8: Product dimensions for indoor and outdoor units.
Garantia i Suport
Klimaire provides comprehensive warranty coverage for your peace of mind.
Informació de la garantia
- Compressor: 7 anys de garantia
- Parts: 5 anys de garantia
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
Atenció al client
For technical assistance, troubleshooting, or warranty inquiries, please visit the official Klimaire store or contact their customer service.
Informació important de seguretat
Always read and follow all safety precautions before operating or servicing the unit. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Consult a qualified installer, service agency, or your dealer for information or assistance.
- Assegureu-vos de posar a terra correctament per evitar descàrregues elèctriques.
- No bloquegeu les entrades o sortides d'aire.
- Mantingueu els nens i les mascotes allunyats de la unitat exterior.
- Do not attempt to repair the unit yourself. Refer to qualified personnel.
- Turn off power before any maintenance or cleaning.
Recursos de vídeo
No official seller videos were provided for this product in the available data. For visual guides on installation or operation, please refer to the manufacturer's official weblloc o canals autoritzats.
