Jebao Smart Marine LED Light User Manual
Model: AL-120
Brand: Jebao
1. Introducció
The Jebao Smart Marine LED Light (Model AL-120) is an advanced lighting system designed for reef aquariums and fish tanks. It utilizes proprietary technology to offer a wide range of color spectrums without significant efficiency loss. This light can be controlled remotely via the cloud-based Syna-G App, providing comprehensive control over lighting profiles, schedules, and lunar cycles.
Característiques principals:
- Syna-G Cloud Smart Control App + AP + Manual operation.
- Maintains 95-100% efficiency across all color profiles.
- Includes an acclimation schedule to help corals adapt to lighting changes.
- Comes with an adjustable stand for flexible mounting.
- Features passive cooling for quiet operation.
2. Informació de seguretat
Please read all safety instructions carefully before operating the Jebao Smart Marine LED Light. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Aquest producte està dissenyat només per a ús en interiors. No l'exposeu a l'aigua ni a una humitat elevada.
- Ensure the power supply is disconnected before performing any maintenance or installation.
- Do not operate the light if the power cord or plug is damaged.
- Mantenir fora de l'abast dels nens.
- Do not disassemble or modify the light fixture. Refer all servicing to qualified personnel.
- Assegureu-vos una ventilació adequada al voltant de la llum per evitar el sobreescalfament.
- This product is not waterproof. Avoid direct contact with water.
3. Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- Jebao Smart Marine LED Light Fixture (AL-120)
- Adjustable Mounting Kit (Arm and Clamp)
- Adaptador d'alimentació
- Manual d'usuari (aquest document)

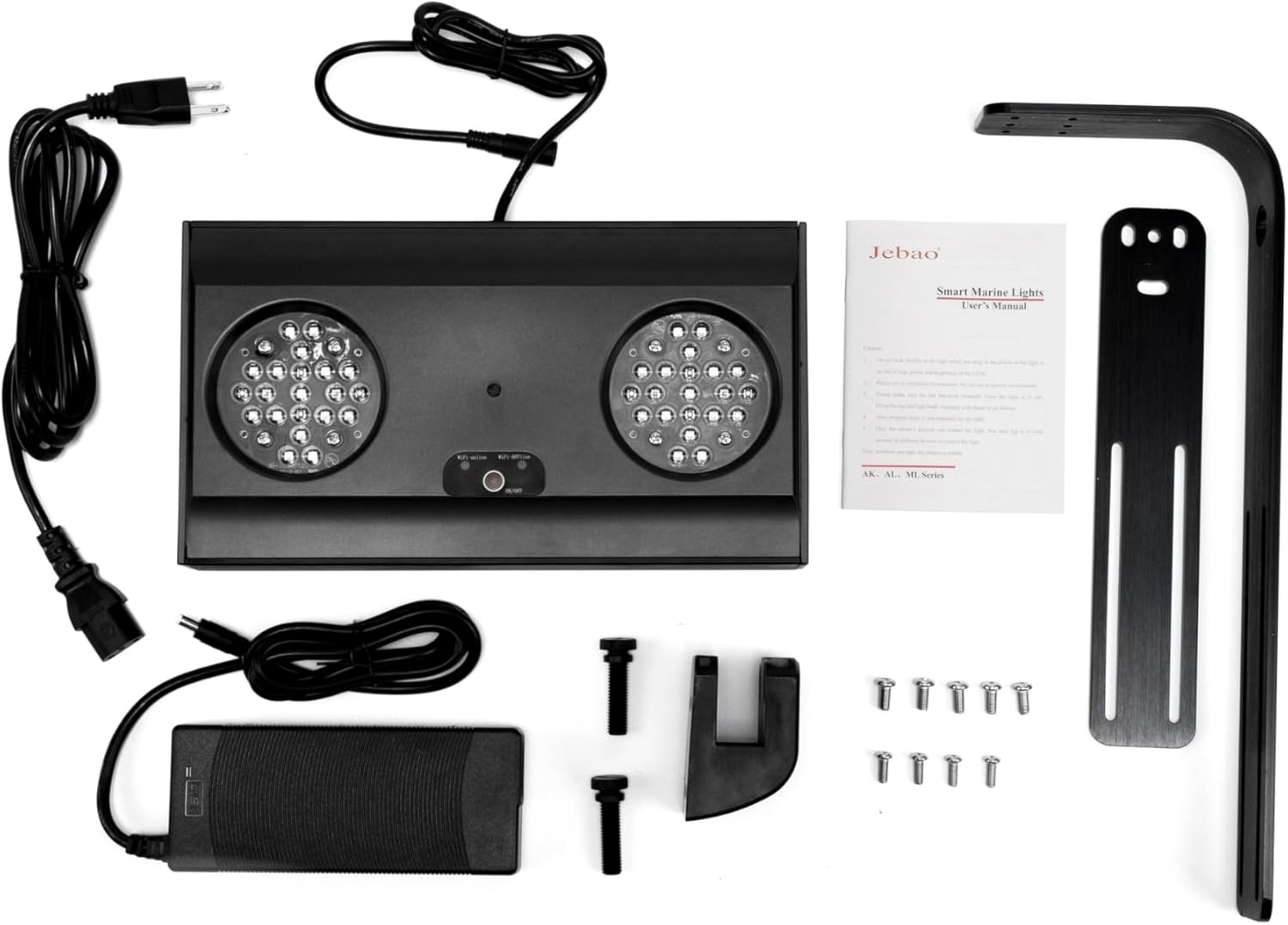

Image: All components included in the Jebao Smart Marine LED Light package, laid out on a white surface. This includes the light fixture, power adapter, mounting arm, and various screws.
4. Configuració
4.1 Instal·lació física
- Assemble the Mounting Arm: Attach the adjustable arm to the light fixture using the provided screws. Ensure all connections are secure.
- Connectar a l'aquari: Fixeu bé el clamp of the mounting arm to the rim of your aquarium. Adjust the arm's length and angle to position the light correctly over your tank. Ensure the light is level and stable.
- Connexió d'alimentació: Connect the power adapter to the light fixture, then plug the adapter into a suitable power outlet.

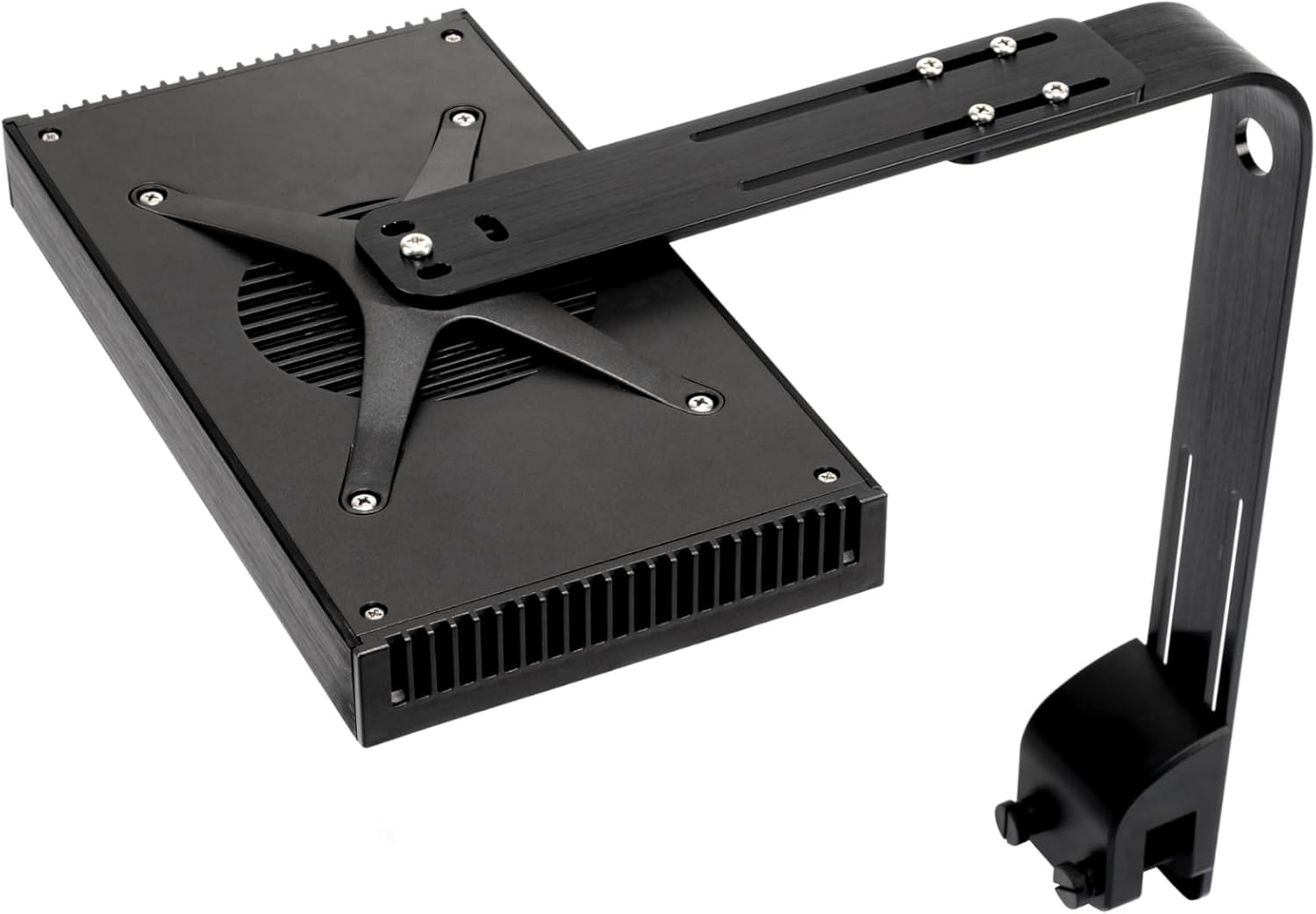

Image: The Jebao AL-120 LED light fixture shown with its adjustable mounting arm securely attached, ready for tank installation.
Imatge: Un costat view of the Jebao AL-120 LED light, demonstrating the flexibility of the adjustable mounting arm. The arm extends from the light fixture and curves downwards, ending in a clamp mecanisme.
4.2 App Installation and Wi-Fi Connection (Syna-G App)
- Download the Syna-G App: Cerca "Syna-G" in your mobile device's app store (iOS or Android) and download the application.
- Crea un compte: Open the Syna-G App and follow the on-screen instructions to create a new user account.
- Afegeix un dispositiu: Power on your Jebao AL-120 light. In the Syna-G App, select the option to add a new device.
- Connecta't a Wi-Fi: Follow the app's prompts to connect your light to your home Wi-Fi network. Ensure your mobile device is connected to the same 2.4GHz Wi-Fi network during the setup process.
- Vinculació de dispositius: Once connected, the app will guide you through pairing your light fixture. This may involve pressing a button on the light or confirming a connection within the app.
5. Instruccions de funcionament
5.1 Control manual
The AL-120 light features basic manual controls on the unit itself for quick adjustments:
Image: The underside of the Jebao AL-120 LED light, displaying the two main LED clusters and small control buttons for manual operation.
- Botó d'encesa: Press to turn the light On/Off.
- Botó de mode: Cycle through preset lighting modes or color channels.
- Botons de brillantor (+/-): Adjust the intensity of the selected mode or channel.
5.2 Syna-G App Control
The Syna-G App provides comprehensive control over your Jebao AL-120 light:
- Color Profile Ajust: Customize the intensity of each of the 6 LED channels (Cool White, Royal Blue, Blue, Violet, UV, Green, Red) to create your desired spectrum.
- Lighting Schedules: Create daily or weekly lighting schedules with multiple on/off times and varying intensities to simulate natural light cycles.
- Lunar Cycles: Program automated lunar cycles to mimic moonlight phases, beneficial for nocturnal aquatic life.
- Acclimation Schedule: Utilize the built-in acclimation feature to gradually increase light intensity over a set period, helping new corals or tank inhabitants adapt to the new lighting environment.
- Control de grup: If you have multiple Jebao Smart Marine LED Lights, you can group them together for synchronized control.
- Configuració per compartir: Share your customized lighting settings and access with other users.
6. Manteniment
- Neteja: Regularly wipe the light fixture and LED lenses with a soft, dry cloth to remove dust and salt creep. Ensure the light is unplugged before cleaning. Do not use abrasive cleaners or solvents.
- Ventilació: Ensure the cooling fins and fan (if present) are free from obstructions to maintain optimal passive cooling and prevent overheating.
- Cable d'alimentació: Periodically inspect the power cord for any signs of damage. If damaged, discontinue use and contact customer support.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power; faulty connection; power adapter issue. | Check power outlet, ensure all cables are securely connected. Test power adapter if possible. |
| Cannot connect to Wi-Fi / App issues. | Incorrect Wi-Fi password; 5GHz network used; app bug; light not in pairing mode. | Ensure you are connecting to a 2.4GHz Wi-Fi network. Double-check password. Restart light and app. Refer to app's help section for specific pairing instructions. |
| La llum parpelleja o s'atenua inesperadament. | Unstable power supply; overheating; internal fault. | Ensure stable power. Check for obstructions around cooling fins. If problem persists, contact customer support. |
| App settings not applying to light. | Poor Wi-Fi signal; light not properly paired. | Ensure strong Wi-Fi signal. Re-pair the device with the app if necessary. |
8. Especificacions
| Model | AL-120 |
| Max Wattage | 120 watts |
| Canals | 6 |
| LED total | 42 |
| LED Composition | Cool White (CREE): 4x2, Royal Blue (CREE): 5x2, Blue (CREE): 4x2, Violet (SEMILED 415): 2x2, UV (SEMILED 400): 2x2, Green (CREE): 2x2, Red (CREE): 2x2 |
| Color del cos | Negre |
| Mètode de control | WI-FI + AP + Manual |
| Dimensions (Main Light) | 11.5 x 6.25 x 1.5 polzades |
| Dimensions del producte (total) | 15 x 12 x 3 polzades |
| Pes de l'article | 5.92 lliures |
| Tecnologia de connectivitat | Wi-Fi |
| Material | Plastic, Aluminum (Base Material) |
| Nivell de resistència a l'aigua | No resistent a l'aigua |
9. Garantia i Suport
For warranty information and technical support, please refer to the official Jebao weblloc web o contacteu directament amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
Jebao Official Weblloc: www.jebao.com (Nota: Això és un marcador de posició URL, please refer to your product packaging or official documentation for the correct weblloc.)
