Midea MERB345MGC02 Refrigerator with Freezers User Manual

1. Introducció

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Midea MERB345MGC02 refrigerator with freezers. Please read this manual thoroughly before using your appliance and keep it for future reference.

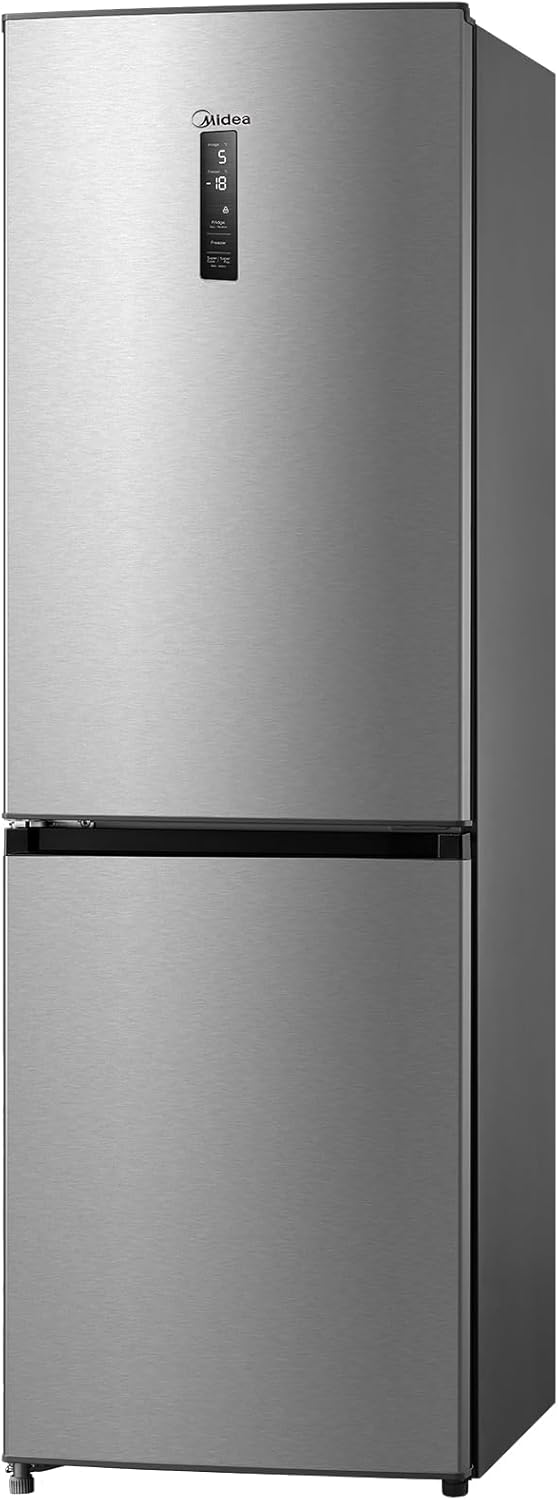

Imatge 1.1: Frontal view of the Midea MERB345MGC02 Refrigerator with Freezers.

2. Configuració i instal·lació

2.1 Desembalatge i col·locació

Carefully unpack the appliance and remove all packaging materials. Ensure the refrigerator is placed on a flat, stable surface away from direct sunlight, heat sources, and moisture. Allow adequate ventilation space around the unit as specified in the dimensions.

Image 2.1: Product dimensions (Length x Depth x Height): 595mm x 700mm x 1850mm.

2.2 Reversible Doors

The refrigerator doors are reversible and can be installed to open from either the left or the right side. This feature provides maximum flexibility for placement within your kitchen layout. Refer to the detailed instructions in the separate installation guide for the door reversal procedure.

Image 2.2: Illustration of reversible door functionality, showing the refrigerator opening from both left and right sides.

2.3 Engegada inicial

After positioning the refrigerator, wait at least 6 hours before plugging it into a power outlet. This allows the refrigerant to settle. Once plugged in, the appliance will begin to cool. Allow several hours for the internal temperature to stabilize before loading food.

3. Instruccions de funcionament

3.1 Panell de control digital

The refrigerator features a digital touch control panel located on the exterior of the upper door. This panel allows for precise temperature adjustment of both the refrigerator and freezer compartments. Follow the on-screen prompts to set your desired temperatures.

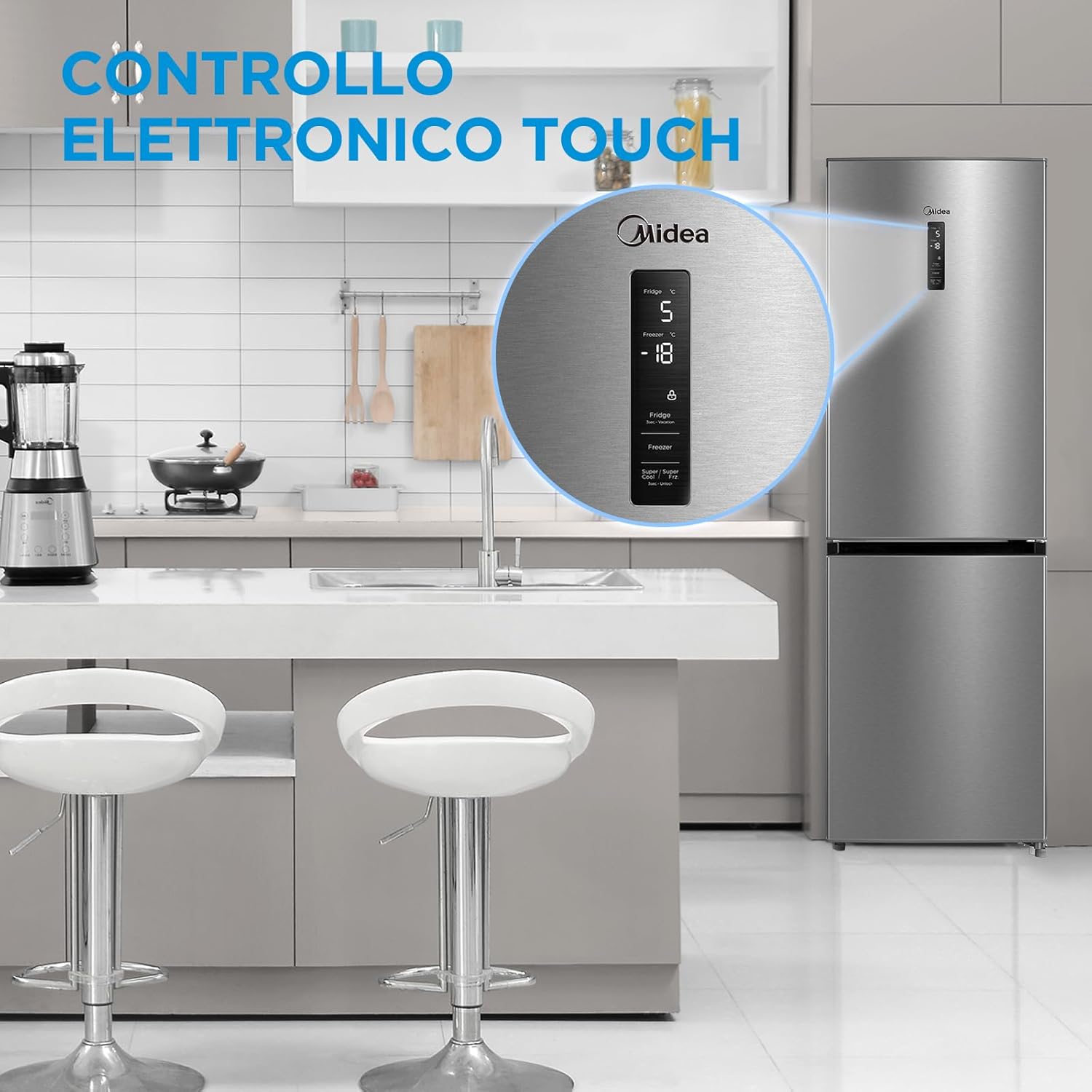

Image 3.1: Close-up of the digital touch control panel on the refrigerator door.

3.2 Total No Frost Technology

This refrigerator utilizes Total No Frost technology, which prevents ice build-up in both the refrigerator and freezer compartments. This eliminates the need for manual defrosting, ensuring optimal food preservation and simplifying maintenance.

Image 3.2: Illustration of air circulation within the refrigerator, demonstrating the No Frost system.

3.3 Flexible Interior Space

The refrigerator features removable glass shelves, allowing you to customize the internal space to accommodate larger or irregularly shaped items. This flexible design helps optimize storage and organization.

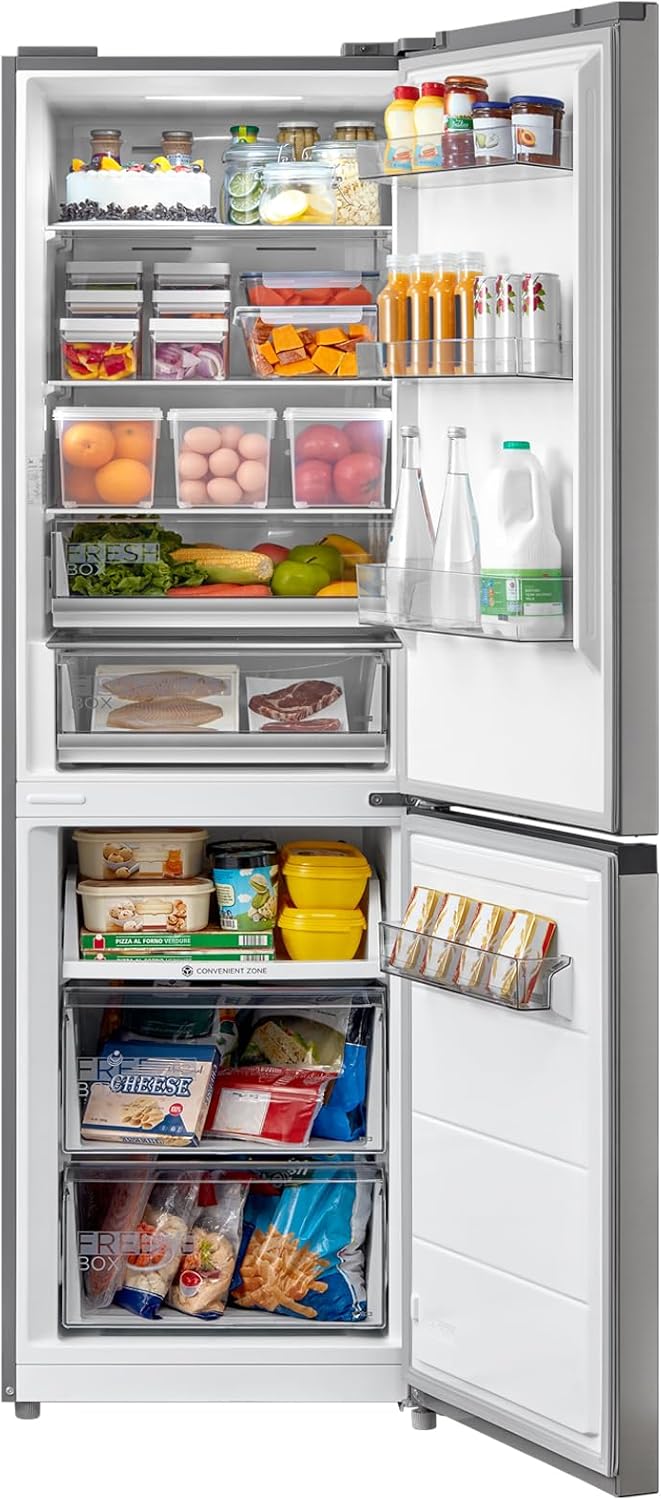

Imatge 3.3: Interior view of the refrigerator and freezer compartments, showing organized food items and adjustable shelves.

3.4 Il·luminació LED

The interior of the refrigerator is illuminated with bright LED lighting. This energy-efficient lighting ensures clear visibility of all contents, making it easy to find items even in low light conditions.

Imatge 3.4: Primer pla view of the interior LED lighting illuminating the refrigerator compartment.

3.5 Funcionament amb baix soroll

Equipped with an advanced and efficient compressor, the Midea MERB345MGC02 operates quietly, producing only 35 dB of noise. This ensures a peaceful environment in your home.

Image 3.5: Refrigerator in a home setting, illustrating its quiet operation with pets sleeping nearby.

4. Manteniment

4.1 Neteja

Regular cleaning of your refrigerator is essential for hygiene and optimal performance. Unplug the appliance before cleaning. Use a soft cloth with a mild detergent and warm water to clean the interior and exterior surfaces. Avoid abrasive cleaners or sharp objects. Dry thoroughly after cleaning.

4.2 Descongelació

Due to the Total No Frost technology, manual defrosting of this appliance is not required. The system automatically prevents ice and frost build-up.

5. Solució De Problemes

If you encounter any issues with your Midea refrigerator, please refer to the following common troubleshooting tips before contacting customer service:

• L'aparell no refreda: Check if the power cord is securely plugged in. Ensure the circuit breaker has not tripped. Verify that the temperature settings are appropriate.
• Soroll inusual: Ensure the appliance is level and stable. Check if any items inside are vibrating against each other.
• La porta no tanca correctament: Check for any obstructions preventing the door from closing. Ensure the door gasket is clean and intact.
• Fuga d'aigua: Check if the drain hole is blocked. Ensure the appliance is level.

For more complex issues or if the problem persists, please contact Midea customer support.

6. Especificacions

Detailed technical specifications for the Midea MERB345MGC02 refrigerator:

Image 6.1: EU Energy Label for Midea MERB345MGC02, showing Class C efficiency and 171 kWh/annum consumption.

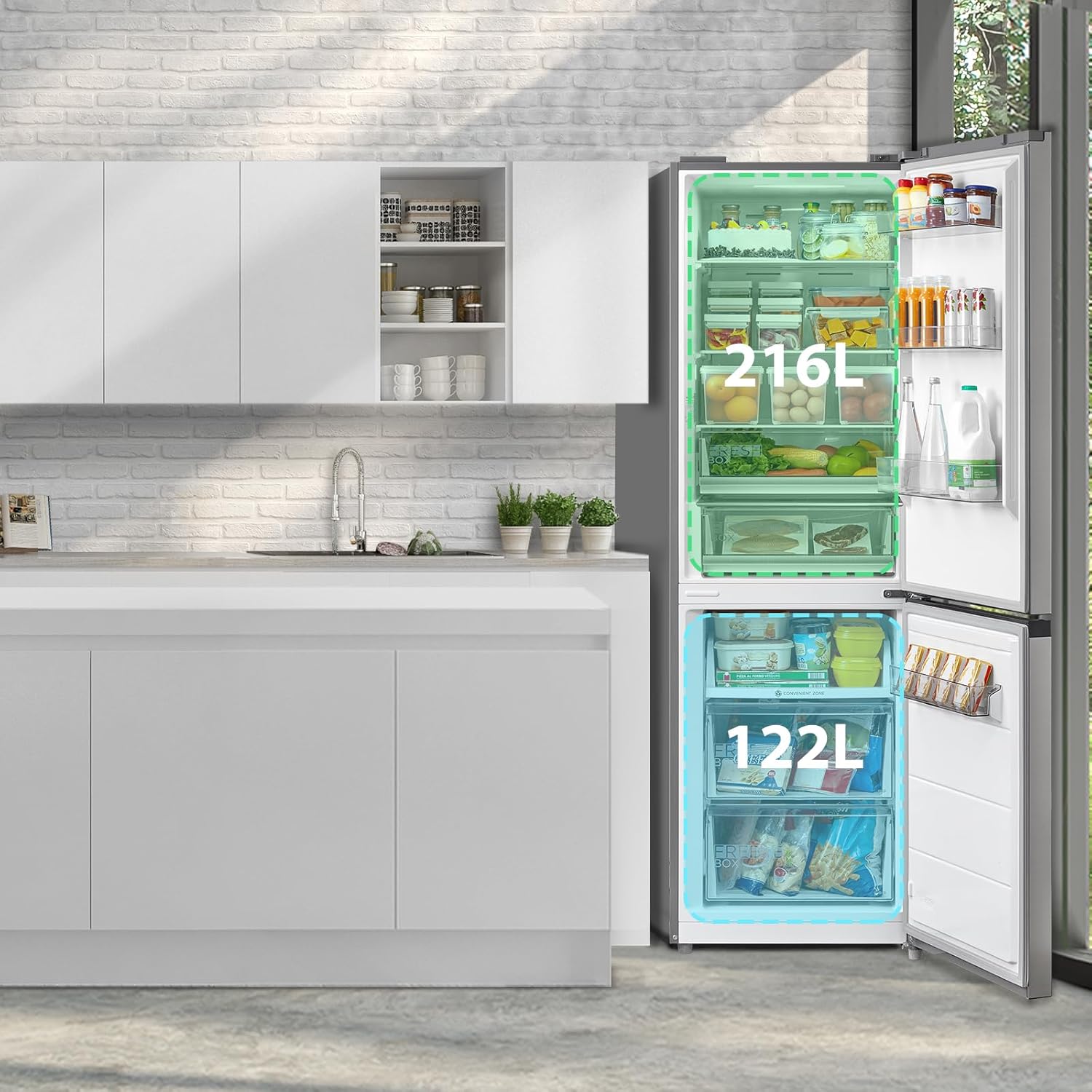

Image 6.2: Visual representation of refrigerator (216L) and freezer (122L) capacities.

Per obtenir informació més detallada sobre el producte, consulteu la base de dades EPREL: https://eprel.ec.europa.eu/qr/1465728

7. Garantia i Suport

7.1 Informació de la garantia

Midea products are covered by a manufacturer's warranty. For specific details regarding the warranty period and terms, please refer to the warranty card included with your appliance or visit the official Midea website. If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the Amazon help page on returns. If you have received a defective or damaged product, please consult the Amazon help page on damaged items.

7.2 Atenció al client

For technical assistance, spare parts, or any other inquiries, please contact Midea customer support. You can typically find contact information on the Midea official website or through your retailer's support channels. For purchases made on Amazon, you can also contact Amazon Customer Service for assistance.
