Milex MMJ002 Power Juicer User Manual

Introducció

Thank you for choosing the Milex Power Juicer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and retain it for future reference.

Imatge: Frontal view of the Milex MMJ002 Power Juicer, showcasing its silver and black design with the control dial visible.

Precaucions de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i/o lesions a les persones, incloent-hi les següents:

• Llegiu totes les instruccions abans de fer funcionar l'espremedora.
• No submergiu la base del motor en aigua o altres líquids.
• Assegureu-vos que l'aparell estigui desendollat ​​abans de muntar-lo, desmuntar-lo o netejar-lo.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
• Keep hands and utensils out of the feed chute during operation to prevent injury.
• Always ensure the safety lock is engaged before operating.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.

Components del producte

Familiarize yourself with the parts of your Milex Power Juicer:

• Motor Base (with control dial)
• Envàs de polpa
• Juice Collector/Pitcher
• Filter Basket (Stainless Steel)
• Juicer Cover/Lid
• Empenjador d'aliments
• Barra de bloqueig de seguretat
• Cleaning Brush (Rotating self-cleaning brush)

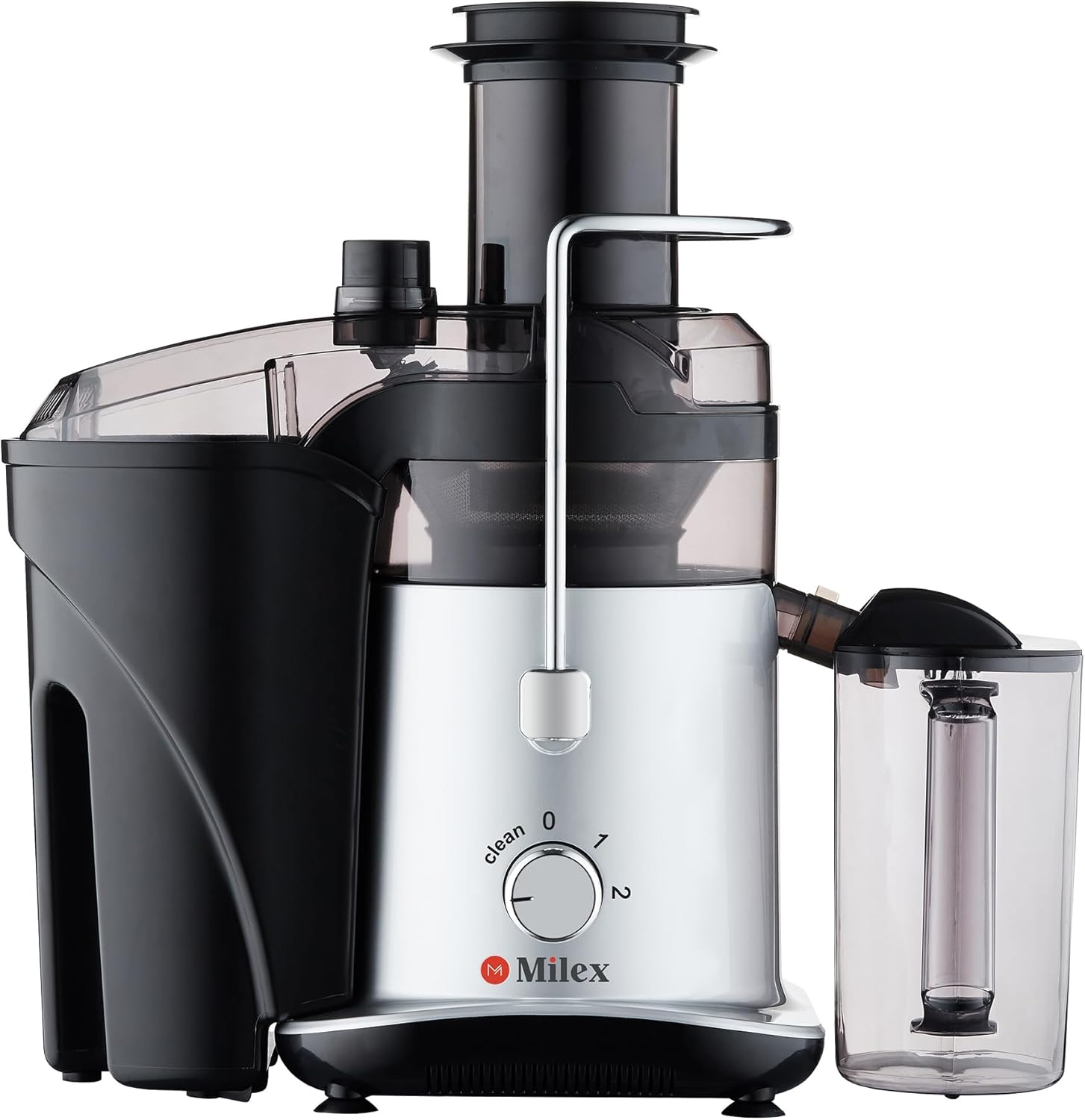

Image: The Milex MMJ002 Power Juicer with its juice collector attached, showing the complete setup for operation.

Muntatge i muntatge

Before first use, wash all removable parts (except the motor base) in warm, soapy water. Rinse thoroughly and dry.

1. Col·loqueu la base del motor sobre una superfície neta, seca i estable.
2. Insert the filter basket into the motor base, ensuring it is seated firmly.
3. Place the juicer cover over the filter basket, aligning the spout with the opening on the motor base.
4. Attach the pulp container to the back of the juicer cover.
5. Secure the safety locking bar by lifting it and hooking it over the juicer cover until it clicks into place. The juicer will not operate unless the locking bar is correctly secured.
6. Position the juice collector/pitcher under the juicer spout.
7. Introduïu l'empunyador d'aliments al canal d'alimentació.

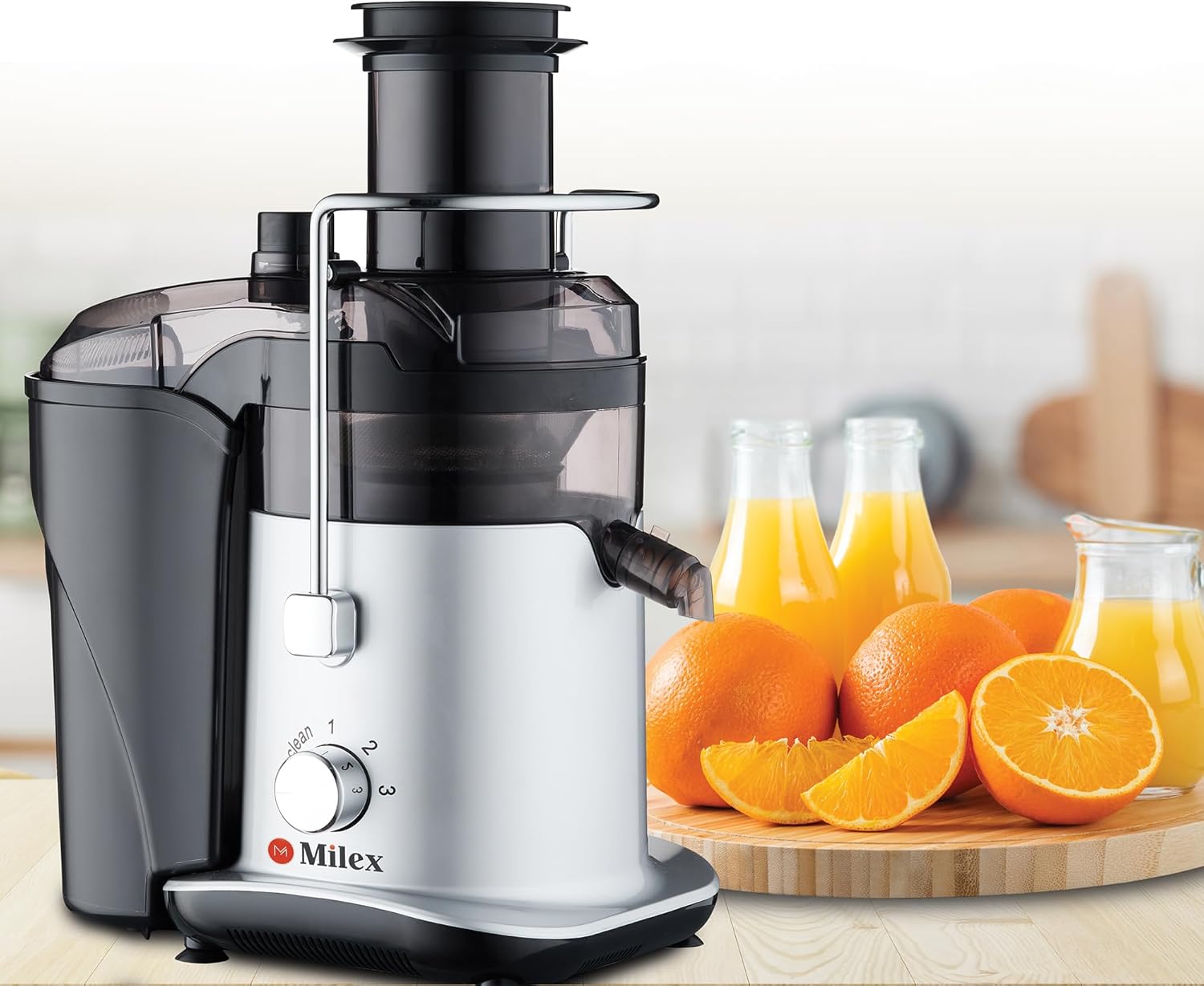

Image: The Milex MMJ002 Power Juicer fully assembled on a kitchen counter, ready for use, with fresh oranges beside it.

Instruccions de funcionament

Prepare your fruits and vegetables by washing them thoroughly. The extra wide chute allows for whole fruit processing for many items, reducing the need for pre-chopping. Remove large seeds or hard pits from fruits like peaches or avocados.

1. Ensure the juicer is properly assembled and the safety locking bar is engaged.
2. Plug the power cord into a 220-240V, 50Hz electrical outlet.
3. Turn the control dial to the desired speed setting:
   • Velocitat 1: For softer fruits and vegetables (e.g., oranges, grapes, tomatoes).
   • Velocitat 2: For harder fruits and vegetables (e.g., apples, carrots, celery).
   • Velocitat 3: For very hard produce or maximum extraction (e.g., beets, ginger).
   • "Clean" Setting: Activates the rotating self-cleaning brush for quick rinse.
4. Gradually feed fruits and vegetables into the feed chute using the food pusher. Apply gentle, even pressure. Do not force produce into the chute.
5. Allow the juicer to process the produce completely before adding more.
6. Once juicing is complete, turn the control dial to "0" (off) and unplug the appliance.

Note: The juicer features overheat protection. If the motor overheats, the appliance will automatically shut off. Allow it to cool down for approximately 20-30 minutes before resuming operation.

Manteniment i Neteja

Regular cleaning ensures optimal performance and extends the life of your juicer. Always unplug the juicer before cleaning.

Quick Clean (Using "Clean" Setting)

1. After juicing, pour a glass of water into the feed chute while the juicer is still assembled.
2. Turn the control dial to the "Clean" setting for a few seconds. This activates the rotating self-cleaning brush to rinse the filter basket.
3. Apagueu i desendolleu l'espremedora.

Neteja a fons

1. Unplug the juicer and disassemble all removable parts: food pusher, juicer cover, filter basket, pulp container, and juice collector.
2. Rinse all removable parts under running water to remove large pulp residues.
3. Wash these parts in warm, soapy water. Use the provided cleaning brush to thoroughly clean the mesh of the filter basket.
4. Important: The product care instructions state "Hand Wash Only" and "Is dishwasher safe: No". Do not place any parts in a dishwasher.
5. Netegeu la base del motor amb un anunciamp drap. No submergiu mai la base del motor en aigua ni en cap altre líquid.
6. Assequeu totes les peces a fons abans de tornar a muntar o emmagatzemar.

Resolució de problemes

Especificacions

• Número de model: MMJ002
• Potència: Motor de 1200 W
• Voltage: 220 - 240V, 50Hz
• RPM: 10,000 RPM
• Color: Plata i Negre
• Dimensions: Aproximadament 38.5 de profunditat x 38.5 d'amplada x 45 d'alçada centímetres
• Pes de l'article: Aproximadament 4.82 kg
• Material de la fulla: Acer inoxidable
• Característiques especials: Whole Fruit Processing, Overheat Protection, Quiet Motor, Rotating Self-Cleaning Brush, Safety Lock
• Instruccions de cura: Hand Wash Only (Not Dishwasher Safe)

Garantia i Suport

For warranty information and customer support, please refer to the warranty card included with your purchase or contact Milex customer service directly. Keep your proof of purchase for any warranty claims.

For further assistance or to purchase replacement parts, please visit the official Milex weblloc web o poseu-vos en contacte amb els seus centres de servei autoritzats.

Milex Official Store: Milex South Africa Store
