MIWAT 50W Plug-in LED Motion Sensor Flood Light Instruction Manual

1. Producte acabatview

The MIWAT 50W Plug-in LED Motion Sensor Flood Light is designed for outdoor use, featuring a PIR (Passive Infrared) induction sensor for automatic operation. It provides 4500 lumens of DayWhite light with a 120° beam angle, suitable for illuminating large areas. The unit is IP66 rainproof and includes a remote control for adjusting various functions.

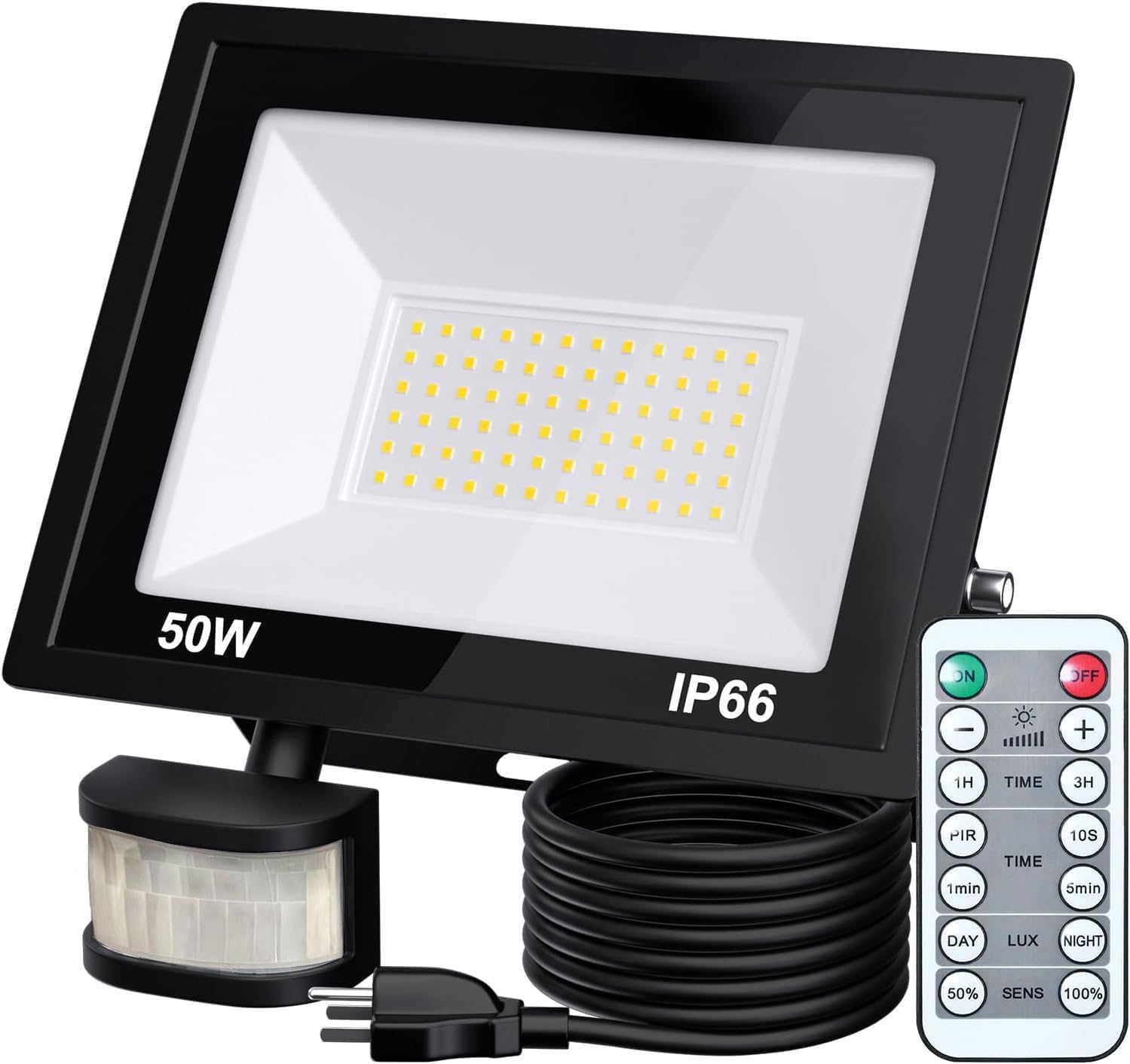

Image 1.1: MIWAT 50W LED Motion Sensor Flood Light with included remote control and power cord.

2. Característiques clau

• Smart Dusk to Dawn Operation: The sensor mode activates at dusk and deactivates at sunrise. It automatically turns on when motion is detected within 12 meters (40 ft).
• Funcionalitat de control remot: Adjust settings such as brightness, timing (1H/3H off), automatic PIR mode, and manual initial mode using the included remote control.
• Durable IP66 Waterproof Design: Constructed with high-transparency tempered glass and a cast aluminum shell for rigidity and heat dissipation. IP66 rating ensures rainproof performance for outdoor installation.
• Easy Plug-in Installation: Designed for wall or pole mounting with a 5-foot power cord, eliminating complex wiring.
• Alt Brillantor: 50W LED provides 4500 lumens of light with a 120° beam angle.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• MIWAT 50W LED Flood Light with integrated motion sensor
• Control remot
• Mounting Bracket (pre-attached or separate)
• Power Cord (5FT, attached)
• Reflector LED (integrat)

4. Especificacions

Image 4.1: Product dimensions and rotatable sensor details.

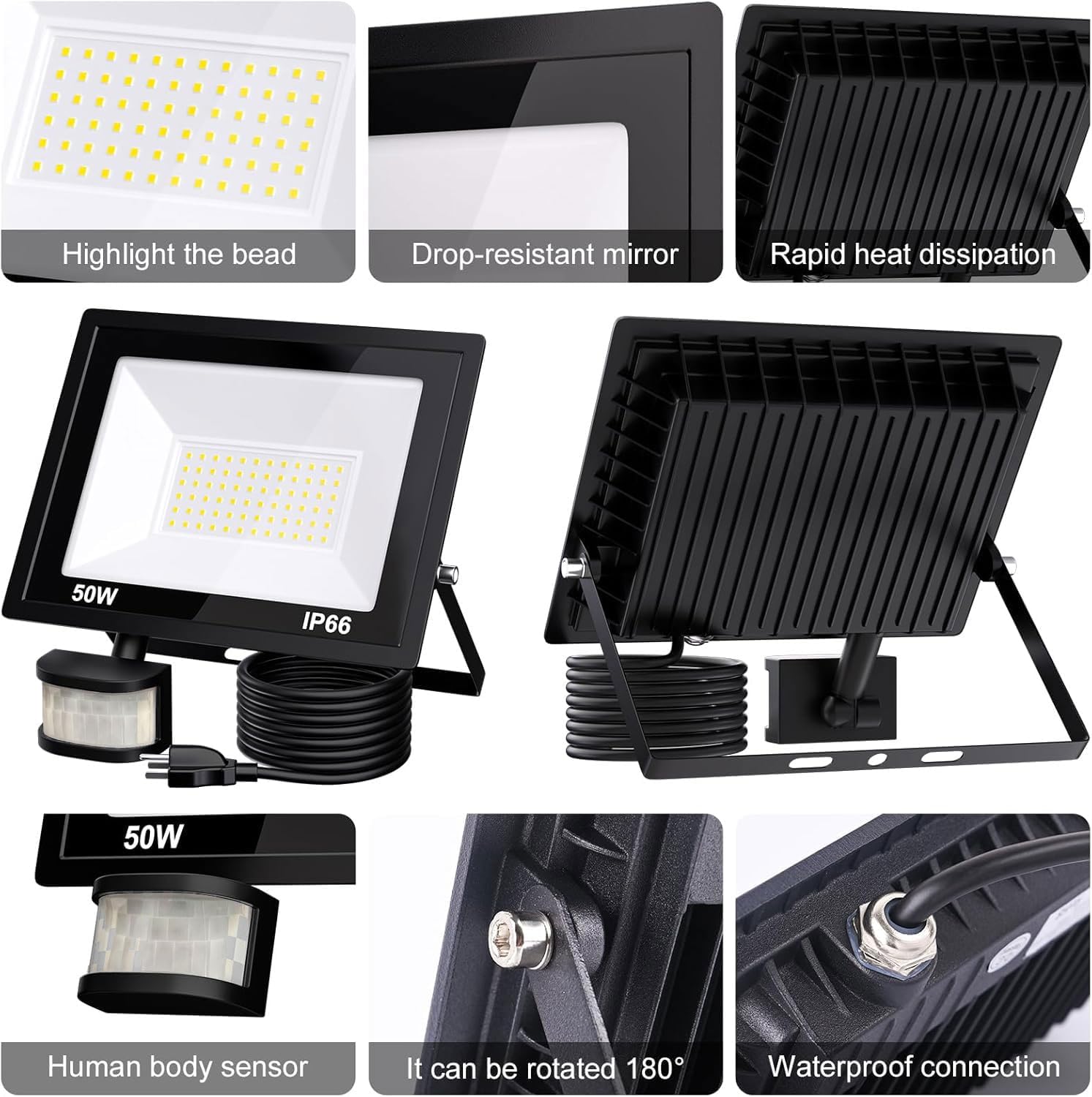

Image 4.2: Close-up of LED beads, drop-resistant mirror, rapid heat dissipation fins, human body sensor, 180° rotation, and waterproof connection.

5. Configuració i instal·lació

The MIWAT 50W Flood Light is designed for straightforward installation on walls or poles. No complex wiring is required due to its plug-in design.

5.1 Mounting the Flood Light

1. Choose a suitable location for mounting, such as a wall or pole, ensuring the power cord can reach an outlet.
2. Position the mounting bracket against the desired surface and mark the drilling points.
3. Drill holes at the marked positions and secure the bracket using appropriate screws (not included).
4. Attach the flood light to the secured bracket. The bracket allows for 180° rotation to adjust the light's direction.
5. Adjust the motion sensor's angle as needed. The sensor can rotate to cover the desired detection area.

Image 5.1: The flood light with its adjustable mounting bracket.

5.2 Connexió d'alimentació

Once mounted, plug the 5-foot power cord into a standard 110V outdoor electrical outlet. Ensure the outlet is protected from weather conditions.

6. Instruccions de funcionament

The flood light is operated using the included remote control. Familiarize yourself with the remote's buttons for optimal use.

Image 6.1: Remote control layout with descriptions of functions including switching, brightness, timing, auto-off, and sensitivity settings.

6.1 Funcions de control remot

• ON/OFF: Encén o apaga la llum.
• Brightness Control (+/-): Ajusta la intensitat de la llum.
• Timing (1H/3H): Sets the light to turn off after 1 hour or 3 hours.
• Mode PIR: Activates the motion sensor functionality.
  • When using timing or PIR mode, the light will flash twice to confirm the setting.
  • LUX and SENS settings are only active in PIR mode.
• Auto-Off Time (10S/1min/5min): In PIR mode, sets how long the light stays on after motion ceases (10 seconds, 1 minute, or 5 minutes).
• DAY/LUX/NIGHT: Controls when the motion sensor is active.
  • DIA: Sensor works in both sufficient light and insufficient light conditions. To use the sensor during the day, press "PIR" then "DAY".
  • NIT: Sensor only works in insufficient light (darkness). To use the sensor at night, press "PIR" then "NIGHT".
• Sensitivity (50%/100%): Adjusts the motion sensor's detection sensitivity.

7. Manteniment

The MIWAT 50W Flood Light requires minimal maintenance. Regular cleaning and inspection will ensure optimal performance and longevity.

• Neteja: Periodically wipe the light's surface and the motion sensor lens with a soft, damp drap per eliminar la pols i les restes. No utilitzeu productes de neteja abrasius ni dissolvents.
• Inspecció: Regularly check the power cord for any signs of damage. Ensure the mounting screws are tight and the light is securely positioned.
• Factors ambientals: While IP66 rated, extreme weather conditions (e.g., heavy snow accumulation on the sensor) may temporarily affect performance. Clear any obstructions from the sensor.

8. Solució De Problemes

If you encounter issues with your MIWAT 50W Flood Light, refer to the following common troubleshooting steps:

9. Garantia i Suport

The MIWAT 50W Plug-in LED Motion Sensor Flood Light comes with a 24 mesos de garantia.

For any product problems or support inquiries, please contact MIWAT customer service. You can typically find contact information through your purchase platform or the official MIWAT weblloc.
