Manual d'usuari de la màquina de gel de sobretaula Silonn

1. Introducció

Thank you for choosing the Silonn Countertop Ice Maker. This appliance is designed to provide you with fresh, bullet-shaped ice quickly and conveniently, perfect for home, kitchen, parties, or RV use. With its compact design and efficient operation, you can enjoy ice whenever you need it without the hassle of traditional ice trays or bagged ice.

Key features of your Silonn Ice Maker include:

• Fabricació ràpida de gel: Produces 9 bullet ice cubes in as little as 6 minutes, with a capacity of up to 26 lbs of ice in 24 hours.
• Smart & Simple Operation: Features indicators for 'ice full' and 'add water', along with easy one-touch controls.
• Dues mides de glaçons de gel: Choose between small and large bullet ice to suit your beverage needs.
• Compacte i portàtil: Lightweight design with a flip-up handle for easy transport.
• Durable & Quiet: Constructed from food-grade PP material and operates at a low noise level of approximately 45 dB.
• Funció d'auto-neteja: Simplifies maintenance and ensures fresh-tasting ice.

The Silonn Countertop Ice Maker, showcasing pel seu disseny elegant i la seva mida compacta.

2. Instruccions de seguretat importants

Please read all instructions carefully before using your ice maker and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Seguretat elèctrica: Assegureu-vos que la presa de corrent coincideixi amb el voltage requirements (120 Volts). Do not operate with a damaged cord or plug. Do not immerse the appliance, cord, or plug in water or other liquids.
• Col·locació: Place the ice maker on a stable, level surface away from direct sunlight, heat sources, and corrosive gases. Allow at least 6 inches of clearance around the unit for proper ventilation.
• Qualitat de l'aigua: Use only potable (drinkable) water. Do not fill with milk, juice, or other beverages, as this can damage the unit and void the warranty.
• Nens i animals de companyia: Keep the appliance out of reach of children and pets. Supervise children if they are near the appliance.
• Manteniment: Always unplug the ice maker before cleaning or performing any maintenance. Do not attempt to repair or disassemble the unit yourself. Contact qualified service personnel for repairs.
• Ventilació: Do not block any ventilation openings. Ensure proper airflow to prevent overheating.

3. Producte acabatview

3.1 Components

Familiarize yourself with the main parts of your Silonn Ice Maker:

• Tauler de control: Located on the top, with indicator lights and control buttons.
• Cistella de gel: Cistella extraïble per recollir el gel produït.
• Embassament d'aigua: Internal tank for water supply.
• Scoop de gel: Inclòs per a una fàcil recuperació de gel.
• Tap de drenatge: Located at the bottom for draining water.
• Tapa transparent: Et permet view the ice making process.
• Mànec: Integrated flip-up handle for portability.

The intuitive control panel of the Silonn Ice Maker.

3.2 Característiques

The Silonn Ice Maker is designed with user convenience and efficiency in mind:

• Producció ràpida de gel: Experience ice in minutes.


  Visual representation of the rapid ice production capability.

• Mides dobles de cubs de gel: Adapt to your needs with two bullet ice sizes.


  Choose between small and large ice cubes.
• Funcionament silenciós: Designed to minimize noise, operating at less than 45 dB.


  Enjoy ice production without significant noise disruption.

• Sensors intel·ligents: Infrared sensors detect when the ice basket is full or when water needs refilling.


  Infrared sensor for automatic detection of ice level and water needs.

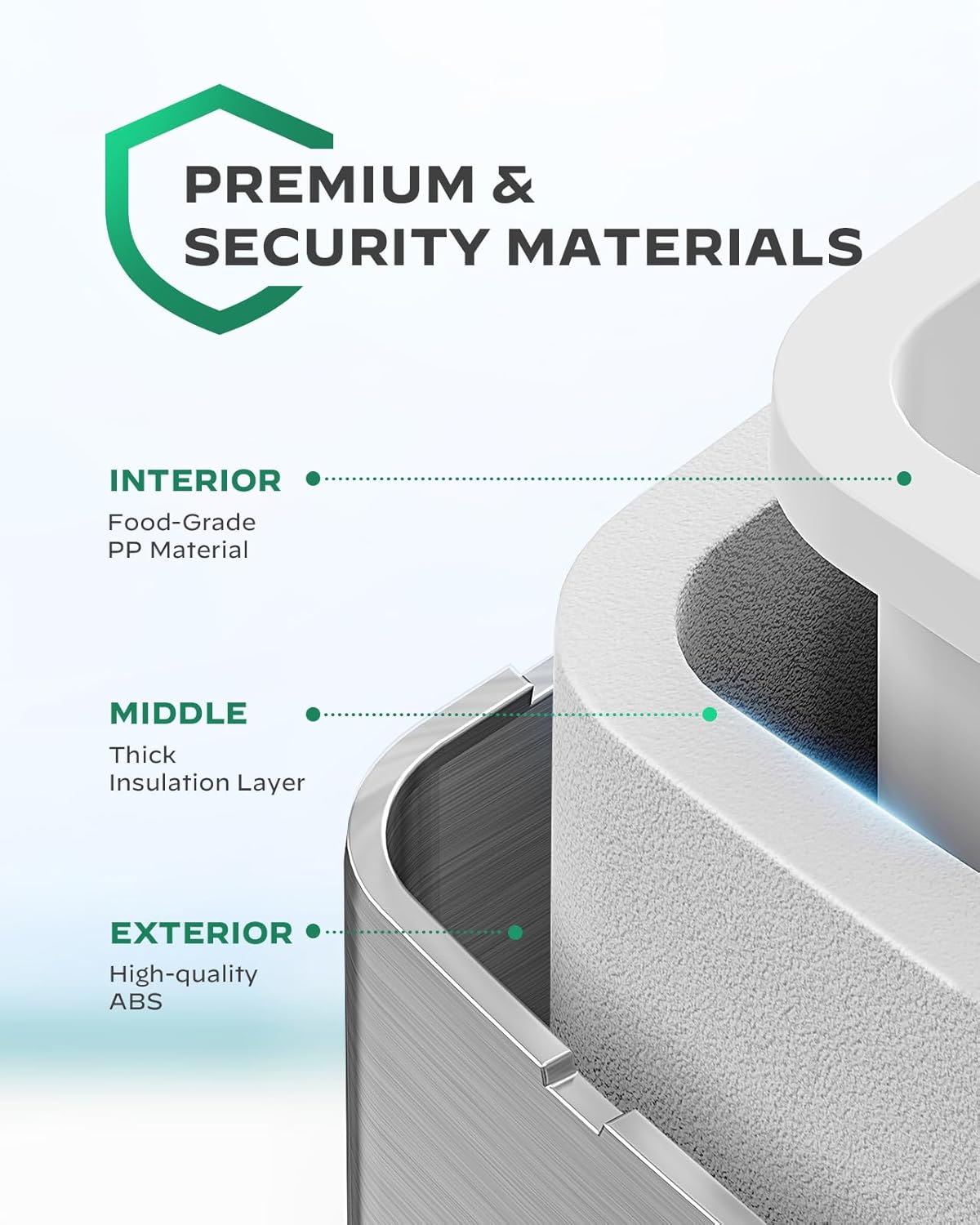

• Materials premium: Constructed with food-grade PP material for the interior, thick insulation, and high-quality ABS exterior.


  Secció transversal view highlighting the quality materials used in construction.

4. Configuració

1. Desembalar: Carefully remove the ice maker from its packaging. Remove all packing materials, tape, and any protective film.
2. Neteja inicial: Before first use, clean the interior of the ice maker. Wipe the water reservoir and ice basket with a soft cloth dampened with warm water and a mild detergent. Rinse thoroughly and dry.
3. Col·locació: Place the ice maker on a firm, level surface. Ensure there is at least 6 inches (15 cm) of space around the unit for proper ventilation. Avoid placing it near heat sources or in direct sunlight.
4. Connexió d'alimentació: Plug the power cord into a grounded electrical outlet. Ensure the outlet meets the specified voltage (120 V).
5. Cicle de primer ús: For the first use, it is recommended to run a few ice-making cycles and discard the first batch of ice to ensure cleanliness and optimal performance.

5. Instruccions de funcionament

1. Afegeix aigua: Obriu la tapa i ompliu el dipòsit d'aigua amb aigua potable fins a la línia d'ompliment MÀX. No l'ompliu massa.
2. Encès: Premeu el botó On/Off button on the control panel to turn on the ice maker.
3. Selecciona la mida del gel: Premeu el botó SELECCIONA button to choose your desired ice cube size:
   • Small (S): Indicator light will illuminate.
   • Large (L): Indicator light will illuminate.
4. Producció de gel: The ice maker will begin the ice-making cycle. The fan will start, and you may hear the compressor working.
5. Indicador de gel ple: Quan la cistella de gel està plena, el ICE PLE indicator light will illuminate, and the ice production will pause. Remove ice from the basket to resume production.
6. Afegeix un indicador d'aigua: Si el nivell d'aigua al dipòsit és massa baix, el AFEGEIX AIGUA indicator light will illuminate. Add more water to resume operation.
7. Harvesting Ice: Use the provided ice scoop to remove ice from the basket. For best results, transfer ice to a freezer for storage, as the ice maker is not a freezer and ice will melt over time.
8. Apagar: Per apagar la màquina de gel, premeu el botó On/Off botó de nou.

6. Manteniment i Neteja

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Silonn Ice Maker.

6.1 Funció d'autoneteja

The self-cleaning function helps maintain the internal cleanliness of the unit:

1. Ensure the ice basket is removed.
2. Fill the water reservoir with clean water up to the MAX line.
3. Mantingueu el SELECCIONA button for 3-5 seconds until the self-cleaning indicator light illuminates.
4. Premeu el botó On/Off button to start the 5-minute self-cleaning process.
5. Once the cycle is complete, drain the water from the ice maker by removing the drain plug at the bottom of the unit. Ensure all water is drained into a sink or suitable container.
6. Substituïu el tap de drenatge de manera segura.

Interna view demonstrating the self-cleaning water circulation.

6.2 Neteja regular

• Exterior: Netegeu l'exterior amb un suau, damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Interior: Periodically clean the water reservoir and ice basket with a solution of water and mild vinegar (1:10 ratio) to prevent mineral buildup. Rinse thoroughly with clean water afterwards.
• Vendes d'aire: Keep the air vents on the side and back of the unit clear of dust and debris to ensure proper cooling.
• Emmagatzematge: If storing the ice maker for an extended period, drain all water, clean the unit thoroughly, and allow it to air dry completely before storing in a cool, dry place.

7. Solució De Problemes

Abans de contactar amb l'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.

8. Especificacions

Compact dimensions of the Silonn Ice Maker. Note: Image states 13 lbs, product spec states 16.02 lbs. Refer to specifications table for accurate weight.

9. Garantia i Suport

For information regarding warranty coverage, please refer to the warranty card included with your product or contact Silonn customer support directly. Protection plans are also available for extended coverage.

For further assistance, troubleshooting not covered in this manual, or to inquire about parts and service, please visit the official Silonn website or contact their customer service department. You can also refer to the official User Manual PDF for additional details:

Descarrega el Manual d'usuari oficial (PDF)
