1. Introducció
The LAFVIN Solar Tracking Starter Kit is designed to educate users on the principles of converting light energy into electrical energy through an automated solar tracking system. This kit provides a hands-on learning experience in electronics and programming, compatible with Arduino IDE.
Les característiques clau inclouen:
- Learning the principles of converting light energy into electron energy.
- Detailed tutorial for step-by-step assembly.
- Graphical programming test code provided.
- Develops practical skills in electronics and programming.
2. Muntatge i muntatge
Careful assembly is required for the LAFVIN Solar Tracking Starter Kit. Follow the provided digital tutorial for detailed instructions. The kit includes various components that need to be connected precisely.
Figura 2.1: This image displays the main components of the LAFVIN Solar Tracking Starter Kit, including the solar panel, 18650 Mobile Power Shield, Charge Detector, and Charging Input Switch, along with their wired connections.
The assembly process involves connecting the solar panel, light sensors, servo motors, and the control board. Ensure all connections are secure and correctly oriented according to the tutorial. Some parts may require careful handling during removal from their templates and fitting.
2.1 Guia de vídeo de muntatge
Vídeo 2.1: This video demonstrates the assembly process, solar tracking function, and USB charging capabilities of the LAFVIN Solar Tracking Starter Kit.
Refer to the video for a visual guide on assembling the kit. Pay close attention to the orientation of components and wiring to ensure proper functionality.
3. Instruccions de funcionament
Once assembled, the LAFVIN Solar Tracking Starter Kit is designed to automatically track the brightest light source, simulating the sun. This allows the solar panel to maximize energy absorption.

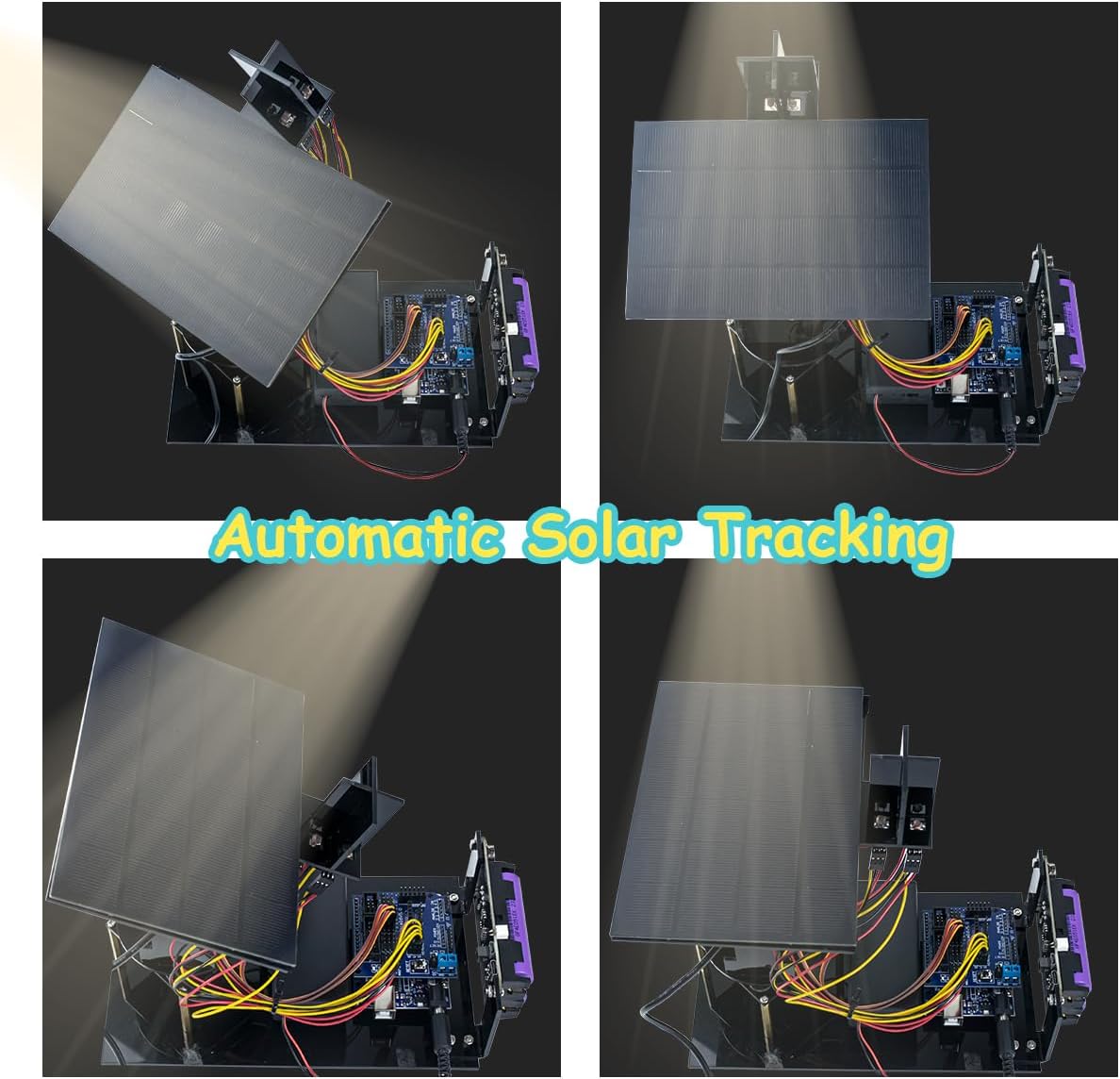

Figura 3.1: This series of images illustrates the automatic solar tracking functionality of the kit, showing the solar panel adjusting its angle to follow a light source.
3.1 Solar Energy Collection
Position the kit in an area with ample light. The solar panel will automatically adjust its orientation to face the light source. For optimal energy collection, place the kit where it can receive direct sunlight, especially around noon.
Figura 3.2: The solar panel is shown positioned to efficiently capture sunlight, with a suggestion to optimize energy reception around noon.
3.2 USB Charging Output
The kit includes a USB charging output feature, allowing you to power or charge compatible devices using the energy collected and stored by the solar panel.
- Ensure the 18650 Mobile Power Shield is correctly installed and charged.
- Connect your device's USB charging cable to the USB output port on the power shield.
- The stored solar energy will then be used to charge your device.
Figura 3.3: This image demonstrates the kit's USB charging output, showing a smartphone being powered by the stored solar energy.
4. Manteniment
To ensure the longevity and optimal performance of your LAFVIN Solar Tracking Starter Kit, follow these maintenance guidelines:
- Neteja: Netegeu regularment el panell solar amb un drap suau iamp cloth to remove dust and debris that may hinder light absorption.
- Comprovació de components: Periodically inspect all connections and components for any signs of wear, looseness, or damage.
- Emmagatzematge: When not in use for extended periods, store the kit in a dry, cool place away from direct sunlight and extreme temperatures.
- Cura de la bateria: If using 18650 batteries, ensure they are charged and stored according to their specifications to maintain battery health.
5. Solució De Problemes
If you encounter issues with your LAFVIN Solar Tracking Starter Kit, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Solar panel not tracking light | Incorrect servo motor connection; faulty light sensor; programming error. | Check all servo and sensor wiring. Verify the light sensors are correctly positioned. Re-upload the programming code. |
| La càrrega USB no funciona | Low battery charge; incorrect power shield connection; faulty USB cable/device. | Ensure 18650 batteries are charged. Check connections to the Mobile Power Shield. Test with a different USB cable or device. |
| Parts breaking during assembly | Excessive force; brittle material. | Handle components with care. If parts break, contact support for replacements or use appropriate adhesives for minor repairs. |
| Components not fitting | Misalignment; excess material from manufacturing. | Carefully check alignment. Lightly sand or trim edges if necessary, but avoid removing too much material. |
6. Especificacions
- Dimensions del producte: 11 x 7 x 2 polzades
- Pes de l'article: 1.58 lliures
- Número de model de l'article: LA038
- Fabricant: LAFVIN
- Edat recomanada: 18 anys i més
7. Informació de la garantia
LAFVIN products are typically covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase. For specific warranty terms and conditions, refer to the documentation included with your purchase or contact LAFVIN customer support.
8. Atenció al client
For technical assistance, missing parts, or any questions regarding your LAFVIN Solar Tracking Starter Kit, please contact LAFVIN customer support. Details for contacting support are usually provided in the packaging or on the official LAFVIN weblloc.
