The HOROW T0338W is a modern one-piece elongated toilet designed for comfort and water efficiency. Featuring a 10-inch rough-in, ADA-compliant chair height, and a dual-flush system, this toilet offers a sleek design suitable for various bathroom spaces.
Figure 1: HOROW T0338W One Piece Toilet, White with Chrome Button.
Característiques clau
- 10" Rough-in Design: Allows for installation in bathrooms with specific rough-in requirements.
- ADA Compliant Chair Height: Features a comfortable 17.3-inch+ height from floor to seat, making sitting down and standing up easier.
- Powerful Dual Flush System: Offers 0.8 GPF for liquid waste and 1.28 GPF for solid waste, providing significant water savings without sacrificing performance.
- Construcció d'una sola peça: Seamless design for easy cleaning and a modern aesthetic.
- Soft-Closing PP Seat: Ensures quiet and slow closing, reducing noise and preventing slamming.
- Fully-Glazed 2" Trapway: Contributes to powerful and efficient flushing.
Figure 2: Diagram highlighting key features including dual flush, ADA height, and one-piece design.
Especificacions
| Atribut | Valor |
|---|---|
| Número de model | T0338W10 |
| Color | White with Chrome Button |
| Dimensions del producte | 26.6 "P x 15" W x 26" H |
| Material | Porcellana |
| Pes de l'article | 99.2 lliures |
| Tipus d'instal·lació | Muntat al terra |
| Forma | Oval |
| Tipus de material del seient | Polipropilè (PP) |
| Dual Flush (GPF) | 0.8/1.28 |
Figure 3: Detailed dimensions of the HOROW T0338W toilet.
Components inclosos
The HOROW T0338W toilet comes with the following components for installation:
- ADA Elongated Toilet (x1)
- Elongated Toilet Seat (x1)
- Floor Bolts (1 Set)
- High-quality Wax Ring (x1)
- Pre-installed Flush Valve (x1)
Figure 4: Visual representation of the components included in the package.
Configuració i instal·lació
Installing your new HOROW T0338W toilet is a straightforward process. It is recommended to have a plumber assist with the installation to ensure proper setup and prevent leaks. The toilet features two large opening holes on the side for easier floor fixation.
Consideracions importants:
- Connexió d'entrada d'aigua: Connect the water line to the toilet before fixing the toilet to the floor. The water inlet is located at the bottom back of the tank and can be difficult to access once the toilet is installed.
- Supply Line Size: The toilet fits both 7/8" and 1/2" water lines. If your supply line is 1/2", you can connect it directly. If it's 7/8", remove the adapter before connecting.
- Toilet Seat Screws: The toilet seat is fixed with screws to prevent loosening.
Guia de vídeo d'instal·lació:
Video 1: SOTOMO One Piece Toilets Installation Video. This video demonstrates the step-by-step process for installing a one-piece toilet, including setting the floor flange, wax ring, water inlet, and seat cover.
Figure 5: Diagram illustrating the suggested water inlet valve location and hose sizes.
Instruccions de funcionament
The HOROW T0338W features a dual-flush system for efficient water usage. The chrome button on top of the tank has two distinct sections:
- Small Button: Activates a 0.8 GPF (gallons per flush) for liquid waste, conserving water.
- Large Button: Activates a 1.28 GPF for solid waste, providing a powerful flush.
Choose the appropriate flush option based on your needs to maximize water savings.
Figure 6: Illustration of the powerful siphon flush system.
Manteniment
The one-piece design of the HOROW T0338W toilet simplifies cleaning, as there are fewer crevices for dirt and grime to accumulate.
- Neteja general: Use a mild bathroom cleaner and a soft cloth or sponge to clean the exterior and interior of the toilet bowl. Avoid abrasive cleaners that may damage the porcelain finish.
- Seient del vàter: The soft-closing PP seat can be easily removed for thorough cleaning. Refer to the installation video for guidance on seat removal and reattachment.
- Flush Mechanism: Periodically inspect the flush valve and fill valve inside the tank for any signs of wear or malfunction.

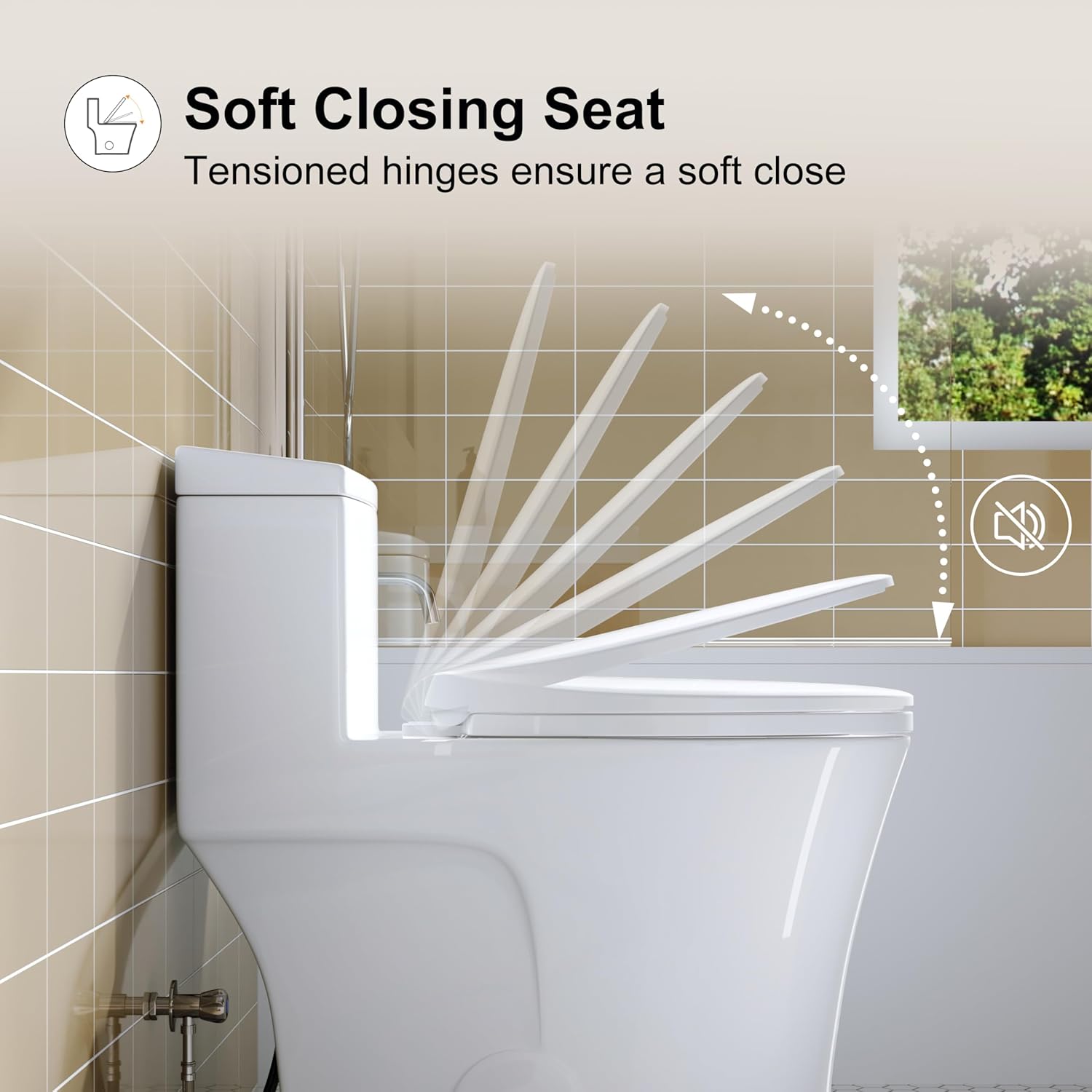

Figure 7: The soft-closing seat mechanism ensures quiet operation.
Resolució de problemes
If you encounter any issues with your HOROW T0338W toilet, please refer to the following general advice:
- Fluix feble: Ensure the water supply valve is fully open. Check the water level in the tank; it should be at the marked fill line.
- Aigua corrent contínua: Inspect the fill valve and flush valve for proper seating. Adjust the float if the water level is too high.
- Fuga: Check all connections for tightness, especially the water supply line and the floor bolts. Ensure the wax ring is properly sealed.
For persistent issues or complex repairs, it is recommended to contact a qualified plumber or HOROW customer service.
Garantia i Suport
HOROW values each customer's shopping experience and believes in the quality of our products. Therefore, our toilets come with:
- Lifetime After-Sales Service
- Garantia limitada de 1 anys
Our customer service center will respond to messages within 12 hours for any inquiries or support needs.
