Introducció
This user manual provides detailed instructions for the installation, operation, and maintenance of your HYPERLITE High Bay LED Lights. These commercial-grade UFO LED high bay lights offer high brightness and energy efficiency, designed for wide and clear illumination in various industrial and commercial settings.
Figure 1: HYPERLITE High Bay LED Lights (155W model shown)
Informació de seguretat
Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i el funcionament. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.
- Assegureu-vos que l'alimentació estigui desconnectada a l'interruptor automàtic abans de la instal·lació o el manteniment.
- La instal·lació l'ha de dur a terme un electricista qualificat d'acord amb les normes elèctriques locals.
- Do not operate the light if the power cord or plug is damaged.
- Do not look directly into the light source when the light is on, as it may cause eye strain or damage.
- Mantingueu la llum allunyada de materials inflamables.
- This product is non-dimmable. Do not attempt to connect it to a dimmer switch.
- Ensure the mounting structure can support the weight of the fixture.
Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats en obrir l'envàs.
- HYPERLITE UFO LED High Bay Light(s)
- G-hook for hanging
- 5-foot power cord with US plug
- Corda de seguretat
- Reflector cover (optional, if included with your model)
Figura 2: Contingut del paquet
Especificacions
| Característica | Especificació |
|---|---|
| Marca | HIPERLIT |
| Número de model | HB-HI-155W-57-2P |
| Wattage | 155.2 watts |
| Brillantor | 21700 lúmens |
| Eficiència | 140 lm/W |
| Temperatura de color | 5000 Kelvin (llum del dia) |
| Voltage | 120 volts (CA) |
| Material | Alumini |
| Dimensions del producte | 12.99 cm de llargada x 12.99 cm d'amplada x 9.56 cm d'alçada |
| Pes de l'article | 9.96 lliures |
| Nivell de resistència a l'aigua | Impermeable IP65 |
| Mètode de control | Touch (referring to external switch, not on fixture) |
| Tipus d'instal·lació | Surface Mount (hanging) |
| Tipus de fixació | No desmuntable |
| Muntatge obligatori | No |
Figure 3: Product Dimensions (155W model relevant)
Configuració i instal·lació
The HYPERLITE High Bay LED Lights are designed for easy installation. They come with a G-hook and a 5-foot power cord with a US plug, supporting AC120V voltage.
Passos d'instal·lació:
- La seguretat primer: Before beginning installation, ensure the power supply to the installation area is completely turned off at the circuit breaker.
- Prepare Mounting Point: Identify a suitable and secure mounting point on the ceiling or overhead structure that can safely support the weight of the light fixture.
- Attach G-hook: Securely attach the provided G-hook to the designated mounting point. Ensure the hook is fully closed and locked to prevent accidental dislodgement.
- Hang Fixture: Carefully lift the LED high bay light and hang it onto the G-hook.
- Secure Safety Rope: Attach the safety rope from the fixture to a separate, secure point on the mounting structure. This provides an additional layer of safety in case the primary hanging mechanism fails.
- Connectar l'alimentació: Plug the 5-foot power cord into a standard AC120V outlet. Ensure the connection is secure.
- Restaura l'alimentació: Un cop finalitzada la instal·lació i totes les connexions siguin segures, restableu l'alimentació a l'interruptor.
- Llum de prova: Turn on the light to verify proper operation.
Figure 4: G-hook attachment for secure hanging
Instruccions de funcionament
The HYPERLITE High Bay LED Light is designed for straightforward operation.
- Encès/apagat: Control the light using a standard wall switch connected to the power outlet where the light is plugged in.
- No regulable: This fixture is non-dimmable. Do not attempt to use it with a dimmer switch, as this may damage the unit and void the warranty.
- Rendiment òptim: For optimal performance, ensure the light is installed in an environment within its specified operating temperature range.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your HYPERLITE High Bay LED Lights.
- Neteja: Periodically clean the exterior of the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the light is off and cool before cleaning.
- Inspecció: Regularly inspect the power cord, plug, and hanging mechanism for any signs of wear, damage, or loose connections. Address any issues promptly.
- Dissipació de calor: The fixture features a seamless die-cast aluminum body and heat sink fins for 360° rapid heat dissipation. Ensure that the heat sink fins are not obstructed to maintain proper cooling and extend the light's lifespan.
- Classificació impermeable: The IP65 rating indicates the light is waterproof and dustproof, suitable for damp and dusty environments. However, avoid direct high-pressure water jets.

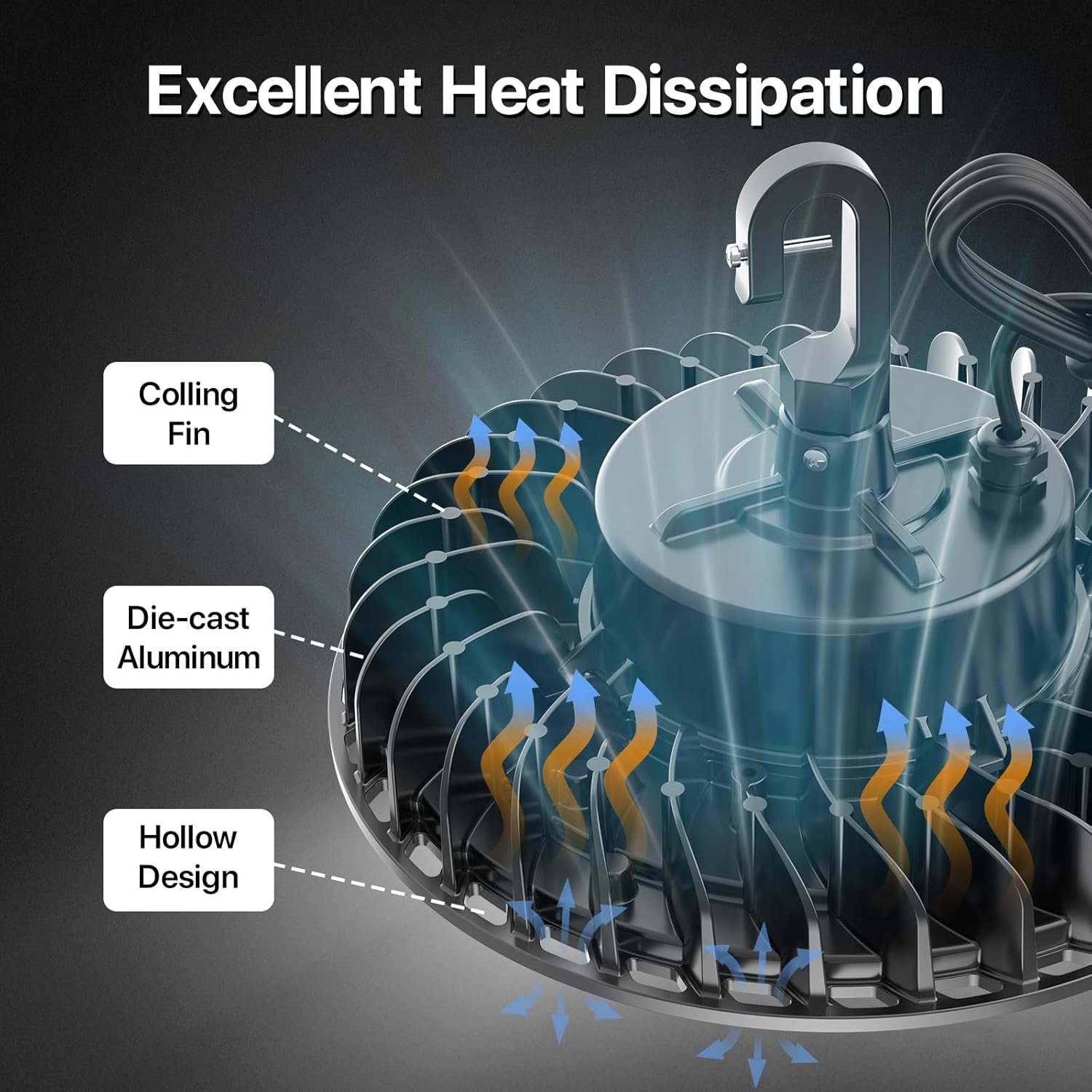

Figure 5: Excellent Heat Dissipation Design
Figura 6: Característica impermeable IP65
Resolució de problemes
If you encounter issues with your HYPERLITE High Bay LED Light, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No power supply; Loose connection; Faulty switch or outlet; Damaged fixture. | Check if the circuit breaker is tripped. Ensure the power cord is securely plugged in. Test the outlet with another device. Inspect the switch for damage. If the fixture is damaged, contact support. |
| La llum parpelleja. | Unstable power supply; Loose wiring; Incompatible dimmer switch (if mistakenly used). | Verify stable power. Check all wiring connections. Ensure no dimmer switch is being used, as this product is non-dimmable. |
| Lluentor reduït. | Dust accumulation on lens; Overheating due to obstructed airflow. | Clean the lens with a soft, dry cloth. Ensure heat sink fins are clear of obstructions for proper ventilation. |
If the problem persists after attempting these solutions, please contact HYPERLITE customer support.
Garantia i Suport
HYPERLITE is committed to providing superior products. We are confident that you will be satisfied with this high bay LED light. If for any reason the product does not work properly, please notify HYPERLITE within 30 days of purchase for a replacement.
For further assistance or inquiries, please refer to the official HYPERLITE weblloc web o contacteu directament amb el seu servei d'atenció al client. La informació de contacte normalment es pot trobar a l'embalatge del producte o a la fitxa oficial del fabricant. weblloc.
