Dioche 7-inch Video Intercom Doorbell System User Manual

1. Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Dioche 7-inch Video Intercom Doorbell System. This system is designed to enhance home security by allowing you to see, hear, and speak with visitors before opening the door, and to monitor your outdoor environment.

2. Característiques del producte

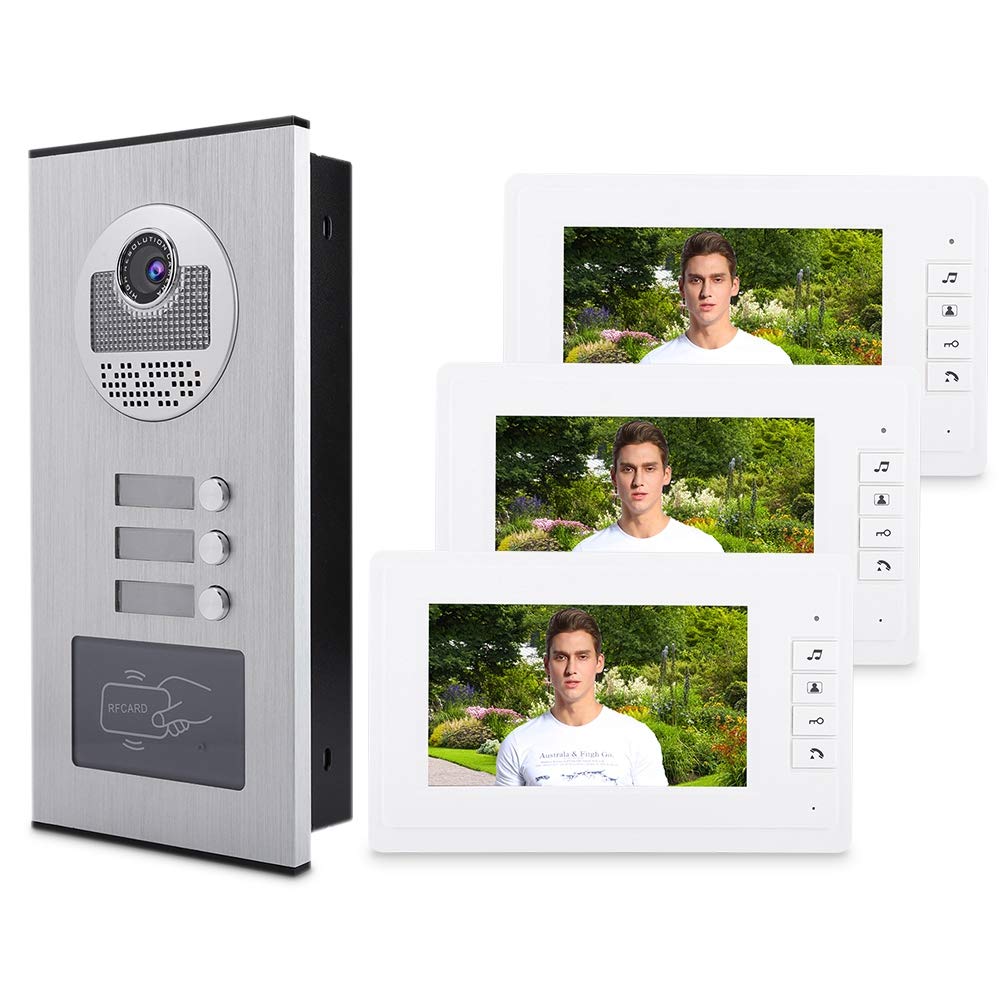

• HD Vision and IR Night Vision: The system includes an HD doorbell camera with infrared fill light, providing clear wide-screen images day and night. Advanced infrared illumination allows for visitor identification in low-light conditions.
• Multi-Monitor System: One HD doorbell camera connects to three 7-inch video monitors, enabling communication with visitors from multiple locations within your home.
• Volum ajustable: Customize the call volume and ringtone to suit your preferences. The system also allows for monitoring outdoor sounds within a 2-meter range.
• Monitorització en temps real: Actively monitor the outdoor view even when no one rings the doorbell by pressing the "Monitor" button.
• Separate Calling: Each indoor monitor can be called and used for communication independently, ensuring privacy and efficient communication within multi-floor residences.

3. Contingut del paquet

Si us plau, verifiqueu que tots els articles que s'enumeren a continuació s'inclouen al vostre paquet. Si falta algun article o hi ha algun malmès, poseu-vos en contacte amb el servei d'atenció al client.

• 1 x Outdoor Camera Unit
• 3 x 7-inch Indoor Monitors
• 3 x Power Adapters for Monitors
• 3 x Power Cables for Monitors
• 3 x Hanging Boards for Monitors
• 1 x Manual d'usuari
• 5 x Access Cards (for outdoor unit)
• Connection Cables (4-wire connection cable, 1 meter + 2-wire cable for electric lock)
• Cargols de muntatge i tacs de paret

4. Guia d'instal·lació

This section outlines the general steps for installing your video intercom system. Professional installation is recommended for optimal performance and safety.

4.1 Outdoor Camera Unit Installation

1. Tria la ubicació: Select a suitable location near your entrance, ensuring clear visibility and protection from direct weather if possible. The camera unit is designed for embedded installation.
2. Muntatge: Securely mount the outdoor camera unit using the provided screws and wall plugs. Ensure it is at an appropriate height for visitors to use and for the camera to capture faces clearly.
3. Cablejat: Connect the 4-wire connection cable from the outdoor unit to the indoor monitor(s). If connecting to an electric lock, use the provided 2-wire cable. Refer to the wiring diagram in the detailed manual for specific connections.

4.2 Indoor Monitor Installation

1. Tria la ubicació: Select a convenient location for each indoor monitor, such as a wall in a common area or near a frequently used entrance. The monitors are designed for wall mounting.
2. Muntatge: Attach the hanging board to the wall using screws. Then, slide the indoor monitor onto the hanging board.
3. Cablejat: Connect the 4-wire cable from the outdoor unit to the designated input on the back of the indoor monitor. Connect the power adapter to the monitor and plug it into a power outlet (AC220V-50Hz DC15V 1.2A).
4. Configuració de l'interruptor DIP: For multiple indoor monitors, configure the DIP switches on the back of each monitor to assign unique IDs. Refer to the detailed wiring diagram and DIP switch settings in the full manual.

4.3 Guia d'instal·lació de vídeo

Per obtenir una guia visual del procés d'instal·lació, consulteu el vídeo següent:

5. Instruccions de funcionament

5.1 Respondre a una trucada

When a visitor presses the doorbell button on the outdoor unit, all connected indoor monitors will ring. To answer the call, press the "Talk" button on any indoor monitor. You can then see and speak with the visitor.

5.2 Monitoring Outdoor Area

A view the outdoor area without a visitor pressing the doorbell, press the "Monitor" button on any indoor monitor. The screen will display the live feed from the outdoor camera. Press the button again to turn off monitoring.

5.3 Desbloqueig de la porta

If your system is connected to an electric lock, you can unlock the door remotely by pressing the "Unlock" button on the indoor monitor during a call or while monitoring.

5.4 Ajust del volum i dels tons de trucada

The indoor monitors feature controls to adjust the talk volume and ring volume. You can also change the ringtone. Refer to the monitor's specific buttons or on-screen menu for these adjustments.

5.5 Video Operating Guide

For a visual guide on the system's operation, please refer to the following video:

5.6 Mobile App Integration (if applicable)

Some models may support mobile app integration for remote access and control. If your model supports this, scan the QR code on the back of the indoor unit or refer to the separate mobile app manual for setup instructions.

6. Manteniment

• Neteja: Use a soft, dry cloth to clean the surfaces of the outdoor unit and indoor monitors. Avoid using abrasive cleaners or solvents.
• Lent de la càmera: Gently clean the camera lens with a microfiber cloth to ensure clear image quality.
• Protecció del medi ambient: While the outdoor unit is designed to be weather-resistant, avoid exposing it to extreme conditions or direct water jets.

7. Solució De Problemes

8. Especificacions

• Marca: Dioque
• Número de model: TerlLrY2hcZ3xY-01
• Material: Metall (unitat exterior)
• Mida del monitor: 7 polzades
• Resolució de visualització: 800 * RGB * 480
• Sensor de càmera: HD Color CCD or COMS (up to 700 lines)
• Visió nocturna: 2 meters (Infrared)
• Mode d'alimentació: AC220V-50Hz DC15V 1.2A (Switched Power Supply)
• Call Delay Time: 120S ± 10%
• Monitoring Delay Time: 40S ± 10%
• Monitor Installation Method: Muntatge de paret
• Camera Installation Method: Incrustat
• Tecnologia de connectivitat: Amb cable
• Tecnologia de comunicació sense fils: WiFi (if applicable for app features)
• Resolució de captura de vídeo: 480p
• Dimensions del paquet: 39.4 x 37.5 x 21.8 cm; 3.3 kg
• Bateries necessàries: No

9. Garantia i Suport

For warranty information and technical support, please refer to the warranty card included in your package or contact Dioche customer service directly. Keep your purchase receipt as proof of purchase.

Atenció al client: Si us plau, visiteu el Dioche Store per a més informació o per contactar amb el suport.
