The Wave Hobby Tool Series Super Airbrush HT-583 is a high-precision, trigger-type airbrush designed for model work and various painting applications. Its lightweight aluminum body and ergonomic design ensure comfortable use during extended periods. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your airbrush.
Figure 1: Wave Hobby Tool Series Super Airbrush HT-583. This image shows the complete airbrush unit, highlighting its trigger mechanism and overall design.
Característiques clau
- Trigger Type Operation: Designed to reduce finger fatigue during prolonged use.
- Lightweight Aluminum Body: Ensures comfortable handling and reduces overall weight.
- Chrome Plated Surface: Provides resistance to paint and simplifies cleaning.
- Standard S-Screw (1/8) Joint: Compatible with many commercially available air sources.
- Replaceable Paint Cups: Includes 2cc and 7cc cups for various painting needs.
- 0.3mm Nozzle Diameter: Versatile for both fine details and broader coverage.
- Teflon Treated Needle Gasket: High resistance to lacquer solvents for durability.
- Two Needle Cap Types: Flat and perforated types included for different painting effects.
Figure 2: Labeled components of the Super Airbrush HT-583. This image highlights key features such as the 0.3mm nozzle, trigger, needle adjuster, chrome-plated surface, and S-size joint.
Informació de seguretat
Please handle the airbrush with care. Always wear appropriate personal protective equipment (PPE) such as gloves and a respirator when working with paints and solvents. Ensure adequate ventilation in your workspace. Keep out of reach of children. This product is intended for users aged 15 years and up.
Configuració
- Desembalatge: Carefully remove all components from the packaging. Verify that all parts listed in the specifications section are present.
- Connexió de la mànega d'aire: Connect a compatible air hose (not included) to the S-screw (1/8) joint at the base of the airbrush handle. Ensure a secure, airtight connection.
- Paint Cup Selection: Choose either the 2cc or 7cc paint cup based on the volume of paint required for your project. Screw the selected cup firmly onto the top of the airbrush body.
- Needle Cap Selection: Select either the flat or perforated needle cap depending on your desired spray pattern and attach it to the nozzle.
Figure 3: Replaceable paint cups. The airbrush comes with two cup sizes, 2cc and 7cc, allowing for flexibility based on the painting task.

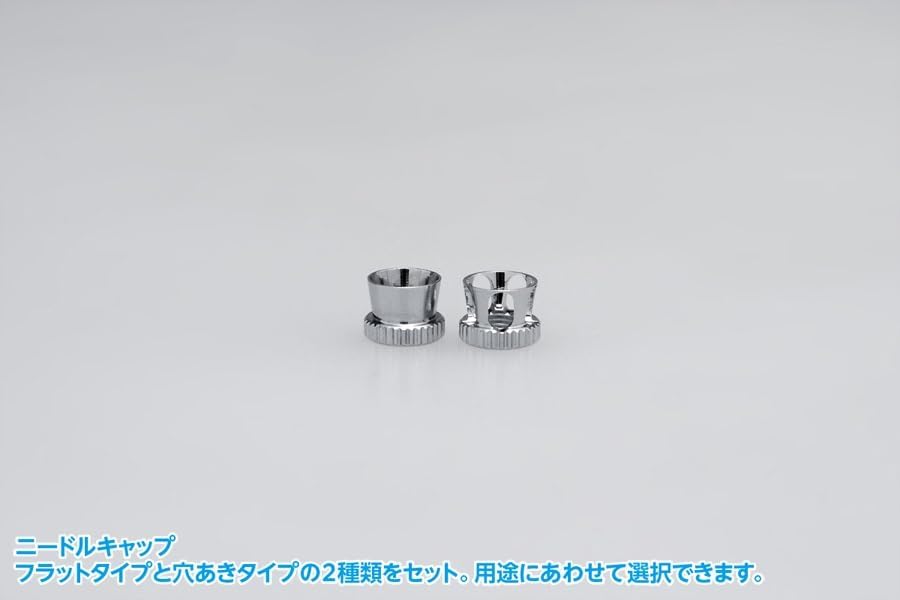

Figure 4: Included needle caps. Two types of needle caps, flat and perforated, are provided to achieve different spray characteristics.
Instruccions de funcionament
- Preparació de la pintura: Mix your paint to the appropriate consistency for airbrushing. Pour the prepared paint into the selected paint cup. Do not overfill.
- Connect Air Source: Turn on your air compressor or air source and set the desired air pressure. Refer to your paint manufacturer's recommendations for optimal pressure settings.
- Spray de prova: Before painting your model, perform a test spray on a scrap piece of material to check the spray pattern and paint flow.
- Ajust de l'aspersió: The trigger controls both air and paint flow. Pulling the trigger back releases air, and further pulling back opens the paint needle, allowing paint to flow. The needle adjuster at the rear of the airbrush allows you to set a maximum paint flow limit for consistent lines.
- Painting Technique: Maintain a consistent distance from your painting surface. Move the airbrush smoothly and evenly to achieve desired coverage.

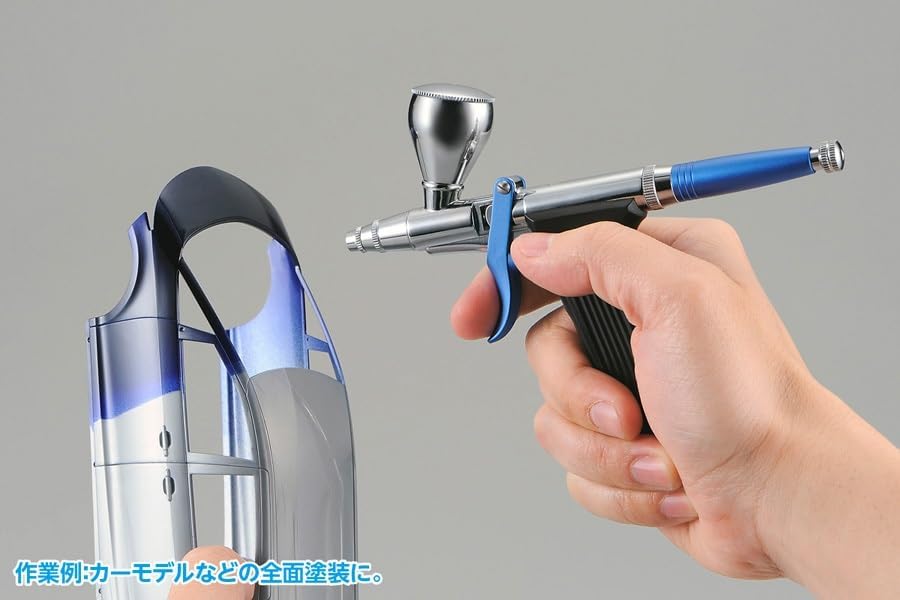

Figura 5: Example of airbrush in use. This image demonstrates the airbrush being used for full surface painting on a model car part, showcasing its application.
Manteniment
Proper cleaning and maintenance are crucial for the longevity and performance of your airbrush.
- Neteja immediata: After each use, especially when changing colors or finishing a session, empty any remaining paint from the cup. Add appropriate cleaner (e.g., airbrush cleaner, thinner for your paint type) to the cup and spray it through the airbrush until the spray runs clear.
- Desmuntatge per a una neteja profunda: For thorough cleaning, carefully disassemble the airbrush. Remove the needle, nozzle, and paint cup. Clean each component with a suitable cleaner and soft brushes.
- Needle and Nozzle Care: Be extremely careful when handling the needle and nozzle as they are delicate. Do not use metal tools to clean the nozzle opening.
- Teflon Gasket: The built-in Teflon treated needle gasket is highly resistant to lacquer solvents, simplifying cleaning and ensuring durability.
- Remuntatge: Reassemble the airbrush carefully, ensuring all parts are correctly seated and tightened. Do not overtighten.
Figure 6: Teflon treated needle gasket. This component is designed for high resistance to lacquer-based paints and solvents, contributing to the airbrush's durability and ease of cleaning.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No paint flow or sputtering | Clogged nozzle or needle; paint too thick; insufficient air pressure. | Clean nozzle and needle thoroughly; thin paint to proper consistency; increase air pressure. |
| Patró de polvorització desigual | Damaged nozzle; bent needle; paint buildup on needle cap. | Inspect and replace damaged parts; clean needle cap. |
| Air bubbles in paint cup | Loose nozzle; damaged nozzle seal; paint level too low. | Tighten nozzle; check and replace nozzle seal if damaged; add more paint. |
| Enganxament del disparador | Paint buildup in trigger mechanism; lack of lubrication. | Clean trigger area; apply a small amount of airbrush lubricant if necessary. |
Especificacions
- Número de model: HT-583
- Diàmetre del broquet: 0.3 mm
- Capacitat de la copa: 2 cc / 7 cc (replaceable)
- Tipus d'operació: Disparador
- Needle Adjuster: Inclòs
- Air Hose Mounting: S-thread specifications (1/8)
- Needle Gasket: Built-in Teflon treated
- Needle Cap: 2 types included (flat/hole)
- Material del cos: Alumini
- Dimensions del producte: 5.91 x 3.94 x 1.38 polzades
- Pes de l'article: Approximately 156g (with 7cc cup attached) / 1.23 pounds
- Edat recomanada pel fabricant: 15 anys i més

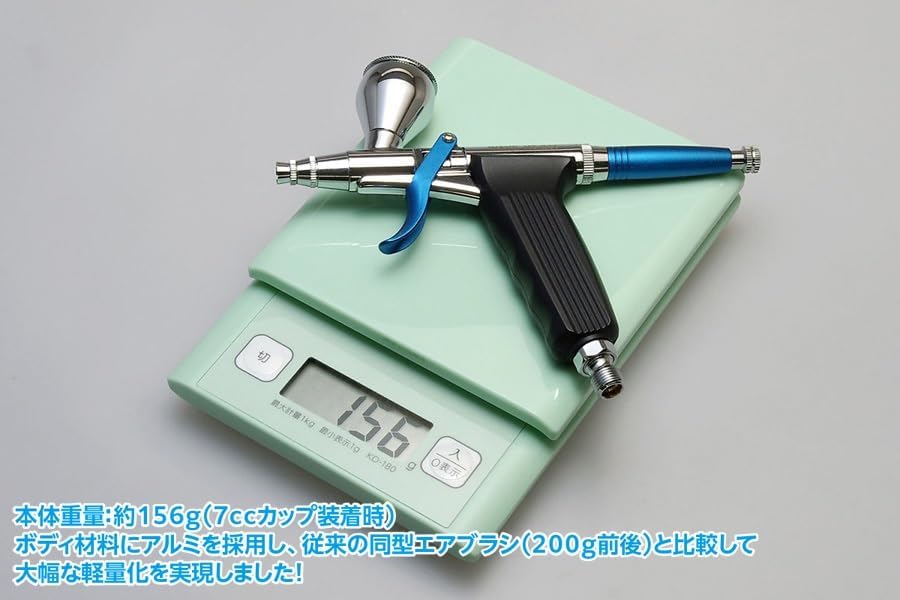

Figure 7: Weight of the airbrush. The image shows the airbrush weighing approximately 156g with the 7cc cup attached, demonstrating its lightweight design.
Garantia i Suport
For information regarding warranty coverage, replacement parts, or technical support, please contact the manufacturer, Wave. Please refer to the product packaging or the official Wave weblloc web per obtenir la informació de contacte més actualitzada.
Note: Air hose, adhesives, paint, and batteries are not included with this product and must be purchased separately.
