Waterdrop WD-EDFA Alkaline Filter Replacement Manual

1. Producte acabatview

The Waterdrop WD-EDFA Alkaline Filter is designed to replace filters in compatible Waterdrop electric water filter pitchers. This filter enhances water quality by providing alkaline water and reducing various contaminants. It is certified to NSF/ANSI standards 42 and 372, ensuring material safety and structural integrity.

Image: Three Waterdrop WD-EDFA alkaline replacement filters, each labeled with "Waterdrop Filter Model: WD-EDFA" and a pH+ indicator. Specifications for compatible models, temperature, flow rate, and filter life are visible on the labels.

Les característiques clau inclouen:

• Alkaline Water Production: Increases initial pH by 1.5-2.5, offering a 2X longer alkaline slow-release lifespan.
• Reducció de contaminants: Effectively reduces over 30 contaminants, including chlorine, PFOA/PFOS, lead, and other impurities, improving water taste and purity.
• Seguretat del material: Constructed from BPA-free and Lead-free materials.
• Vida útil del filtre: Each filter lasts for approximately 200 gallons or 3 months, whichever comes first.

Image: An illustration showing the new and old packaging for the Waterdrop WD-EDFA filter. The new packaging highlights features such as "2X alkaline lifespan," "Reduces 30+ contaminants," and "Easy replacement," along with a pH+ symbol.

2. Installation and Filter Replacement

Replacing the filter in your Waterdrop electric pitcher is a simple process that requires no tools.

1. Prepare the Pitcher: Ensure your electric pitcher is turned off and unplugged.
2. Remove Water Pumping Unit: Gently pull out the water pumping unit from the pitcher. Place a water container below it to catch any drips.
3. Elimina el filtre antic: Locate the old filter within the pumping unit. Pinch the buckles on both sides of the filter and pull it inwards to release and remove it.
4. Insereix un filtre nou: Align the buckles of the new Waterdrop WD-EDFA filter with the corresponding notches in the water pumping unit. Push the new filter firmly into place until you hear a slight "click" sound.
5. Activate the Pitcher: Reinsert the water pumping unit into the pitcher. Tap the "Drop" button once to activate the pitcher. Then, press and hold the "Drop" button for 3 seconds. The button will turn blue, indicating that the filter has been successfully replaced and the pitcher is ready for use.

Image: A five-panel illustration demonstrating the filter replacement process. Steps include pulling out the pumping unit, removing the old filter by pinching buckles, inserting the new filter, and activating the pitcher by pressing and holding the "Drop" button.

Image: A close-up of hands inserting a new filter into the water pumping unit of a Waterdrop electric pitcher, illustrating the ease of replacement.

3. Instruccions de funcionament

Once the filter is installed, fill your Waterdrop electric pitcher with tap water. The pitcher will automatically begin the filtration process. The WD-EDFA filter is designed to provide clean, alkaline water for drinking and cooking.

The filter is compatible with the following Waterdrop electric pitcher models:

• WD-ED01AB
• WD-ED01AW
• WD-ED01B
• WD-ED01W
• WD-EDC01W
• WD-ED02W
• WD-ED02B
• WD-ED04W-L
• WD-ED04B-L

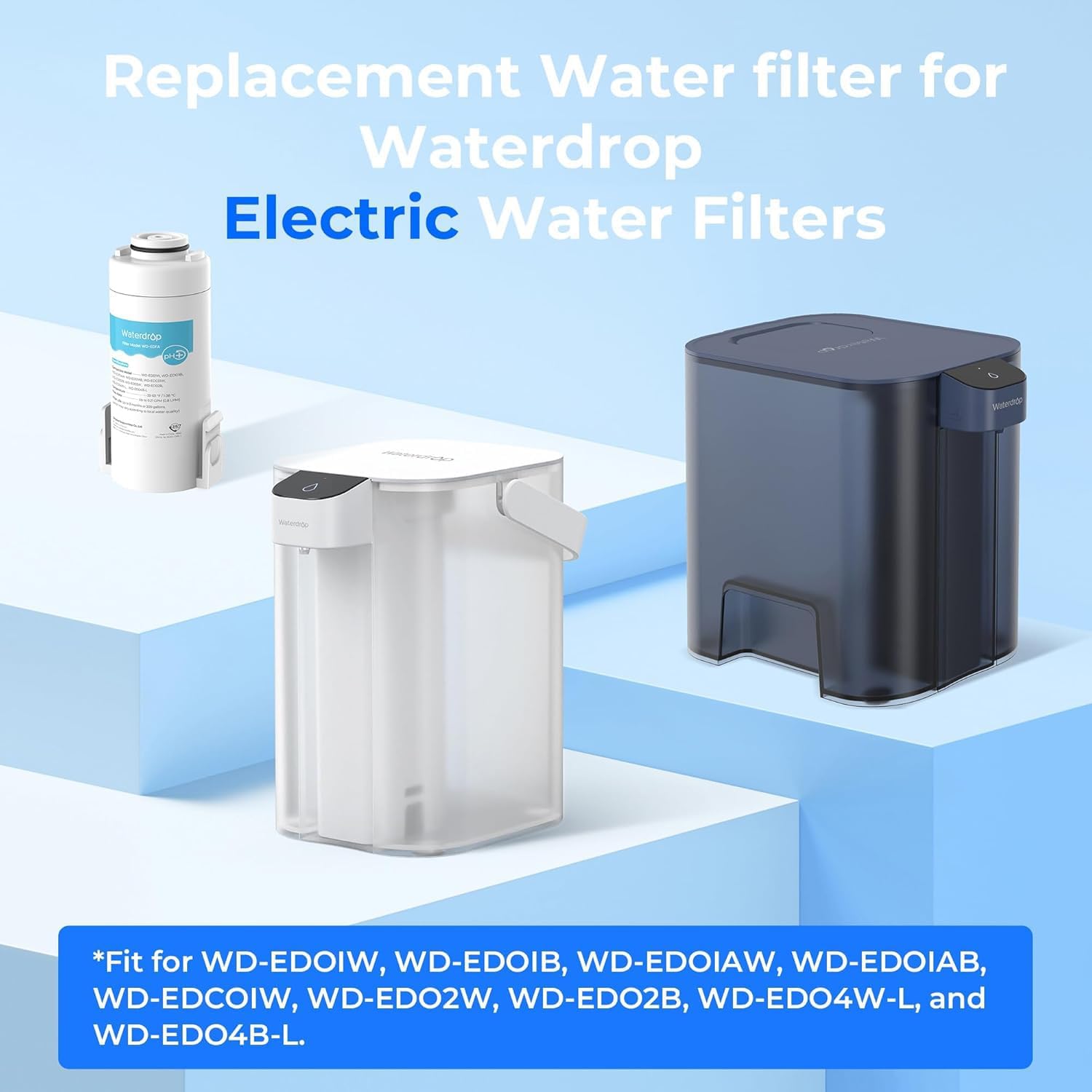

Image: A Waterdrop WD-EDFA filter positioned next to a white and a dark gray Waterdrop electric water filter pitcher, indicating compatibility.

Imatge: Una imatge interna view of a Waterdrop pitcher illustrating the filtration process. It compares Waterdrop's 5 µm filtration with a generic 50 µm filter, emphasizing the reduction of over 30 contaminants for clean, healthy, and tasty water.

4. Manteniment

Regular filter replacement is crucial for maintaining optimal water quality and taste. The Waterdrop WD-EDFA filter has a limited lifespan.

• Freqüència de substitució: It is recommended to replace the filter after filtering 200 litres d'aigua o tots 3 mesos, whichever occurs first.
• Seguiment: Your electric pitcher may have an indicator to remind you when a filter change is due. Refer to your pitcher's manual for specific details.

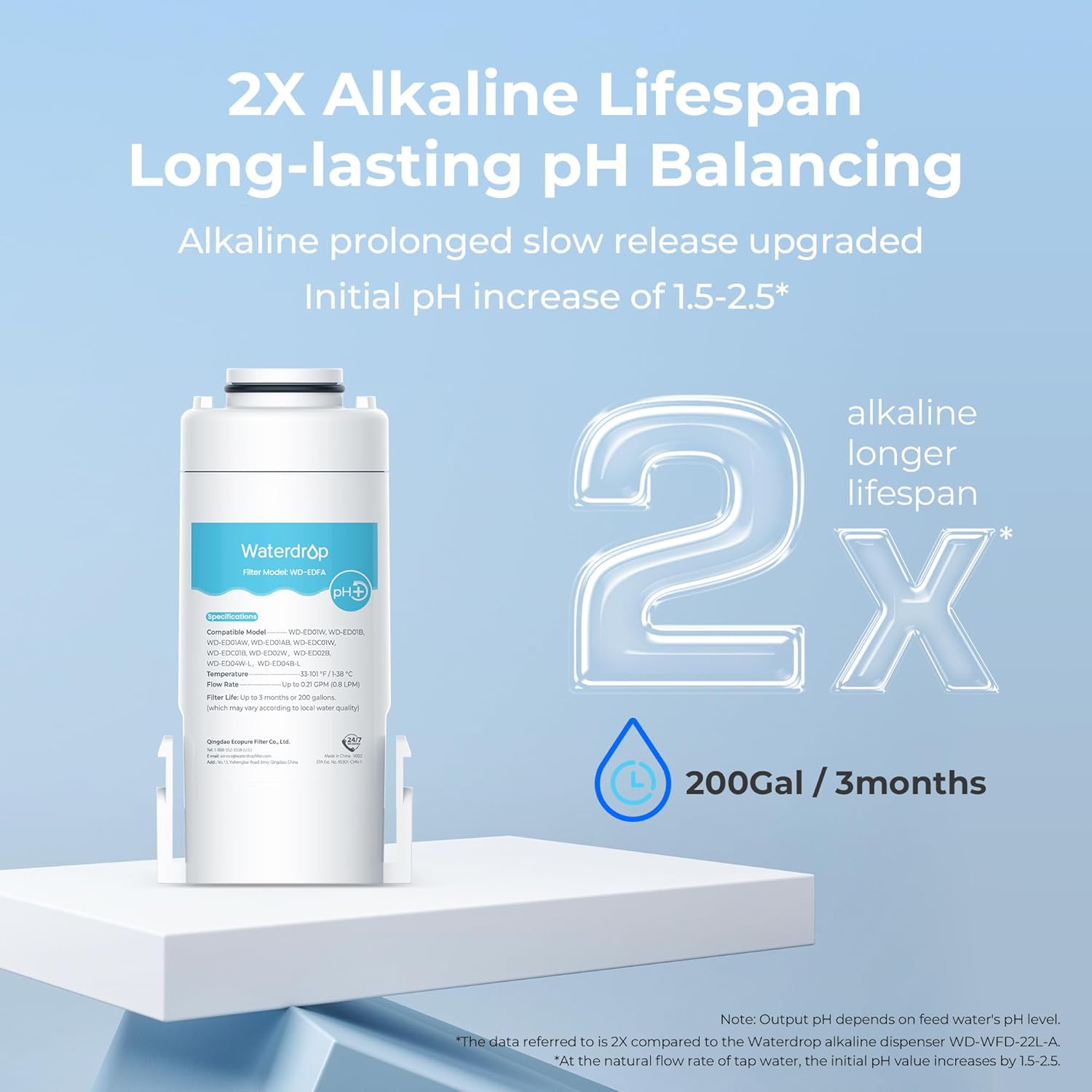

Image: A Waterdrop WD-EDFA filter on a white pedestal, emphasizing its "2X Alkaline Lifespan" and a filter life indicator of "200Gal / 3months."

5. Solució De Problemes

This section addresses common issues you might encounter with your Waterdrop WD-EDFA filter.

• Slow Filtration: If the water flow rate becomes noticeably slow before the recommended replacement period, ensure the filter is correctly seated and not clogged. If the issue persists, it may indicate high sediment levels in your tap water, requiring earlier filter replacement.
• Gust/olor inusual: If you notice an unusual taste or odor in the filtered water, it is likely time to replace the filter. Ensure the new filter is properly installed and flushed according to the instructions.
• pH Level Not Changing: If you are testing the pH of the water and it does not show the expected increase, ensure the filter is new and properly installed. The pH increase is dependent on the feed water's pH level.

For further assistance, please contact Waterdrop customer support.

6. Especificacions del producte

Image: A Waterdrop filter protected by a shield graphic, emphasizing its construction from BPA-free and Lead-free materials for safe, pure, and healthy water.

7. Garantia i Suport

Waterdrop is committed to providing high-quality products and customer satisfaction. For any questions regarding your WD-EDFA alkaline filter, including installation, performance, or troubleshooting, please contact Waterdrop customer service.

You can typically find contact information on the official Waterdrop weblloc web o a través del venedor on vau comprar el producte.

For more information about Waterdrop products, visit the official Waterdrop Store on Amazon.
