Alfred DB1S Bluetooth Smart Deadbolt Lock with Key User Manual

Introducció

This manual provides detailed instructions for the installation, setup, operation, and maintenance of your Alfred DB1S Bluetooth Smart Deadbolt Lock with Key. Please read this manual thoroughly before installation and use to ensure proper function and to prevent damage.

Informació de seguretat

Observeu les següents precaucions de seguretat per evitar lesions o danys al producte:

• Do not attempt to disassemble or modify the lock. This may cause damage and void the warranty.
• Use only the specified battery type (4 AA Alkaline batteries). Do not mix old and new batteries or different types of batteries.
• Keep the keypad clean and dry. Avoid using abrasive cleaners or solvents.
• Ensure the door frame and door are properly aligned and free of obstructions for smooth deadbolt operation.
• Protect your access codes. Do not share them with unauthorized individuals.
• In case of emergency, ensure you have access to the physical key.

Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació.

• Alfred DB1S Exterior Keypad Assembly
• Alfred DB1S Interior Thumbturn Assembly
• Pestillo de cèrcol
• Placa de vaga
• Maquinari de muntatge (cargols, perns)
• 2 claus físiques
• 4 piles alcalines AA
• Installation Guide / Template

Image: Alfred DB1S exterior keypad assembly, showing the sleek black design with a numeric keypad and key cylinder.

Image: Alfred DB1S interior thumbturn assembly, showing the battery compartment and manual thumbturn.

Instal·lació

The Alfred DB1S deadbolt is designed for straightforward installation on most standard doors. Ensure your door preparation meets the required specifications before proceeding.

1. Prepara la porta: If replacing an existing deadbolt, remove it. Use the provided template to mark and drill any necessary holes for new installations. Ensure the door bore hole and backset are compatible.
2. Instal·leu el pestell de forrellat: Insert the deadbolt latch into the edge of the door. Ensure the "UP" arrow on the latch is facing upwards. Secure with screws.
3. Install the Exterior Keypad Assembly: Feed the cable from the exterior assembly through the door bore hole. Align the exterior assembly with the deadbolt latch and secure it to the door.
4. Install the Interior Thumbturn Assembly: Connect the cable from the exterior assembly to the interior assembly. Align the interior assembly with the mounting plate and secure it with screws. Ensure the thumbturn operates smoothly.
5. Instal·leu les bateries: Insert the 4 AA Alkaline batteries into the interior assembly's battery compartment.
6. Prova de funcionament: Manually operate the deadbolt using the thumbturn and the physical key to ensure smooth locking and unlocking.

Imatge: Exterior view of the Alfred DB1S smart deadbolt installed on a white door, showcasing el seu disseny modern.

Imatge: Interior view of the Alfred DB1S smart deadbolt installed on a white door, showing the thumbturn and battery cover.

Configuració i Programació

The Alfred DB1S lock can be configured using the Alfred Home App via Bluetooth.

1. Download the Alfred Home App: Download the Alfred Home App from the iOS App Store or Google Play Store.
2. Emparellar el cadenat: Follow the in-app instructions to pair your DB1S lock via Bluetooth. Ensure your smartphone's Bluetooth is enabled and you are within range of the lock.
3. Create User PIN Codes:
   • You can program up to 20 unique PIN codes for different users.
   • Codes can be set as permanent, single-use, or time-sensitive for temporary access.
4. Manage Digital Bluetooth Keys: The app allows you to create and share unlimited digital Bluetooth keys with family or guests.
5. Configure Auto-Relock: Enable and set the auto-relock timer to 30 seconds, 1 minute, 2 minutes, or 3 minutes via the app. This feature automatically locks the door after a set period.
6. Enable One-Touch Geofence Unlocking: This feature allows you to unlock the door by simply touching the keypad when your phone is nearby and within a defined geofence (requires Alfred Home App).
7. Visual PIN Protection: This feature adds random digits before and after your actual PIN code to prevent others from guessing your code by observing finger smudges.
8. Optional Wi-Fi Connectivity (Alfred Connect V2): For remote control and integration with voice assistants like Hey Google and Alexa, purchase and install the Alfred Connect V2 Wi-Fi system (sold separately). Follow the instructions provided with the Alfred Connect V2 for setup.

Instruccions de funcionament

Your Alfred DB1S lock offers multiple ways to lock and unlock your door.

Obrint la Porta

• Using a PIN Code:
  1. Toqueu el teclat numèric per activar-lo.
  2. Enter your 4-10 digit PIN code.
  3. Premeu el botó # key. The deadbolt will retract.
• Using the Alfred Home App (Bluetooth):
  1. Open the Alfred Home App on your smartphone.
  2. Select your lock and tap the unlock icon.
• One-Touch Geofence Unlocking: If enabled, simply touch the keypad when your paired smartphone is within the geofence.
• Using the Physical Key: Insert the key into the key cylinder and turn to unlock.
• From Inside (Thumbturn): Rotate the thumbturn on the interior assembly to unlock the deadbolt.

Tancant la porta

• Manual Locking (Keypad):
  1. Toqueu el teclat numèric per activar-lo.
  2. Manteniu premut el botó # key for 2 seconds. The deadbolt will extend.
• Rebloqueig automàtic: If enabled, the lock will automatically extend the deadbolt after the set time (30s, 1min, 2min, or 3min) once the door is closed.
• Using the Alfred Home App (Bluetooth):
  1. Open the Alfred Home App on your smartphone.
  2. Select your lock and tap the lock icon.
• From Inside (Thumbturn): Rotate the thumbturn on the interior assembly to lock the deadbolt.

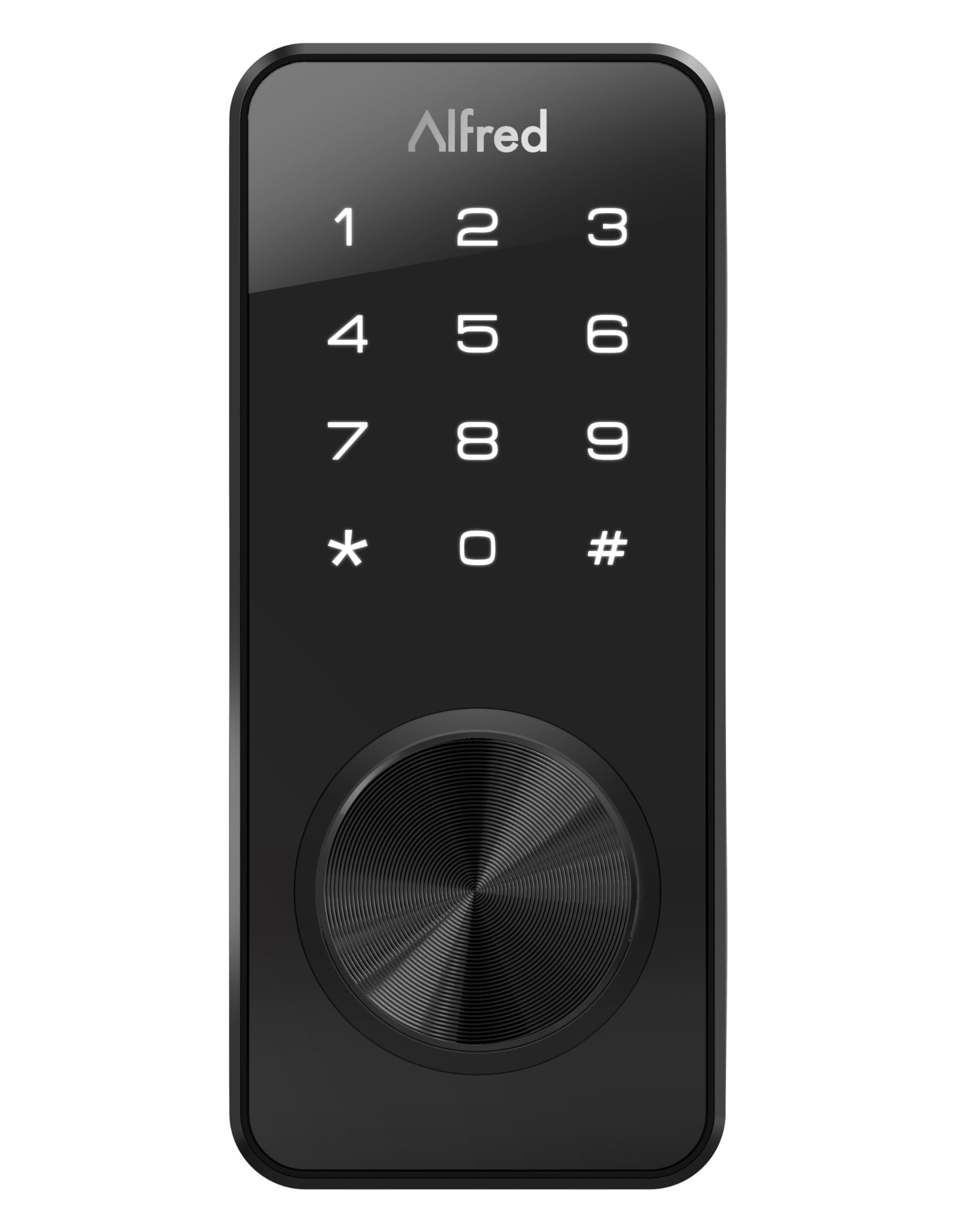

Image: Close-up of the Alfred DB1S exterior keypad, illustrating the numeric input and key cylinder for operation.

Manteniment

Canvi de bateria

The Alfred DB1S lock requires 4 AA Alkaline batteries.

• Avís de bateria baixa: The lock will alert you when battery levels are low, typically through an indicator light or sound, and via the Alfred Home App.
• Procediment de substitució:
  1. Traieu la coberta de la bateria del conjunt interior.
  2. Traieu les piles velles i elimineu-les correctament.
  3. Insert 4 new AA Alkaline batteries, ensuring correct polarity.
  4. Substituïu la tapa de la bateria.
• Alimentació d'emergència: If batteries completely fail, the lock can be temporarily powered via a micro-USB port located on the bottom of the exterior keypad assembly. Connect a standard micro-USB power source (e.g., power bank) to provide temporary power for unlocking.

Neteja

Netegeu l'exterior del pany amb un drap suau iamp cloth. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish and electronic components.

Resolució de problemes

For further assistance, refer to the Alfred Home App's help section or visit the official Alfred support weblloc.

Especificacions

Garantia i Suport

The Alfred DB1S Bluetooth Smart Deadbolt Lock with Key comes with a 1 anys de garantia del fabricant.

For technical support, warranty claims, or additional information, please refer to the Alfred Home App or visit the official Alfred support weblloc.
