CROSSIO 20'' Outdoor Ceiling Fan with Lights and Remote Control

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your CROSSIO 20-inch Outdoor Ceiling Fan with Lights and Remote Control, Model FS6938-01. Please read these instructions carefully before installation and use to ensure safe and efficient operation.

Característiques del producte

• Multiple Ceiling Compatibility: Designed for easy installation on ceilings/gazebos with hooks, fixed to solid wood ceilings, or mounted with an outlet box. Includes two downrod lengths for varying hanging heights.
• Splashproof Design: Features a lightweight, splashproof, and rustproof motor, making it suitable for outdoor gazebos, pergolas, patios, corridors, porches, and indoor bathrooms.
• Plug-In Cable: Equipped with a 16 ft plug-in cable for immediate use without requiring an electrician for wiring.
• Il·luminació LED integrada: Includes a built-in 15W bright LED light panel with adjustable brightness and three lighting tone options (warm white, neutral white, cool white).
• Versatilitat interior i exterior: Suitable for various locations including outdoor gazebos, pergolas, patios, balconies, outdoor shower cabinets, outdoor kitchens, and indoor bathrooms, bedrooms, living rooms, attics, and garages.
• Control remot i d'aplicacions: Control fan speeds, light settings, and other functions via the included remote control or a dedicated mobile application.
• Motor de ventilador reversible: Features a reversible motor for both downdraft (cooling) and updraft (air circulation) modes.
• 6 velocitats del vent: Offers 6 wind speed settings for customized comfort.

Contingut del paquet

Si us plau, comproveu que tots els components siguin presents i no estiguin danyats abans de continuar amb la instal·lació.

• Ceiling Fan Unit (with integrated LED light panel and ABS fan blades)
• Control remot
• 16 ft Plug-in Cable
• 2 Downrods (4" and 8" lengths)
• Mounting Bracket (for various installation types)
• Hardware Pack (screws, washers, pins)
• Manual d'instruccions

Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan instal·leu i feu servir aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• Assegureu-vos que l'alimentació estigui apagada a l'interruptor automàtic abans de la instal·lació o el manteniment.
• Tot el cablejat ha de complir amb els codis elèctrics nacionals i locals.
• Consult a qualified electrician if you are unsure about wiring or installation procedures.
• Mount the fan securely to a structural support capable of holding the fan's weight.
• No introduïu objectes a les aspes del ventilador mentre el ventilador estigui en funcionament.
• This fan is splashproof, but it is recommended to install it in covered outdoor areas to prolong its lifespan and prevent direct exposure to heavy rain.

Instruccions d'instal·lació

This fan offers multiple installation options. Choose the method suitable for your ceiling type.

Pas 1: munta el ventilador

1. Choose the desired downrod length (short or long) based on your ceiling height.
2. Insert the chosen downrod into the fan motor housing. Secure it with the provided pin and screw.
3. Attach the canopy to the downrod, ensuring it sits flush against the fan motor housing.

Imatge: A person assembling the downrod to the fan motor, securing it with screws. This image illustrates the process of attaching the downrod to the main fan unit.

Step 2: Mount the Bracket (Choose one option)

Opció 1: Amb caixa de sortida

1. Remove pre-installed screws and parts from the bracket.
2. Attach the bracket to an existing ceiling outlet box using appropriate screws.
3. Secure the bracket firmly.

Imatge: Diagram illustrating three different mounting options: outlet box, solid wood structure, and hanging hook. This visual guide helps in selecting the correct installation method.

Option 2: With Solid Wood Ceiling

1. Remove the round bracket from the U-shape bracket.
2. Attach the U-shape bracket directly to the solid wood ceiling using wood screws.
3. Assegureu-vos que el suport estigui ben fixat.

Opció 3: Amb ganxo de sostre

1. Remove the U-shape bracket from the round bracket.
2. Assemble the hook component.
3. Attach the assembled hook to a pre-installed ceiling hook or a suitable structural support.

Imatge: The CROSSIO outdoor ceiling fan installed using a hanging hook on a gazebo. This image demonstrates a common installation scenario for outdoor use.

Step 3: Hang the Fan and Connect Wires

1. Carefully lift the assembled fan and hang it onto the mounted bracket or hook.
2. Connect the fan's wires to the power supply wires, ensuring a secure connection.
3. Instal·leu el lampshade by twisting it into place.
4. Plug the 16 ft power cord into a suitable 3-prong outlet.

Imatge: A close-up of hands connecting the electrical wires of the ceiling fan. This step is crucial for proper electrical function.

Imatge: A person installing the lampshade onto the fan unit. This completes the assembly of the light component.

Imatge: Un detallat view of the 3-prong plug and a standard outlet, highlighting the plug-in design of the fan. This shows the power connection method.

Instruccions de funcionament

Your CROSSIO ceiling fan can be operated using the included remote control or a compatible mobile application.

Funcions de control remot

• ON/OFF: Power the fan and light on or off.

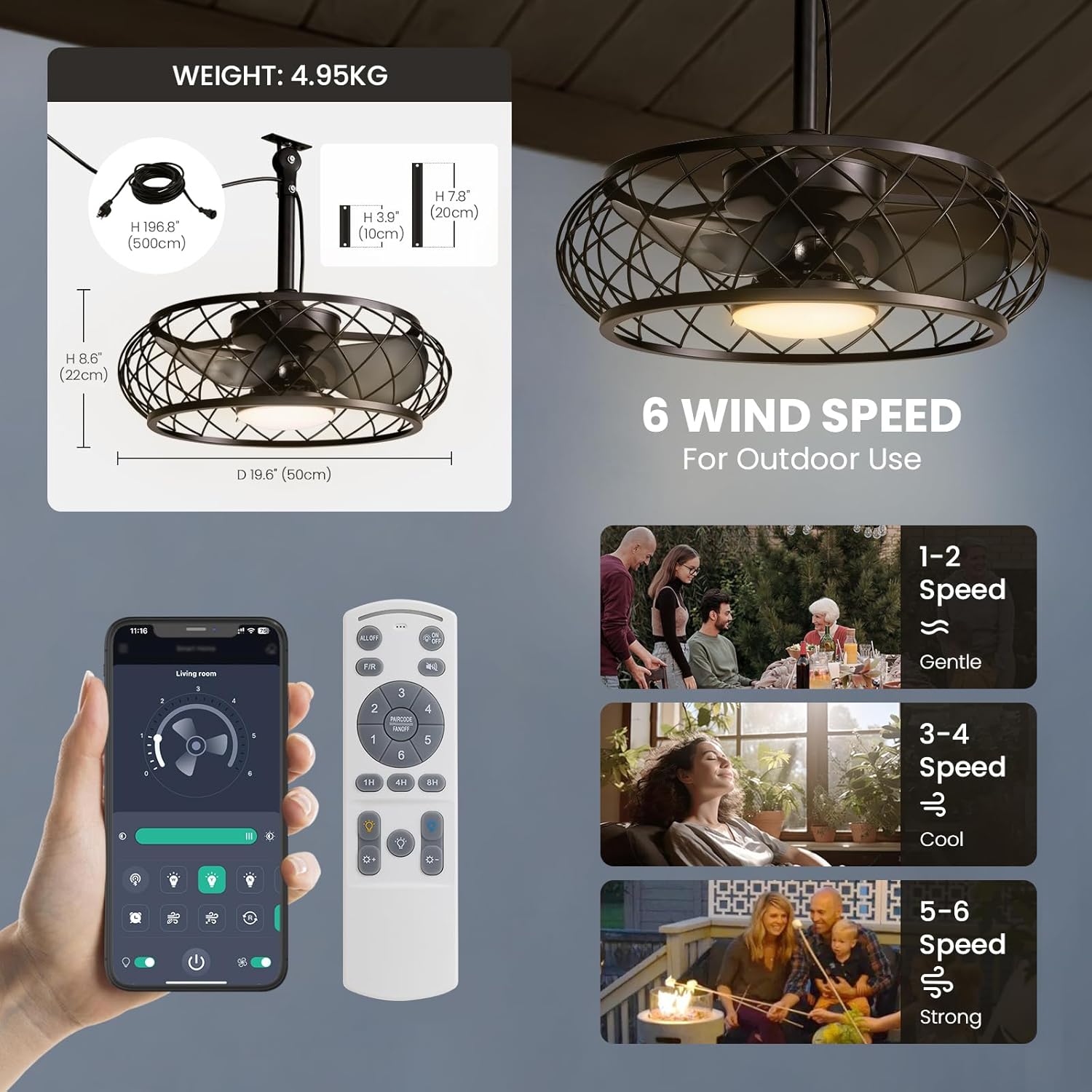

• Velocitat del ventilador: Adjust between 6 wind speeds (1-2 Gentle, 3-4 Cool, 5-6 Strong).
• Brillantor de la llum: Regulació continua de la intensitat del 10% al 100%.
• Temperatura de color de la llum: Change between 3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White).
• Funció inversa: Switch between downdraft (summer cooling) and updraft (winter air circulation) modes.
• Temporitzador: Set a 1-hour, 4-hour, or 8-hour timer for automatic shutdown.

Imatge: The remote control and a smartphone screen displaying the mobile application interface for controlling the fan. This shows the various control options available.

Control d'aplicacions mòbils

Download the compatible mobile application (refer to the packaging or a QR code in the physical manual for app details). Follow the in-app instructions to pair your fan. The app provides similar controls to the remote, including fan speed, light settings, and scheduling.

• Maridatge: The video shows a "PAIR CODE" step, indicating a pairing process for the app. Follow the app's instructions for successful pairing.

Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del ventilador de sostre.

• Neteja: Turn off power before cleaning. Use a soft, damp drap per netejar les aspes del ventilador i la carcassa del motor. No utilitzeu productes de neteja abrasius ni dissolvents.
• Inspecció: Periodically check all connections and mounting hardware to ensure they are secure.
• Panell de llum: The LED light panel is integrated and generally does not require replacement. If issues arise, contact customer support.

Resolució de problemes

Si teniu problemes amb el ventilador, consulteu els següents problemes i solucions habituals:

Especificacions

Garantia i Suport

This product comes with a limited warranty. For detailed warranty information, product support, or to purchase replacement parts, please refer to the warranty card included in your package or visit the official CROSSIO website. You can also contact customer service through your retailer.
