1. Introducció i finalview
The FLIR E6 Pro is a high-resolution commercial thermal imaging camera designed for professional use. It provides clear and detailed infrared images, making it an essential tool for identifying hidden faults and reducing diagnostic time in various applications, including building inspections and electrical system checks.
Equipped with advanced features like FLIR MSX0 technology and seamless integration with FLIR Ignite Cloud, the E6 Pro enhances efficiency and simplifies data management.
Figure 1: FLIR E6 Pro Thermal Imaging Camera
Característiques principals:
- High Resolution Infrared Sensor: 240 7 180 pixels (43,200 pixels) thermal resolution for precise thermal imaging.
- Ampli rang de temperatures: Measures temperatures from -200C to 5500C (-40F to 10220F).
- FLIR MSX0 Technology: Patented Multi-Spectral Dynamic Imaging (MSX) embosses visual details onto the thermal image, creating sharper and easier-to-understand pictures.
- FLIR Ignite Cloud Integration: Allows for automatic storage, editing, and sharing of images, with Over-The-Air (OTA) updates for continuous feature enhancements.
- 3.5-inch Color LCD Touchscreen: For intuitive navigation and image annotation.
- Connectivitat Wi-Fi: Enables rapid image transfer and data sharing.
- Llarga vida útil de la bateria: Up to 4 hours of continuous operation with interchangeable Lithium-Ion batteries.
Figura 2: Mésview of FLIR E6 Pro's core features including thermal resolution and temperature range.
2. Configuració
2.1 Desembalatge i inspecció inicial
Upon receiving your FLIR E6 Pro, carefully unpack all components. The package should include the infrared camera, a hard transport case, one Lithium-Ion battery, a USB supply/charger with EU, UK, US, and AU adapters, and software.
Figure 3: Included accessories: USB charger and international adapters.
2.2 Instal·lació i càrrega de la bateria
- Localitzeu el compartiment de la bateria a la càmera.
- Insert the included Lithium-Ion battery, ensuring it clicks into place.
- Connect the USB charger to the camera and a power outlet using the appropriate regional adapter. The battery indicator on the camera will show charging status.
- Allow the battery to fully charge before first use (approximately 2.5 hours).
2.3 Engegada/apagada
- Per engegar-lo, premeu i manteniu premut el botó d'engegada fins que la pantalla s'il·lumini.
- Per apagar-lo, manteniu premut el botó d'engegada fins que aparegui l'indicador d'apagada i, a continuació, confirmeu.
3. Instruccions de funcionament
3.1 Basic Operation and Image Capture
The FLIR E6 Pro is designed for convenient point-and-shoot image capture. Simply aim the camera at the target area and press the trigger button to capture a thermal image.

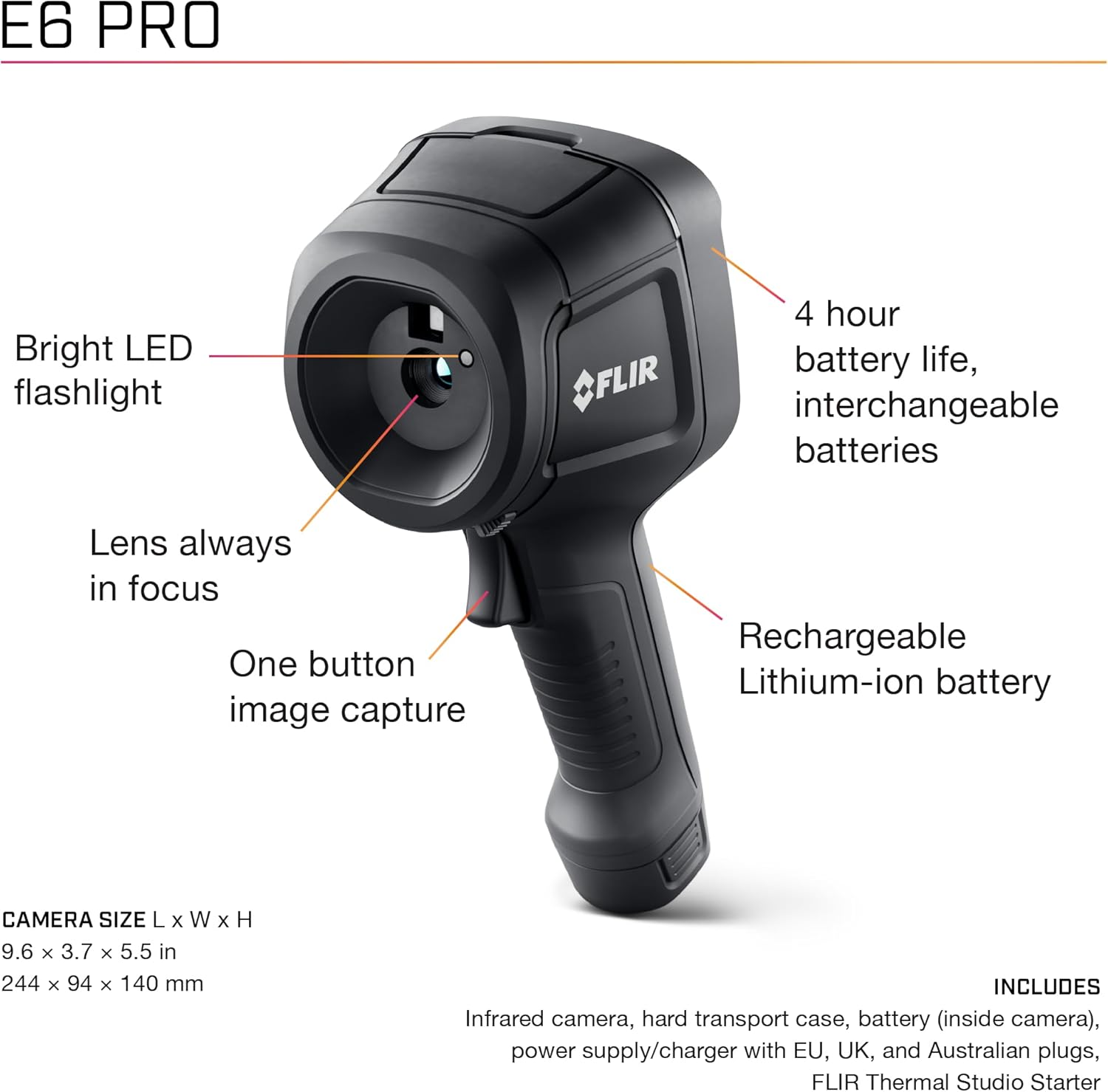

Figure 4: Key physical features including the one-button image capture trigger.
3.2 Understanding MSX0 Technology
FLIR's patented MSX0 technology enhances thermal images by overlaying key details from the visible light camera onto the infrared image. This provides a clearer understanding of the scene, making it easier to identify the source of thermal anomalies.
Video 1: FLIR E5, E6, & E8 Pro Series Overview. This video illustrates the benefits of MSX technology, showing how it helps quickly recognize problem areas by adding visual detail to thermal images.
3.3 Touchscreen Interface and Image Modes
The 3.5-inch color LCD touchscreen allows for intuitive navigation and setting adjustments. You can easily switch between different image modes to best suit your inspection needs:
- Tèrmica: Displays pure infrared images.
- MSX0: Combines thermal and visual details for enhanced clarity.
- Imatge dins d'imatge: Overlays a thermal image window on a full visual image.
- Càmera digital: Captures standard visual light images using the integrated 5 MP digital camera.
The touchscreen also supports 1-Touch Level/Span, allowing you to improve image contrast by simply touching an area of the screen, which auto-adjusts the level and span.

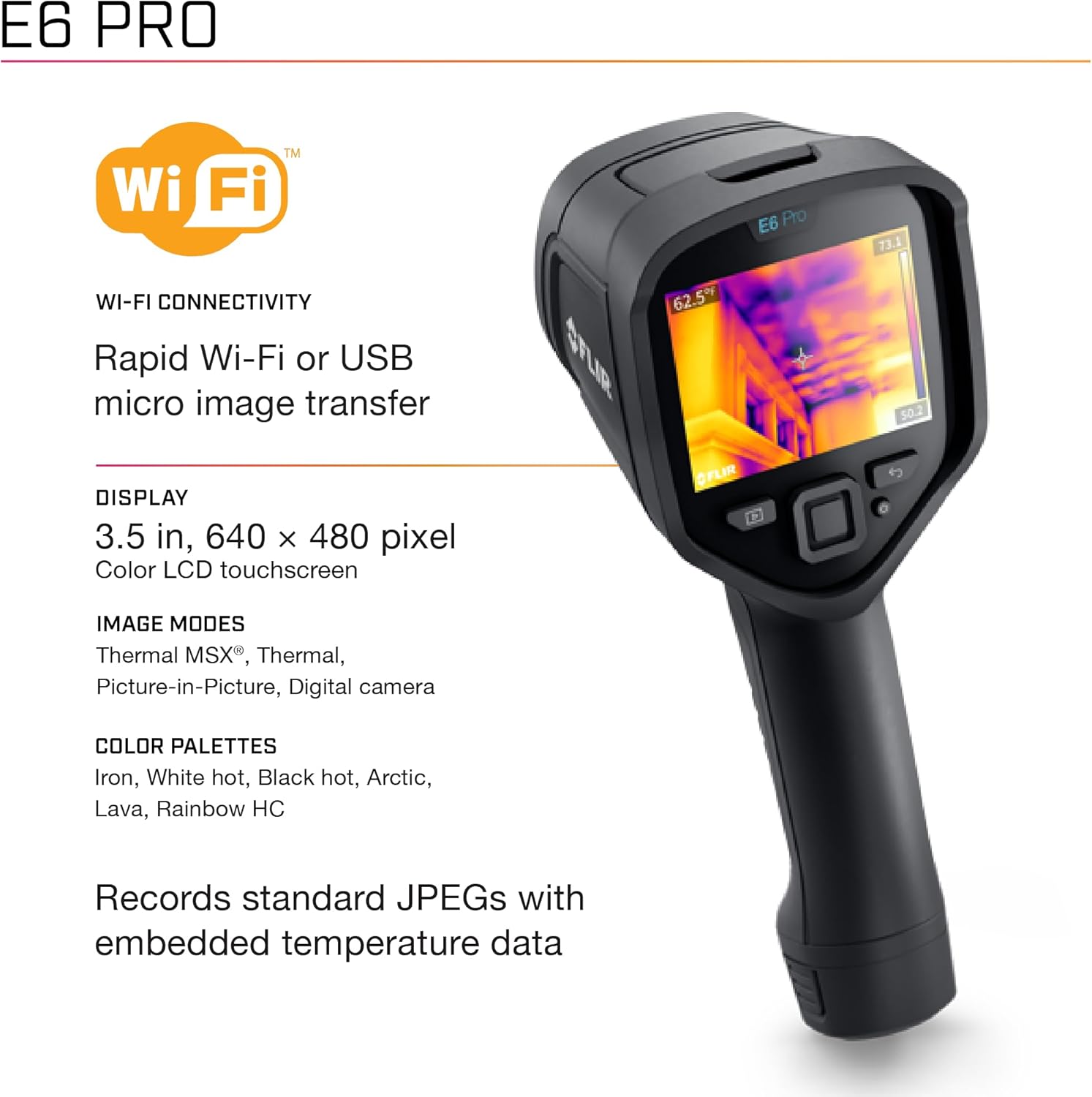

Figure 5: Details on Wi-Fi connectivity, display size, and available image modes.
Figure 6: Demonstrates the 1-Touch Level/Span feature for optimizing image contrast.
3.4 Paletes de colors
The FLIR E6 Pro offers several color palettes to visualize temperature differences. You can select the palette that best highlights the anomalies you are looking for:
- Ferro
- Blanc calent
- Negre calent
- Àrtic
- Lava
- Rainbow HC
3.5 Adding Annotations and Notes
You can add detailed notes directly on the touchscreen while inspecting, which helps in documenting findings and creating comprehensive reports.
Figure 7: Illustrates the touchscreen annotation feature for adding notes to images.
3.6 FLIR Ignite Cloud Integration
The FLIR E6 Pro seamlessly integrates with the FLIR Ignite Cloud platform. This allows you to:
- Upload images directly from the camera to the cloud.
- Store, edit, and organize your thermal images securely.
- Share images and create quick reports from anywhere.
3.7 Ús de la llanterna LED
The integrated bright LED flashlight assists in inspecting dark areas, ensuring clear visual context for your thermal images.
4. Manteniment
4.1 Cura de la bateria
- Always use the original FLIR charger and battery.
- Avoid fully discharging the Lithium-Ion battery frequently to prolong its lifespan.
- Store the camera and battery in a cool, dry place when not in use.
4.2 Neteja de la càmera
- Feu servir un drap suau i sense borrissol per netejar el cos de la càmera.
- For the lens and screen, use a lens cleaning solution and a microfiber cloth specifically designed for optics. Avoid abrasive materials.
5. Solució De Problemes
5.1 Problemes comuns i solucions
| Problema | Causa possible | Solució |
|---|---|---|
| La càmera no s'encén | Bateria baixa o descarregada | Charge the battery fully. Ensure battery is properly inserted. |
| Mala qualitat d'imatge | Dirty lens/screen, incorrect focus/settings | Clean the lens and screen. Adjust focus if available, or check image mode and palette settings. Ensure proper distance to object. |
| Problemes de connectivitat Wi-Fi | Incorrect network settings, signal interference | Verify Wi-Fi settings on camera and connected device. Move closer to the Wi-Fi source. Restart camera and device. |
| Camera freezes or is unresponsive | Error de programari | Feu un restabliment suau mantenint premut el botó d'engegada fins que es reiniciï. Si el problema persisteix, contacteu amb l'assistència tècnica. |
6. Especificacions
| Característica | Especificació |
|---|---|
| Model | FLIR E6 Pro |
| Resolució IR | 240 7 180 pixels (43,200 pixels) |
| Interval de temperatura | -20 °C a 550 °C (-4 °F a 1022 °F) |
| Precisió | 120C (13.60F) or 12% of reading |
| Sensibilitat tèrmica (NETD) | <0.060C (<60 mK) |
| Camp de View (FOV) | 290 7 210 |
| Distància mínima d'enfocament | 0.5 m (1.6 peus) |
| Càmera digital | 5 MP |
| Mostra | 3.5-inch, 640 7 480 pixel Color LCD Touchscreen |
| Modes d'imatge | Thermal, MSX0, Picture-in-Picture, Digital Camera |
| Mitjans d'emmagatzematge | Internal memory (stores >5000 images) |
| File Format | Standard JPEG with embedded temperature data |
| Connectivitat | Wi-Fi, USB |
| Tipus de bateria | Bateria recarregable de ions de liti |
| Temps de funcionament de la bateria | Aproximadament 4 hores d'ús continu |
| Temps de càrrega | De 2.5 hores a 90% de capacitat |
| Temperatura de funcionament | -15 °C a 50 °C (5 °F a 122 °F) |
| Temperatura d'emmagatzematge | -40 °C a 70 °C (-40 °F a 158 °F) |
| Test de caiguda | 2 m (6.6 peus) |
| Classificació IP | IP54 (IEC 60529) |
| Dimensions (L x A x A) | 9.6 x 3.7 x 5.5 polzades (244 x 94 x 140 mm) |
| Pes (amb bateria) | 1.27 lliures (0.575 kg) |
| País d'origen | Estònia |
7. Garantia i Suport
7.1 Garantia del producte
The FLIR E6 Pro comes with a comprehensive warranty:
- 2 anys: Parts and labor coverage on the camera.
- 10 anys: Coverage on the detector, which is the most vital part of the camera.
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
7.2 Atenció al client
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official FLIR support website or contact their customer service. Up-to-date contact information and resources can be found at www.flir.com/support/.
