Cradlepoint E3000 Cat 20 Router (5G Modem) with Wi-Fi Instruction Manual

Introducció

This manual provides instructions for the setup, operation, and maintenance of your Cradlepoint E3000 Cat 20 Router. The E3000 is designed for medium branches, offering flexible connectivity, reliable performance, and simplified management with integrated routing, security, and Wi-Fi capabilities. Please read this manual thoroughly before operating the device.

Contingut del paquet

• Cradlepoint E3000 Cat 20 (5G Modem) with Wi-Fi Router
• 3-year NetCloud Enterprise Mobile Essentials plan activation card
• Adaptador d'alimentació
• Cable Ethernet

Producte acabatview

The Cradlepoint E3000 router is a high-performance device designed for enterprise branch networks. It features integrated 5G and Cat 20 LTE connectivity, Wi-Fi 6, and advanced security features.

Panell frontal

This image displays the front panel of the Cradlepoint E3000 router. On the left, there are several LED indicators that provide status information for power, WAN connectivity, Wi-Fi, and cellular signal strength. On the right, there are two slots, typically for SIM cards, allowing for cellular connectivity.

Panell posterior

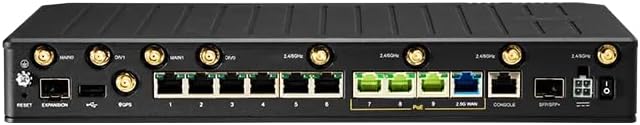

This image shows the rear panel of the Cradlepoint E3000 router. It features multiple antenna connectors (SMA type) for cellular and Wi-Fi antennas, a reset button, a console port, USB ports, several Ethernet LAN ports (some with PoE capability), and a 2.5G WAN port. There is also a power input connector and an on/off switch.

Característiques principals:

• Embedded 5G and Cat 20/18 LTE modem for rapid connectivity.
• Dual LTE connectivity for redundant wireless access.
• Standards-based dynamic routing and robust VPN tunnel support.
• Application-aware multi-zone firewalls, IDS/IPS, and Internet security features.
• Wi-Fi 6 support.

Configuració inicial

1. Desempaquetar el router: Traieu amb cura tots els components de l'embalatge.
2. Insert SIM Cards (if applicable): Locate the SIM card slots on the front panel. Insert your activated 5G/LTE SIM cards into the designated slots until they click into place.
3. Col·loca les antenes: Connect the cellular and Wi-Fi antennas to their respective connectors on the rear panel. Ensure they are securely tightened.
4. Connectar l'alimentació: Connecteu l'adaptador de corrent a l'entrada d'alimentació del router i després endolleu-lo a una presa de corrent.
5. Encès: Press the power button on the rear panel. The LED indicators on the front panel will illuminate as the device boots up.
6. Configuració inicial: Accedir al router web interface via an Ethernet connection or Wi-Fi. Refer to the NetCloud documentation for detailed configuration steps.

Instruccions de funcionament

Indicadors LED

The front panel LEDs provide status information:

• LED d'alimentació: Indica l'estat de l'alimentació (Encès/Apagat).
• LED WAN: Indicates WAN connectivity status.
• LED Wi-Fi: Indica activitat Wi-Fi.
• Cellular Signal Strength LEDs: Indica la intensitat del senyal cel·lular.

Dispositius de connexió

• Connexió per cable: Connect devices to the Ethernet LAN ports on the rear panel using standard Ethernet cables.
• Connexió sense fil: Connect devices to the Wi-Fi network using the SSID and password provided on the router's label or configured in the NetCloud Manager.

Gestió de NetCloud

The Cradlepoint E3000 is managed through Cradlepoint NetCloud. This platform allows for centralized endpoint management, configuration, monitoring, and analytics. For detailed instructions on using NetCloud, please refer to the official Cradlepoint NetCloud documentation available at Suport de Cradlepoint.

Manteniment

• Actualitzacions de firmware: Regularly check for and apply firmware updates through NetCloud Manager to ensure optimal performance and security.
• Neteja: Feu servir un drap suau i sec per netejar l'exterior del router. No utilitzeu netejadors líquids ni aerosols.
• Ventilació: Ensure the router is placed in a well-ventilated area to prevent overheating. Do not block ventilation openings.
• Condicions ambientals: Operate the device within recommended temperature and humidity ranges.

Resolució de problemes

Sense energia:

Ensure the power adapter is securely connected to both the router and a working power outlet. Check the power button on the rear panel.

Sense connexió a Internet (mòbil):

Verify that SIM cards are correctly inserted and activated. Check cellular signal strength LEDs. Ensure your NetCloud plan is active.

No Internet Connection (Wired WAN):

Ensure the Ethernet cable is securely connected to the 2.5G WAN port and your upstream modem/router. Check the WAN LED status.

Wi-Fi Not Broadcasting:

Check the Wi-Fi LED. Ensure Wi-Fi is enabled in the NetCloud Manager configuration.

Rendiment lent:

Check cellular signal strength. Ensure no other devices are consuming excessive bandwidth. Consider optimizing network settings via NetCloud Manager.

Restabliment del dispositiu:

To perform a factory reset, use a paperclip to press and hold the reset button on the rear panel for approximately 10 seconds while the device is powered on. Warning: This will erase all custom configurations.

Especificacions tècniques

Garantia i Suport

The Cradlepoint E3000 Router includes a limited lifetime warranty. Additionally, your purchase includes a 3-year NetCloud Enterprise Mobile Essentials plan, which provides 24x7 enterprise support and on-demand training via Cradlepoint University.

For further assistance, visit the official Cradlepoint support weblloc: www.cradlepoint.com/support.

Informació de seguretat

• No exposeu el dispositiu a l'aigua ni a la humitat.
• No obriu el dispositiu casing. Servicing should only be performed by authorized personnel.
• Utilitzeu només l'adaptador d'alimentació subministrat amb el dispositiu.
• Assegureu-vos una ventilació adequada per evitar el sobreescalfament.
• Mantingueu el dispositiu lluny de fonts de calor i de la llum solar directa.
• Elimineu els residus electrònics de manera responsable d'acord amb la normativa local.
