classy leaves Black Outdoor Wall Lights

classy leaves Black Outdoor Wall Lights Instruction Manual

Model: Black Outdoor Wall Lights

1. Producte acabatview

The classy leaves Black Outdoor Wall Light is a modern farmhouse-style rectangular light fixture designed for exterior use. It features a durable metal framework with a textured black finish and clear glass panels, providing an elegant aesthetic and warm illumination. The open-bottom design facilitates easy bulb installation and replacement. This fixture is suitable for various outdoor spaces including front entrances, patios, garages, hallways, and porches.

classy leaves Black Outdoor Wall Light installed on a white house exterior

Image 1.1: The classy leaves Black Outdoor Wall Light, showcasing its modern rectangular design with clear glass and a black frame, installed on a house exterior.

1.1 Contingut del paquet

Si us plau, comproveu que tots els components siguin presents abans de començar la instal·lació.

  • 1 x Outdoor Light Fixture
  • 1 x Complete Accessories Kit (mounting hardware)
  • 1 x manual d'instruccions

Nota: An E26 base bulb (maximum 60W) is no inclòs i s'han de comprar per separat.

2. Informació de seguretat

Read all instructions carefully before installation and retain for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

  • ADVERTIMENT: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installing or servicing.
  • Ensure the electrical rating of the fixture is compatible with your power supply.
  • All wiring connections must be in accordance with local and national electrical codes (NEC). If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
  • No instal·leu en superfícies que no siguin estructuralment sòlides.
  • No supereu la potència màximatage especificat per a la bombeta (60 W).
  • This fixture is designed for outdoor use only and is waterproof.

3. Configuració i instal·lació

This section provides general guidelines for installing your outdoor wall light. Refer to the detailed user manual included in the package for specific step-by-step instructions and diagrams.

3.1 Eines necessàries (no incloses)

  • Tornavís (Phillips i Flathead)
  • Pelafils
  • Alicates
  • Cinta elèctrica
  • Escala (si cal)
  • Ulleres de seguretat

3.2 Passos d'instal·lació

  1. Apagueu l'alimentació: Before starting, ensure the power supply to the installation area is completely turned off at the circuit breaker or fuse box.
  2. Preparació de la superfície de muntatge: Assegureu-vos que la superfície de muntatge estigui neta, seca i estructuralment sòlida.
  3. Col·loqueu el suport de muntatge: Fixeu el suport de muntatge a la caixa de connexions amb els cargols proporcionats.
  4. Connexions de cable:
    • Connect the ground wire (usually bare copper or green) from the fixture to the ground wire from the junction box.
    • Connecteu el cable blanc (neutre) del dispositiu al cable blanc de la caixa de connexions.
    • Connecteu el cable negre (en directe) del dispositiu al cable negre de la caixa de connexions.
    • Assegureu totes les connexions amb femelles i cinta elèctrica.
  5. Fixació de muntatge: Carefully align the fixture with the mounting bracket and secure it with the provided screws.
  6. Instal·leu la bombeta: Insert one E26 base bulb (max 60W, not included) into the socket. The open-bottom design allows for easy access.
  7. Restaura l'alimentació: Un cop finalitzada i segura la instal·lació, restableix l'alimentació a l'interruptor.

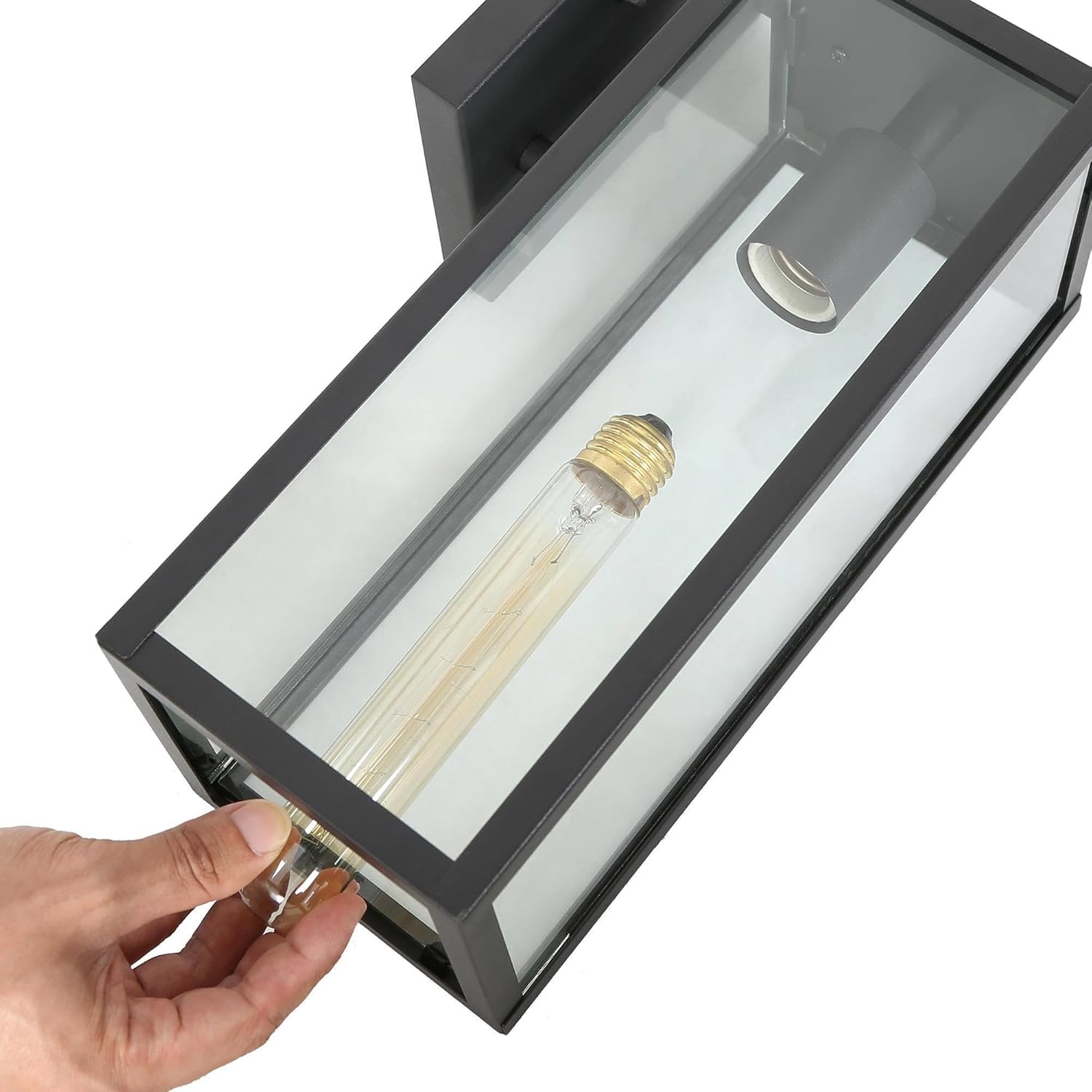

Hand installing an E26 bulb into the open bottom of the outdoor wall light

Image 3.1: A hand demonstrating the easy bulb installation into the E26 socket through the open bottom of the fixture.

4. Instruccions de funcionament

The classy leaves Black Outdoor Wall Light operates via a standard wall switch connected to your home's electrical system.

  • Activació/desactivació: Feu servir l'interruptor de paret connectat per encendre o apagar el llum.
  • Funcionalitat d'atenuació: If used with a compatible dimmer switch (not included) and a dimmable E26 bulb, the fixture offers full dimming capabilities. Follow the dimmer switch manufacturer's instructions for operation.

5. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre aplique exterior.

  • Neteja:
    • Assegureu-vos que l'alimentació estigui apagada abans de netejar.
    • Netegeu l'aparell amb un drap suauamp cloth. Avoid abrasive cleaners or solvents that may damage the finish or glass.
    • Clean the clear glass panels periodically to maintain optimal light output.
  • Substitució de bombetes:
    • Turn off power before replacing the bulb.
    • Deixeu que la bombeta es refredi completament abans de tocar-la.
    • Unscrew the old E26 bulb and screw in a new one (max 60W).
  • Weather Resilience: The fixture is crafted from high-quality metal materials and is designed to withstand various outdoor elements, including sun, rain, snow, and water spray. No special weather-proofing maintenance is typically required beyond regular cleaning.
Outdoor wall light in rainy weather, with icons indicating anti-rust, sturdy frame, and weather resistance

Image 5.1: The outdoor wall light demonstrating its weather resilience, featuring anti-rust properties, a sturdy frame, and resistance to various weather conditions.

6. Solució De Problemes

If you encounter issues with your outdoor wall light, refer to the following common troubleshooting steps.

ProblemaCausa possibleSolució
La llum no s’encén.
  • El circuit està tallat.
  • La bombeta està solta o cremada.
  • Connexió de cablejat incorrecta.
  • Comproveu l'interruptor i assegureu-vos que hi hagi corrent.
  • Tighten or replace the E26 bulb.
  • Turn off power and recheck wiring connections. Consult an electrician if unsure.
La llum parpelleja.
  • Bombeta solta.
  • Interruptor regulador o bombeta incompatible.
  • Premeu la bombeta.
  • Ensure both the bulb and dimmer switch are compatible for dimming.
La funció de regulació de la llum no funciona.
  • Non-dimmable bulb installed.
  • Non-compatible dimmer switch.
  • Replace with a dimmable E26 bulb.
  • Ensure a compatible dimmer switch is installed.

7. Especificacions

Detailed technical specifications for the classy leaves Black Outdoor Wall Light.

CaracterísticaDetall
Marcafulles amb classe
Nom del modelBlack Outdoor Wall Lights
ColorNegre amb textura
MaterialVidre, metall
EstilMasia Moderna
Dimensions del producte5.1 cm de llargada x 7.5 cm d'amplada x 14.2 cm d'alçada
Pes de l'article4.4 lliures
Ús interior/exteriorA l'aire lliure
Font d'alimentacióAC
Tipus d'instal·lacióMuntatge de paret
Característica especialImpermeable
Tipus de font de llumLED (compatible, bulb not included)
Material d'ombraVidre transparent
Nombre de fonts de llum1
Voltage120 Volts
Wattage (màxim)60 watts
Base del bulbE26
Nivell de resistència a l'aiguaImpermeable
CertificacióETL
Muntatge obligatori
Diagram showing the dimensions of the outdoor wall light: 14 inches high, 5 inches wide, 7.5 inches deep from wall, with a 4.5 inch wide canopy.

Image 7.1: Dimensional diagram of the outdoor wall light, illustrating its height, width, and depth from the mounting surface.

8. Garantia i Suport

The classy leaves Black Outdoor Wall Light comes with a 2-year limited warranty. This warranty covers defects in materials and workmanship under normal use.

  • Període de garantia: 2 anys des de la data de compra.
  • Cobertura: Defectes de fabricació en materials i mà d'obra.
  • Exclusions: Damage caused by improper installation, misuse, abuse, accidents, modifications, or normal wear and tear.

For warranty claims or technical support, please contact classy leaves customer service through the retailer where the product was purchased. Please have your purchase receipt and product model information ready.
